Model Electrolux 72-3657-00-13 RANGE – Common Parts & Diagrams

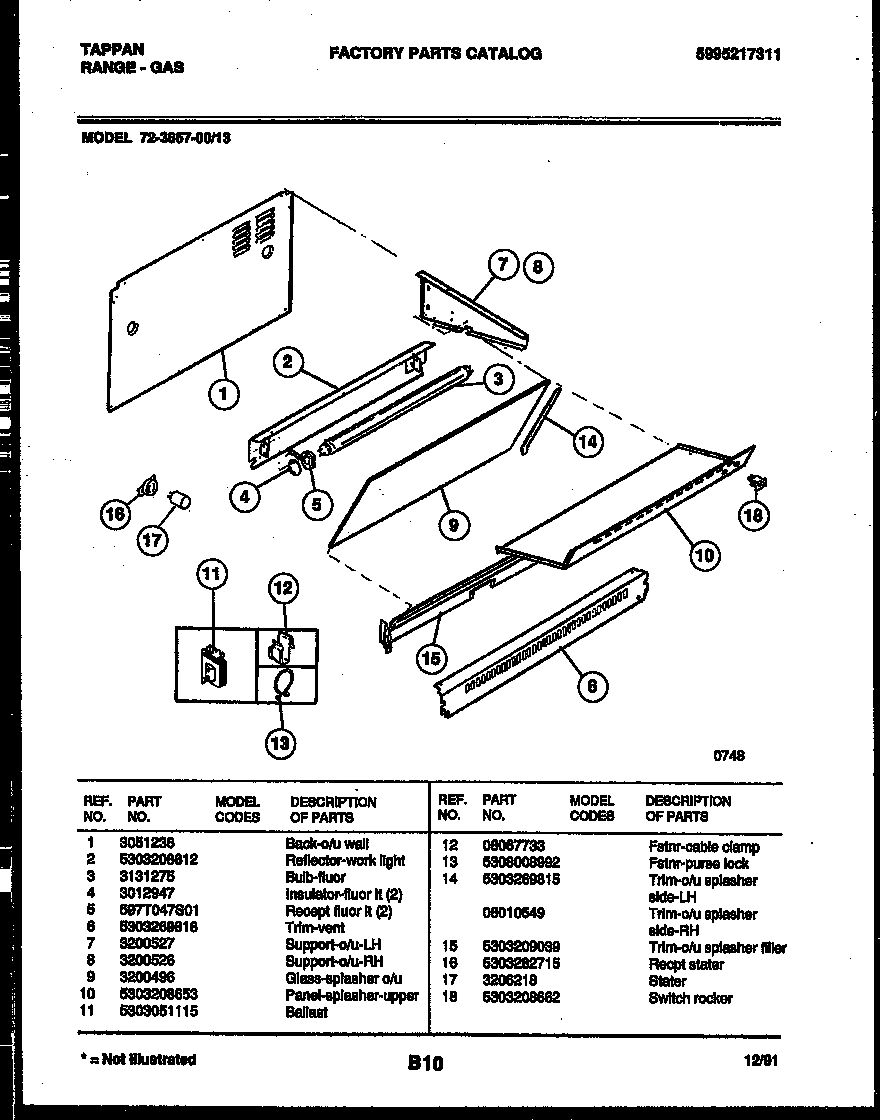

02 - SPLASHER CONTROL

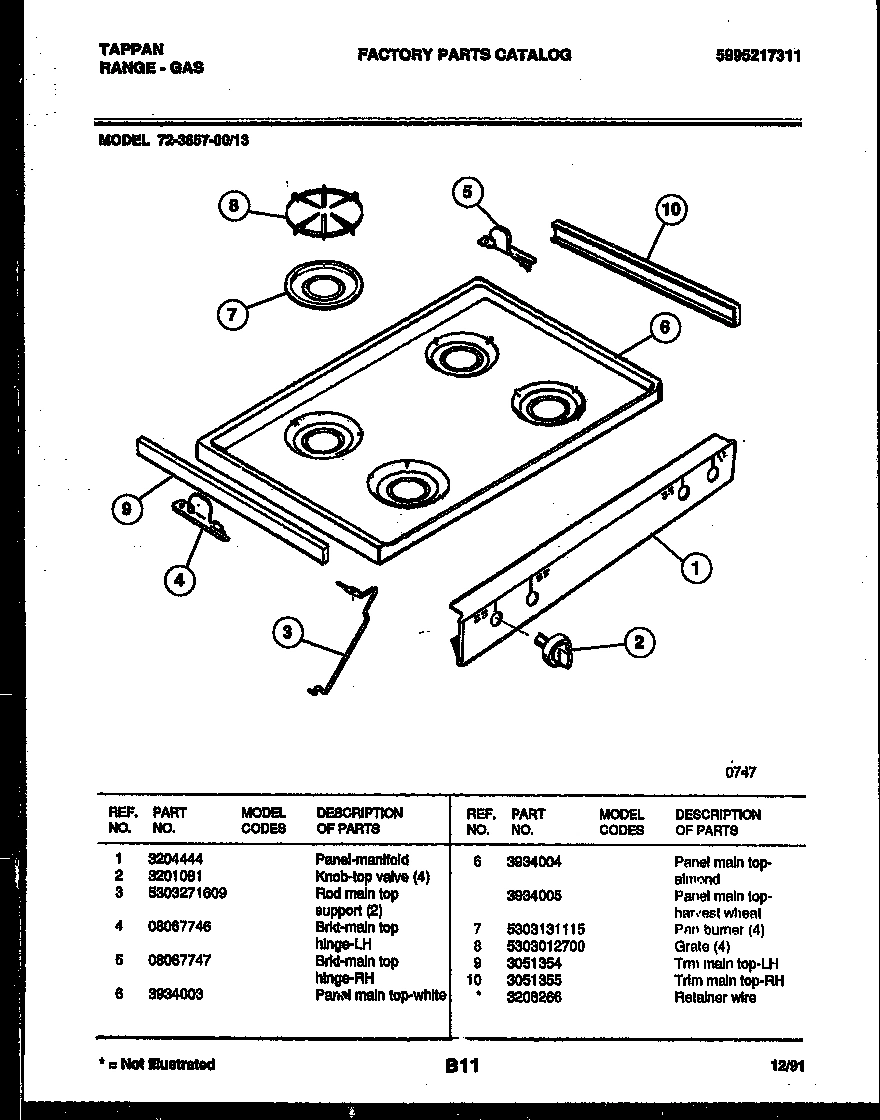

03 - COOKTOP PARTS

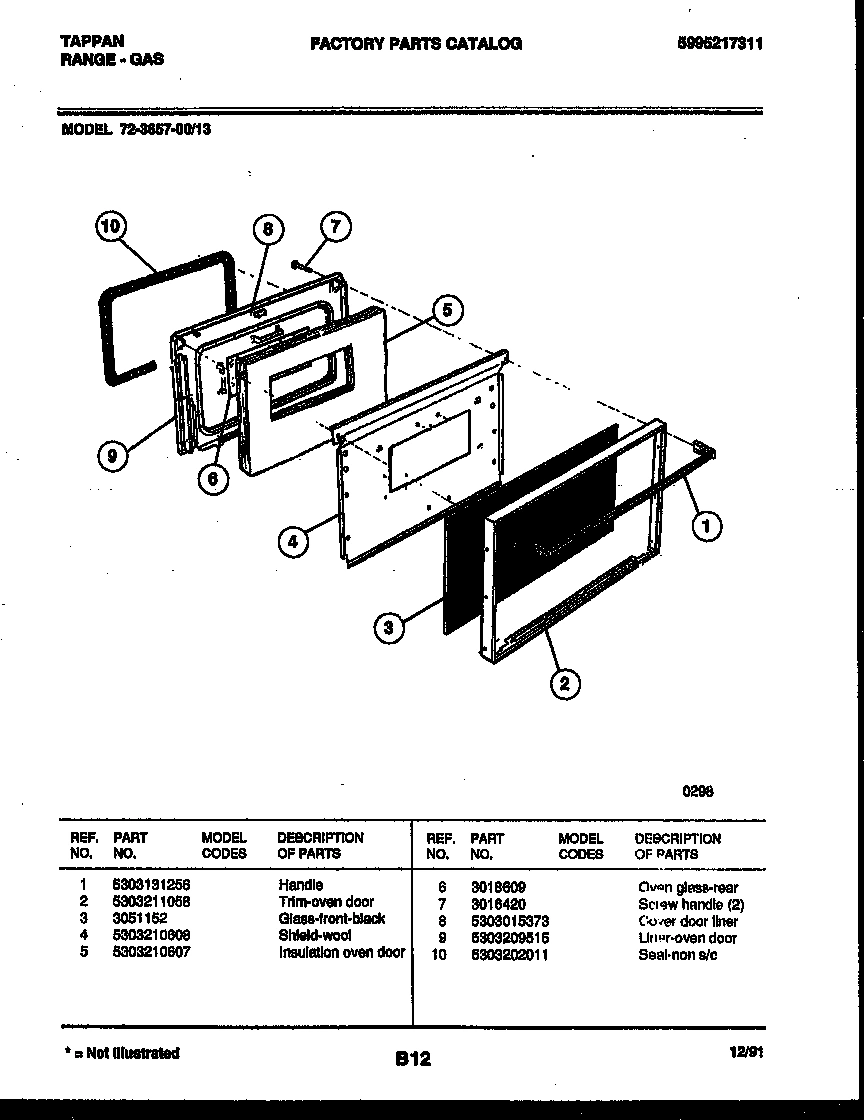

04 - LOWER OVEN DOOR PARTS

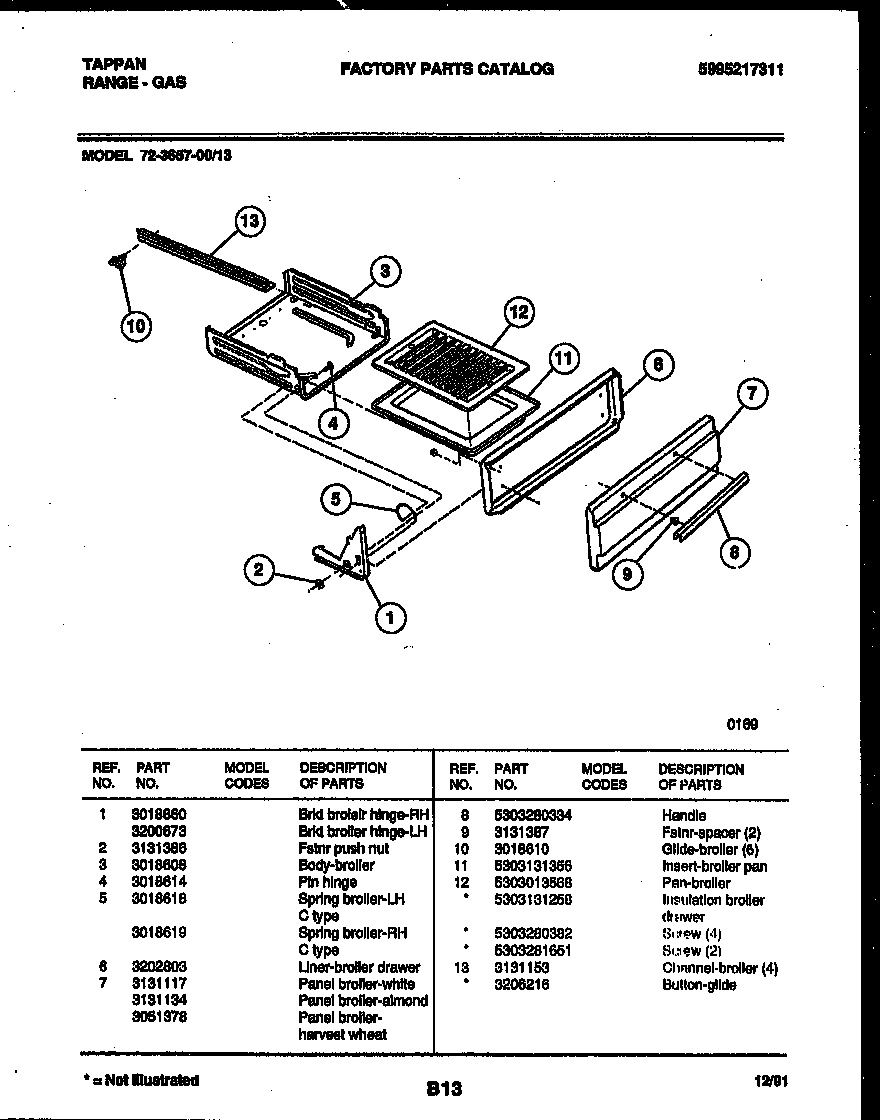

05 - BROILER DRAWER PARTS

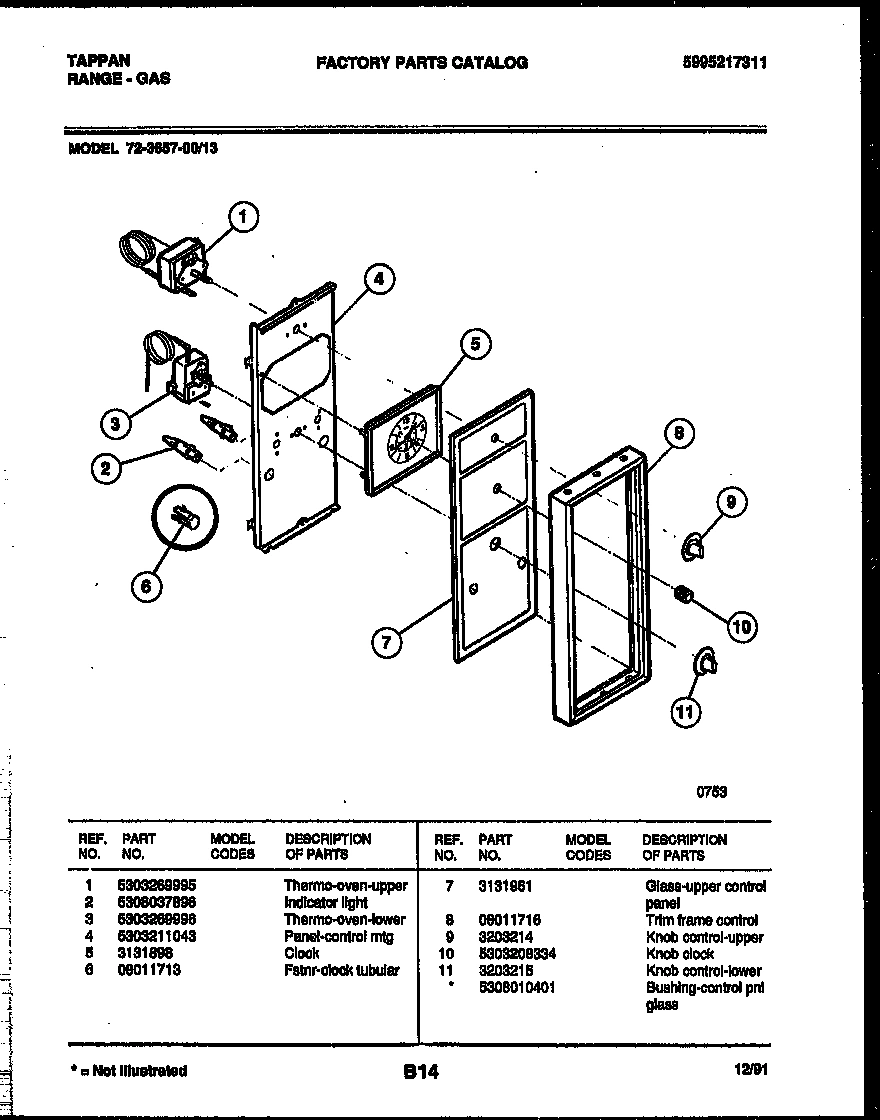

06 - CONTROL PANEL

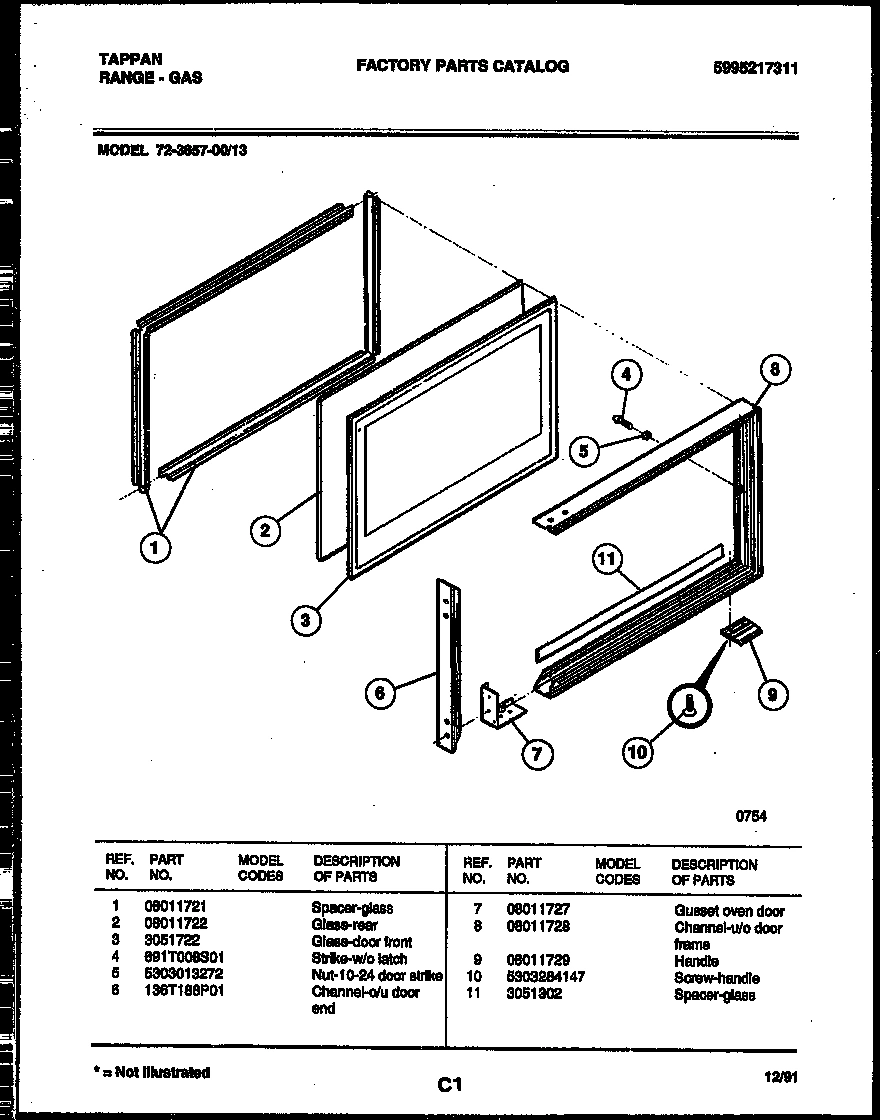

07 - UPPER OVEN DOOR PARTS

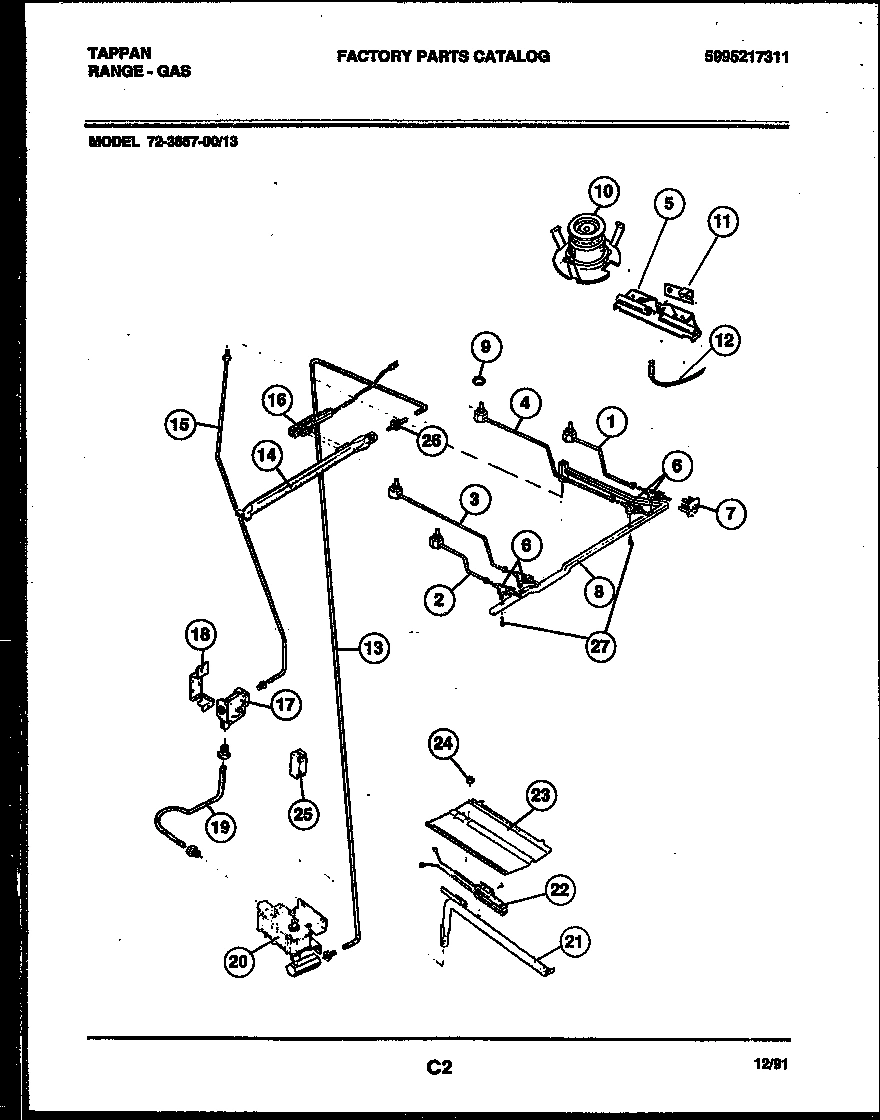

08 - BURNER, MANIFOLD AND GAS CONTROL

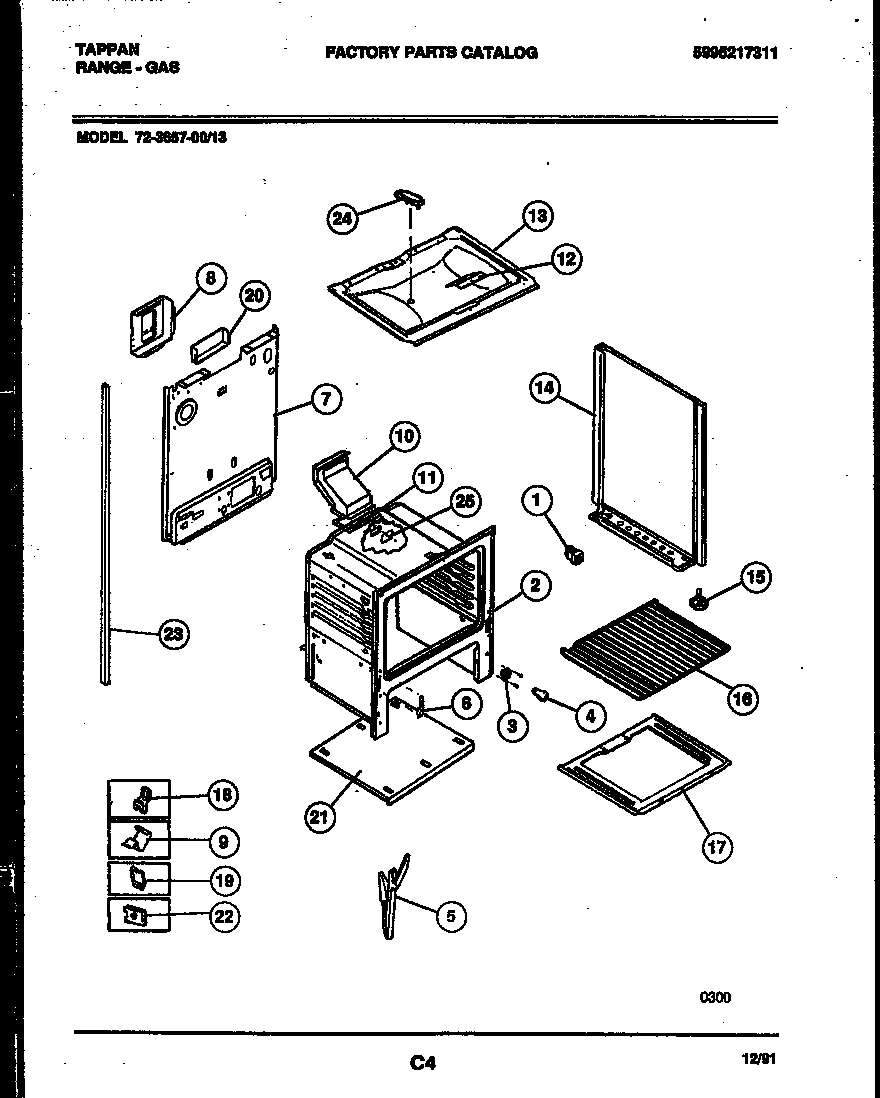

09 - LOWER BODY PARTS

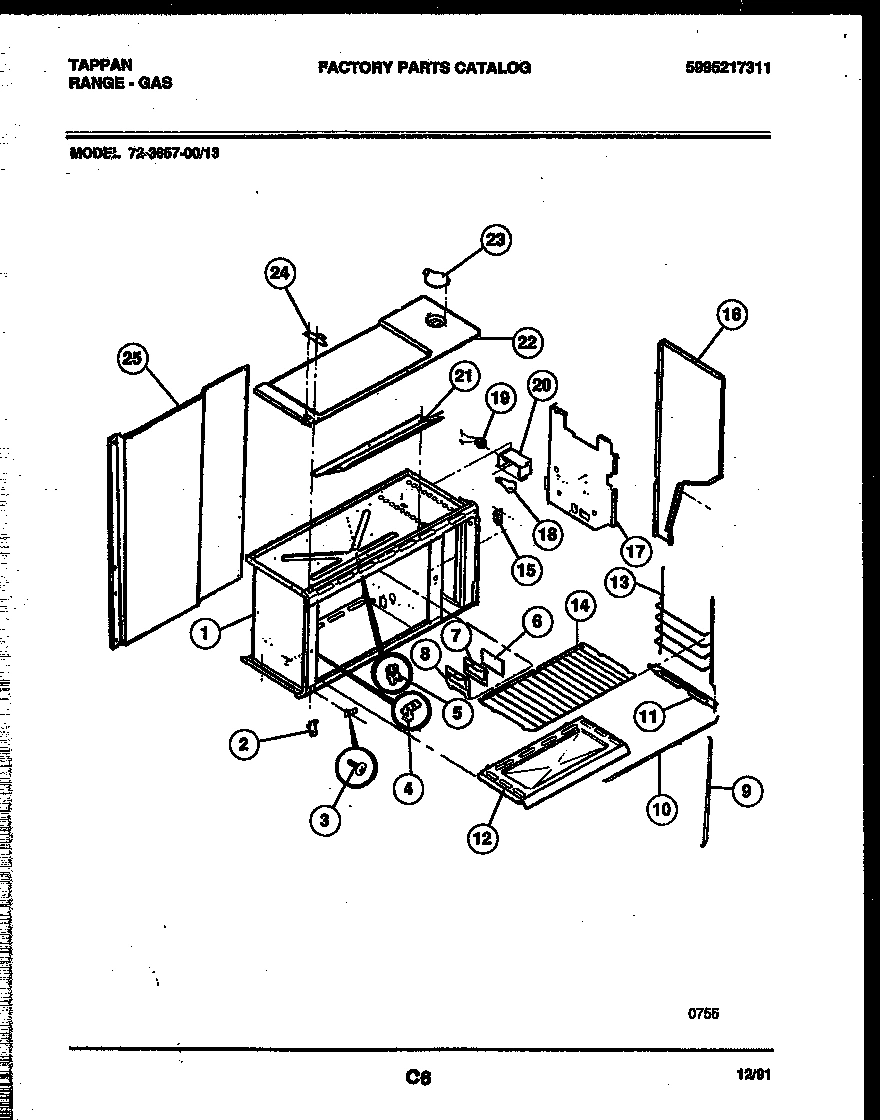

10 - UPPER BODY PARTS
Common parts from model Electrolux 72-3657-00-13 RANGE
*64226
WCI 3206216 WCI 3206216 Contact Us For Availability
*64228
BUSHING-CONTROL PNL GLASS WCI 5308010401 Contact Us For Availability
*64233
BRKT-OVEN BURNER SUPPORT WCI 3018603 Contact Us For Availability
*64233
BRKT MIXER WCI 3131637 Contact Us For Availability
*64234
WCI 3051420 WCI 3051420 Contact Us For Availability
*64246
BRKT CONNECTOR MTG WCI 3200500 Contact Us For Availability
*64247
INSULATION O/U UPPER OVEN WCI 3200509 Contact Us For Availability
*64247
INSULATION-WALL WCI 3200511 Contact Us For Availability
*64247
WCI 3204440 WCI 3204440 Contact Us For Availability
1
THERMO-OVEN-UPPER WCI 5303269995 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
HANDLE WCI 5303131256 Contact Us For Availability
1
BRKT BROIELR HINGE-RH WCI 3018860 Contact Us For Availability
1
WCI 08011721 WCI 08011721 Contact Us For Availability
1
WCI 5303283665 WCI 5303283665 Contact Us For Availability
1A
BRKT-BROILER HINGE (LH) WCI 3200673 Contact Us For Availability
2
WCI 08011722 WCI 08011722 Contact Us For Availability
2
WCI 5303211058 WCI 5303211058 Contact Us For Availability
2
FSTNR - PUSH NUT WCI 3131386 Contact Us For Availability
2
WCI 5308037896 WCI 5308037896 Contact Us For Availability
2
WCI 5303283666 WCI 5303283666 Contact Us For Availability
2
HINGE DOOR BOTTOM WCI 5303051166 Contact Us For Availability
3
BULB-FLUOR WCI 3131275 Contact Us For Availability
3
THERMO-OVEN-LOWER WCI 5303269996 Contact Us For Availability
3
GLASS-FRONT, BLACK WCI 3051152 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
WCI 3051722 WCI 3051722 Contact Us For Availability
3
WCI 5303283668 WCI 5303283668 Contact Us For Availability
3
SCREW BOTTOM HINGE WCI 636T070P02 Contact Us For Availability
4
BRKT-MAIN TOP HINGE LH WCI 08067746 Contact Us For Availability
4
WCI 5303210608 WCI 5303210608 Contact Us For Availability
4
WCI 3018614 WCI 3018614 Contact Us For Availability
4
PANEL-CONTROL MTG WCI 5303211043 Contact Us For Availability
4
WCI 691T008S01 WCI 691T008S01 Contact Us For Availability
4
WCI 5303283667 WCI 5303283667 Contact Us For Availability
4
PLATE-BOTTOM HINGE WCI 08011665 Contact Us For Availability
4A
RETAINER-BURNER UPPER (NON-ILLUSTRATED) WCI 3200519 Contact Us For Availability
5
BRKT-MAIN TOP HINGE RH WCI 08067747 Contact Us For Availability
5
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
5
WCI 3018618 WCI 3018618 Contact Us For Availability
5
WCI 3131898 WCI 3131898 Contact Us For Availability
5
WCI 3206267 WCI 3206267 Contact Us For Availability
5
CHANNEL-DOOR HINGE (2) WCI 5303131569 Contact Us For Availability
5A
WCI 3018619 WCI 3018619 Contact Us For Availability
6
PANEL-MAIN TOP-WHITE WCI 3934003 Contact Us For Availability
6
OVEN GLASS-REAR WCI 3018609 Contact Us For Availability
6
WCI 3202803 WCI 3202803 Contact Us For Availability
6
FSTNR-CLOCK TUBULAR WCI 08011713 Contact Us For Availability
6
CHANNEL O/U DOOR END WCI 136T188P01 Contact Us For Availability
6
VALVE-TOP-3 POS WCI 5303280597 Contact Us For Availability
6
COVER-HINGE CUTOUT (2) WCI 316007000 Contact Us For Availability
6
GLASS-OVEN LIGHT LENS WCI 08011668 Contact Us For Availability
7
SCREW - HANDLE (2) WCI 3016420 Contact Us For Availability
7
PANEL - BROILER WHITE WCI 3131117 Contact Us For Availability
7
GLASS-UPPER CONTROL PANEL WCI 3131961 Contact Us For Availability
7
GUSSET-OVEN DOOR WCI 08011727 Contact Us For Availability
7
IGNITOR-SWITCH WCI 5303280314 Contact Us For Availability
7
WCI 3203082 WCI 3203082 Contact Us For Availability
7
GASKET-OVEN LIGHT WCI 3200506 Contact Us For Availability
8
WCI 5303015373 WCI 5303015373 Contact Us For Availability
8
HANDLE WCI 5303280334 Contact Us For Availability
8
TRIM FRAME CONTROL WCI 08011716 Contact Us For Availability
8
CHANNEL-U/O DOOR FRAME WCI 08011728 Contact Us For Availability
8
WCI 5303271375 WCI 5303271375 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
8
WCI 08011669 WCI 08011669 Contact Us For Availability
9
HANDLE WCI 08011729 Contact Us For Availability
9
WCI 3051354 WCI 3051354 Contact Us For Availability
9
WCI 5303209515 WCI 5303209515 Contact Us For Availability
9
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
9
WCI 3203214 WCI 3203214 Contact Us For Availability
9
WCI 3013279 WCI 3013279 Contact Us For Availability
9
CLIP-WIRE WCI 3011813 Contact Us For Availability
9
SEAL-DOOR-SIDES (2) WCI 3201722 Contact Us For Availability
10
WCI 3051355 WCI 3051355 Contact Us For Availability
10
WCI 3018610 WCI 3018610 Contact Us For Availability
10
KNOB CLOCK WCI 5303208334 Contact Us For Availability
10
WCI 5303284147 WCI 5303284147 Contact Us For Availability
10
BURNER TOP (4) WCI 5303011567 Contact Us For Availability
10
WCI 3131904 WCI 3131904 Contact Us For Availability
10
SEAL-DOOR TOP/BTTM (2) WCI 3201721 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 3203215 WCI 3203215 Contact Us For Availability
11
WCI 3051302 WCI 3051302 Contact Us For Availability
11
RETAINER ELECTROS WCI 3018617 Contact Us For Availability
11
GLIDE-OVEN BOTTOM (2) WCI 3131616 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12
WCI 5303283573 WCI 5303283573 Contact Us For Availability
12
WCI 08067757 WCI 08067757 Contact Us For Availability
12
WCI 3200488 WCI 3200488 Contact Us For Availability
12A
INSULATION, BROILER DRAWER (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12B
SCREW (2) (NON-ILLUSTRATED) WCI 5303281651 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
TUBE ALUM U/O MIXER WCI 5303211073 Contact Us For Availability
13
WCI 3011597 WCI 3011597 Contact Us For Availability
13
GLIDE, OVEN RACK (2) WCI 280T021P05 Contact Us For Availability
14
BURNER-UPPER OVEN WCI 3200502 Contact Us For Availability
14
BODYSIDE-RH-WHITE WCI 5303269518 Contact Us For Availability
14
BODYSIDE-LH-WHITE WCI 5303269519 Contact Us For Availability
14
RACK-OVEN, FLAT WCI 08011675 Contact Us For Availability
15
WCI 5303203397 WCI 5303203397 Contact Us For Availability
15
TUBE-ALUM REG/MANIFOLD PIPE WCI 5303208495 Contact Us For Availability
15
WCI 08011680 WCI 08011680 Contact Us For Availability
16
WCI 5303200508 WCI 5303200508 Contact Us For Availability
16
PNL BODYSIDE-RH-WHITE WCI 3051263 Contact Us For Availability
16
PNL BODYSIDE-LH-WHITE WCI 5303269987 Contact Us For Availability
17
WCI 3206218 WCI 3206218 Contact Us For Availability
17
WCI 5303212540 WCI 5303212540 Contact Us For Availability
17
SHIELD-WOOL O/U SIDE WCI 5303208706 Contact Us For Availability
17A
INSULATION, WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
17B
WCI 3203541 WCI 3203541 Contact Us For Availability
18A
WCI 08067961 WCI 08067961 Contact Us For Availability
19
TUBE-ALUM VALVE/REGULATOR WCI 5303208494 Contact Us For Availability
20
WCI 5303280614 WCI 5303280614 Contact Us For Availability
20
BOX LIGHT WCI 08011684 Contact Us For Availability
21
WCI 5303131634 WCI 5303131634 Contact Us For Availability
21
WCI 5303270160 WCI 5303270160 Contact Us For Availability
21
WCI 3200505 WCI 3200505 Contact Us For Availability
21A
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
22
PANEL-TOP WCI 3131625 Contact Us For Availability
22A
COVER, FRONT MAIN (NON-ILLUSTRATED) WCI 5303015372 Contact Us For Availability
23
WCI 3203265 WCI 3203265 Contact Us For Availability
23
WCI 5303208642 WCI 5303208642 Contact Us For Availability
23
WCI 08067732 WCI 08067732 Contact Us For Availability
23A
TUBE-POST RH WCI 5303208643 Contact Us For Availability
24
WCI 3015371 WCI 3015371 Contact Us For Availability
24
HINGE-DOOR-TOP WCI 3131613 Contact Us For Availability
24A
INSULATION WOOL (NON-ILLUSTRATED) WCI 3200498 Contact Us For Availability
24C
ANTI, TIP BRACKET (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
24D
HOUSING OVEN LIGHT (NON-ILLUSTRATED) WCI 5303271606 Contact Us For Availability
25
WCI 3018607 WCI 3018607 Contact Us For Availability
25
BACK MAIN O/U WCI 3051236 Contact Us For Availability
26
BRACKET-REGULATOR WCI 5303211078 Contact Us For Availability
× ![]()
