Model Electrolux 72-3651-23-08 RANGE – Common Parts & Diagrams
01 - COVER

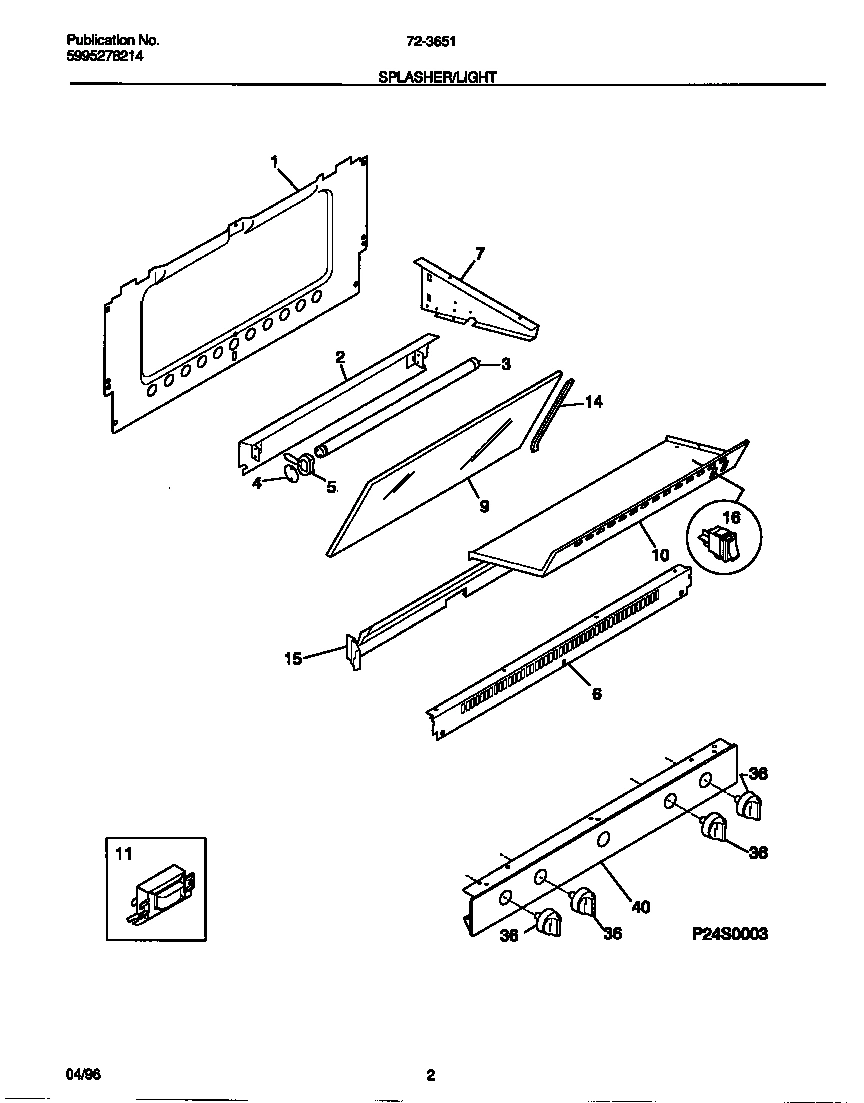

02 - SPLASHER/LIGHT

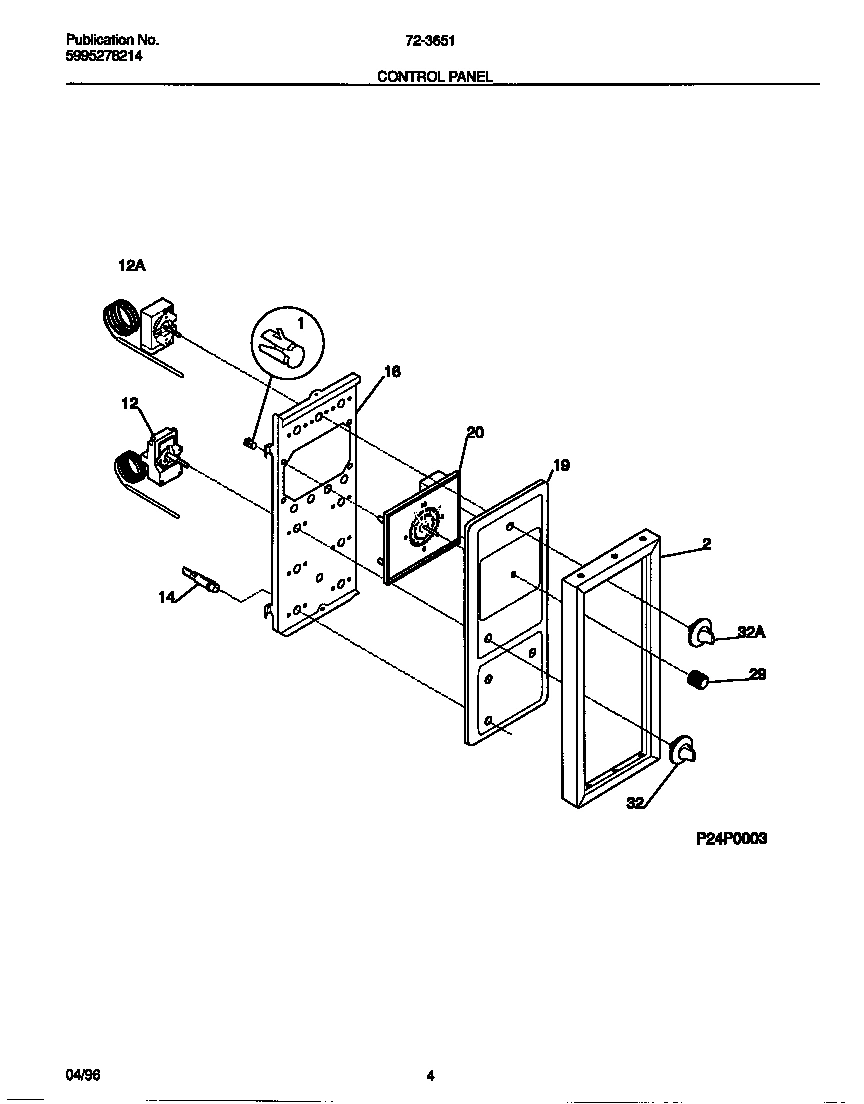

03 - CONTROL PANEL

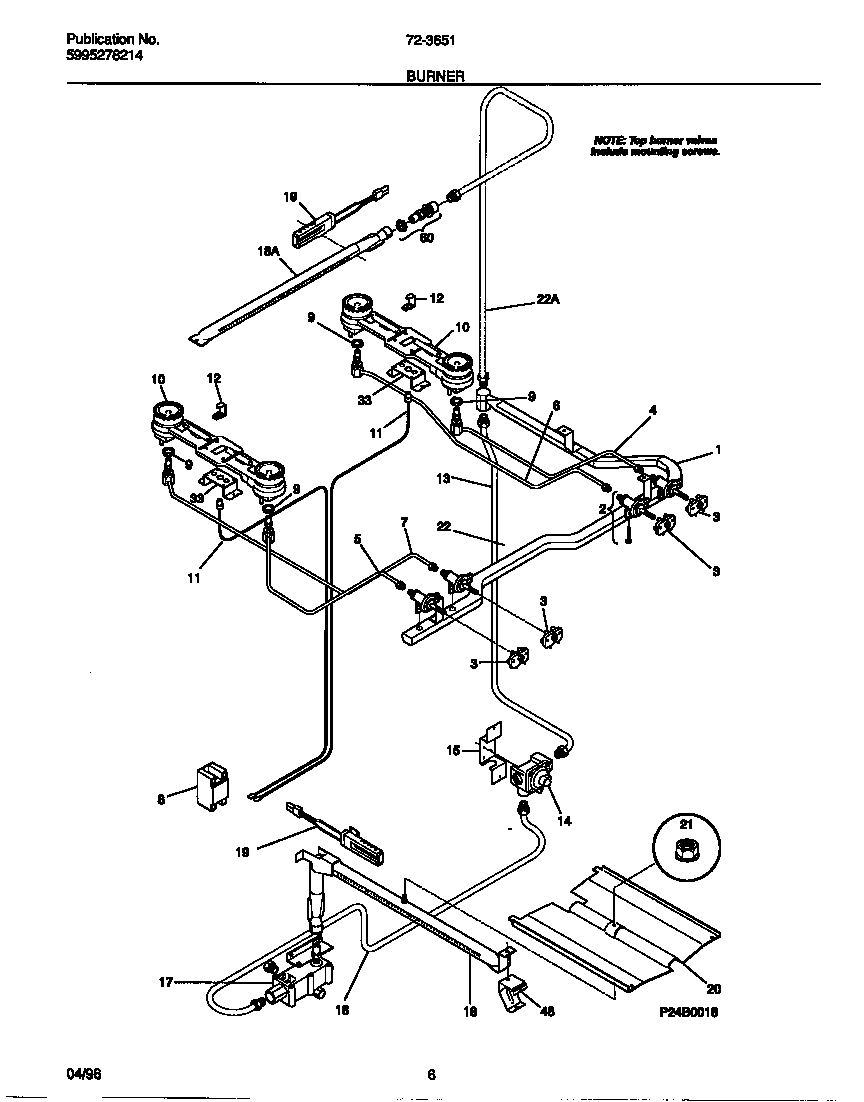

04 - BURNER

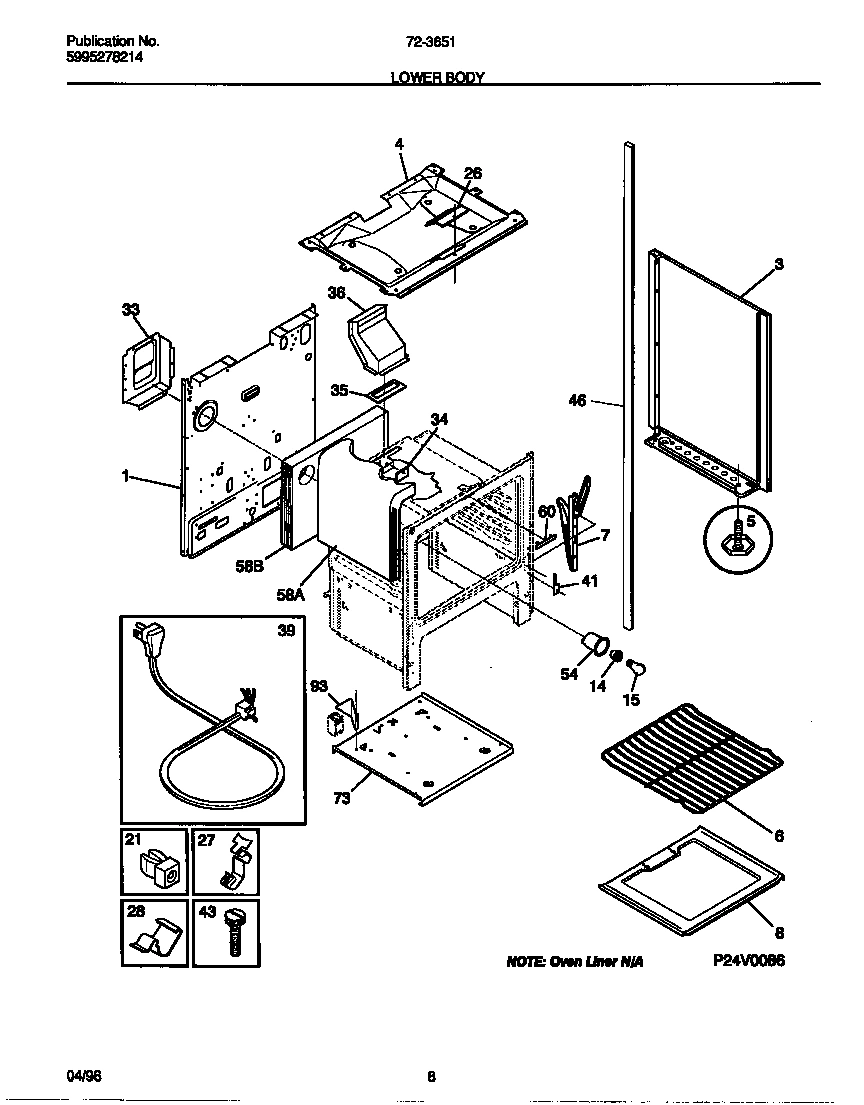

05 - LOWER BODY

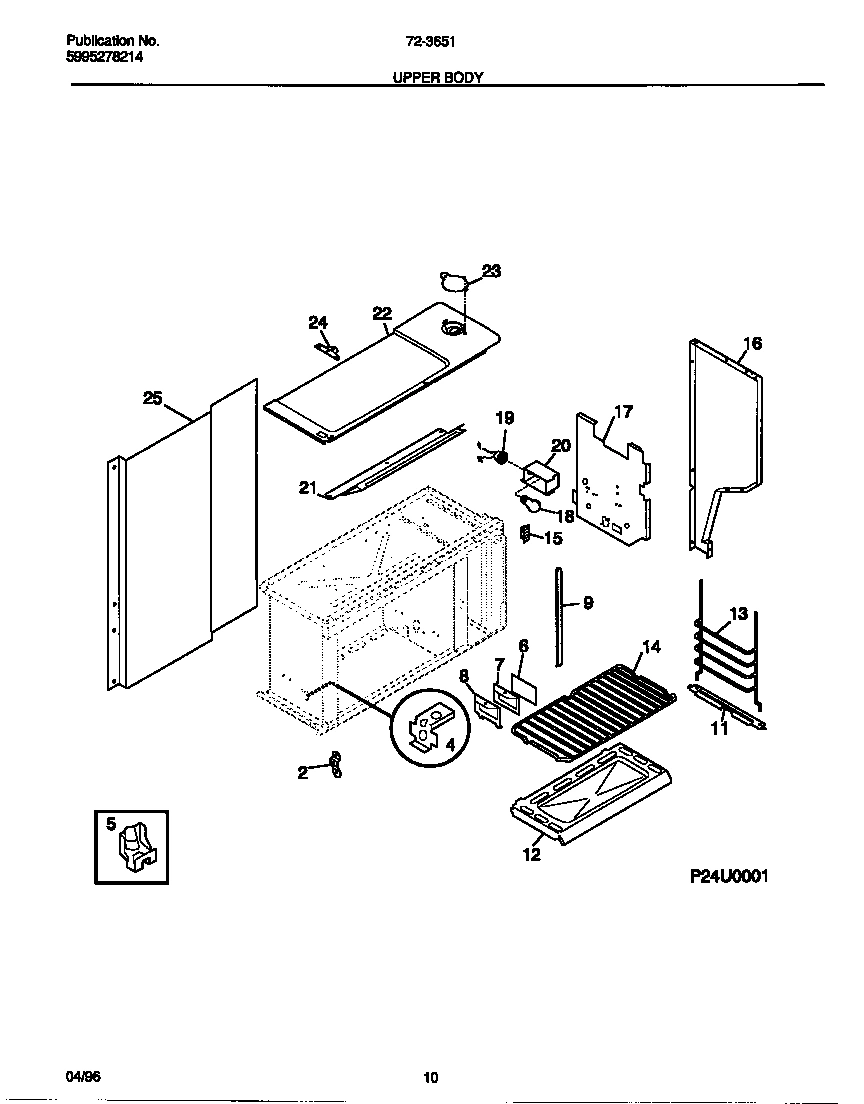

06 - UPPER BODY
07 - TOP/DRAWER

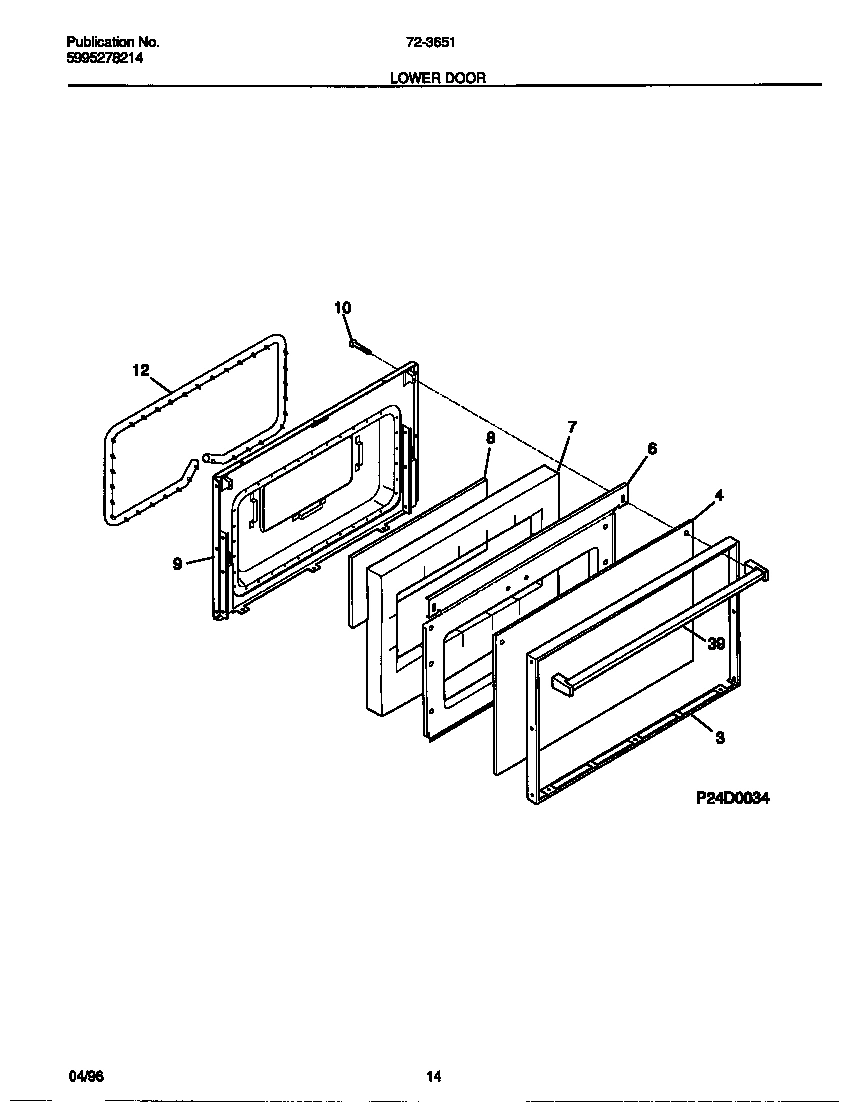

08 - LOWER DOOR

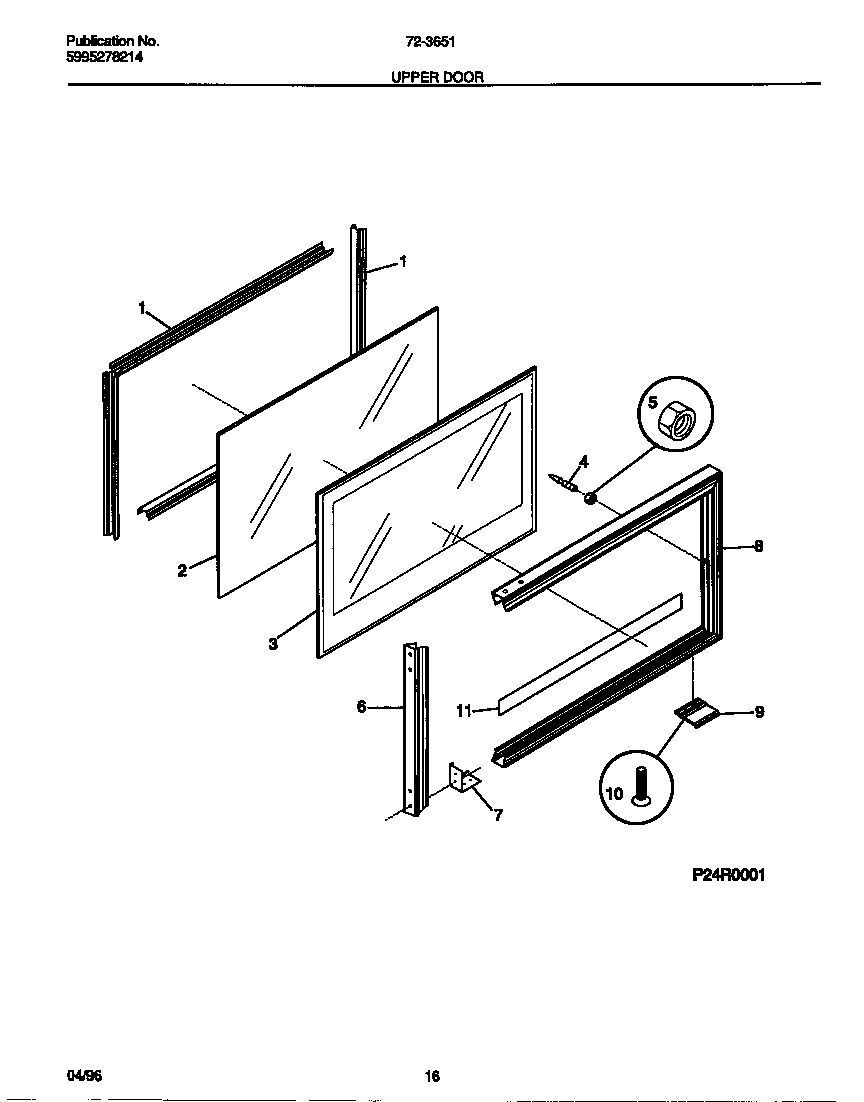

09 - UPPER DOOR

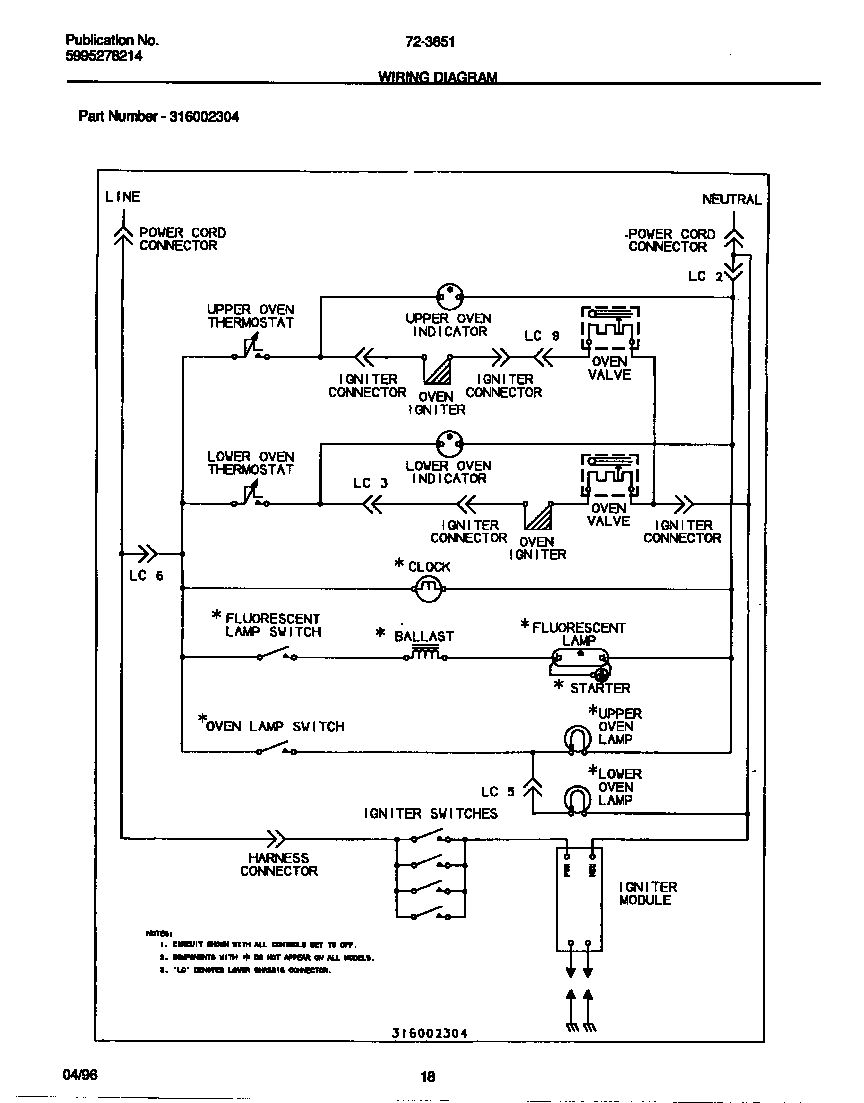

10 - WIRING DIAGRAM
Common parts from model Electrolux 72-3651-23-08 RANGE
*94201
STARTER-LAMP WCI 3206218 Contact Us For Availability
*94205
SHIELD-HEAT WCI 3131620 Contact Us For Availability
*94208
SHIELD - FLUE PROFILE WCI 5303280614 Contact Us For Availability
*94209
INSULATION-WOOL WCI 3200498 Contact Us For Availability
*94210
BRACKET-CONNECTOR WCI 3200500 Contact Us For Availability
*94211
INSULATION, UPPER OVN WCI 3200509 Contact Us For Availability
*94212
INSULATION, WOOL WCI 3200511 Contact Us For Availability
*94213
RETAINER, UPPER OVN BRNR WCI 3200519 Contact Us For Availability
*94214
REFLECTOR, ALUMINUM FOIL WCI 3204440 Contact Us For Availability
*94217
WCI 5303288444 WCI 5303288444 Contact Us For Availability
*94218
RIVET-POP, WARING-PLATE WCI 3203618 Contact Us For Availability
*94219
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
1
WCI 316029410 WCI 316029410 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
1
WCI 08011721 WCI 08011721 Contact Us For Availability
2
GLASS-OVEN DOOR, REAR WCI 08011722 Contact Us For Availability
2
HINGE-OVEN DOOR WCI 5303051166 Contact Us For Availability
2
LINER, BROILER DOOR WCI 3202803 Contact Us For Availability
3
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
3
LAMP-FLUORESCENT, BACKGUARD WCI 3131275 Contact Us For Availability
3
WCI 316081006 WCI 316081006 Contact Us For Availability
3
WCI 316081007 WCI 316081007 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
3
GLASS-OUTER DOOR, UPPER WCI 5303284806 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
4
WCI 3011597 WCI 3011597 Contact Us For Availability
4
PLATE-BOTTOM HINGE WCI 08011665 Contact Us For Availability
4
WCI 316056206 WCI 316056206 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 3051152 Contact Us For Availability
4
STRIKE-DOOR WCI 5303935001 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5C
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
GLASS-OVEN LIGHT LENS WCI 08011668 Contact Us For Availability
6
SHIELD-INSULATION, BLACK WCI 5303210608 Contact Us For Availability
6
CHANNEL, DOOR WCI 5303290772 Contact Us For Availability
7
GLIDE-BROILER WCI 3018610 No Longer Available
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
GASKET-OVEN LIGHT WCI 3200506 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
7
GUSSET-OVEN DOOR WCI 08011727 Contact Us For Availability
8
COVER-LIGHT, UPPER WCI 08011669 Contact Us For Availability
8
NUT, PUSH-ON, (2) WCI 3131386 Contact Us For Availability
8
WCI 316050303 WCI 316050303 Contact Us For Availability
8
CHANNEL, FRAME WCI 316013100 Contact Us For Availability
8A
WCI 5303300406 WCI 5303300406 Contact Us For Availability
9
WCI 08011729 WCI 08011729 Contact Us For Availability
9
WCI 5303934092 WCI 5303934092 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 316066603 WCI 316066603 Contact Us For Availability
10
WCI 316057100 WCI 316057100 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
10
WCI 5303284147 WCI 5303284147 Contact Us For Availability
11
GLIDE-OVEN RACK WCI 3131616 Contact Us For Availability
11
WCI 316066300 WCI 316066300 Contact Us For Availability
11
WCI 316066301 WCI 316066301 Contact Us For Availability
11
SPACER-DOOR WCI 3051302 Contact Us For Availability
12
THERMOSTAT-OVEN WCI 5303269995 Contact Us For Availability
12
THERMOSTAT-OVEN, LOWER WCI 5303269996 Contact Us For Availability
12
WCI 3200488 WCI 3200488 Contact Us For Availability
12
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
12
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
GLIDE-OVEN RACK WCI 08011674 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
14
RACK-OVEN, FLAT WCI 08011675 Contact Us For Availability
15
WCI 08011680 WCI 08011680 Contact Us For Availability
16
WCI 316065003 WCI 316065003 Contact Us For Availability
16
PANEL-BODYSIDE, ALMOND, RH WCI 3051264 Contact Us For Availability
16
PANEL-BODYSIDE, ALMOND, LH (NOT ILLUSTRATED) WCI 5303269989 Contact Us For Availability
16
MAIN TOP, ALMOND WCI 3131455 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
17
SHIELD-WOOL WCI 5303208706 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
BURNER-OVEN, UPPER WCI 3200502 Contact Us For Availability
18
WCI 5303131634 WCI 5303131634 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
19
WCI 316021203 WCI 316021203 Contact Us For Availability
19B
IGNITOR-OVEN, UPPER WCI 5303200508 Contact Us For Availability
20
WCI 5303272852 WCI 5303272852 Contact Us For Availability
20
WCI 5303288409 WCI 5303288409 Contact Us For Availability
20
BOX-LIGHT WCI 5303290773 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
WCI 3200505 WCI 3200505 Contact Us For Availability
22
TUBING-MIXER, UPPER WCI 316065001 Contact Us For Availability
22
PANEL-TOP, UPPER WCI 3131625 Contact Us For Availability
23
COVER-OUTLET WCI 08067732 Contact Us For Availability
24
WCI 5303290130 WCI 5303290130 Contact Us For Availability
24
WCI 3051354 WCI 3051354 Contact Us For Availability
24
WCI 3051355 WCI 3051355 Contact Us For Availability
25
WCI 5303290095 WCI 5303290095 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
CLIP-WIRE WCI 3011813 Contact Us For Availability
29
WCI 3018614 WCI 3018614 Contact Us For Availability
30
INSULATION, BROILER DRAWER WCI 5303131258 Contact Us For Availability
33
BRACKET BURNER MTG WCI 3200277 Contact Us For Availability
33
WCI 316055601 WCI 316055601 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
WCI 316023014 WCI 316023014 Contact Us For Availability
36
WCI 3131904 WCI 3131904 Contact Us For Availability
39
HANDLE-DRAWER/DOOR, BRUSHED CHROME WCI 5303280334 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 5303131256 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
46A
WCI 5303208642 WCI 5303208642 Contact Us For Availability
46B
TUBE-POST, RH (NOT ILLUSTRATED) WCI 5303208643 Contact Us For Availability
48
Bracket,support ,oven burner WCI 3018603 Contact Us For Availability
54
WCI 5303271606 WCI 5303271606 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
60
WCI 316070300 WCI 316070300 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
73
WCI 5303281627 WCI 5303281627 Contact Us For Availability
93
WCI 316055501 WCI 316055501 Contact Us For Availability
× ![]()
