Model Electrolux 72-2547-66-05 RANGE – Common Parts & Diagrams

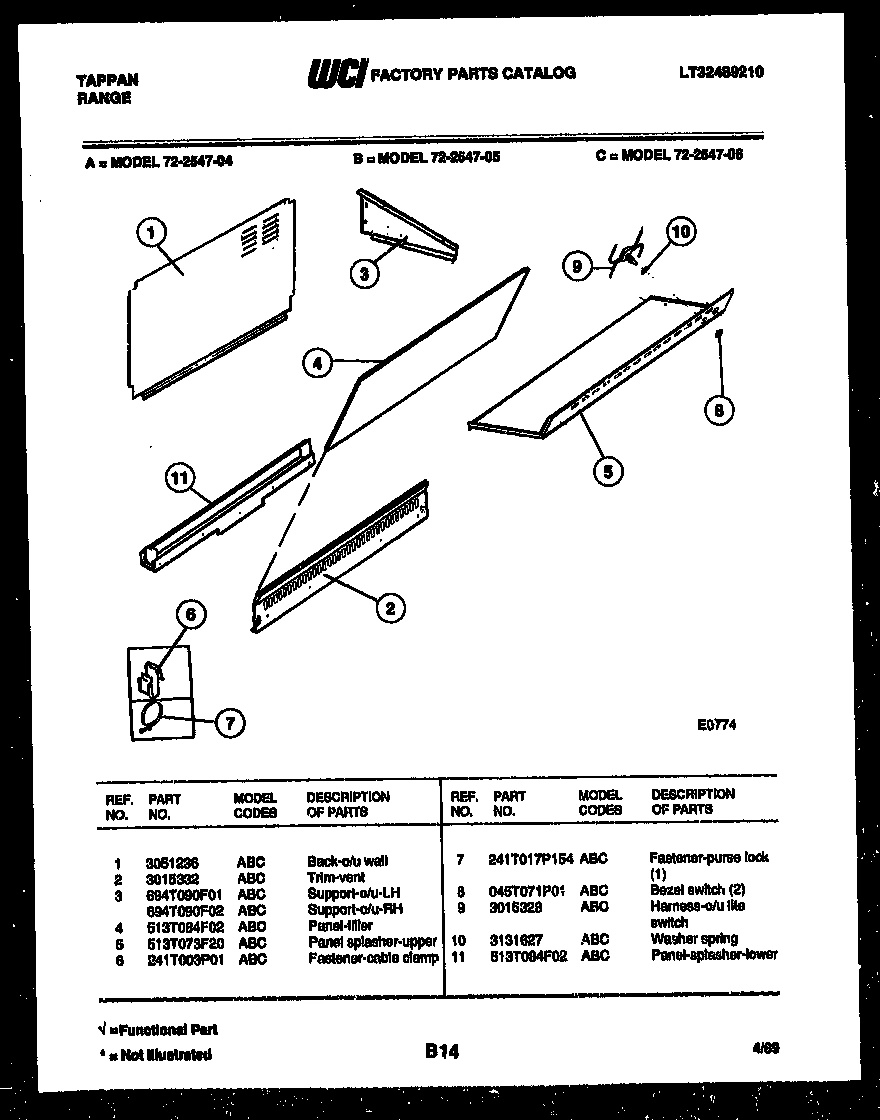

02 - SPLASHER CONTROL

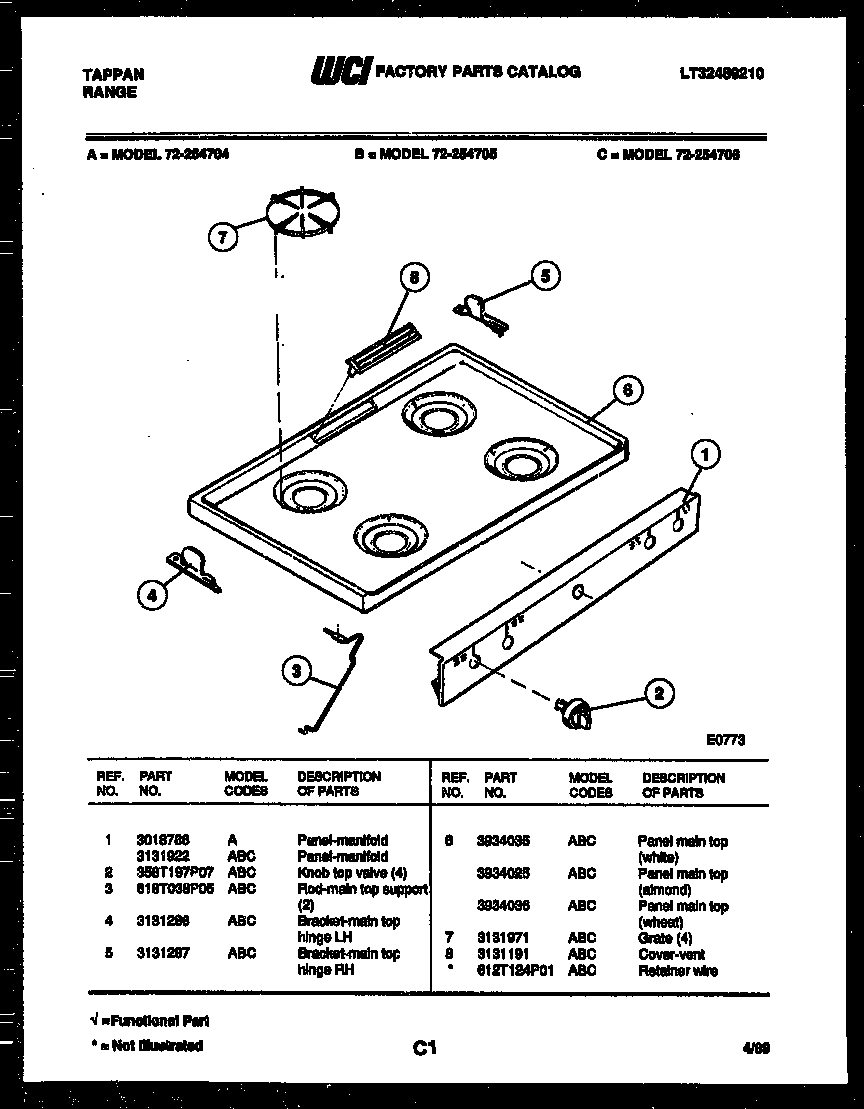

03 - COOKTOP PARTS

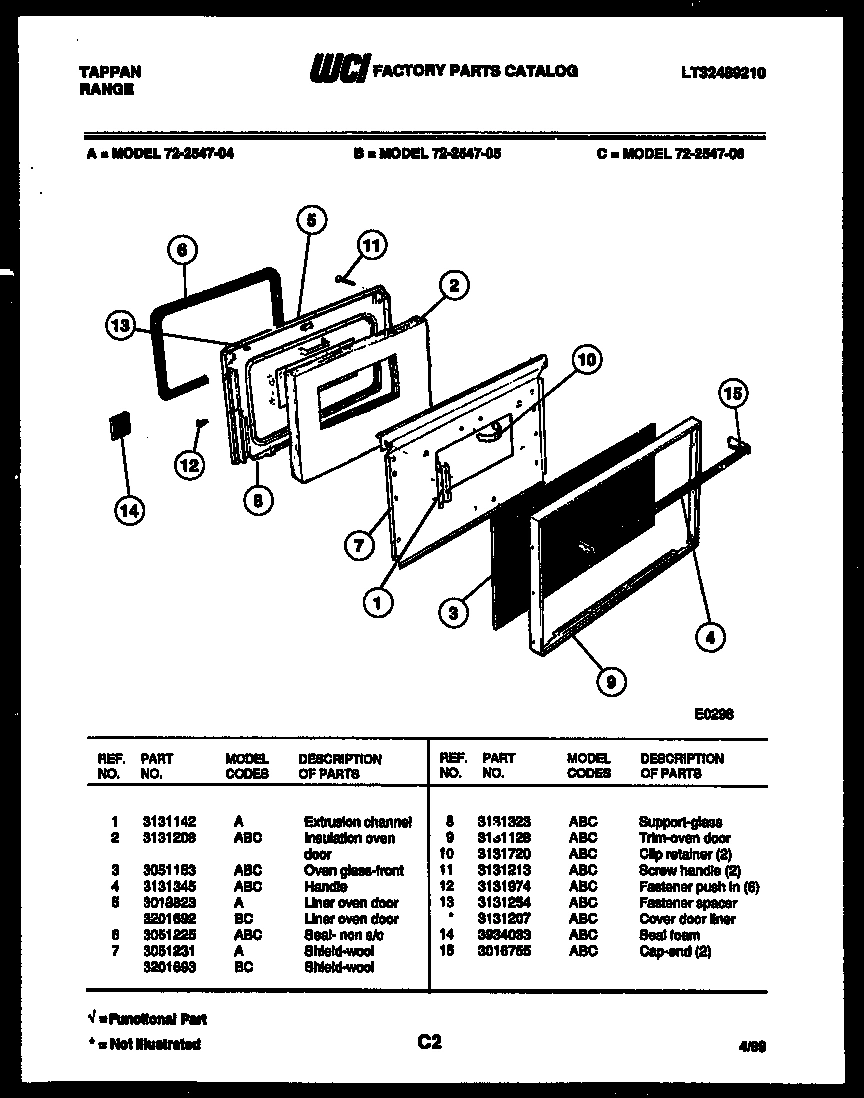

04 - LOWER OVEN DOOR PARTS

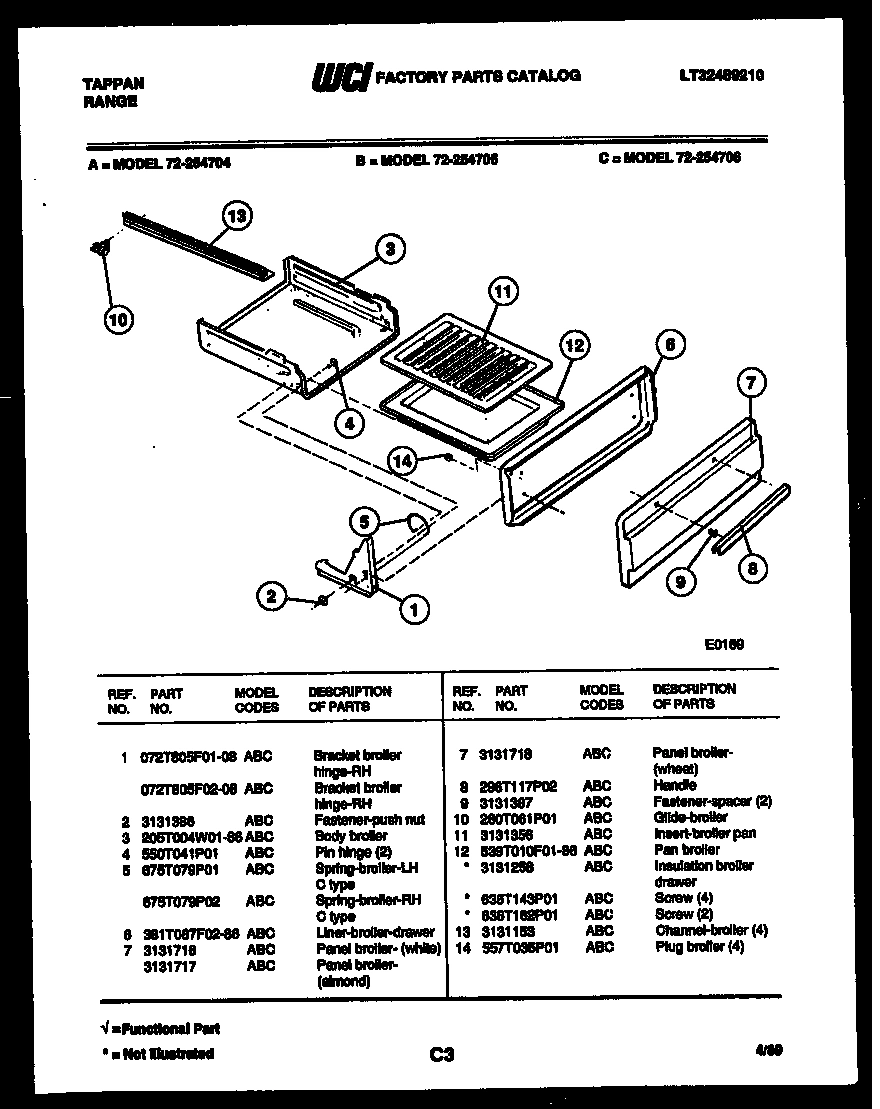

05 - BROILER DRAWER PARTS

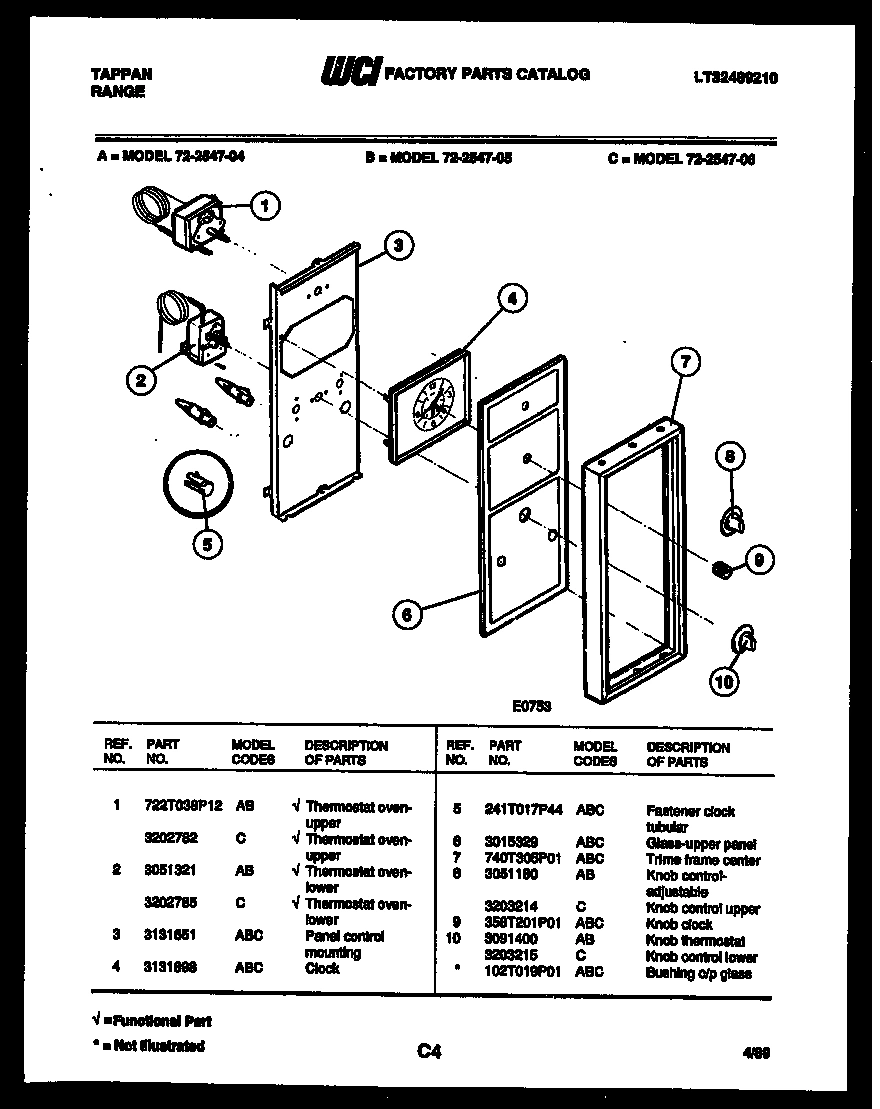

06 - CONTROL PANEL

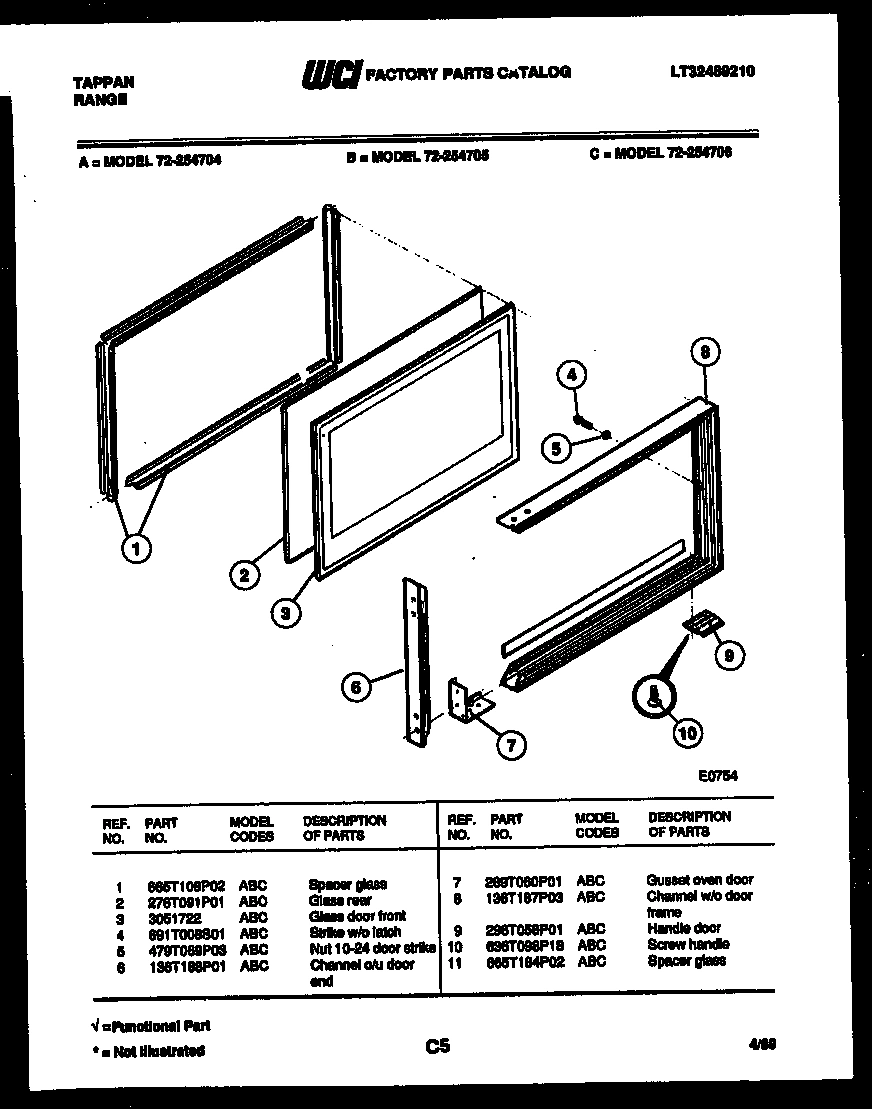

07 - UPPER OVEN DOOR PARTS

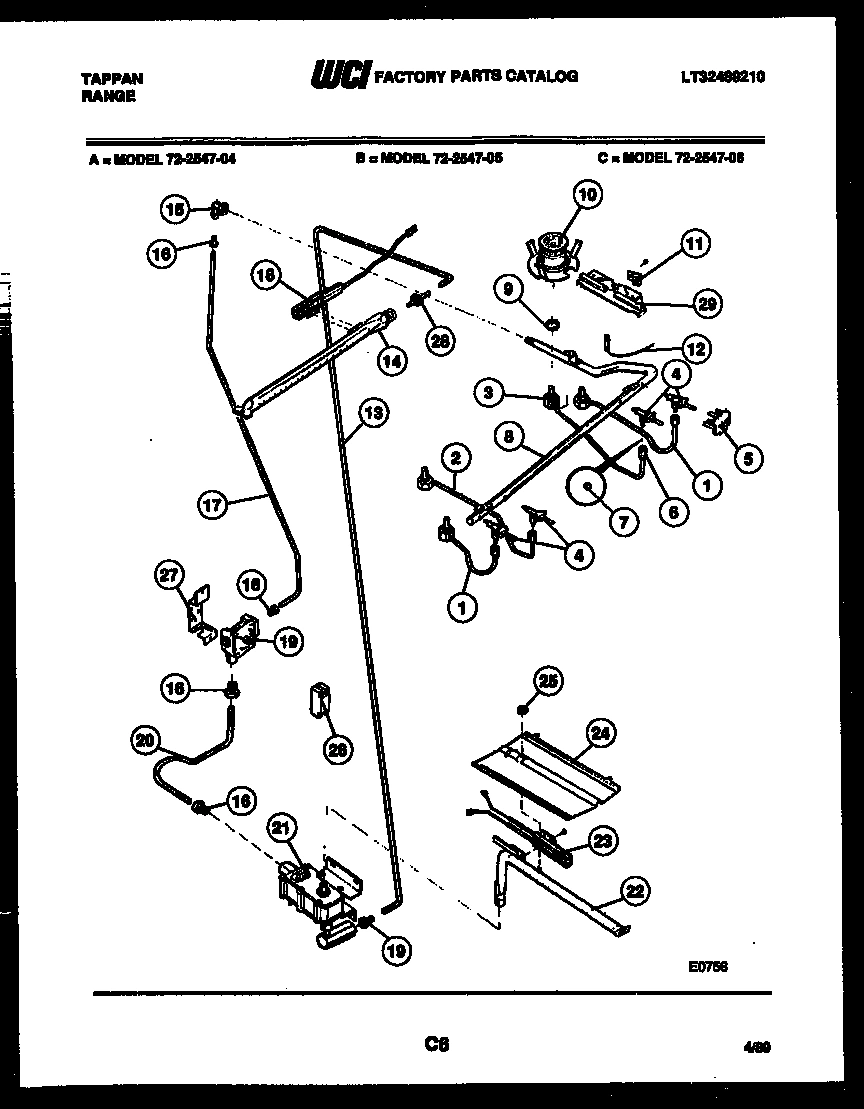

08 - BURNER, MANIFOLD AND GAS CONTROL

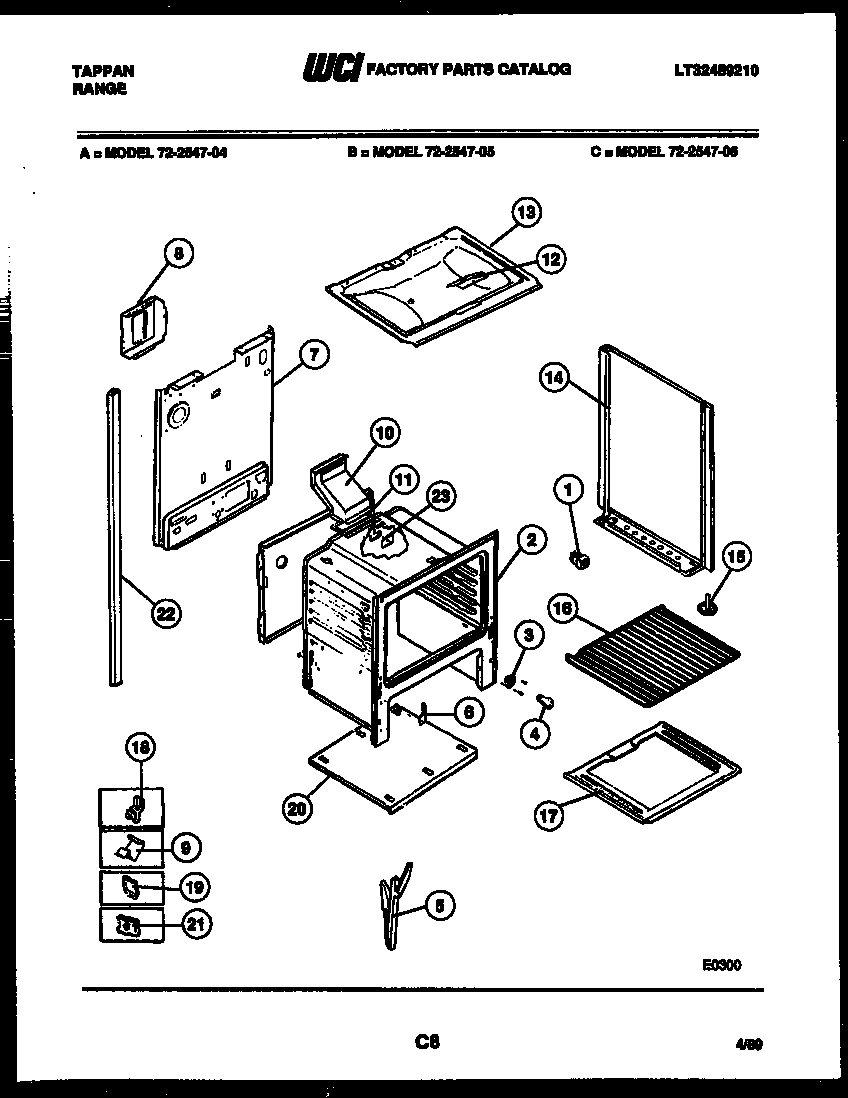

09 - LOWER BODY PARTS

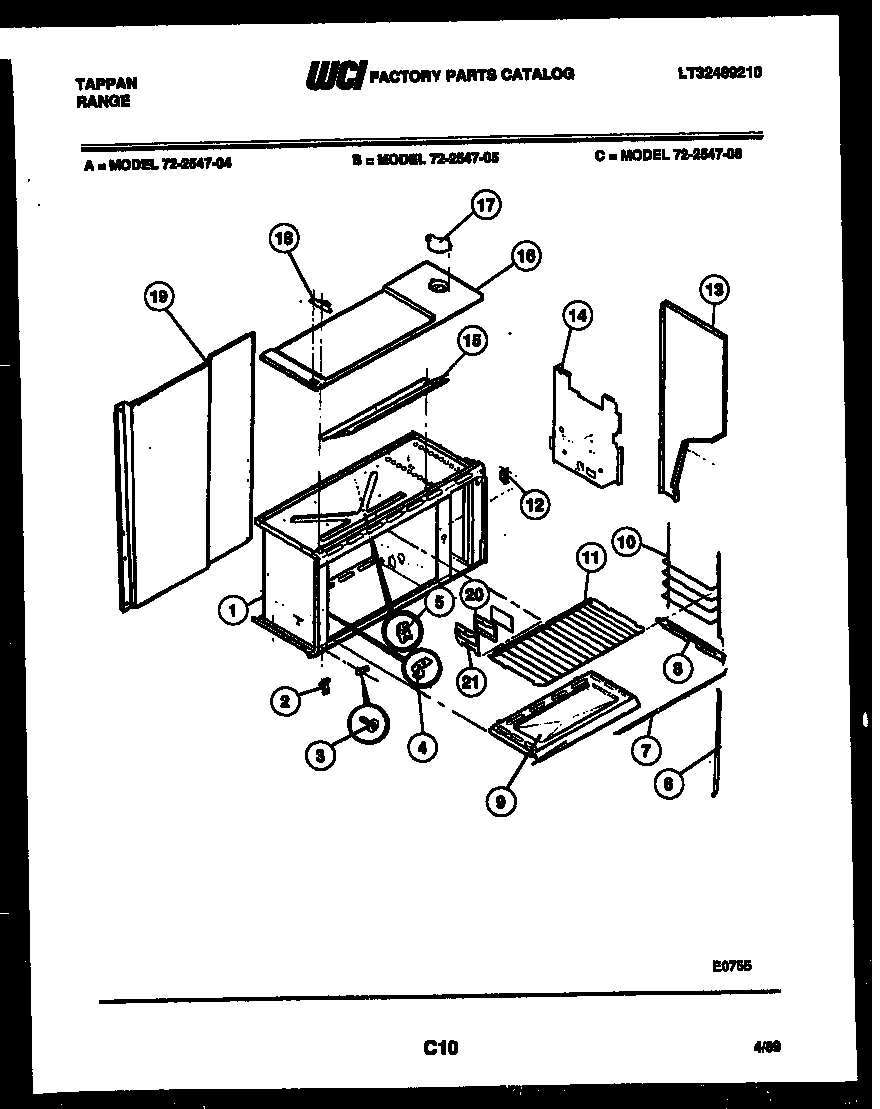

10 - UPPER BODY PARTS
Common parts from model Electrolux 72-2547-66-05 RANGE
*22316
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
*22322
BUSHING C/P GLASS WCI 102T019P01 Contact Us For Availability
*22329
WCI 3051420 WCI 3051420 Contact Us For Availability
*22339
PLUG BOTTOM-(CHROME) WCI 3015331 Contact Us For Availability
*22339
STRIKE-U/O DOOR ALIGN WCI 691T007P01 Contact Us For Availability
1
PANEL-MANIFOLD WCI 3131922 Contact Us For Availability
1
WCI 072T805F01-08 WCI 072T805F01-08 Contact Us For Availability
1
WCI 072T805F02-08 WCI 072T805F02-08 Contact Us For Availability
1
THERMOSTAT-OVEN UPPER WCI 722T038P12 Contact Us For Availability
1
WCI 665T108P02 WCI 665T108P02 Contact Us For Availability
1
BURNER-TUBE (LF RF) WCI 3131970 Contact Us For Availability
1
WCI 655T188P02 WCI 655T188P02 Contact Us For Availability
2
KNOB TOP VALVE (4) WCI 358T197P07 Contact Us For Availability
2
INSULATION, OVEN DOOR WCI 3131208 Contact Us For Availability
2
FASTENER, PUSH NUT WCI 3131386 Contact Us For Availability
2
THERMOSTAT OVEN-LOWER WCI 3051321 Contact Us For Availability
2
WCI 276T091P01 WCI 276T091P01 Contact Us For Availability
2
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
2
HINGE DOOR BOTTOM WCI 3051166 Contact Us For Availability
3
ROD, MAIN TOP SUPPORT (2) WCI 618T038P05 Contact Us For Availability
3
OVEN GLASS-FRONT WCI 3051153 Contact Us For Availability
3
BODY, BROILER WCI 205T004W01-86 Contact Us For Availability
3
PANEL CONTROL MOUNTING WCI 3131651 Contact Us For Availability
3
WCI 3051722 WCI 3051722 Contact Us For Availability
3
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
3
SCREW BOTTOM HINGE WCI 636T070P02 Contact Us For Availability
3A
SUPPORT-O/U RH WCI 694T090F02 Contact Us For Availability
4
BRACKET, MAIN TOP HINGE (LH) WCI 3131286 Contact Us For Availability
4
HANDLE WCI 3131345 Contact Us For Availability
4
PIN, HINGE (2) WCI 550T041P01 Contact Us For Availability
4
WCI 3131898 WCI 3131898 Contact Us For Availability
4
WCI 691T008S01 WCI 691T008S01 Contact Us For Availability
4
WCI 774T135P01 WCI 774T135P01 Contact Us For Availability
4
PLATE BOTTOM HINGE WCI 554T176F01 Contact Us For Availability
4A
RETAINER OVEN BURNER BOTTOM (NON-ILLUSTRATED) WCI 612T087F01 Contact Us For Availability
5
WCI 513T073F20 WCI 513T073F20 Contact Us For Availability
5
BRACKET, MAIN TOP HINGE (RH) WCI 3131287 Contact Us For Availability
5
WCI 3201692 WCI 3201692 Contact Us For Availability
5
SPRING, BROILER, LH (C TYPE) WCI 675T079P01 Contact Us For Availability
5
FASTENER, CLOCK TUBULAR WCI 241T017P44 Contact Us For Availability
5
IGNITION SWITCH WCI 3131568 Contact Us For Availability
5
CHANNEL-DOOR HINGE WCI 3131569 Contact Us For Availability
5A
SPRING, BROILER, RH (C TYPE) WCI 675T079P02 Contact Us For Availability
6
COVER-HANGE CUTOUT (2) WCI 3131570 Contact Us For Availability
6
FASTENER, CABLE CLAMP WCI 241T003P01 Contact Us For Availability
6
PANEL MAIN TOP (WHEAT) WCI 3934036 Contact Us For Availability
6
LINER (BROILER DRAWER) WCI 381T087F02-86 Contact Us For Availability
6
GLASS-UPPER PANEL WCI 3015329 Contact Us For Availability
6
CHANNEL O/U DOOR END WCI 136T188P01 Contact Us For Availability
6
NUT COMPRESSION (4) WCI 3131148 Contact Us For Availability
6
WCI 647T081P06 WCI 647T081P06 Contact Us For Availability
7
FASTENER-PURSE LOCK (1) WCI 241T017P154 Contact Us For Availability
7
WCI 3131971 WCI 3131971 Contact Us For Availability
7
WCI 3201693 WCI 3201693 Contact Us For Availability
7
PANEL-BROILER-WHEAT WCI 3131718 Contact Us For Availability
7
TRIME FRAME CENTER WCI 740T305P01 Contact Us For Availability
7
GUSSET-OVEN DOOR WCI 289T060P01 Contact Us For Availability
7
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
7
SEAL DOOR TOP/BOTTOM (2) WCI 647T081P05 Contact Us For Availability
8
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
8
COVER-VENT WCI 3131191 Contact Us For Availability
8
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
8
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
8
KNOB CONTROL-ADJUSTABLE WCI 3051180 Contact Us For Availability
8
CHANNEL W/O DOOR FRAME WCI 136T187P03 Contact Us For Availability
8
MANIFOLD, PIPE WCI 439T055P03 Contact Us For Availability
8
WCI 655T421F02-18 WCI 655T421F02-18 Contact Us For Availability
8
GLIDE-OVEN BOTTOM (2) WCI 3131616 Contact Us For Availability
9
HARNESS-O/U LITE SWITCH WCI 3015328 Contact Us For Availability
9
WCI 3131128 WCI 3131128 Contact Us For Availability
9
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
9
WCI 358T201P01 WCI 358T201P01 Contact Us For Availability
9
WCI 296T058P01 WCI 296T058P01 Contact Us For Availability
9
WCI 479T069P40 WCI 479T069P40 Contact Us For Availability
9
CLIP, WIRE WCI 145T130P01 Contact Us For Availability
9
WCI 058T021F04-86 WCI 058T021F04-86 Contact Us For Availability
10
WASHER SPRING WCI 3131627 Contact Us For Availability
10
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
10
GLIDE - BROILER WCI 280T061P01 Contact Us For Availability
10
KNOB THERMOSTAT WCI 3091400 Contact Us For Availability
10
WCI 636T098P18 WCI 636T098P18 Contact Us For Availability
10
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
10
GLIDE, OVEN RACK (2) WCI 280T021P05 Contact Us For Availability
11
PANEL-SPLASHER-LOWER WCI 513T084F02 Contact Us For Availability
11
WCI 3131213 WCI 3131213 Contact Us For Availability
11
WCI 3131356 WCI 3131356 Contact Us For Availability
11
WCI 665T184P02 WCI 665T184P02 Contact Us For Availability
11
RETAINER ELECTROS WCI 612T121F01 Contact Us For Availability
11
RACK OVEN-FLAT WCI 591T042P01 Contact Us For Availability
12
FASTENER, PUSH IN (6) WCI 3131974 Contact Us For Availability
12
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
12
WCI 3131686 WCI 3131686 Contact Us For Availability
12
WCI 3131101 WCI 3131101 Contact Us For Availability
12
WCI 131T009P03 WCI 131T009P03 Contact Us For Availability
12A
INSULATION, BROILER DRAWER (NON-ILLUSTRATED) WCI 3131258 Contact Us For Availability
12C
WCI 636T162P01 WCI 636T162P01 Contact Us For Availability
13
FASTENER SPACER WCI 3131254 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
TUBE SUPPLY UPPER OVEN WCI 3131643 Contact Us For Availability
13
WCI 3131185 WCI 3131185 Contact Us For Availability
13
PANEL, BODYSIDE, RH (WHEAT) WCI 3051265 Contact Us For Availability
13A
COVER DOOR LINER (NON-ILLUSTRATED) WCI 3131207 Contact Us For Availability
13A
PANEL, BODYSIDE, LH (WHEAT) WCI 3051262 Contact Us For Availability
14
WCI 3934033 WCI 3934033 Contact Us For Availability
14
WCI 557T035P01 WCI 557T035P01 Contact Us For Availability
14
WCI 079T026P01 WCI 079T026P01 Contact Us For Availability
14
B/S-RH-(WHEAT) WCI 3200791 Contact Us For Availability
14
WCI 3131679 WCI 3131679 Contact Us For Availability
14A
B/S-LH-(WHEAT) WCI 3200794 Contact Us For Availability
15
ELBOW 1/2 NP TO 9/16-24 WCI 215T013P01 Contact Us For Availability
15
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
15
WCI 252T024F01 WCI 252T024F01 Contact Us For Availability
15A
PANEL-TOP WCI 3131625 Contact Us For Availability
16
FITTING LOXIT (4) WCI 3131261 Contact Us For Availability
17
WCI 750T085H09 WCI 750T085H09 Contact Us For Availability
17
WCI 058T036F02-86 WCI 058T036F02-86 Contact Us For Availability
17
WCI 3131610 WCI 3131610 Contact Us For Availability
17A
INSULATION, OVEN WRAP (NON-ILLUSTRATED) WCI 3131201 Contact Us For Availability
17B
INSULATION-OVEN BACK (NON-ILLUSTRATED) WCI 3131246 Contact Us For Availability
18
IGNITER-OVEN BURNER WCI 316T023P06 Contact Us For Availability
18
WCI 3131613 WCI 3131613 Contact Us For Availability
18A
FASTENER POWER CORD (2) (NON-ILLUSTRATED) WCI 241T017P255 Contact Us For Availability
19
WCI 3131567 WCI 3131567 Contact Us For Availability
19A
WCI 072T697F01 WCI 072T697F01 Contact Us For Availability
19B
INSULATION O/U UPPER OVEN (NON-ILLUSTRATED) WCI 328T061P02 Contact Us For Availability
19C
INSULATION WOOL (NON-ILLUSTRATED) WCI 328T061P04 Contact Us For Availability
20
WCI 3131109 WCI 3131109 Contact Us For Availability
20
WCI 3131180 WCI 3131180 Contact Us For Availability
20
WCI 269T071P01 WCI 269T071P01 Contact Us For Availability
20A
PLATE-OVEN LIGHT MOUNTING (NON-ILLUSTRATED) WCI 554T388F02 Contact Us For Availability
20B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
20C
WASHER, BLACK (NON-ILLUSTRATED) WCI 3131737 Contact Us For Availability
21
COVER LT OPEN. O/U WCI 174T112F02 Contact Us For Availability
21A
COVER, FRONT MAIN (NON-ILLUSTRATED) WCI 3131548 Contact Us For Availability
22
WCI 079T029P03 WCI 079T029P03 Contact Us For Availability
22
WCI 3051723 WCI 3051723 Contact Us For Availability
22A
WCI 3051724 WCI 3051724 Contact Us For Availability
22C
INSULATION WOOL (NON-ILLUSTRATED) WCI 328T061P09 Contact Us For Availability
22E
WCI 3131620 WCI 3131620 Contact Us For Availability
23
WCI 174T297F01 WCI 174T297F01 Contact Us For Availability
24
WCI 3131327 WCI 3131327 Contact Us For Availability
28
WCI 3131641 WCI 3131641 Contact Us For Availability
28A
WCI 072T821F01 WCI 072T821F01 Contact Us For Availability
28B
BRACKET MIXER (NON-ILLUSTRATED) WCI 3131637 Contact Us For Availability
28C
WCI 3131189 WCI 3131189 Contact Us For Availability
29
WCI 136T355W03 WCI 136T355W03 Contact Us For Availability
× ![]()
