Model Electrolux 72-2547-00-09 RANGE – Common Parts & Diagrams

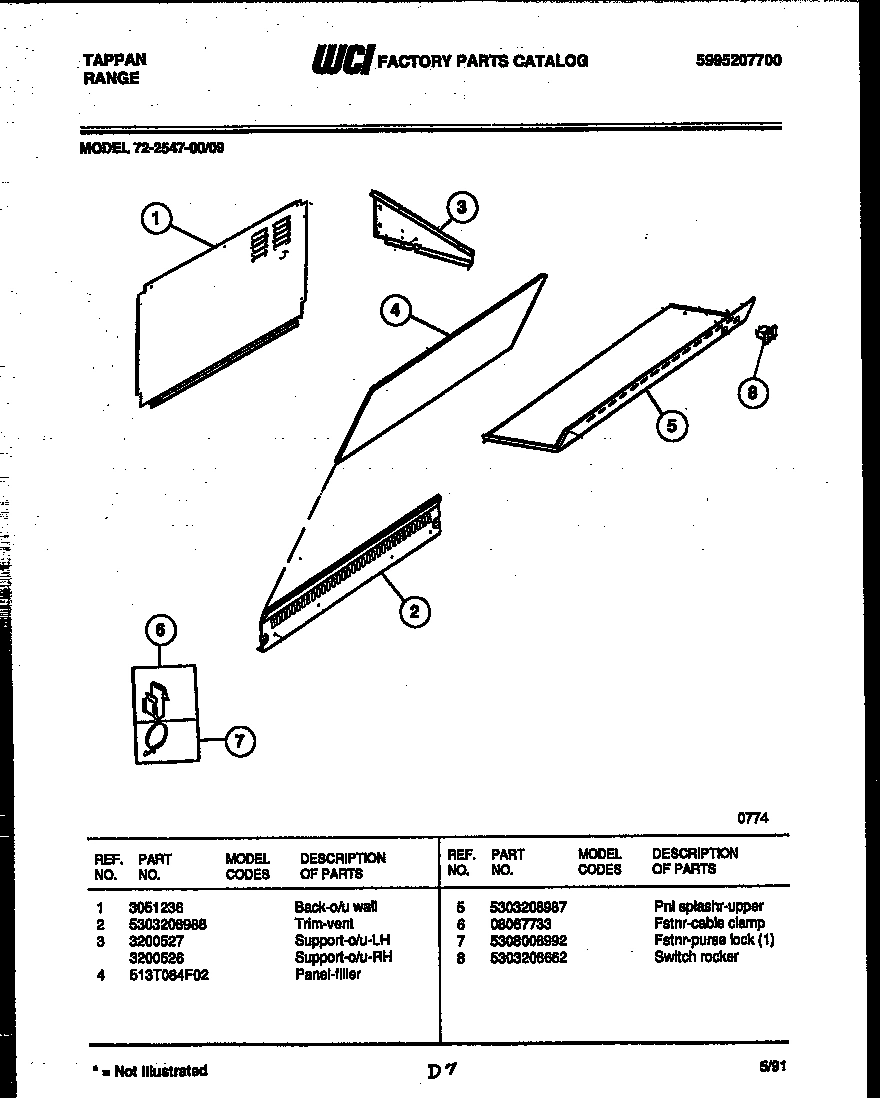

02 - SPLASHER CONTROL

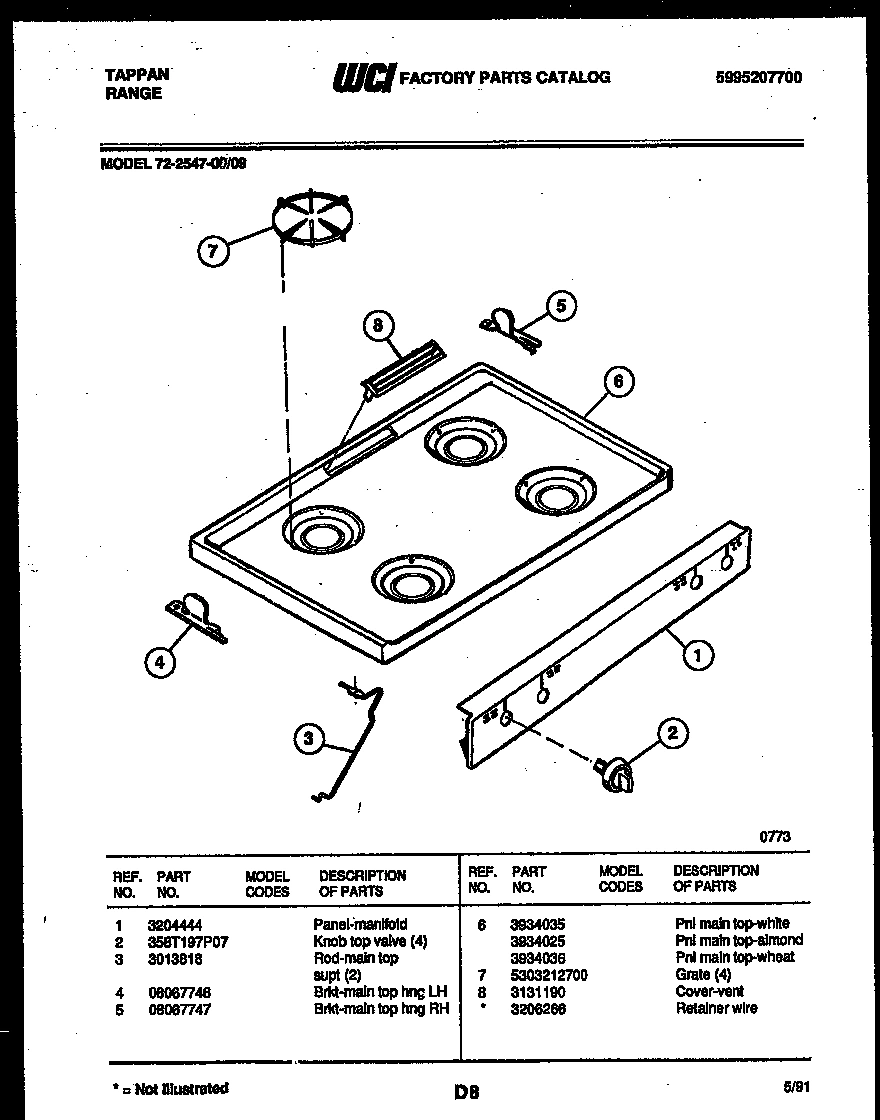

03 - COOKTOP PARTS

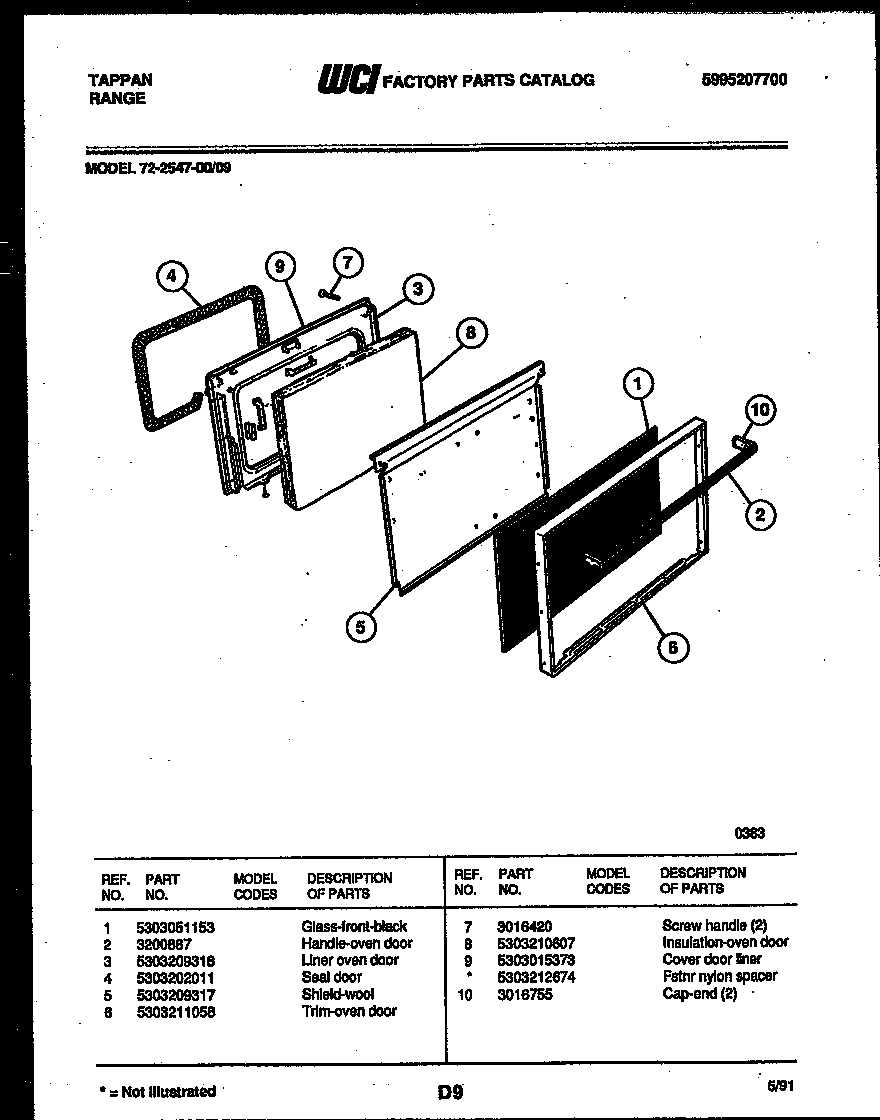

04 - LOWER OVEN DOOR PARTS

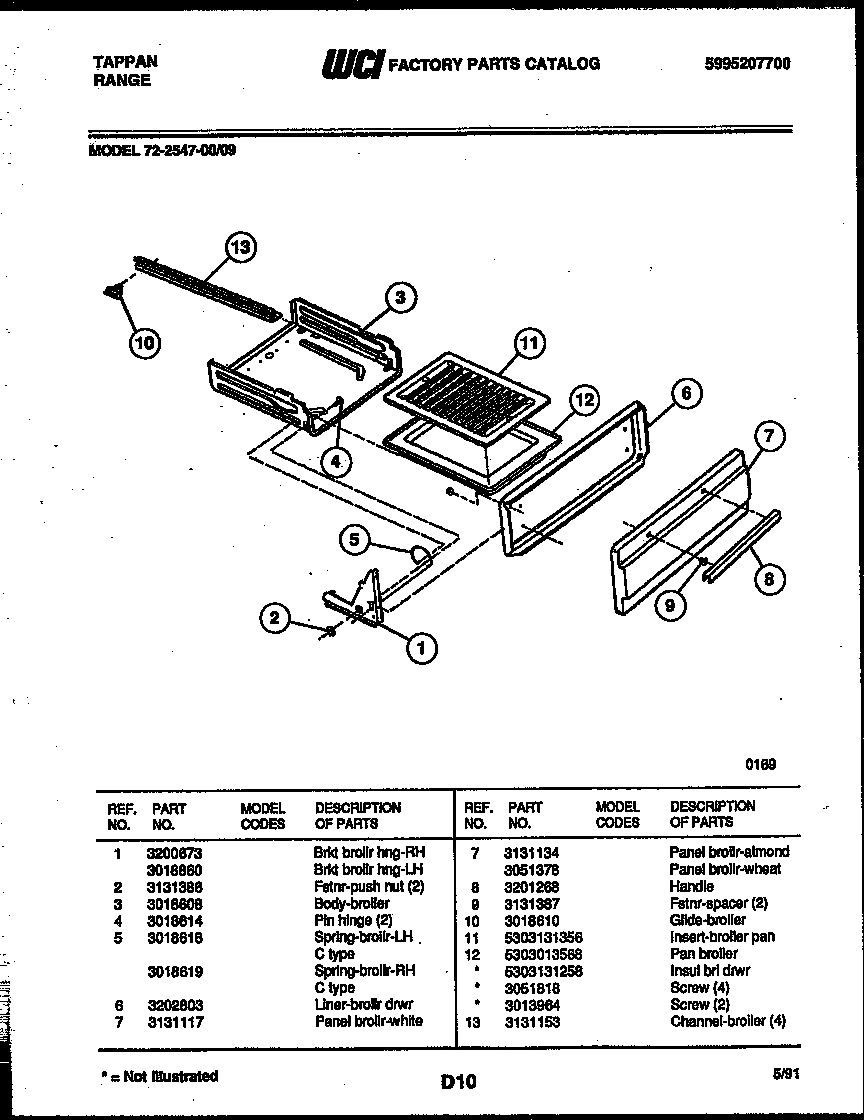

05 - BROILER DRAWER PARTS

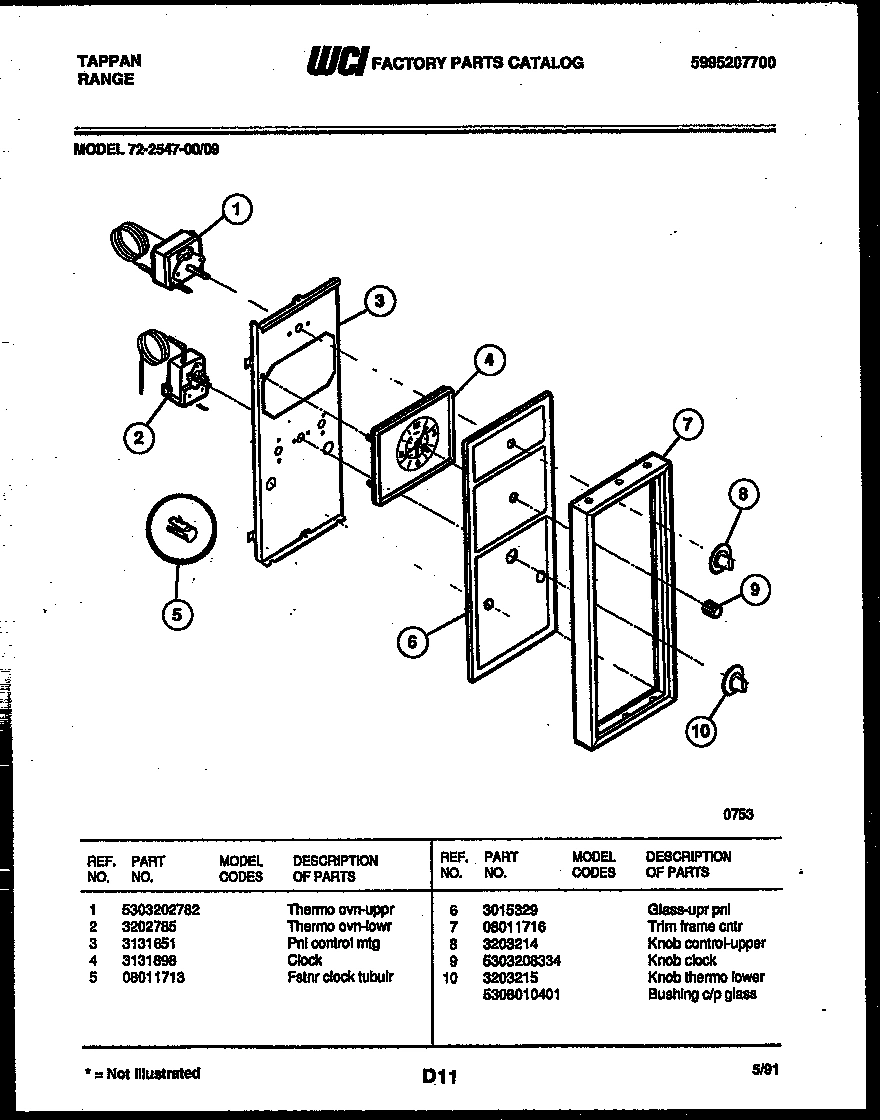

06 - CONTROL PANEL

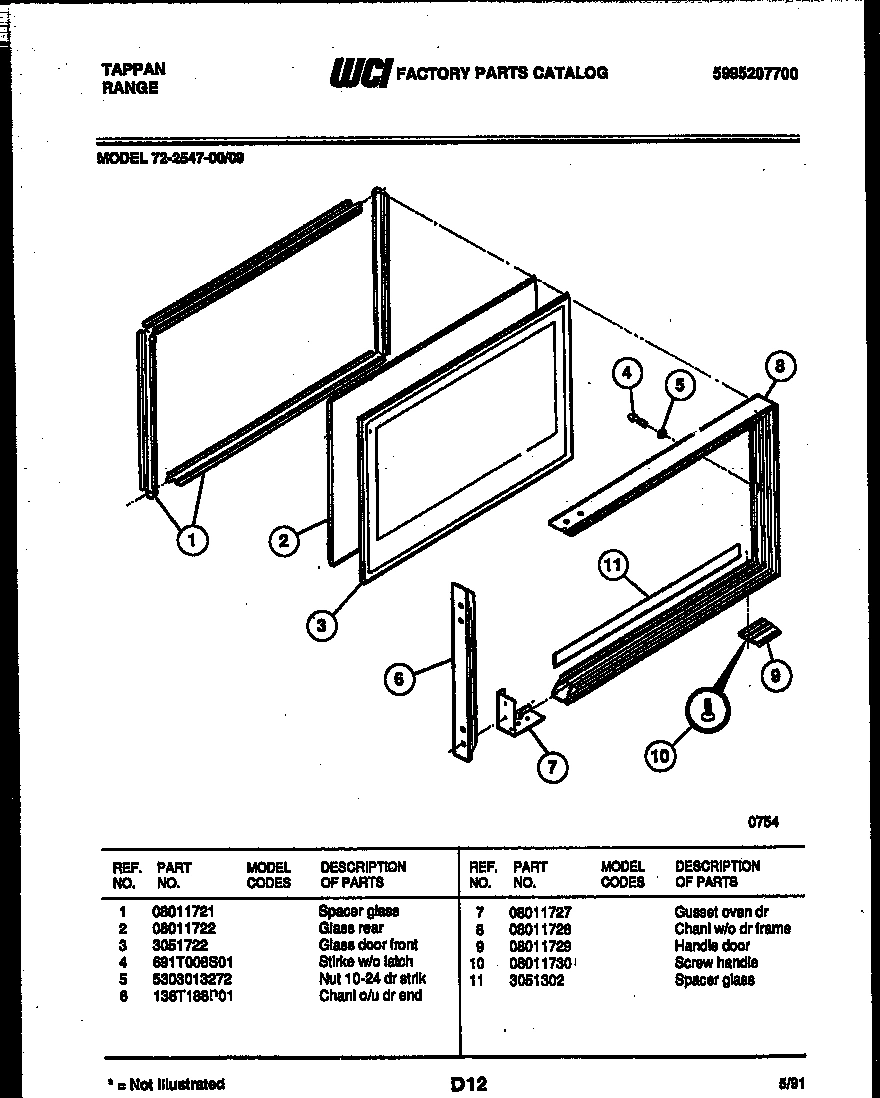

07 - UPPER OVEN DOOR PARTS

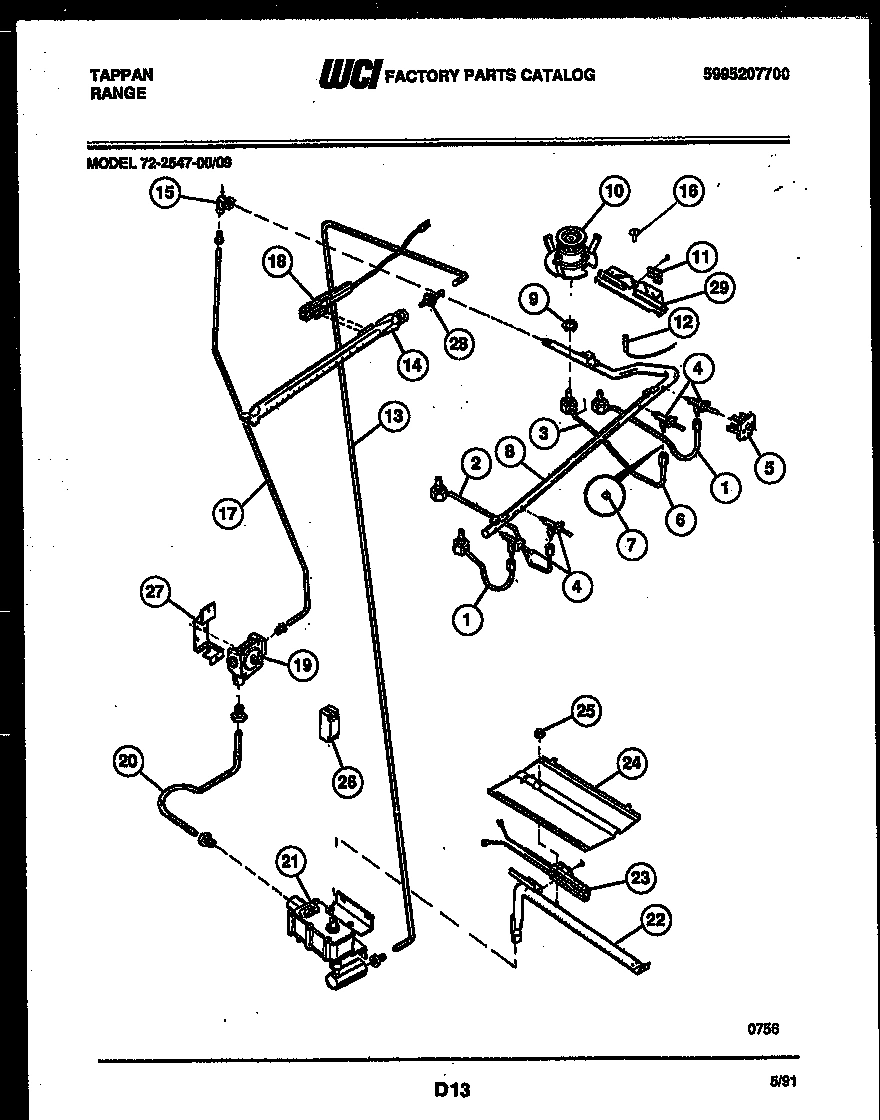

08 - BURNER, MANIFOLD AND GAS CONTROL

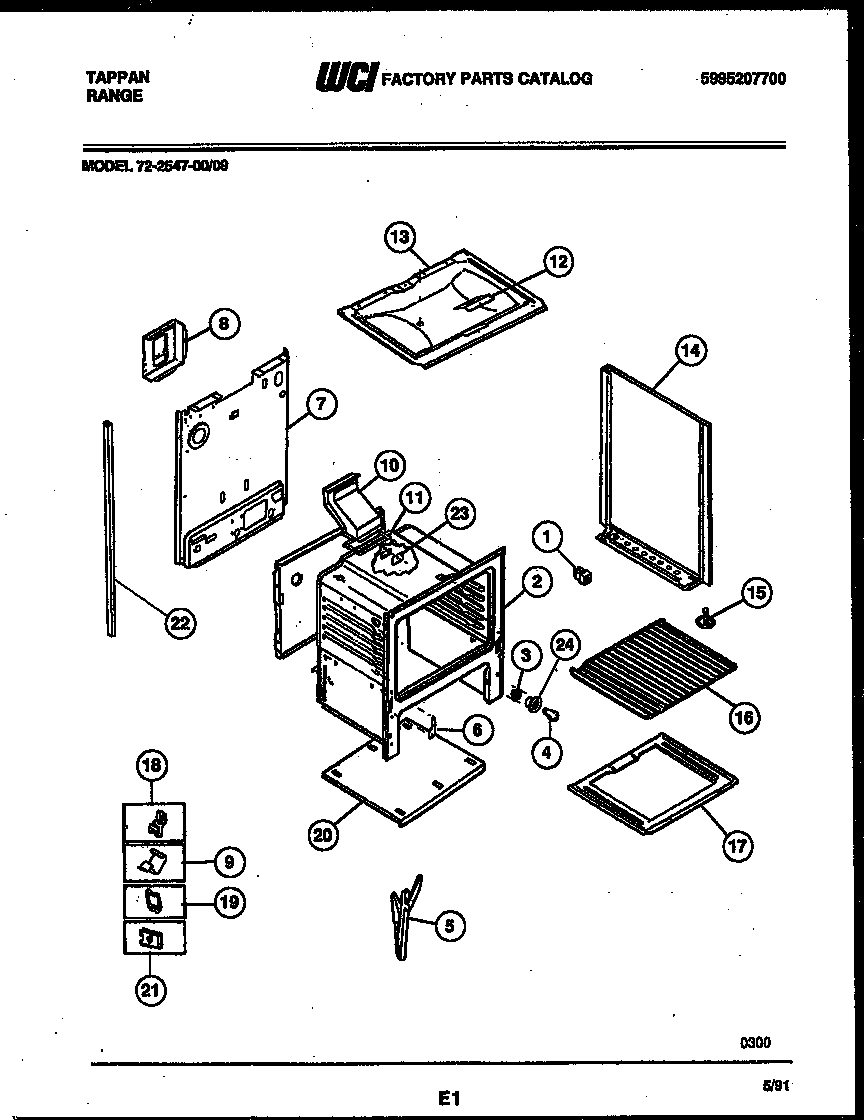

09 - LOWER BODY PARTS

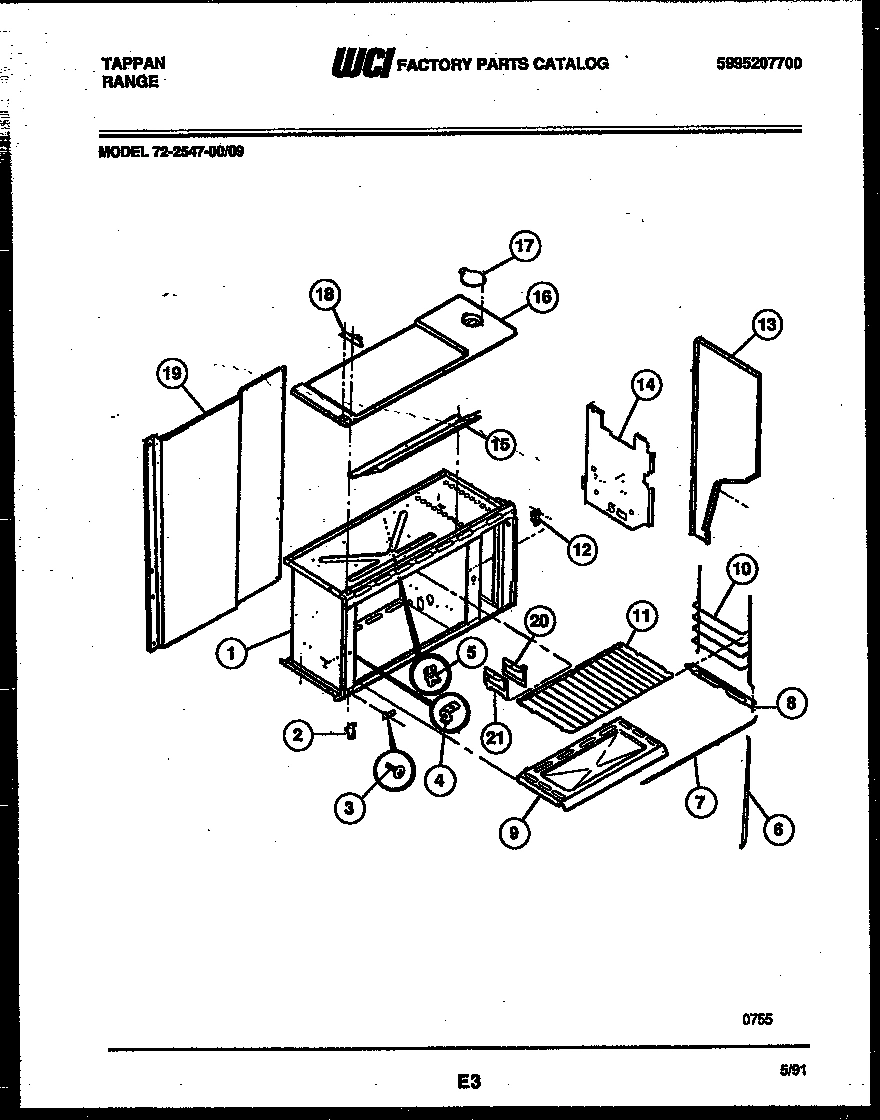

10 - UPPER BODY PARTS
Common parts from model Electrolux 72-2547-00-09 RANGE
*50714
WCI 08010570 WCI 08010570 Contact Us For Availability
*50714
WCI 19100220007 WCI 19100220007 Contact Us For Availability
*50718
STRIKE U/O DR ALIG WCI 691T007P01 Contact Us For Availability
*50719
WCI 3204440 WCI 3204440 Contact Us For Availability
1
THERMO OVN-UPPR WCI 5303202782 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
GLASS-FRONT-BLACK WCI 5303051153 Contact Us For Availability
1
BRKT BROILR HNG-RH WCI 3200673 Contact Us For Availability
1
WCI 08011721 WCI 08011721 Contact Us For Availability
1
BURNER - TUBE LF, RF WCI 5303131970 Contact Us For Availability
1A
BRKT BROILR HNG-LH WCI 3018860 Contact Us For Availability
2
WCI 08011722 WCI 08011722 Contact Us For Availability
2
HANDLE-OVEN DOOR WCI 3200887 Contact Us For Availability
2
FSTNR, PUSH NUT (2) WCI 3131386 Contact Us For Availability
2
THERMO OVN-LOWR WCI 3202785 Contact Us For Availability
2
WCI 5303011570 WCI 5303011570 Contact Us For Availability
2
WCI 5303051166 WCI 5303051166 Contact Us For Availability
3
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
3
WCI 3018608 WCI 3018608 Contact Us For Availability
3
WCI 3131651 WCI 3131651 Contact Us For Availability
3
WCI 3051722 WCI 3051722 Contact Us For Availability
3
WCI 5303011569 WCI 5303011569 Contact Us For Availability
3
WCI 636T070P02 WCI 636T070P02 Contact Us For Availability
4
BRKT-MAIN TOP HNG LH WCI 08067746 Contact Us For Availability
4
PIN, HINGE (2) WCI 3018614 Contact Us For Availability
4
WCI 3131898 WCI 3131898 Contact Us For Availability
4
STIRKE W/O LATCH WCI 691T008S01 Contact Us For Availability
4
WCI 5303017542 WCI 5303017542 Contact Us For Availability
4
WCI 08011665 WCI 08011665 Contact Us For Availability
4A
RETAINER OVN BURNR UPPER (NON-ILLUSTRATED) WCI 3200519 Contact Us For Availability
5
WCI 5303209317 WCI 5303209317 Contact Us For Availability
5
SPRING - BROILR LH C TYPE WCI 3018618 Contact Us For Availability
5
FSTNR CLOCK TUBULR WCI 08011713 Contact Us For Availability
5
IGN.-SWITCH WCI 3131568 Contact Us For Availability
5
CHANL DR HNG (2) WCI 5303131569 Contact Us For Availability
5A
SPRING - BROILR RH C TYPE WCI 3018619 Contact Us For Availability
6
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
6
WCI 5303211058 WCI 5303211058 Contact Us For Availability
6
LINER-BROILR DRWR WCI 3202803 Contact Us For Availability
6
WCI 3015329 WCI 3015329 Contact Us For Availability
6
WCI 136T188P01 WCI 136T188P01 Contact Us For Availability
6
NUT COMPRESN (4) WCI 3131148 Contact Us For Availability
6
WCI 3201722 WCI 3201722 Contact Us For Availability
7
WCI 5303212700 WCI 5303212700 Contact Us For Availability
7
SCREW - HANDLE (2) WCI 3016420 Contact Us For Availability
7
PANEL BROILR-(WHEAT) WCI 3051378 Contact Us For Availability
7
PANEL BROILR-(WHITE) WCI 3131117 Contact Us For Availability
7
PANEL BROILR-(ALMOND) WCI 3131134 Contact Us For Availability
7
WCI 08011716 WCI 08011716 Contact Us For Availability
7
WCI 08011727 WCI 08011727 Contact Us For Availability
7
FERRULE (4) WCI 08067945 Contact Us For Availability
7
WCI 3203082 WCI 3203082 Contact Us For Availability
7
WCI 3201721 WCI 3201721 Contact Us For Availability
8
WCI 3131190 WCI 3131190 Contact Us For Availability
8
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
8
WCI 3201268 WCI 3201268 Contact Us For Availability
8
WCI 3203214 WCI 3203214 Contact Us For Availability
8
WCI 08011728 WCI 08011728 Contact Us For Availability
8
WCI 3131440 WCI 3131440 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
8
GLIDE-OVEN BTM (2) WCI 3131616 Contact Us For Availability
9
WCI 08011729 WCI 08011729 Contact Us For Availability
9
WCI 5303015373 WCI 5303015373 Contact Us For Availability
9
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
9
KNOB CLOCK WCI 5303208334 Contact Us For Availability
9
WCI 3013279 WCI 3013279 Contact Us For Availability
9
CLIP-WIRE WCI 3011813 Contact Us For Availability
9
WCI 3200488 WCI 3200488 Contact Us For Availability
9A
FSTNR-NYLON SPACER (NON-ILLUSTRATED) WCI 5303212674 Contact Us For Availability
10
GLIDE-BROILER WCI 3018610 Contact Us For Availability
10
KNOB THERMO. LOWER WCI 3203215 Contact Us For Availability
10
WCI 08011730 WCI 08011730 Contact Us For Availability
10
BURNER TOP (4) WCI 5303011567 Contact Us For Availability
10
WCI 280T021P05 WCI 280T021P05 Contact Us For Availability
10A
BUSHING-C/P GLASS WCI 5308010401 Contact Us For Availability
11
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 3051302 WCI 3051302 Contact Us For Availability
11
RETAINER ELECTROS WCI 3018617 Contact Us For Availability
11
WCI 08011675 WCI 08011675 Contact Us For Availability
12
PAN-BROILER WCI 5303013568 Contact Us For Availability
12
ELECTRODE (4) WCI 5303131105 Contact Us For Availability
12
WCI 08067757 WCI 08067757 Contact Us For Availability
12
WCI 08011680 WCI 08011680 Contact Us For Availability
12A
INSUL BRL DRWR (NON-ILLUSTRATED) WCI 5303131258 Contact Us For Availability
12B
SCREW (2) (NON-ILLUSTRATED) WCI 3013964 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
WCI 5303211073 WCI 5303211073 Contact Us For Availability
13
WCI 3131185 WCI 3131185 Contact Us For Availability
13
WCI 3051261 WCI 3051261 Contact Us For Availability
13
WCI 3051262 WCI 3051262 Contact Us For Availability
13
WCI 3051263 WCI 3051263 Contact Us For Availability
13
WCI 3051264 WCI 3051264 Contact Us For Availability
13A
WCI 3051260 WCI 3051260 Contact Us For Availability
13A
PNL BODYSD-RH-(WHEAT) WCI 3051265 Contact Us For Availability
14
WCI 3200502 WCI 3200502 Contact Us For Availability
14
B/S-RH-WHITE WCI 5303269518 Contact Us For Availability
14
WCI 5303269543 WCI 5303269543 Contact Us For Availability
14
B/S-RH-WHEAT WCI 5303271917 Contact Us For Availability
14
WCI 5303208706 WCI 5303208706 Contact Us For Availability
14A
B/S-LH-WHITE WCI 5303269519 Contact Us For Availability
14A
WCI 5303269545 WCI 5303269545 Contact Us For Availability
14A
B/S-LH-WHEAT WCI 5303271918 Contact Us For Availability
15
SCREW-LEVEL (4) WCI 5303203397 Contact Us For Availability
15
ELBOW 1/2 NP TO 9/16-24 WCI 08067948 Contact Us For Availability
15
WCI 3200505 WCI 3200505 Contact Us For Availability
15A
WCI 3131625 WCI 3131625 Contact Us For Availability
16
WCI 3051420 WCI 3051420 Contact Us For Availability
17
TUBE ALUM 3/8 REG/MANIF PIPE WCI 5303208495 Contact Us For Availability
17
WCI 5303212540 WCI 5303212540 Contact Us For Availability
17
WCI 08067732 WCI 08067732 Contact Us For Availability
17A
INSUL - OVEN WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
17B
INSUL - OVEN BACK (NON-ILLUSTRATED) WCI 3203541 Contact Us For Availability
18
WCI 5303200508 WCI 5303200508 Contact Us For Availability
18
WCI 3131613 WCI 3131613 Contact Us For Availability
18A
WCI 08067961 WCI 08067961 Contact Us For Availability
19
WCI 3131567 WCI 3131567 Contact Us For Availability
19A
WCI 3200500 WCI 3200500 Contact Us For Availability
19B
WCI 3200509 WCI 3200509 Contact Us For Availability
19C
WCI 3200511 WCI 3200511 Contact Us For Availability
20
TUBE - ALUM 3/8 WCI 5303208494 Contact Us For Availability
20
WCI 5303270160 WCI 5303270160 Contact Us For Availability
20
WCI 3200506 WCI 3200506 Contact Us For Availability
20A
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
20B
WASHER, BLACK (NON-ILLUSTRATED) WCI 3131737 Contact Us For Availability
21
WCI 3200442 WCI 3200442 Contact Us For Availability
21A
COVER FRNT MAIN (NON-ILLUSTRATED) WCI 5303015372 Contact Us For Availability
22
WCI 5303131634 WCI 5303131634 Contact Us For Availability
22
WCI 5303208642 WCI 5303208642 Contact Us For Availability
22A
WCI 5303208643 WCI 5303208643 Contact Us For Availability
22C
WCI 3200498 WCI 3200498 Contact Us For Availability
22E
WCI 3131620 WCI 3131620 Contact Us For Availability
23
COVER IGN. WCI 3018607 Contact Us For Availability
23A
ANTI-TIP BRKT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
24
HOUSING-OVEN LIGHT WCI 3051511 Contact Us For Availability
24
BAFFLE-OVEN WCI 3203265 Contact Us For Availability
28
WCI 5303211078 WCI 5303211078 Contact Us For Availability
28A
BRKT BURNR SUPT WCI 3018603 Contact Us For Availability
28B
BRKT MIXER WCI 3131637 Contact Us For Availability
29
WCI 3206267 WCI 3206267 Contact Us For Availability
× ![]()
