Model LG 719192195608 – Common Parts & Diagrams

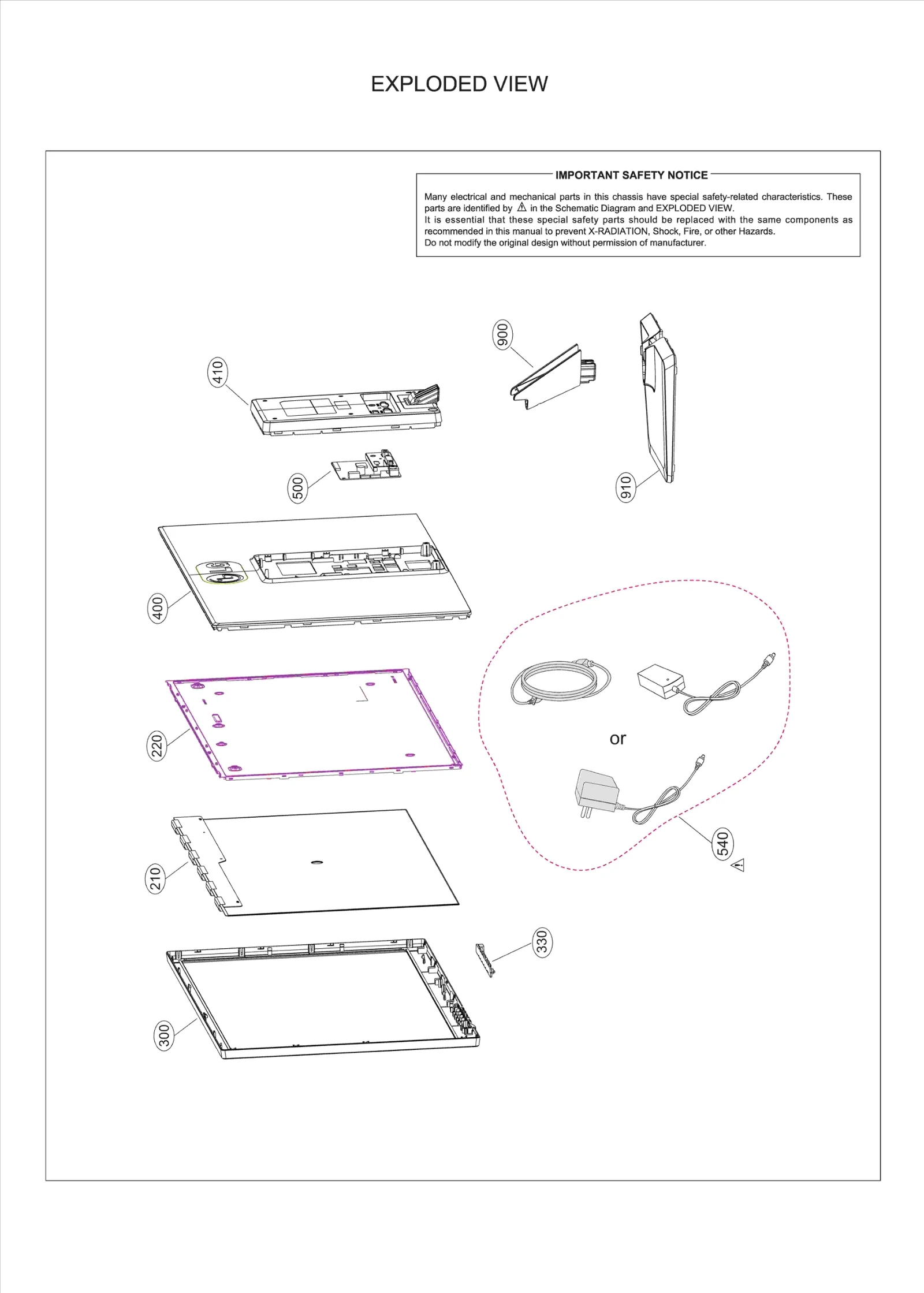

Diagram 0
Diagram 1
Common parts from model LG 719192195608
210
LCD,Panel-TFT LGE EAJ62287701 Contact Us For Availability
220
Back Light Assembly LGE EBV60978067 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73750252 Contact Us For Availability
330
PCB Assembly LGE EBR78285901 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86076519 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86076502 Contact Us For Availability
410
Cover Assembly,Rear LGE ACQ85976502 Contact Us For Availability
500
BPR Total Assembly LGE EBU62384620 Contact Us For Availability
540
Adapters LGE EAY62768613 Contact Us For Availability
900
Base Assembly LGE AAN74131901 Contact Us For Availability
910
Base Assembly LGE AAN74132201 Contact Us For Availability
A1
Manual Assembly LGE AFN76933321 Contact Us For Availability
A4
Card LGE 3840TWL061C Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A7
Card LGE 3840TRL039A Contact Us For Availability
A9
Card LGE MBM64176659 Contact Us For Availability
C113
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CK392CK56A Contact Us For Availability
C123
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C138
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C143
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C149
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C160
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C162
Capacitor,Ceramic,Chip LGE EAE62772301 Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
D203
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D203
Diode,Schottky LGE EAH44241601 Contact Us For Availability
IC101
S/W,Firmware LGE SAA38221901 Contact Us For Availability
IC201
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC201
IC,EEPROM LGE EAN60997601 Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072904 Contact Us For Availability
LV1
Cable,FFC LGE EAD62122541 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P101
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
P102
Connector,Wafer LGE EAG62172203 Contact Us For Availability
Q108
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R101
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R110
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R132
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R135
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R143
Resistor,Chip LGE EBC62857601 Contact Us For Availability
R146
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R157
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R167
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R177
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R183
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R191
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R192
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R215
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R242
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
VA207
Varistor LGE EAF61530301 Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
× ![]()
