Model LG 719192195578 – Common Parts & Diagrams

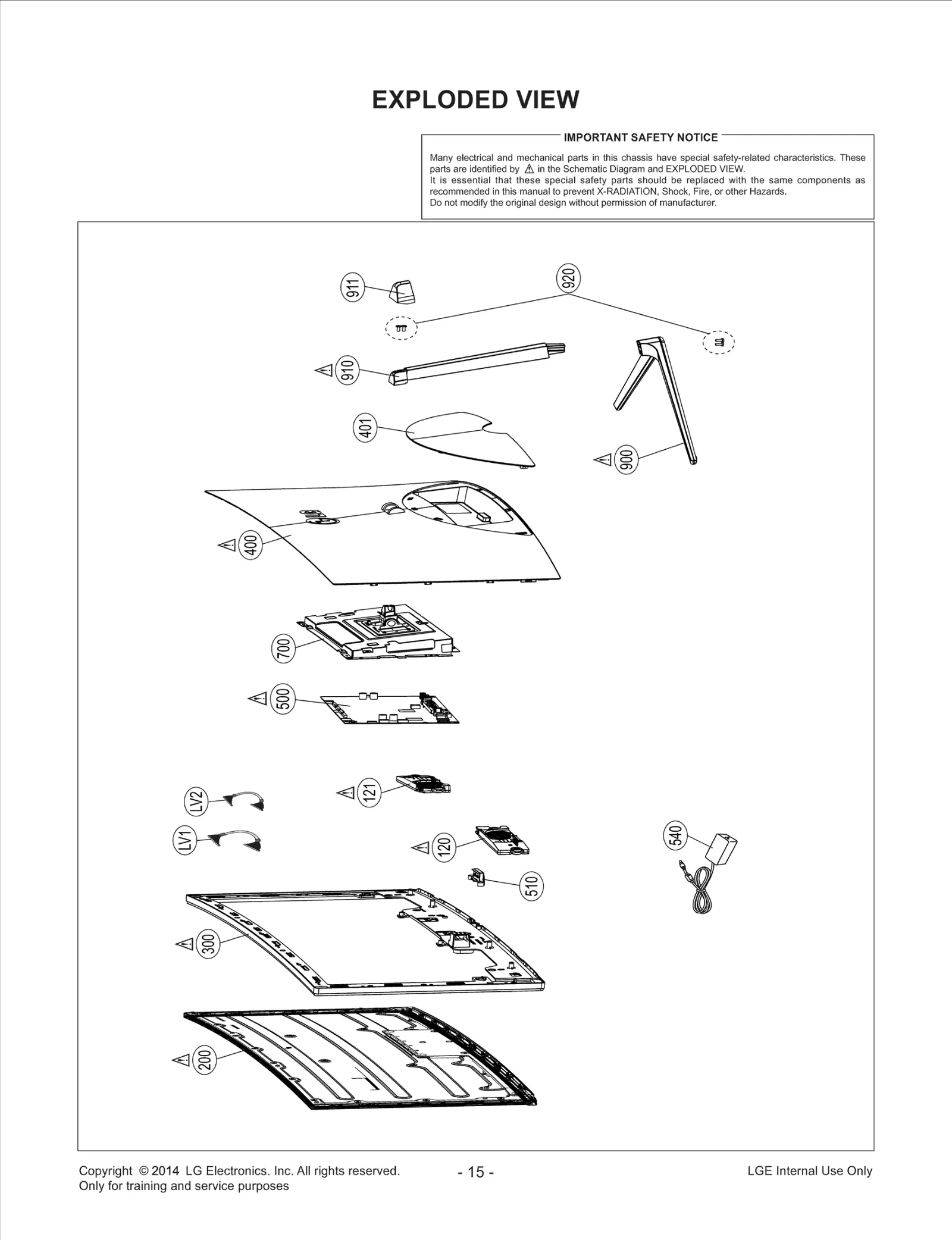

Diagram 0
Diagram 1
Common parts from model LG 719192195578
200
LCD,Module-TFT LGE EAJ63348001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ74607108 Contact Us For Availability
400
Cover Assembly LGE ACQ87571302 Contact Us For Availability
401
Cover LGE MCK68371002 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR80664701 Contact Us For Availability
700
Frame Assembly LGE ADV75165604 Contact Us For Availability
900
Base Assembly LGE AAN74950402 Contact Us For Availability
910
Base Assembly LGE AAN74989202 Contact Us For Availability
911
Cover LGE MCK68371106 Contact Us For Availability
920
Package Assembly LGE AGF76702611 Contact Us For Availability
A1
Manual Assembly LGE AFN77017321 Contact Us For Availability
A4
Card LGE MBM65183801 Contact Us For Availability
A7
Card LGE MBM64678906 Contact Us For Availability
A8
Cable,Assembly LGE EAD00926140 Contact Us For Availability
A9
Card LGE 3840TRL039A Contact Us For Availability
A10
Cable,Assembly LGE EAD63127604 Contact Us For Availability
A11
S/W Package LGE SAB36241401 Contact Us For Availability
A12
Card LGE 3840TWL061C Contact Us For Availability
A13
Card LGE MBM64677402 Contact Us For Availability
C10
Harness,Single LGE EAD62667301 Contact Us For Availability
C201
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C271
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C729
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C743
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C801
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C813
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C822
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C836
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C839
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C846
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C1133
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1216
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C1219
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C1331
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C2617
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C2621
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
IC102
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
LV1
Cable,FFC LGE EAD61652561 Contact Us For Availability
LV2
Cable,FFC LGE EAD61858769 Contact Us For Availability
P200
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P202
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P400
Connector,Wafer LGE 6630V93270K Contact Us For Availability
Q203
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R117
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R234
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R267
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R282
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R327
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R616
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R712
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R715
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R723
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R731
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R742
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R763
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R813
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R824
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R826
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R827
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R912
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R1004
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R1017
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R1025
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R1231
Resistor,Chip LGE 0RJ1601C478 Contact Us For Availability
R1240
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1304
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1310
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R1330
Resistor,Chip LGE EBC32174501 Contact Us For Availability
R1339
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R1410
Resistor,Chip LGE 0RJ4750D477 Contact Us For Availability
R1500
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R1503
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1519
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R2605
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R2607
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R2611
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R2615
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R2624
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R2639
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
X300
Crystal LGE 6202VDT002S Contact Us For Availability
X1100
Crystal LGE 6212AB2018B Contact Us For Availability
× ![]()
