Model LG 719192195004 – Common Parts & Diagrams

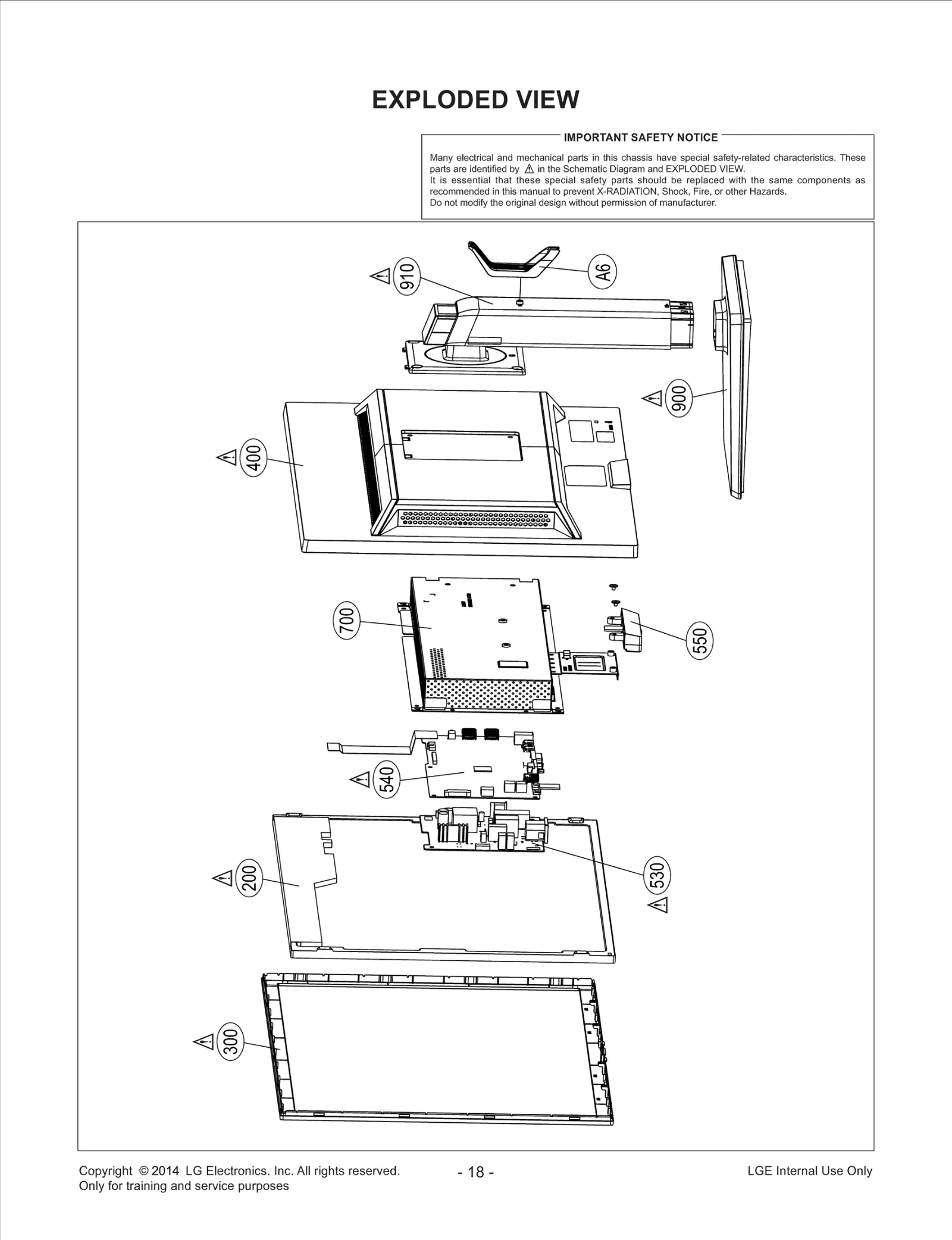

Diagram 0
Diagram 1
Common parts from model LG 719192195004
200
LCD,Module-TFT LGE EAJ63267701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ74547105 Contact Us For Availability
530
Power Supply Assembly LGE EAY62909502 Contact Us For Availability
540
PCB Assembly,Main LGE EBR80272502 Contact Us For Availability
550
DMS Chassis Assembly LGE EBT63300102 Contact Us For Availability
700
Frame Assembly LGE ADV75065602 Contact Us For Availability
910
Base Assembly LGE AAN74929001 Contact Us For Availability
A1
Manual Assembly LGE AFN76873421 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A7
Card LGE 3840TWL061C Contact Us For Availability
A9
Card LGE 3840TRL039A Contact Us For Availability
A10
Cable,Assembly LGE EAD61273120 Contact Us For Availability
A11
Cable,Assembly LGE 68509J0003F Contact Us For Availability
C119
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C120
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C307
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C505
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C530
Capacitor,Ceramic,Chip LGE 0CK105CFG6A Contact Us For Availability
C603
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C618
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
IC101
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC200
S/W,Firmware LGE SAA38113501 Contact Us For Availability
IC201
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
LV1
Cable,FFC LGE EAD61858768 Contact Us For Availability
P100
Connector,DSUB LGE 6630TGA005S Contact Us For Availability
P300
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P301
Connector,Wafer LGE 6630V90141H Contact Us For Availability
P302
Connector,Wafer LGE 6630V90141D Contact Us For Availability
Q301
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R120
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R122
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R130
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R146
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R209
Resistor,Chip LGE 0RJ2003C678 Contact Us For Availability
R218
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R222
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R306
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R403
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R420
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R421
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R526
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R527
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R544
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R545
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R546
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R550
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R556
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R624
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R633
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
X200
CRYSTAL LGE 6202TST001A Contact Us For Availability
× ![]()
