Model LG 719192194120 – Common Parts & Diagrams

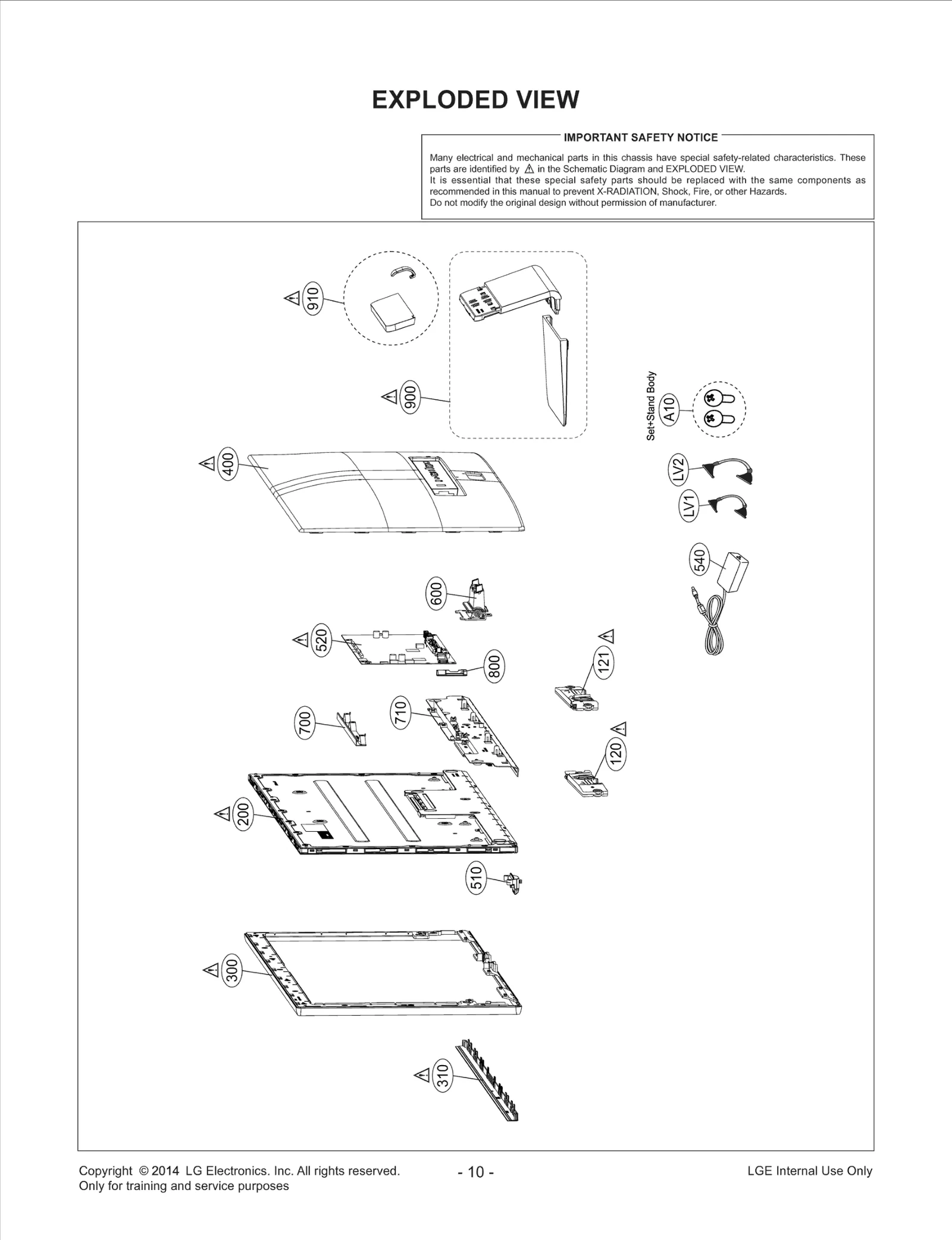

Diagram 0
Diagram 1
Common parts from model LG 719192194120
120
Speaker Assembly LGE EAB63049401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62588001 Contact Us For Availability
310
Cover Assembly LGE ACQ86810208 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86810322 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR80500401 Contact Us For Availability
520
BPR Total Assembly LGE EBU63224801 Contact Us For Availability
540
Adapters LGE EAY62990901 Contact Us For Availability
600
Bracket Assembly LGE ABA74688404 Contact Us For Availability
700
Plate,Metal LGE MGJ63723502 Contact Us For Availability
710
Plate Assembly LGE AGU74388004 Contact Us For Availability
800
Cover LGE MCK67813105 Contact Us For Availability
900
Base Assembly LGE AAN74549307 Contact Us For Availability
910
Cover Assembly LGE ACQ86810404 Contact Us For Availability
A1
Manual Assembly LGE AFN76592821 Contact Us For Availability
A3
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A9
Card LGE 3840TWL061C Contact Us For Availability
A10
Package Assembly LGE AGF76702607 Contact Us For Availability
A11
S/W Package LGE SAB35839501 Contact Us For Availability
C10
Harness,Single LGE EAD61646252 Contact Us For Availability
C11
Harness,Single LGE EAD61729410 Contact Us For Availability
C127
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C252
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C516
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C603
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C617
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C654
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C656
Capacitor,Ceramic,Chip LGE 0CK105CFG6A Contact Us For Availability
C660
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
IC103
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC201
S/W,Firmware LGE SAA38124801 Contact Us For Availability
LV1
Cable,FFC LGE EAD61858764 Contact Us For Availability
LV2
Cable,FFC LGE EAD61652557 Contact Us For Availability
P200
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P201
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P202
Connector,Wafer LGE 6630V93270K Contact Us For Availability
Q200
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R100
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R113
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R472
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R500
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R528
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R541
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R546
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R554
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R558
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R566
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R571
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R574
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R600
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R603
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R613
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R632
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
X200
Crystal LGE 6202VDT002S Contact Us For Availability
× ![]()
