Model LG 719192193956 – Common Parts & Diagrams

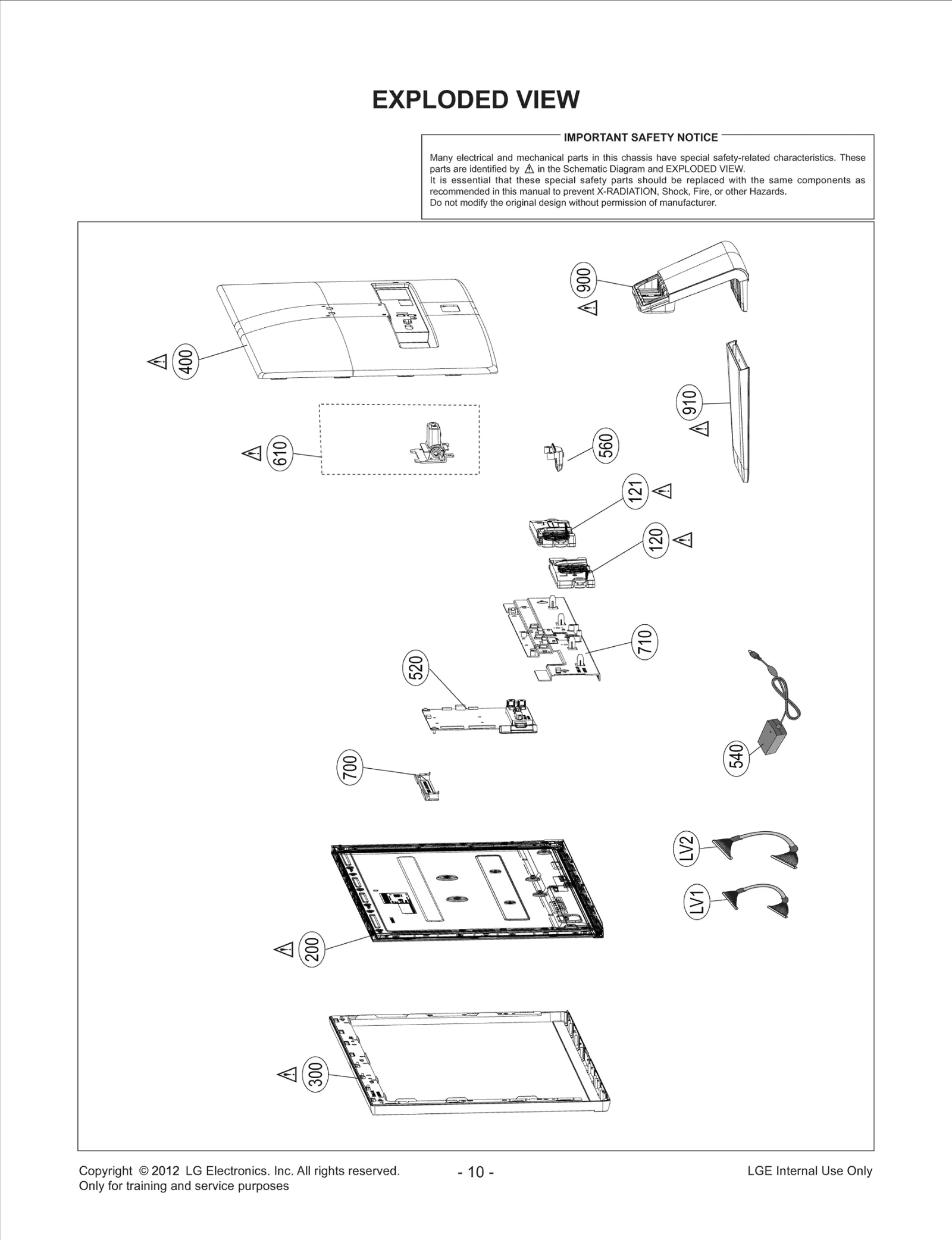

Diagram 0
Diagram 1
Common parts from model LG 719192193956
121
Speaker Assembly LGE EAB63049401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63171701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ74208101 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86852801 Contact Us For Availability
520
BPR Total Assembly LGE EBU63167301 Contact Us For Availability
540
Adapters LGE EAY62933001 Contact Us For Availability
540
Adapters LGE EAY63189102 Contact Us For Availability
560
PCB Assembly,Sub LGE EBR79634902 Contact Us For Availability
700
Plate,Metal LGE MGJ63723001 Contact Us For Availability
710
Frame Assembly LGE ADV74647401 Contact Us For Availability
910
Base Assembly LGE AAN74530201 Contact Us For Availability
A1
Manual Assembly LGE AFN76232921 Contact Us For Availability
A3
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A7
Card LGE 3840TWL061C Contact Us For Availability
A8
Cable,Assembly LGE EAD00926103 Contact Us For Availability
A9
Card LGE MBM64196511 Contact Us For Availability
A11
S/W Package LGE SAB35480899 Contact Us For Availability
C10
Harness,Single LGE EAD61729404 Contact Us For Availability
C124
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C516
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C603
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C612
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C640
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C659
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C670
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
IC101
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC201
S/W,Firmware LGE SAA37940101 Contact Us For Availability
LV2
Cable,FFC LGE EAD62571701 Contact Us For Availability
P200
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P201
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P202
Connector,Wafer LGE 6630V93270K Contact Us For Availability
R201
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R206
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R208
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R500
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R515
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R546
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R547
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R557
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R560
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R565
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R566
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R574
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R600
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R614
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R618
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R630
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
× ![]()
