Model LG 70LB7100 – Common Parts & Diagrams

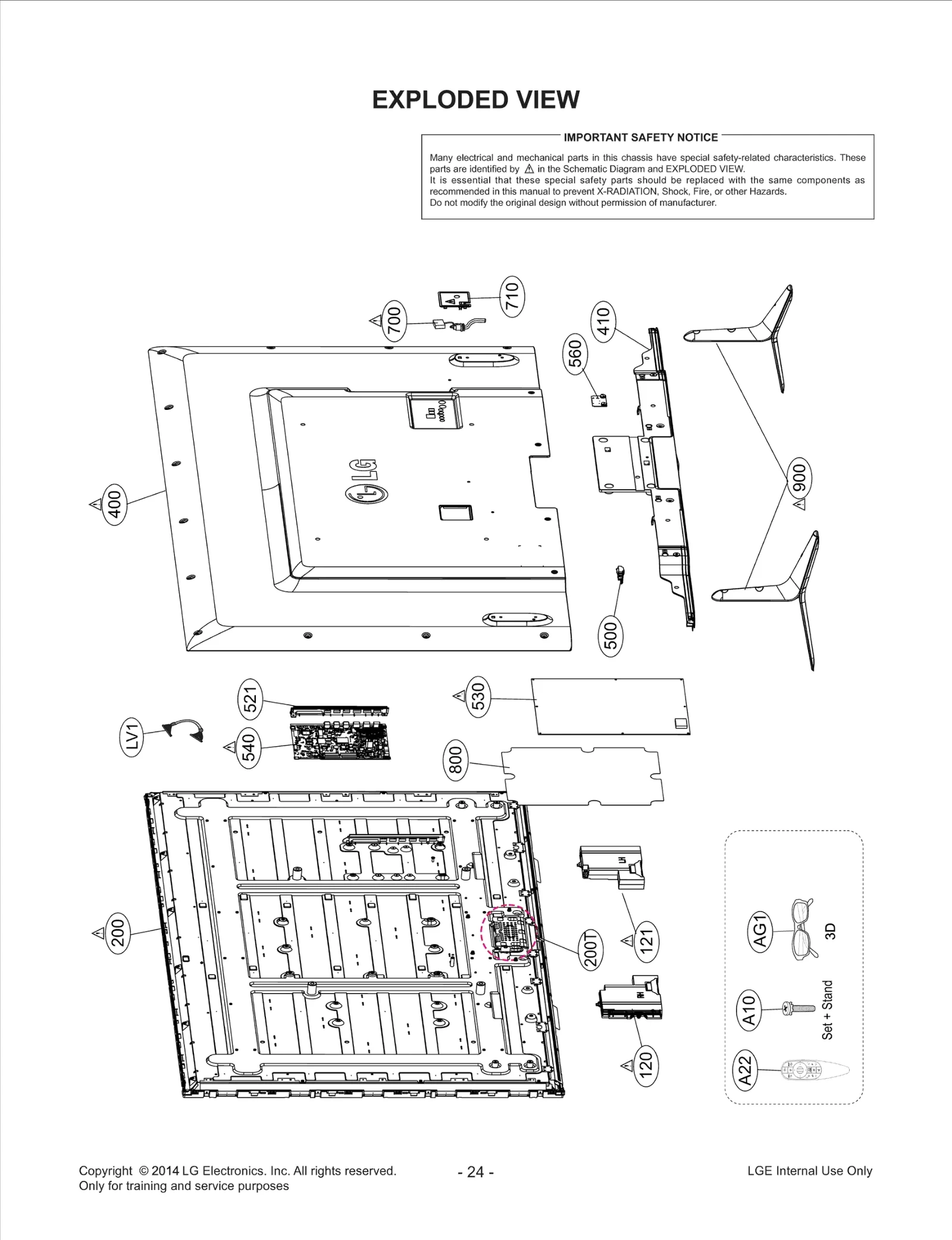

Diagram 0
Diagram 1
Common parts from model LG 70LB7100
3
Screw,Taptite LGE FAB31639801 Contact Us For Availability
4
Screw,Machine LGE FAB31843211 Contact Us For Availability
121
Speaker Assembly LGE EAB62972101 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62570401 Contact Us For Availability
200T
Time Control LGE EAT62053901 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86843104 Contact Us For Availability
410
Cover Assembly LGE ACQ86885005 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR77970405 Contact Us For Availability
710
Bracket LGE MAZ62827609 Contact Us For Availability
800
Insulator LGE MEV64573501 Contact Us For Availability
900
Base Assembly LGE AAN74649908 Contact Us For Availability
A22S
Remote Controller Assembly LGE AKB73975902 Contact Us For Availability
A22S
Remote Controller Assembly LGE AKB73975802 Contact Us For Availability
AG1
AG-F310---3D Glasses LGE EBX61668501 Contact Us For Availability
AM
Manual Assembly LGE AFN76115002 Contact Us For Availability
AM1
Manual,Owners LGE MFL68027902 Contact Us For Availability
AR3000
Resistor,Array LGE EBC62582702 Contact Us For Availability
AR6500
Resistor,Array LGE EBC62582701 Contact Us For Availability
AR8100
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR8103
Resistor,Array LGE EBC32260401 Contact Us For Availability
B1
Box LGE MAY66314201 Contact Us For Availability
B2
Box LGE MAY65262781 Contact Us For Availability
C102
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C345
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C501
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C605
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C2302
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2310
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C2312
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C2316
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C2322
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C2324
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C2330
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C2343
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C2344
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C3003
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C3402
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C4003
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
C4007
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C4310
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C5613
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5616
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C5622
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C6402
Capacitor,Ceramic,Chip LGE 0CK102EY48A Contact Us For Availability
C6517
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C8103
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
CA1
Harness,Single LGE EAD62595304 Contact Us For Availability
CA2
Harness,Multi LGE EAD62688004 Contact Us For Availability
CA3
Harness,Single LGE EAD61646295 Contact Us For Availability
D3000
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3201
Diode,Switching LGE EAH61714301 Contact Us For Availability
D4500
Diode,TVS LGE EAH62094301 Contact Us For Availability
D5003
Varistor LGE EAF61530201 Contact Us For Availability
IC402
IC,DDR3 SDRAM LGE EAN62571101 Contact Us For Availability
IC502
IC,DDR3 SDRAM LGE EAN61829204 Contact Us For Availability
IC2300
IC,DC,DC Converter LGE EAN62870701 Contact Us For Availability
IC2301
IC,DC,DC Converter LGE EAN62870301 Contact Us For Availability
IC2302
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC2303
IC,DC,DC Converter LGE EAN62870501 Contact Us For Availability
IC2304
IC,DC,DC Converter LGE EAN62911501 Contact Us For Availability
IC2306
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC3201
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC5200
IC,Ethernet LGE EAN62219201 Contact Us For Availability
IC5201
IC,Analog Switch LGE EAN63047601 Contact Us For Availability
IC5600
IC,Audio Amplifier LGE EAN62886101 Contact Us For Availability
JK3401
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK3802
Jack,RCA LGE EAG60968213 Contact Us For Availability
JK4500
Connector,USB LGE EAG62571101 Contact Us For Availability
JK5000
Jack,Modular LGE EAG35781010 Contact Us For Availability
L304
Filter,Bead LGE EAM54407902 Contact Us For Availability
L2303
Filter,Bead LGE EAM38769505 Contact Us For Availability
L2305
Inductor,Wire Wound,Chip LGE EAP61746701 Contact Us For Availability
L2309
Inductor,Wire Wound,Chip LGE EAP62026301 Contact Us For Availability
L2311
Inductor,Wire Wound,Chip LGE EAP62506410 Contact Us For Availability
L5603
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
LV2
Cable,FFC LGE EAD62047002 Contact Us For Availability
P4000
Connector,Wafer LGE EAG63590901 Contact Us For Availability
P5600
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P7201
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P7202
Connector,Wafer LGE 6630V93270K Contact Us For Availability
Q2302
FET LGE EBK61913601 Contact Us For Availability
Q3201
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q3202
TRANSISTOR,FETS LGE 0TFON80004C Contact Us For Availability
Q3205
FET LGE EBK62091801 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R128
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R143
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R172
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R304
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R309
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R314
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R322
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R326
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R350
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R357
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R381
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R418
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R2302
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R2303
Resistor,Chip LGE EBC35293401 Contact Us For Availability
R2305
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R2315
Resistor,Chip LGE EBC34656201 Contact Us For Availability
R2316
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R2317
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R2318
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R2319
RESISTOR,METAL GLAZE LGE 0RJ9101C478 Contact Us For Availability
R2320
Resistor,Chip LGE EBC61496201 Contact Us For Availability
R2321
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R2322
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R2323
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R2326
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2329
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R2333
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R2337
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R2341
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R2345
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R2350
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R2351
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R2352
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R2358
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R3001
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R3016
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R3034
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R3202
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R3261
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R3263
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R4015
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R4502
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R5209
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R5212
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R5606
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R5610
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R6402
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
VA3210
Varistor LGE EAF61530301 Contact Us For Availability
VA3800
Varistor LGE EAF61530101 Contact Us For Availability
VA3804
Varistor LGE EAF61630101 Contact Us For Availability
X101
Crystal LGE EAW61645502 Contact Us For Availability
X3000
Crystal LGE EAW58239602 Contact Us For Availability
X5200
Crystal LGE EAW61903502 Contact Us For Availability
× ![]()
