Model Whirlpool 6ET18ZKXAW01 REFRIGERATOR – Common Parts & Diagrams

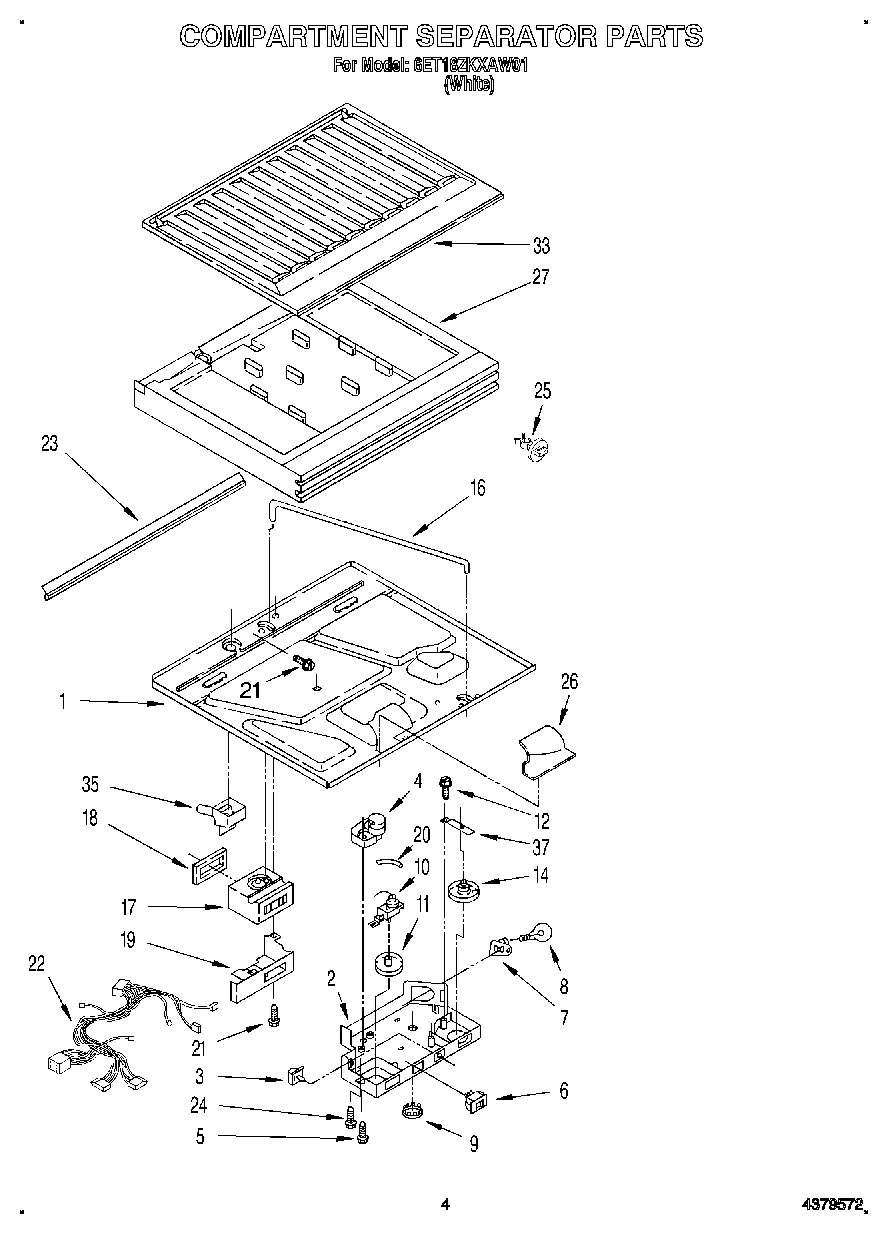

03 - COMPARTMENT SEPARATOR

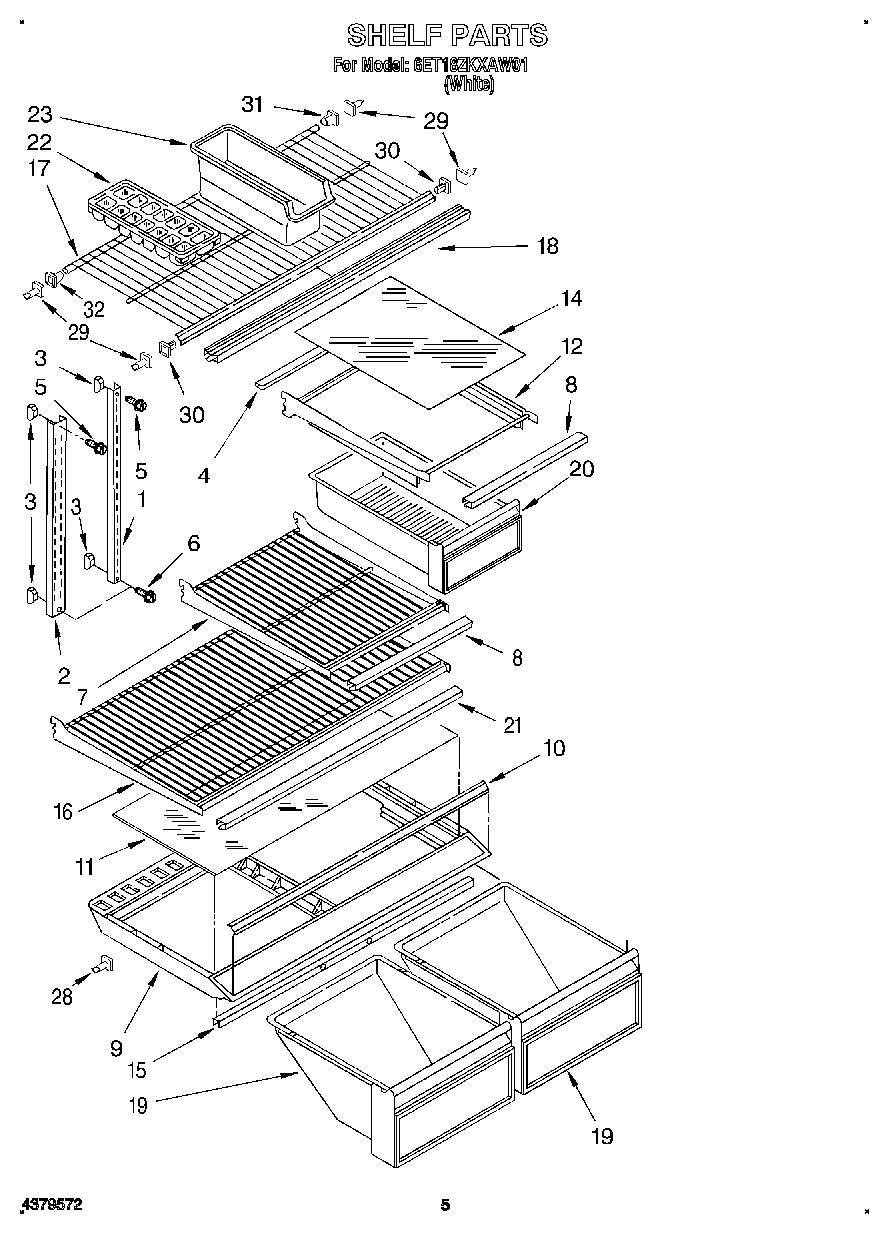

04 - SHELF
05 - FREEZER DOOR
06 - UNIT
07 - REFRIGERATOR DOOR, LIT/OPTIONAL
01 - CABINET
02 - LINER
Common parts from model Whirlpool 6ET18ZKXAW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2158656 WPL LIT2158656 Contact Us For Availability
WPL LIT2165191 WPL LIT2165191 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability
1
Unit, Frame WPL 2159747 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI16013A4 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI16014A5 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Compressor Kit Includes Items (22, 23, 25, 26 WPL 2154613 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Grommet, Compressor WPL 1105200 Contact Us For Availability
6
Screw WPL 489334 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
7
Deck Rail Cover WPL 2172703 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125888 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125889 Contact Us For Availability
9
Tube, Discharge WPL 2158994 Contact Us For Availability
9
Control, Front Cover WPL 2148582 Contact Us For Availability
10
Support, Heater WPL 2149120 Contact Us For Availability
10
Heater, Mullion WPL 2158623 Contact Us For Availability
11
Clip, Center Rail (6) WPL 1129018 Contact Us For Availability
12
Evaporator WPL 2153977 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Tube, Process WPL 2154090 Contact Us For Availability
13
Center Rail WPL 2172701 Contact Us For Availability
13
Cover, Air Duct WPL 2153966 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Heater, Defrost WPL 2162029 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
15
Gasket WPL 2167227 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
16
Motor, Fan WPL 2169115 Contact Us For Availability
17
Tube, Process WPL 2154040 Contact Us For Availability
18
Nameplate (White) WPL 2165148 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Interior Door Panel WPL 1118123 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Trim, Door Shelf WPL 2157810 Contact Us For Availability
21
Trim, Door Shelf WPL 2157812 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Relay WPL 2154612 Contact Us For Availability
22
Compartment Door (L.S.) WPL 2160252 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
23
Overload (Service) WPL 2156479 Contact Us For Availability
23
Overload (Production) WPL 2158566 Contact Us For Availability
23
Compartment, Door (R.S.) WPL 2160253 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
24
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
24
Tube & Muffler Assembly WPL 2154033 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
25
Terminal Cover WPL 1105221 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
26
Divider, Door Shelf WPL 2160050 Contact Us For Availability
27
Running Capacitor WPL 2154615 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Shelf Stud (2) WPL 1106612 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
29
Support Stud (4) WPL 946355 Contact Us For Availability
30
Shelf Stud (2) WPL 946356 Contact Us For Availability
31
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
31
Spacer WPL 2172745 Contact Us For Availability
32
Retainer, Gasket Top & Bottom (2) WPL 1115137 Contact Us For Availability
32
Clip, Wire WPL 548745 Contact Us For Availability
33
Corner Filler, Grille WPL 1125665 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
35
Trim, Door Shelf WPL 2157811 Contact Us For Availability
35
Grille WPL 1125664 Contact Us For Availability
36
Trim, Compartment Door (L.S.) WPL 2157839 Contact Us For Availability
37
WPL 876029 WPL 876029 Contact Us For Availability
37
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
37
WPL 799344 WPL 799344 Contact Us For Availability
37
Trim, Compartment Door (R.S.) WPL 2157836 Contact Us For Availability
37
Door Reversal Instructions WPL 2172761 Contact Us For Availability
37
WPL 542639 WPL 542639 Contact Us For Availability
37
WPL 799833 WPL 799833 Contact Us For Availability
37
WPL 978883 WPL 978883 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2165296 Contact Us For Availability
38
Tube, Condenser To Heat Loop WPL 2154031 Contact Us For Availability
40
Air, Baffle WPL 2169432 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
41
Hole Plug WPL 1129062 Contact Us For Availability
45
Fan Blade WPL 2169191 Contact Us For Availability
46
Fitting, Drain WPL 2172888 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
48
Cover, Unit WPL 2160519 Contact Us For Availability
49
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
69
Service Cord WPL 1129331 Contact Us For Availability
70
Enclosure, Term. WPL 2158579 Contact Us For Availability
72
Bushing WPL 1129449 Contact Us For Availability
73
Terminal Block WPL 1129346 Contact Us For Availability
74
Screw WPL 489346 Contact Us For Availability
76
Wiring Assy. WPL 2165297 Contact Us For Availability
× ![]()
