Model Whirlpool 687AJ-EKZW GAS RANGE – Common Parts & Diagrams

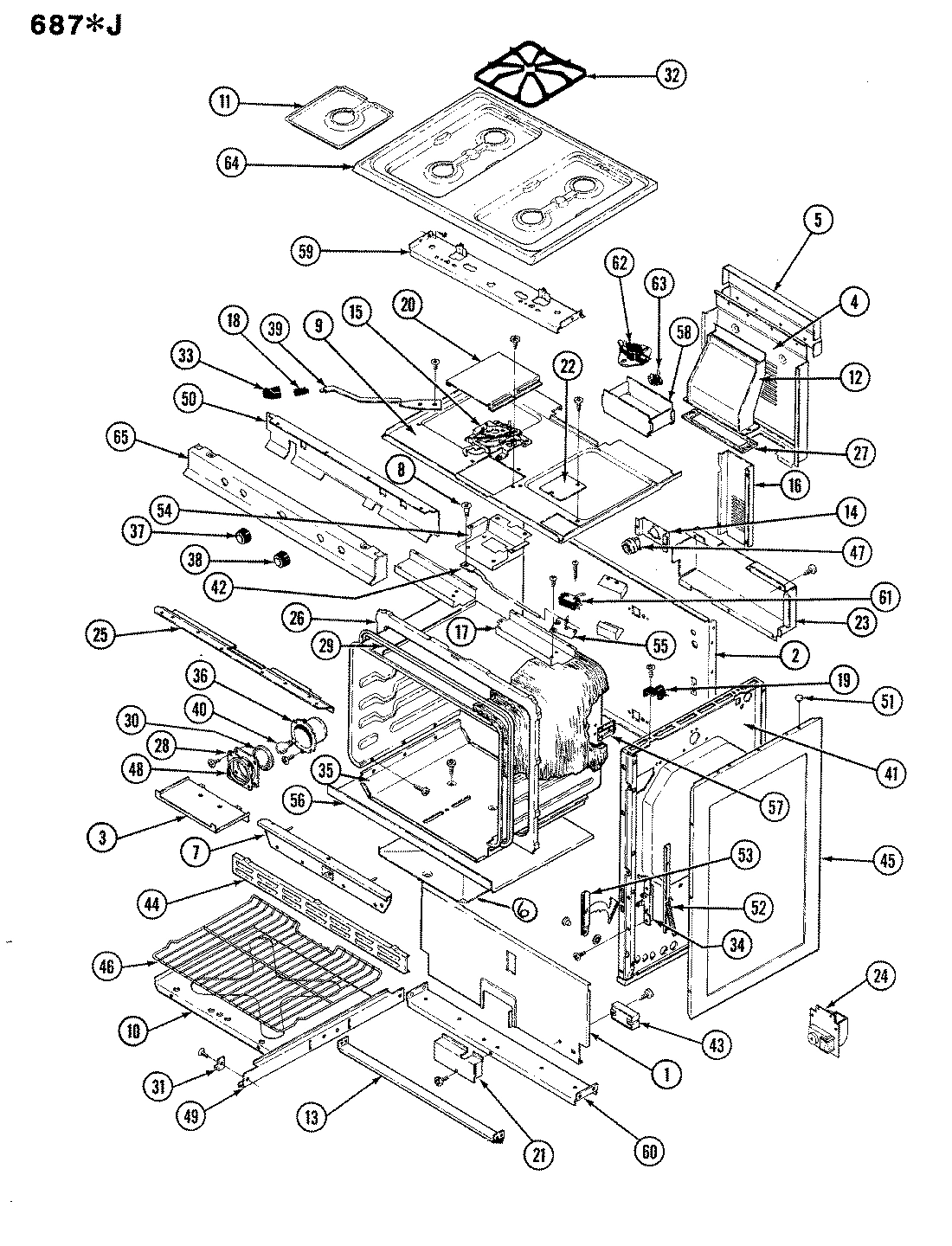

03 - CONTROL SYSTEM
02 - CONTROL PANEL

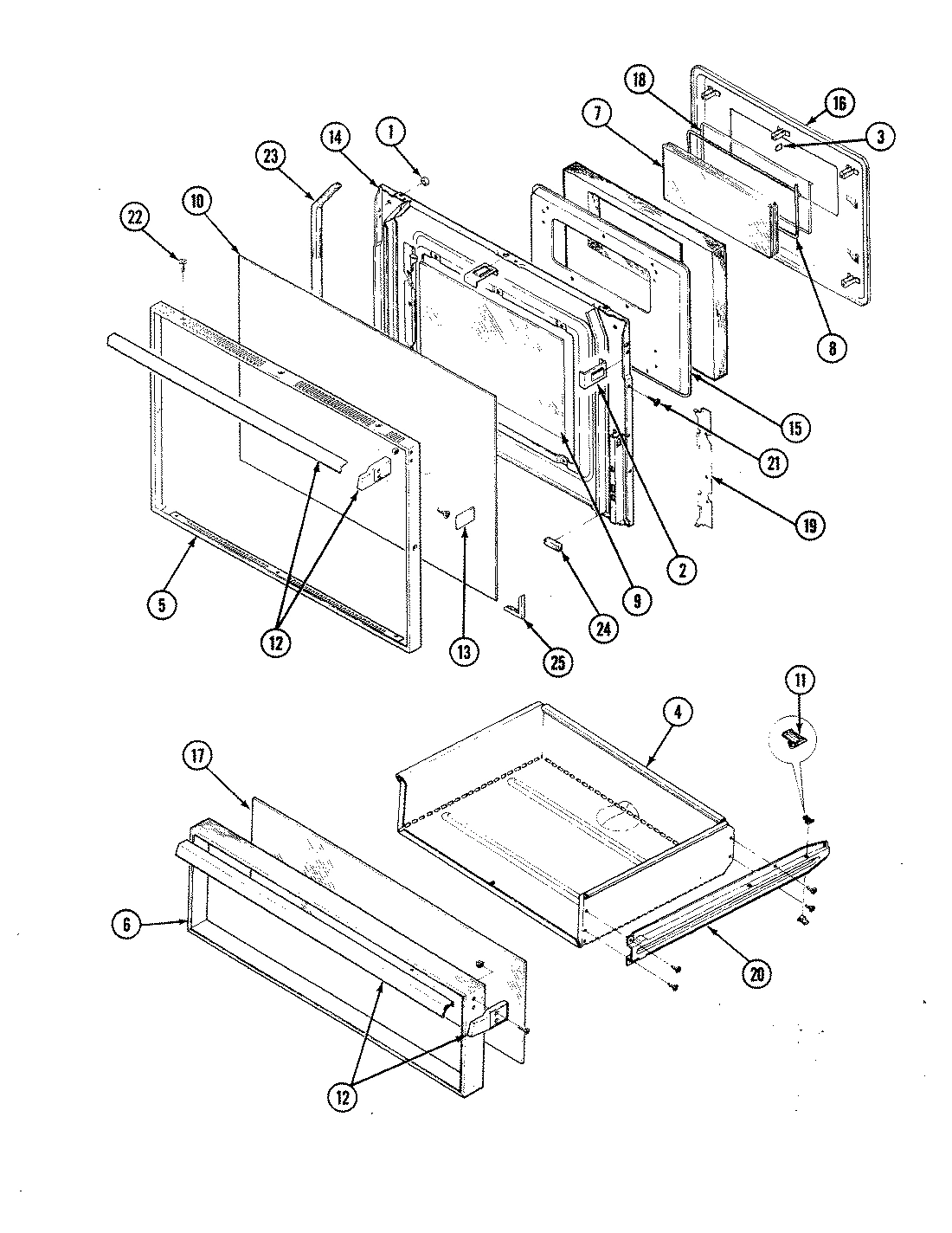

04 - DOOR
01 - BODY
Common parts from model Whirlpool 687AJ-EKZW GAS RANGE
1
BAFFLE, ASSY WPL 3601W12913 Contact Us For Availability
1
BRACKET (LEFT) WPL 3801F00234 Contact Us For Availability
1
(RIGHT) WPL 3801F10934 Contact Us For Availability
1
BALLAST WPL 7412P00560 Contact Us For Availability
1
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
1
BACK, BROILER SECTION WPL 4002F06645 Contact Us For Availability
2
BAFFLE, BROIL WPL 3601F09945 Contact Us For Availability
2
BRACKET, H.L. SWIT WPL 3801F09645 Contact Us For Availability
2
BRACKET, CLOCK MNTG WPL 3801F10845 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BACK, MAIN WPL 4002F13045 Contact Us For Availability
3
BURNER WPL 7505P10160 Contact Us For Availability
3
BRACKET WPL 3801F00634 Contact Us For Availability
3
CLIP, RETAINER WPL 7112P05160 Contact Us For Availability
3
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
4
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
4
DRAWER ASSY. WPL 3405F00820 Contact Us For Availability
4
BAFFLE, FLUE BOX WPL 3601F11251 Contact Us For Availability
5
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
5
COVER, BKGD WIRE WPL 4005F10080 Contact Us For Availability
5
COVER, BKGD BOTTOM WPL 4005F15520 Contact Us For Availability
5
EXTRUSION WPL 7706P09760 Contact Us For Availability
5
COVER, BKGD LAMP WPL 7724P02360 Contact Us For Availability
5
FRAME, OVEN DOOR WPL 7706P22260 Contact Us For Availability
5
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
5
BAFFLE, FLUE BOX TOP WPL 3601F10751 Contact Us For Availability
6
CAP, BURNER WPL 7504P00160 Contact Us For Availability
6
EXTRUSION, GLASS SPT WPL 7706P16660 Contact Us For Availability
6
EXTRUSION, TRIM WPL 7706P10860 Contact Us For Availability
6
BAFFLE WPL 3601F11645 Contact Us For Availability
7
FITTING, BAKE BNR. WPL 7507P00860 Contact Us For Availability
7
GLASS, BKGD WPL 7910P03060 Contact Us For Availability
7
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
7
BAFFLE, OVN FRONT WPL 3601W12512 Contact Us For Availability
7
BLOCK, DISCONNECT CAP WPL 7401P00460 Contact Us For Availability
7
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
8
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
8
FITTING, BROIL BURNER WPL 7507P02860 Contact Us For Availability
8
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
8
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
8
BOLT, DOOR LOCK WPL 7116P00260 Contact Us For Availability
9
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
9
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
9
GLASS, INNER WPL 7902P09760 Contact Us For Availability
9
BOX, BURNER WPL 4011F07580 Contact Us For Availability
10
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
10
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
10
GLASS, WINDOW WPL 7902P10360 Contact Us For Availability
10
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
10
BOTTOM, OVEN WPL 2205F01213 Contact Us For Availability
11
NUT, WING WPL 7103P03060 Contact Us For Availability
11
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
11
BOWL, DRIP TRAY WPL 7725P00460 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P04460 Contact Us For Availability
12
LIGHT, SIGNAL LOCK WPL 7407P01060 Contact Us For Availability
12
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
12
BOX, FLUE WPL 4006W02613 Contact Us For Availability
13
PLATE, FITTING WPL 3605F01945 Contact Us For Availability
13
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
13
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
13
BRACKET, DISCONNECT WPL 3801F02245 Contact Us For Availability
13
BRACKET WPL 3801F09351 Contact Us For Availability
13
BRACE WPL 3802F00320 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P00460 Contact Us For Availability
14
PANEL, BKGD LOWER WPL 2620W01800 Contact Us For Availability
14
LINING ASSY, OV DR WPL 2402W12512 Contact Us For Availability
14
LINING WPL 2402W12815 Contact Us For Availability
14
BRACKET WPL 3801F02451 Contact Us For Availability
14
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
14
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
14
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
15
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
15
PLATE, CLOCK MOUNTING WPL 3605F14220 Contact Us For Availability
15
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
15
PAD, INNER WPL 2410F01651 Contact Us For Availability
15
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
16
SWITCH, THERM LOCK WPL 7403P00460 Contact Us For Availability
16
RECEPTACLE, LAMP WPL 7408P00560 Contact Us For Availability
16
PAD ASSY, OV. DR. WPL 2410W02912 Contact Us For Availability
16
CHANNEL - AIR DUCT WPL 3818F03280 Contact Us For Availability
17
SWITCH, TOP BURNER WPL 7403P04160 Contact Us For Availability
17
SLEEVE, SWITCH WPL 7214P00160 Contact Us For Availability
17
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
17
CHANNEL, SWITCH LOCK WPL 3818F027 Contact Us For Availability
17
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
18
SUPPORT, BKGD LAMP WPL 3807F21520 Contact Us For Availability
18
RETAINER WPL 3804F02245 Contact Us For Availability
18
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
18
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
19
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
19
SUPPORT WPL 3807F01080 Contact Us For Availability
19
SUPPORT WPL 3807F01280 Contact Us For Availability
19
SWITCH, FLUOR WPL 7403P00960 Contact Us For Availability
19
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
19
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
20
3/8 X 45 TUBING WPL Y0936103 Contact Us For Availability
20
SWITCH, LIGHT WPL 7403P01960 Contact Us For Availability
20
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
21
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
21
TRIM, NAMEPLATE WPL 7728P04560 Contact Us For Availability
21
RIVET WPL 7107P01760 Contact Us For Availability
21
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
22
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
22
TRIM WPL 7726P00760 Contact Us For Availability
22
TRIM, BKGD. (RT) WPL 7726P01860 Contact Us For Availability
22
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
22
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
23
COVER, MODULE WPL 4005F17480 Contact Us For Availability
23
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
23
SEAL WPL 7208P00260 Contact Us For Availability
24
VALVE WPL 7502P03160 Contact Us For Availability
24
VALVE, BURNER WPL 7502P11160 Contact Us For Availability
24
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
24
FAN ASSEMBLY WPL 7427P00260 Contact Us For Availability
25
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
25
TAPE, 2`` X 16`` REFLECTIVE WPL 8270P05160 Contact Us For Availability
25
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
26
FRONT, OVEN WPL 2201F03323 Contact Us For Availability
27
GASKET WPL 7201P01360 Contact Us For Availability
28
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
29
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
30
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
31
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
31
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
32
GRATE WPL 2003W00100 Contact Us For Availability
33
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
34
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
34
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
35
HOUSING, BAKE BURNER WPL 4001F03645 Contact Us For Availability
36
KNOB WPL 7711P08560 Contact Us For Availability
36
INSERT WPL 3413F00211 Contact Us For Availability
36
HOUSING WPL 4001F02013 Contact Us For Availability
37
KNOB, THERMOSTAT WPL 7711P32260 Contact Us For Availability
38
KNOB, VALVE WPL 7711P17360 Contact Us For Availability
39
LEVER, DOOR LOCK WPL 8009P01060 Contact Us For Availability
40
BULB, OVEN WPL 7407P02660 Contact Us For Availability
41
LINING, IN SIDE WPL 4009W03420 Contact Us For Availability
42
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
43
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
43
PANEL, STORAGE DOOR BLK WPL 2416F02770 Contact Us For Availability
44
PANEL, LOWER FRONT WPL 2614F00820 Contact Us For Availability
45
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
45
PIN, HINGE WPL 7113P00260 Contact Us For Availability
46
RACK, OVEN WPL 7801P01160 Contact Us For Availability
47
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
48
RETAINER, LAMP GUARD WPL 3804F01245 Contact Us For Availability
48
BUM WPL 7107P01460 Contact Us For Availability
49
WPL 3406F00780 WPL 3406F00780 Contact Us For Availability
49
WPL 3406F02080 WPL 3406F02080 Contact Us For Availability
49
WPL 7101P05460 WPL 7101P05460 Contact Us For Availability
50
WPL 3604F08551 WPL 3604F08551 Contact Us For Availability
50
WPL 7214P00460 WPL 7214P00460 Contact Us For Availability
51
WPL 8010P04860 WPL 8010P04860 Contact Us For Availability
52
WPL 7803P00260 WPL 7803P00260 Contact Us For Availability
53
WPL 3420A03334 WPL 3420A03334 Contact Us For Availability
54
WPL 3807F18845 WPL 3807F18845 Contact Us For Availability
55
WPL 3807F19345 WPL 3807F19345 Contact Us For Availability
55
WPL 7105P00260 WPL 7105P00260 Contact Us For Availability
56
WPL 3807W20745 WPL 3807W20745 Contact Us For Availability
57
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
58
WPL 3807F21951 WPL 3807F21951 Contact Us For Availability
59
WPL 3807F22180 WPL 3807F22180 Contact Us For Availability
60
WPL 3807F21645 WPL 3807F21645 Contact Us For Availability
60
WPL 7403P01460 WPL 7403P01460 Contact Us For Availability
61
WPL 7403P03460 WPL 7403P03460 Contact Us For Availability
62
WPL 7403P09160 WPL 7403P09160 Contact Us For Availability
63
WPL 7515P02060 WPL 7515P02060 Contact Us For Availability
63
WPL 7403P07760 WPL 7403P07760 Contact Us For Availability
64
WPL 2001F03594 WPL 2001F03594 Contact Us For Availability
65
WPL 7402P01460 WPL 7402P01460 Contact Us For Availability
65
WPL 7712A04860 WPL 7712A04860 Contact Us For Availability
65
WPL 8026P00660 WPL 8026P00660 Contact Us For Availability
66
WPL 8112P01060 WPL 8112P01060 Contact Us For Availability
66
WPL 811 WPL 811 Contact Us For Availability
× ![]()
Login and Registration Form
