Model Whirlpool 686WJ-TKSVW GAS RANGE – Common Parts & Diagrams

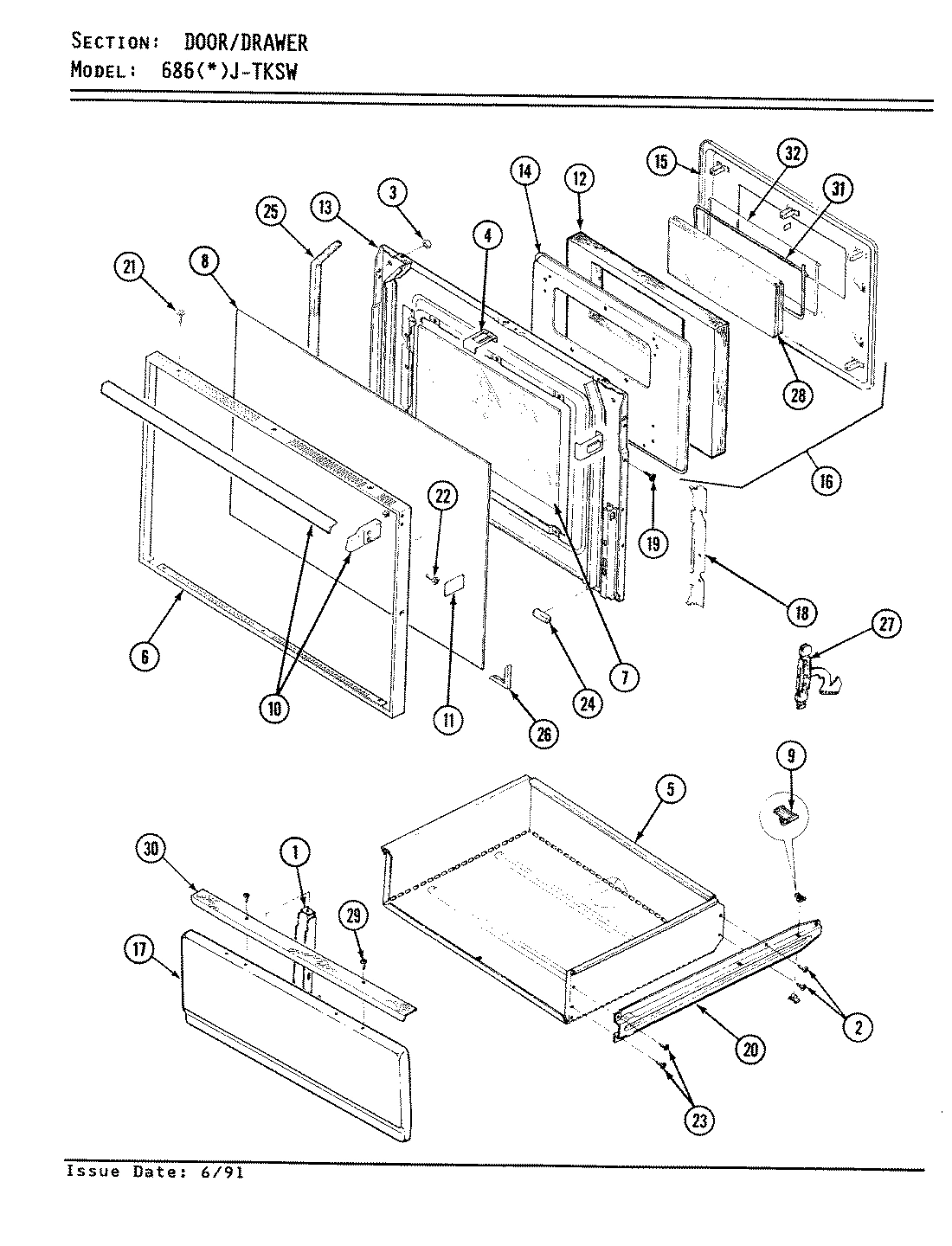

03 - DOOR/DRAWER

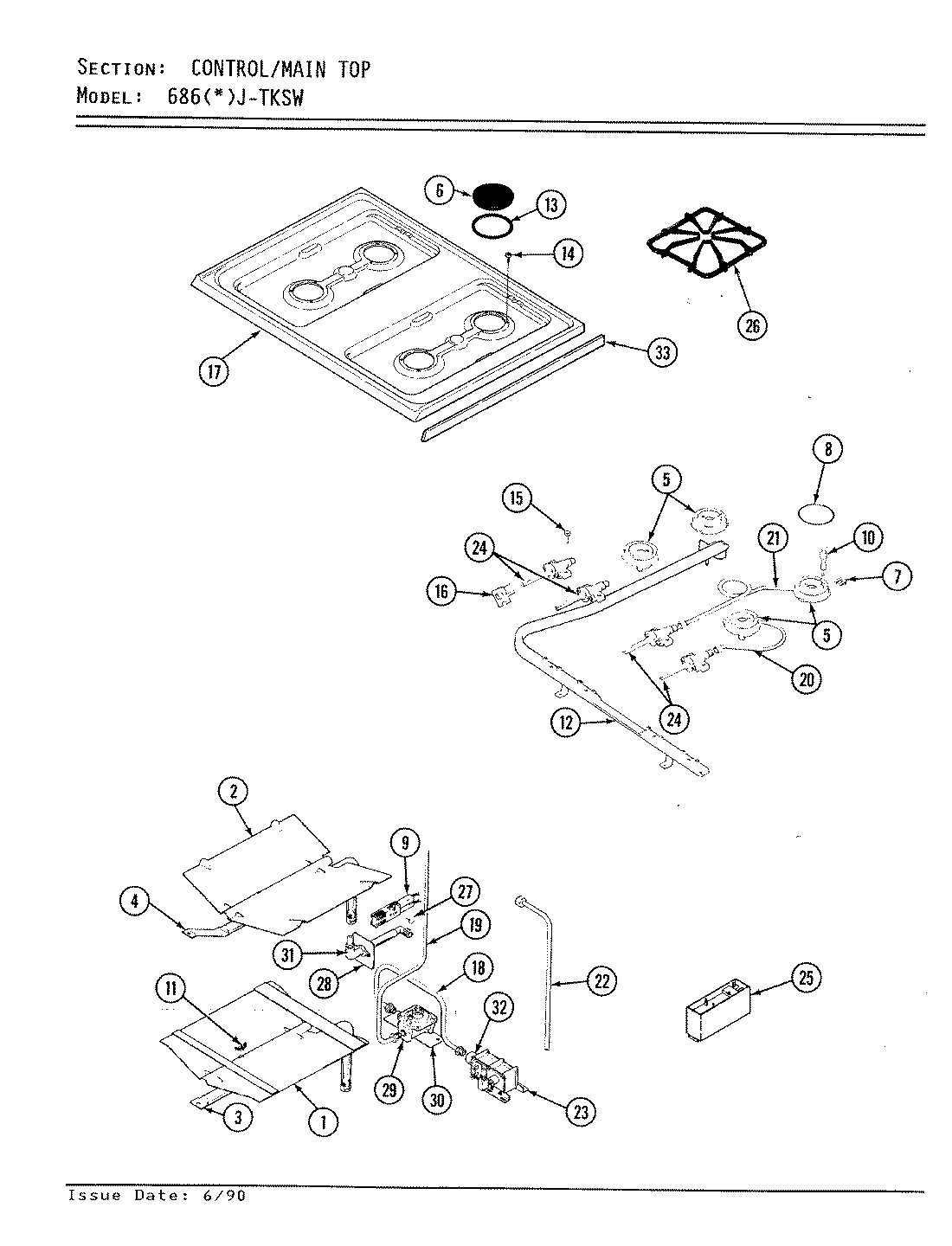

04 - GAS CONTROLS

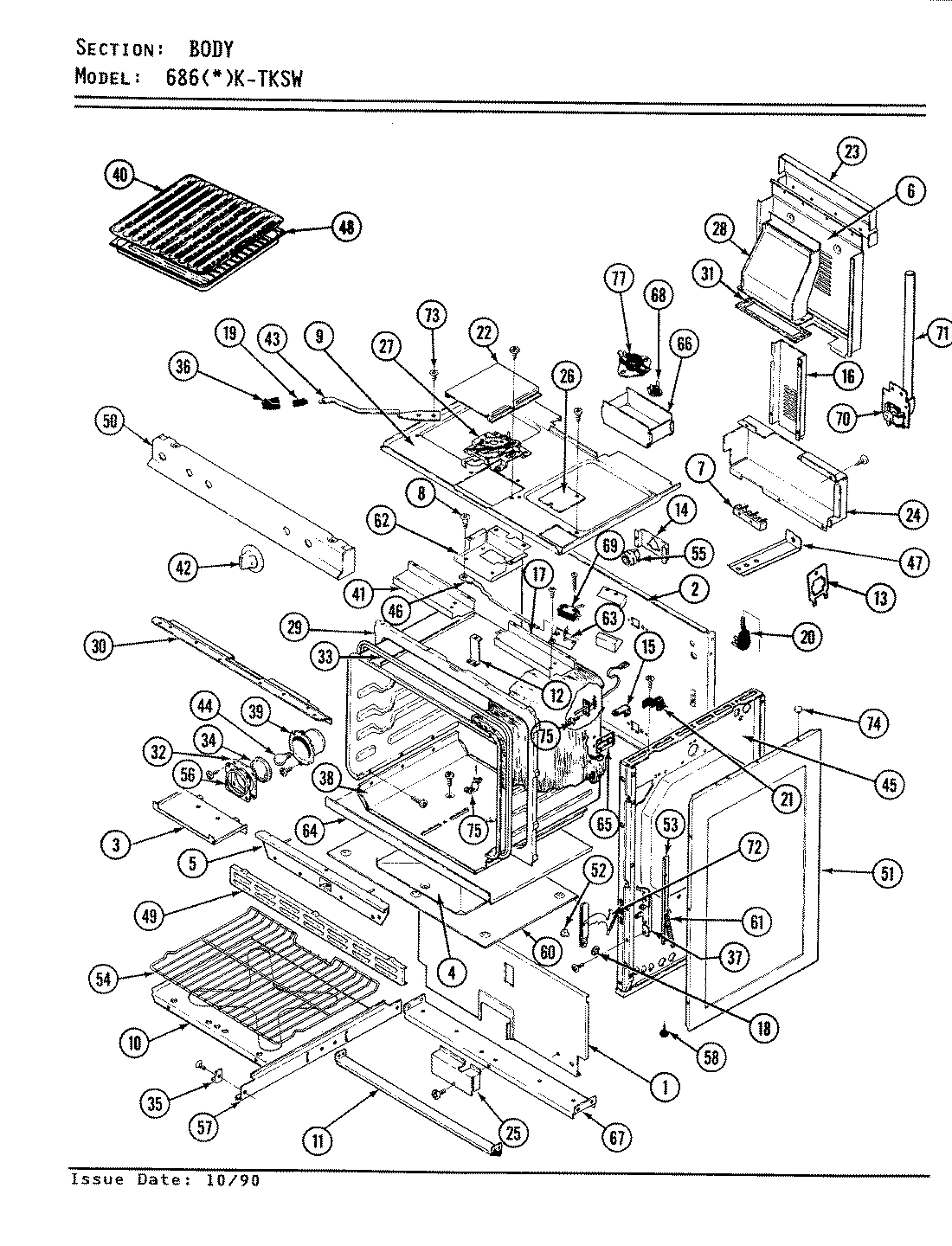

01 - BODY

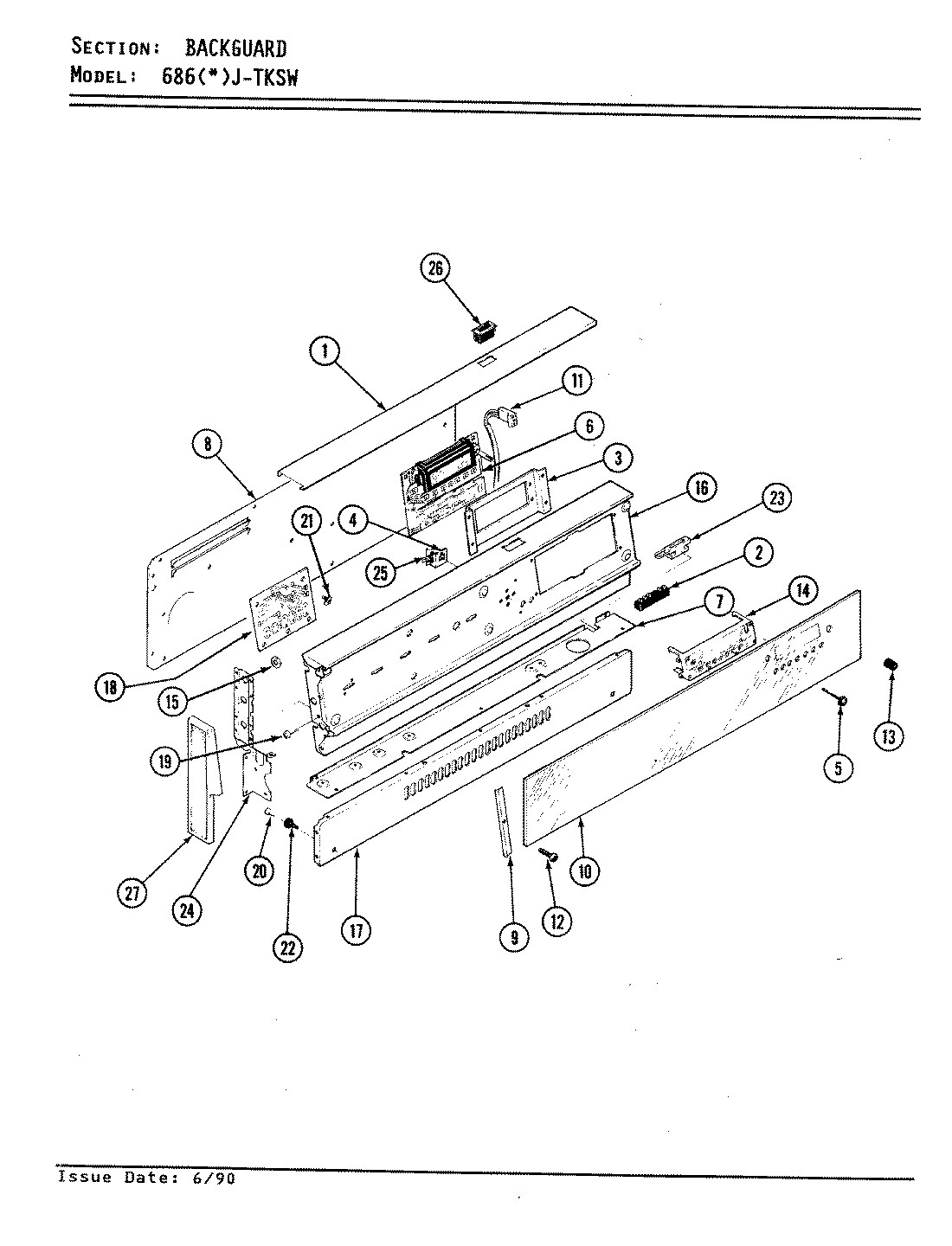

02 - CONTROL PANEL
Common parts from model Whirlpool 686WJ-TKSVW GAS RANGE
1
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
1
BAFFLE WPL 3601W18415 Contact Us For Availability
1
BACK, BROILER WPL 4002F13145 Contact Us For Availability
1
TRIM, BACKGUARD TOP WPL 7715P01560 Contact Us For Availability
2
SCREW, SERVICE DRAWER WPL 7101P27260 Contact Us For Availability
2
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
2
BACK, MAIN WPL 4002F14480 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
3
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
3
BURNER OVEN WPL 3403A01545 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
3
BURNER WPL 7505P10160 Contact Us For Availability
3
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
3
SCREW WPL 7101P27360 Contact Us For Availability
3
BRACKET, CLOCK MTG WPL 3801F11845 Contact Us For Availability
4
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
4
BURNER ASSY BROIL WPL 3403A01645 Contact Us For Availability
4
BURNER, BROIL WPL 3403D02845 Contact Us For Availability
4
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
4
BAFFLE WPL 3601F11645 Contact Us For Availability
4
BRACKET WPL 3801F21345 Contact Us For Availability
5
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
5
WIRE, IGNITER FRONT WPL 5110A82460 Contact Us For Availability
5
WIRE, IGNITER REAR WPL 5110A82560 Contact Us For Availability
5
+ NAT. GAS CONVERSION KIT WPL 5415A01560 Contact Us For Availability
5
LP CONVERSION KIT WPL 5415A01660 Contact Us For Availability
5
BURNER, TOP COMPLETE WPL 7505A15560 Contact Us For Availability
5
BURNER, TOP WPL 7505P18760 Contact Us For Availability
5
BAFFLE, OVN FRONT WPL 3601W12515 Contact Us For Availability
5
BAFFLE OVEN FRONT WPL 3601W12519 Contact Us For Availability
5
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
5
BUTTON, CLOCK SET WPL 7711P45260 Contact Us For Availability
6
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
6
CAP, BURNER WPL 7504P00560 Contact Us For Availability
6
BAFFLE, FLUE BOX WPL 3601F11251 Contact Us For Availability
6
CLOCK WPL 7601P10160 Contact Us For Availability
6
CLOCK WPL 7601P15560 Contact Us For Availability
6
CLOCK WPL 7601P16360 Contact Us For Availability
6
CLOCK, ELECTRONIC WPL 7601P18160 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
7
CLIP WPL 7112P07260 Contact Us For Availability
7
BLOCK, DISCONNECT WPL 7401P01160 Contact Us For Availability
7
BLOCK WPL 7401P01860 Contact Us For Availability
7
COVER, BOTTOM BKDG WIRE WPL 4005F15580 Contact Us For Availability
8
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
8
GASKET, BURNER WPL 7201P03760 Contact Us For Availability
8
BOLT WPL 7116P00360 Contact Us For Availability
8
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
8
COVER, BACKGUARD WPL 4005F19480 Contact Us For Availability
9
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
9
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
9
LIGHTER, BAKE WPL 7432P06660 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
9
BOTTOM, BURNER BOX WPL 4011F15780 Contact Us For Availability
9
BOTTOM, BURNER BOX WPL 4011F17880 Contact Us For Availability
9
TRIM, RETAINER GLASS WPL 7742P00960 Contact Us For Availability
10
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
10
IGNITER, BURNER WPL 7432P05360 Contact Us For Availability
10
BOTTOM, OVEN WPL 2205F02015 Contact Us For Availability
10
BOTTOM, OVEN WPL 2205F02021 Contact Us For Availability
10
BOTTOM, OVEN WPL W10124403 Contact Us For Availability
10
GLASS, BACKGUARD WPL 7910P14060 Contact Us For Availability
11
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
11
NUT, WING WPL 7103P03060 Contact Us For Availability
11
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
11
HARNESS OVEN SENSOR WPL 5170P00760 Contact Us For Availability
11
WIRE HARNESS, CLOCK WPL 5170P06760 Contact Us For Availability
12
INSULATION, DOOR PAD WPL 7002P11760 Contact Us For Availability
12
MANIFOLD PIPE WPL 7513P09360 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P10460 Contact Us For Availability
12
BRACKET WPL 3801F09351 Contact Us For Availability
12
SCREW WPL 7101P00860 Contact Us For Availability
13
LINING, DOOR WPL 2402W15315 Contact Us For Availability
13
LINING WPL 2402W17319 Contact Us For Availability
13
NUT, SNAP WPL 7103P11460 Contact Us For Availability
13
RING, BLACK WPL 2014F00100 Contact Us For Availability
13
BRACKET WPL 3801F02145 Contact Us For Availability
13
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
13
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
14
PAD, INNER WPL 2410F01651 Contact Us For Availability
14
SCREW WPL 7101P25660 Contact Us For Availability
14
BRACKET WPL 3801F02451 Contact Us For Availability
14
LENS, CLOCK WPL 7730P00560 Contact Us For Availability
15
PAD, DOOR WPL 2410W04115 Contact Us For Availability
15
PAD, DOOR WPL 2410W04119 Contact Us For Availability
15
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
15
SCREW WPL 7101P29660 Contact Us For Availability
15
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
15
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
15
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
16
PAD, ASSY. WPL 2410A04115 Contact Us For Availability
16
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
16
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
16
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
16
SWITCH WPL 7403P25860 Contact Us For Availability
16
SWITCH, IGNITER WPL 7403P28760 Contact Us For Availability
16
CHANNEL - AIR DUCT WPL 3818F03280 Contact Us For Availability
16
PANEL, BACKGUARD WHITE WPL 2601W19981 Contact Us For Availability
16
PANEL, CONTROL (WHITE) WPL 2601W32881 Contact Us For Availability
17
PANEL, STORAGE DWR WHITE WPL 2416F01871 Contact Us For Availability
17
TOP, MAIN WHITE WPL 2001F06381 Contact Us For Availability
17
TOP, MAIN BLK WPL 2001F06390 Contact Us For Availability
17
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
17
BACKGUARD PANEL WPL 2620W05390 Contact Us For Availability
18
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
18
TUBE, REGULATOR----NA WPL 7506P07560 Contact Us For Availability
18
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
18
RELAY, BOARD ASSY. WPL 7428P00660 Contact Us For Availability
19
RIVET WPL 7107P01760 Contact Us For Availability
19
TUBE, MANIFOLD FEED----NA WPL 7506P10160 Contact Us For Availability
19
FITTING, STRAIGHT WPL 7507P05360 Contact Us For Availability
19
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
20
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
20
TUBE, FRONT BURNER WPL 7506P07660 Contact Us For Availability
20
BLOCK, DISCONNECT CAP WPL 7401P00460 Contact Us For Availability
20
CORD, POWER WPL 7402P02460 Contact Us For Availability
21
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
21
TUBE, REAR BURNER WPL 7506P07760 Contact Us For Availability
21
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
21
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
22
SCREW WPL 7101P12360 Contact Us For Availability
22
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
22
3/8 X 45 TUBING WPL Y0936103 Contact Us For Availability
22
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
22
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
23
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
23
VALVE, BROIL & BAKE WPL 7501P09160 Contact Us For Availability
23
VALVE, BROIL & BAKE - NAT WPL 7501P09560 Contact Us For Availability
23
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
23
BAFFLE, FLUE BOX TOP WPL 3601F10751 Contact Us For Availability
24
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
24
SLEEVE WPL 7214P00360 Contact Us For Availability
24
VALVE, TOP BURNER WPL 7502P10060 Contact Us For Availability
24
VALVE, TOP BURNER WPL 7502P14160 Contact Us For Availability
24
VALVE, TOP BURNER WPL 7502P22060 Contact Us For Availability
24
COVER, MODULE WPL 4005F17480 Contact Us For Availability
24
SCREW WPL 7101P05860 Contact Us For Availability
24
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
24
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
24
SCREW WPL 7101P07460 Contact Us For Availability
25
SEAL WPL 7208P00260 Contact Us For Availability
25
BRACKET, MODULE SUPPORT WPL 3801F20545 Contact Us For Availability
25
MODULE, SPARK WPL 7431P01660 Contact Us For Availability
25
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
25
SWITCH, H.L. FAN WPL 7403P08760 Contact Us For Availability
26
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
26
GRATE, BLACK WPL 7518P01460 Contact Us For Availability
26
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
26
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
27
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
27
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
27
CATCH, DR LK WPL 8002P01560 Contact Us For Availability
27
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
27
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
28
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
28
WINDOW PAK WPL 7902S30360 Contact Us For Availability
28
PLATE, FITTING WPL 3605F01945 Contact Us For Availability
28
BOX, FLUE WPL 4006W02615 Contact Us For Availability
29
REGULATOR, PRESSURE WPL 7510P02860 Contact Us For Availability
29
REGULATOR WPL 7510P04060 Contact Us For Availability
29
FRONT, OVEN UPPER WPL 2201F06123 Contact Us For Availability
29
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
30
HANDLE DOOR WHT WPL 2411F00171 Contact Us For Availability
30
BRACKET, REGULATOR MTG WPL 3801F19145 Contact Us For Availability
30
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
30
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
31
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
31
FITTING, BROIL BURNER WPL 7507P02860 Contact Us For Availability
31
GASKET WPL 7201P01360 Contact Us For Availability
32
RETAINER WPL 3804F02245 Contact Us For Availability
32
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
32
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
33
SCREW WPL 7101P07260 Contact Us For Availability
33
NUT WPL 7103P06460 Contact Us For Availability
33
TRIM, MAIN TOP (LEFT) WPL 7746P02560 Contact Us For Availability
33
TRIM, MAIN TOP (RIGHT) WPL 7746P02660 Contact Us For Availability
33
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
34
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
34
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
35
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
35
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
36
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
37
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
37
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
37
SCREW WPL 7101P11260 Contact Us For Availability
38
HOUSING, BAKE BURNER WPL 4001F03645 Contact Us For Availability
39
HOUSING, LAMP WPL 4001F02023 Contact Us For Availability
39
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
40
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
41
CHANNEL, AIR WPL 3818F02545 Contact Us For Availability
42
KNOB, VALVE WPL 7733P03860 Contact Us For Availability
42
KNOB, VALVE WPL 7733P05360 Contact Us For Availability
43
LEVER, DOOR LOCK WPL 8009P01060 Contact Us For Availability
44
BULB, OVEN WPL 7407P02660 Contact Us For Availability
45
LINING, INNER SIDE WPL 4009W05880 Contact Us For Availability
46
LIN WPL 7807P00460 Contact Us For Availability
47
WPL 3801F19851 WPL 3801F19851 Contact Us For Availability
47
WPL 3801F21851 WPL 3801F21851 Contact Us For Availability
47
WPL 7101P28960 WPL 7101P28960 Contact Us For Availability
48
WPL 3401F00423 WPL 3401F00423 Contact Us For Availability
49
WPL 2614F00880 WPL 2614F00880 Contact Us For Availability
50
WPL 7712P09060 WPL 7712P09060 Contact Us For Availability
51
WPL 2618F05270 WPL 2618F05270 Contact Us For Availability
52
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
53
WPL 3601F10651 WPL 3601F10651 Contact Us For Availability
54
WPL 7801P03160 WPL 7801P03160 Contact Us For Availability
55
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
56
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
57
WPL 7101P06160 WPL 7101P06160 Contact Us For Availability
57
WPL 3406F02551 WPL 3406F02551 Contact Us For Availability
58
WPL Y7101P25460 WPL Y7101P25460 Contact Us For Availability
59
WPL 3604F08551 WPL 3604F08551 Contact Us For Availability
60
WPL 3604F08345 WPL 3604F08345 Contact Us For Availability
61
WPL 7 WPL 7 Contact Us For Availability
× ![]()
Login and Registration Form
