Model Whirlpool 676WK-KLSVW GAS RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

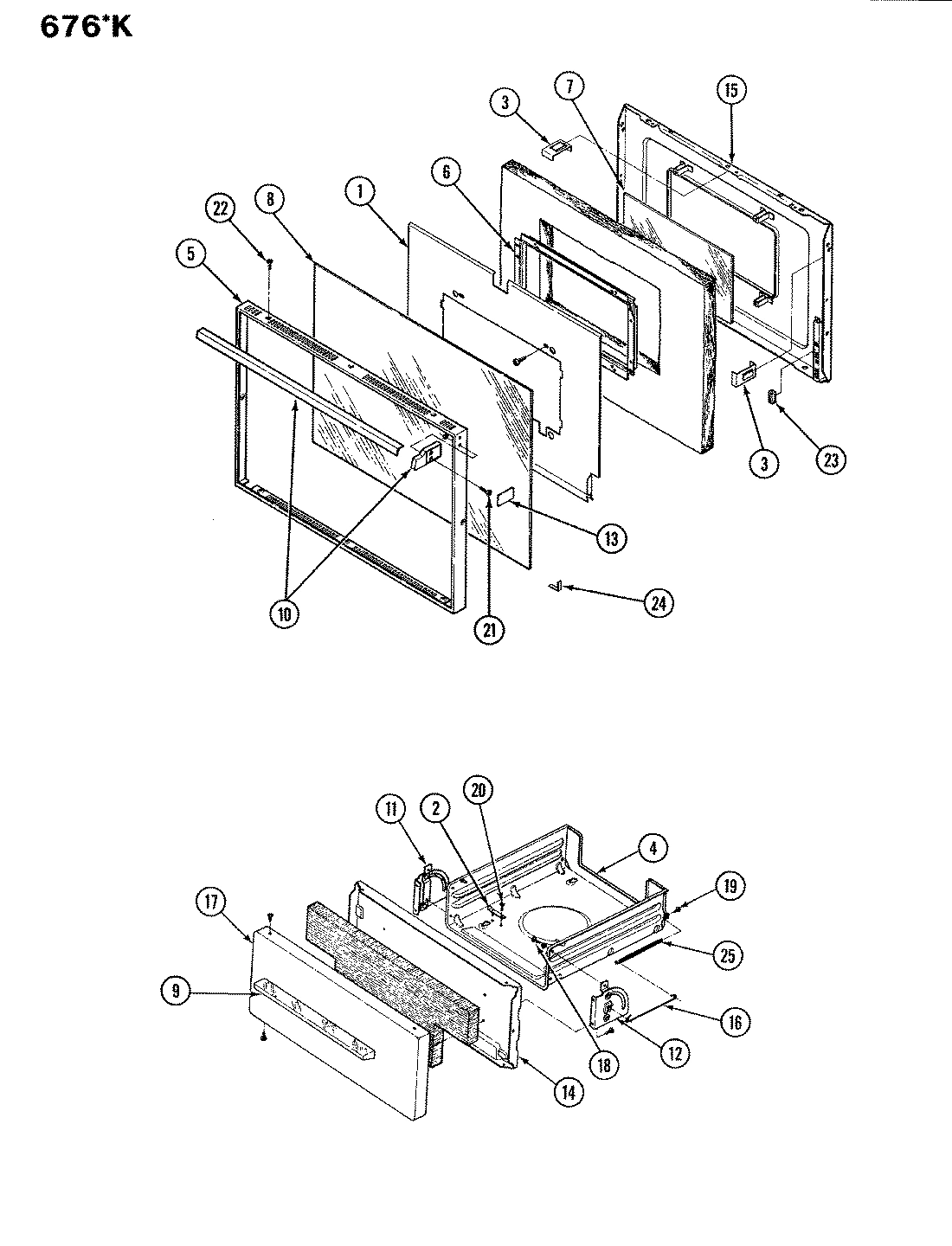

04 - DOOR
01 - BODY

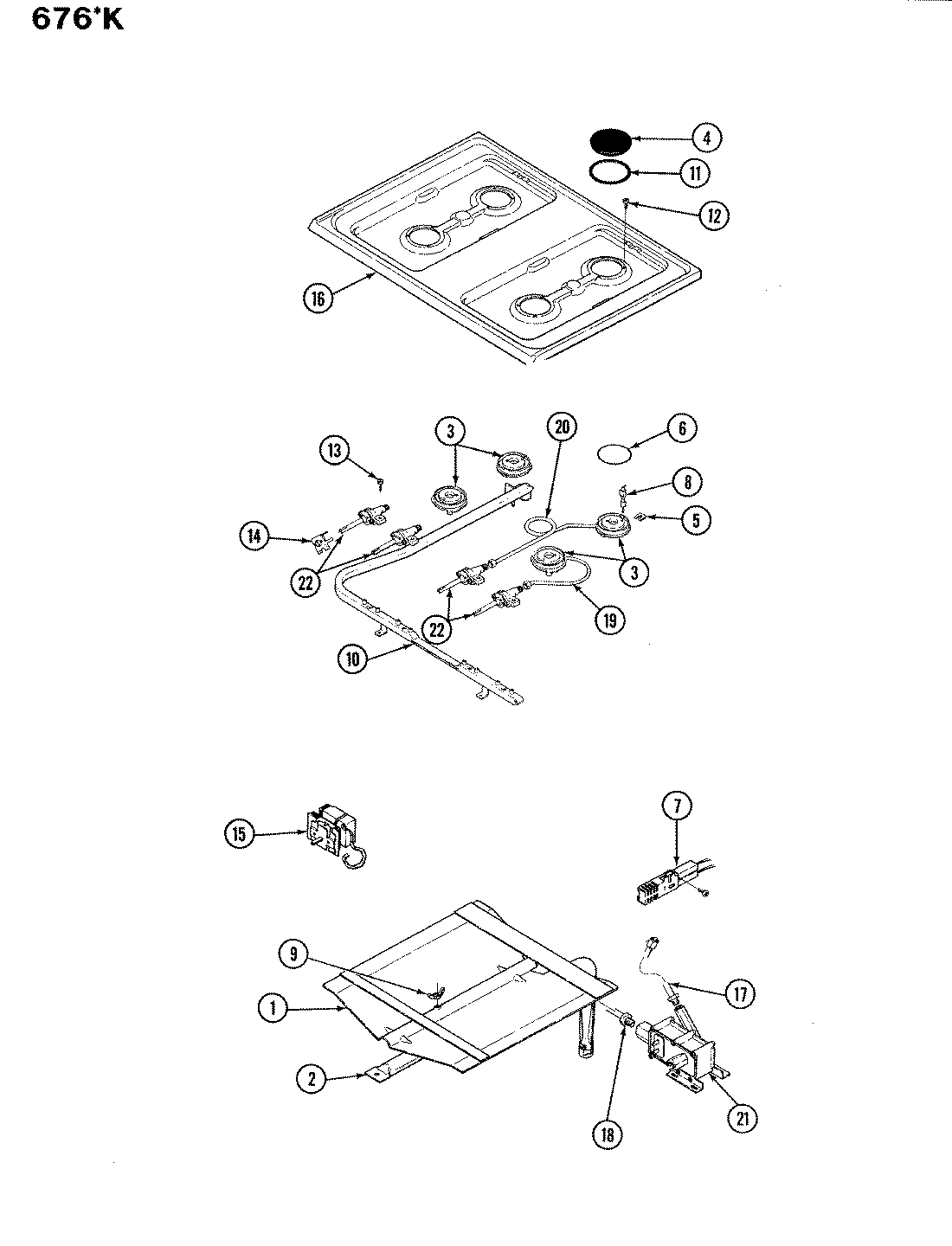

03 - CONTROL SYSTEM
Common parts from model Whirlpool 676WK-KLSVW GAS RANGE
1
CLOCK WPL 7602P08860 Contact Us For Availability
1
CLOCK WPL 7602P09760 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
BACK, BROILER SECTION WPL 4002F09745 Contact Us For Availability
1
BACK, BROIL WPL 4002F12345 Contact Us For Availability
1
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
BRACKET, BURNER LIGHTER WPL 3801F17945 Contact Us For Availability
1
BRACKET, REGULATOR MTG WPL 3801F19145 Contact Us For Availability
2
COVER, BOTTOM WPL 4005F03480 Contact Us For Availability
2
CATCH WPL 8002P00160 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
BURNER OVEN WPL 3403A01545 Contact Us For Availability
2
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
3
COVER, BACKGUARD WIRE WPL 4005F19580 Contact Us For Availability
3
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
BAFFLE, OVN FRONT WPL 3601W12416 Contact Us For Availability
3
BAFFLE, OVEN FRONT WPL 3601W12419 Contact Us For Availability
3
BAFFLE, OVEN FRT WPL 3601W12423 Contact Us For Availability
3
BOTTOM, BROILER WPL 4011F14680 Contact Us For Availability
3
BLOCK, DISCONNECT WPL 7401P00660 Contact Us For Availability
3
BLOCK, UPPER DISCONT WPL 7401P01060 Contact Us For Availability
3
BURNER, TOP COMPLETE WPL 7505A15560 Contact Us For Availability
3
BURNER, TOP WPL 7505P18760 Contact Us For Availability
4
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
4
TRIM, RETAINER GLASS WPL 7742P00960 Contact Us For Availability
4
GLASS, BACKGUARD WPL 7902P21960 Contact Us For Availability
4
GLASS, BKGD WPL 7910P12660 Contact Us For Availability
4
BROILER DRAWER ASSY. WPL 3407W00919 Contact Us For Availability
4
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
4
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
4
CAP, BURNER WPL 7504P00560 Contact Us For Availability
5
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
5
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
5
BOTTOM, OVEN WPL 2205F01216 Contact Us For Availability
5
BOTTOM, OVEN WPL 2205F01223 Contact Us For Availability
5
BOTTOM, OVEN WPL 2205F02021 Contact Us For Availability
5
COVER, IGNITOR WPL 4005F00680 Contact Us For Availability
5
COVER, WIRE WPL 4005F30451 Contact Us For Availability
5
CLIP WPL 7112P07260 Contact Us For Availability
6
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
6
KNOB, CLOCK WPL 7711P42260 Contact Us For Availability
6
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
6
BOX, FLUE WPL 4006W02680 Contact Us For Availability
6
GRATE, BLACK WPL 2003F02900 Contact Us For Availability
6
GASKET, BURNER WPL 7201P03760 Contact Us For Availability
7
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
7
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
7
BRACKET WPL 3801F02145 Contact Us For Availability
7
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
7
IGNITER BAKE WPL 7432P06260 Contact Us For Availability
8
PANEL, BACKGUARD WHITE WPL 2601W19981 Contact Us For Availability
8
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
8
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
8
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
8
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
8
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
8
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
8
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
8
IGNITER, BURNER WPL 7432P05360 Contact Us For Availability
9
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
9
SHAFT, BIT GENERATOR WPL 8312P01560 Contact Us For Availability
9
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
9
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
9
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
9
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
9
NUT, WING WPL 7103P03060 Contact Us For Availability
10
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
10
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
10
COVER WPL 4005F08880 Contact Us For Availability
10
COVER, MODULE WPL 4005F16780 Contact Us For Availability
10
RACEWAY WIRE WPL 3830F00645 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P02860 Contact Us For Availability
10
REGULATOR WPL 7510P04060 Contact Us For Availability
10
MANIFOLD PIPE WPL 7513P09360 Contact Us For Availability
10
PIPE, MANIFOLD WPL 7513P10460 Contact Us For Availability
11
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
11
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
11
SCREW WPL 7101P07460 Contact Us For Availability
11
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
11
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
11
COVER, VALVE TERMINAL WPL 4005F17351 Contact Us For Availability
11
RING, BLACK WPL 2014F00100 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
12
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
12
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
12
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
12
SCREW WPL 7101P25660 Contact Us For Availability
13
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
13
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
13
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
13
FRONT, BURNER BOX WPL 4012F01980 Contact Us For Availability
13
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
13
SUPPORT WPL 3807F12034 Contact Us For Availability
13
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
13
SCREW WPL 7101P29660 Contact Us For Availability
14
TRIM, BACKGUARD TOP WPL 7715P01560 Contact Us For Availability
14
LINING, BROILER DRAWER WPL 2404F02119 Contact Us For Availability
14
LINING, BROILER WPL 2404F02123 Contact Us For Availability
14
SEAL WPL 7212P00160 Contact Us For Availability
14
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
14
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
14
SWITCH WPL 7403P25960 Contact Us For Availability
15
LINING ASSY, OV DR WPL 2402W09116 Contact Us For Availability
15
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
15
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
15
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
15
SCREW WPL 7101P11260 Contact Us For Availability
15
THERMOSTAT, OVEN WPL 7404P06260 Contact Us For Availability
15
THERMOSTAT WPL 7515P00860 Contact Us For Availability
16
LINK, BROILER WPL 7807P00160 Contact Us For Availability
16
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
16
TOP, MAIN WHITE WPL 2001F06381 Contact Us For Availability
17
PANEL, DRAWER (WHT) WPL 2416F02571 Contact Us For Availability
17
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
17
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
17
3/8 X 8 TUBING WPL Y0936104 Contact Us For Availability
18
KNOB, THERMOSTAT WPL 7731P01860 Contact Us For Availability
18
3/8 X 72 TUBING WPL 790400 Contact Us For Availability
19
KNOB, VALVE WPL 7733P03860 Contact Us For Availability
19
KNOB, VALVE WPL 7733P05360 Contact Us For Availability
19
TUBE, FRONT BURNER WPL 7506P07660 Contact Us For Availability
19
TUBE, MANIFOLD FEED WPL 7506P10060 Contact Us For Availability
20
SCREW WPL 7101P07660 Contact Us For Availability
20
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
20
BULB, OVEN WPL 7407P02660 Contact Us For Availability
20
TUBE, REAR BURNER WPL 7506P07760 Contact Us For Availability
20
TUBE, REGULATOR WPL 7506P09860 Contact Us For Availability
21
SCREW WPL 7101P12360 Contact Us For Availability
21
LINING, INNER SIDE WPL 4009W04080 Contact Us For Availability
21
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
21
VALVE, OVEN WPL 7501P10860 Contact Us For Availability
22
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
22
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
22
MODULE, SPARK WPL 7431P01660 Contact Us For Availability
22
MODULE, SPARK WPL 7431P01760 Contact Us For Availability
22
WIRE, IGNITER FRONT WPL 5110A82460 Contact Us For Availability
22
WIRE, IGNITER REAR WPL 5110A82560 Contact Us For Availability
22
VALVE, TOP BURNER WPL 7502P10060 Contact Us For Availability
22
VALVE, TOP BURNER WPL 7502P14160 Contact Us For Availability
23
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
23
PAN, BROIL WPL 3401F00423 Contact Us For Availability
23
CONVERSION KIT TO LP WPL 5415A01460 Contact Us For Availability
24
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
24
SCREW WPL 7101P05760 Contact Us For Availability
24
TRIM ASSY, MANIFOLD WPL 7712A06060 Contact Us For Availability
25
SPRING WPL 7803P01460 Contact Us For Availability
25
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
25
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
25
SCREW WPL 7101P05860 Contact Us For Availability
26
PIN, HINGE WPL 7113P00260 Contact Us For Availability
27
RACK, OVEN WPL 7801P03060 Contact Us For Availability
28
RETAINER WPL 3804F01050 Contact Us For Availability
28
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
29
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
29
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
30
SPRING, OV DR WPL 7803P05560 Contact Us For Availability
31
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
32
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
33
WPL 7101P06160 WPL 7101P06160 Contact Us For Availability
33
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
33
TRAC WPL 3404A01451 Contact Us For Availability
33
WPL 7101P11560 WPL 7101P11560 Contact Us For Availability
34
WPL 7402P02460 WPL 7402P02460 Contact Us For Availability
35
WPL 16000038 WPL 16000038 Contact Us For Availability
× ![]()
