Model Whirlpool 667WJ-TSAW ELECTRIC RANGE – Common Parts & Diagrams

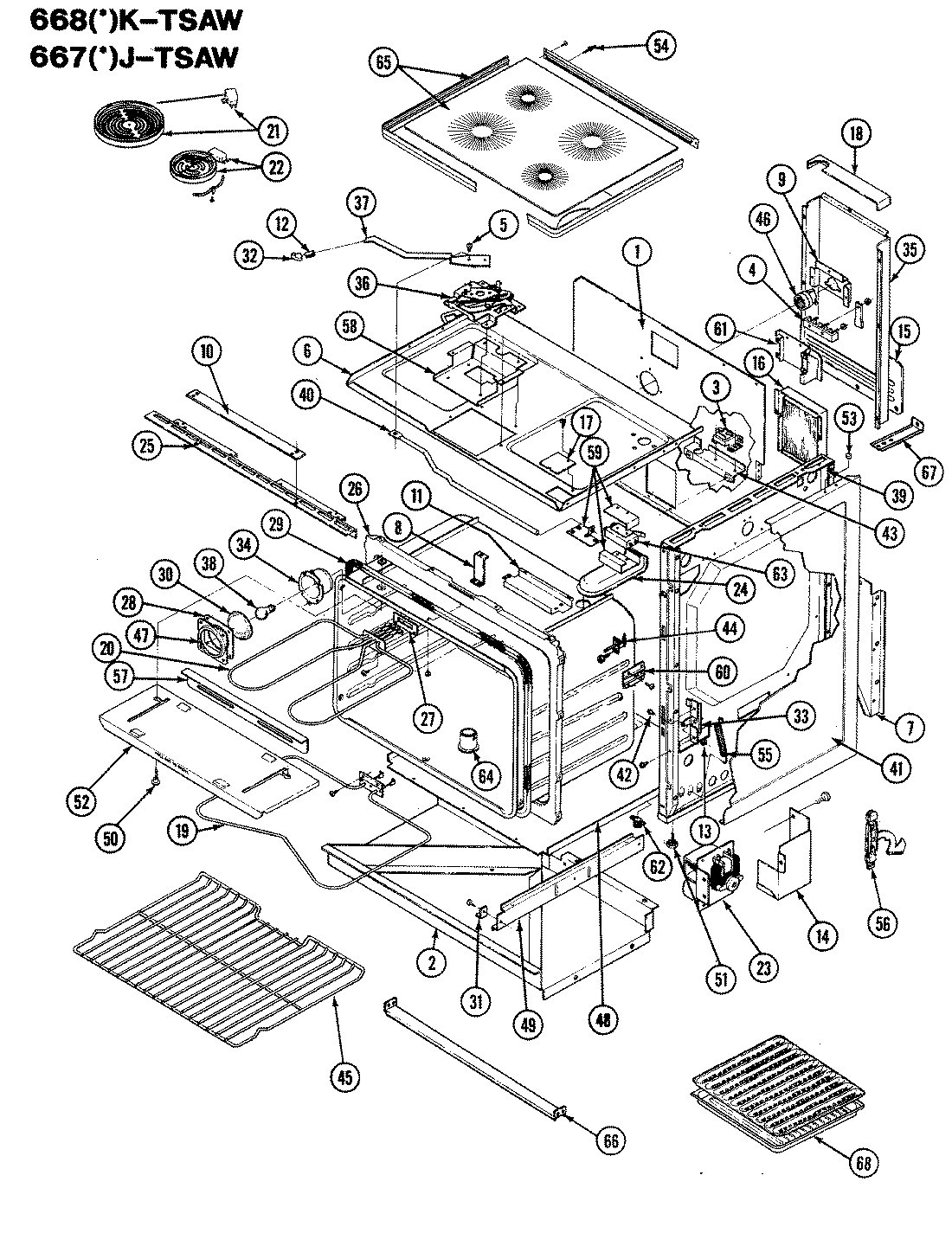

01 - BODY

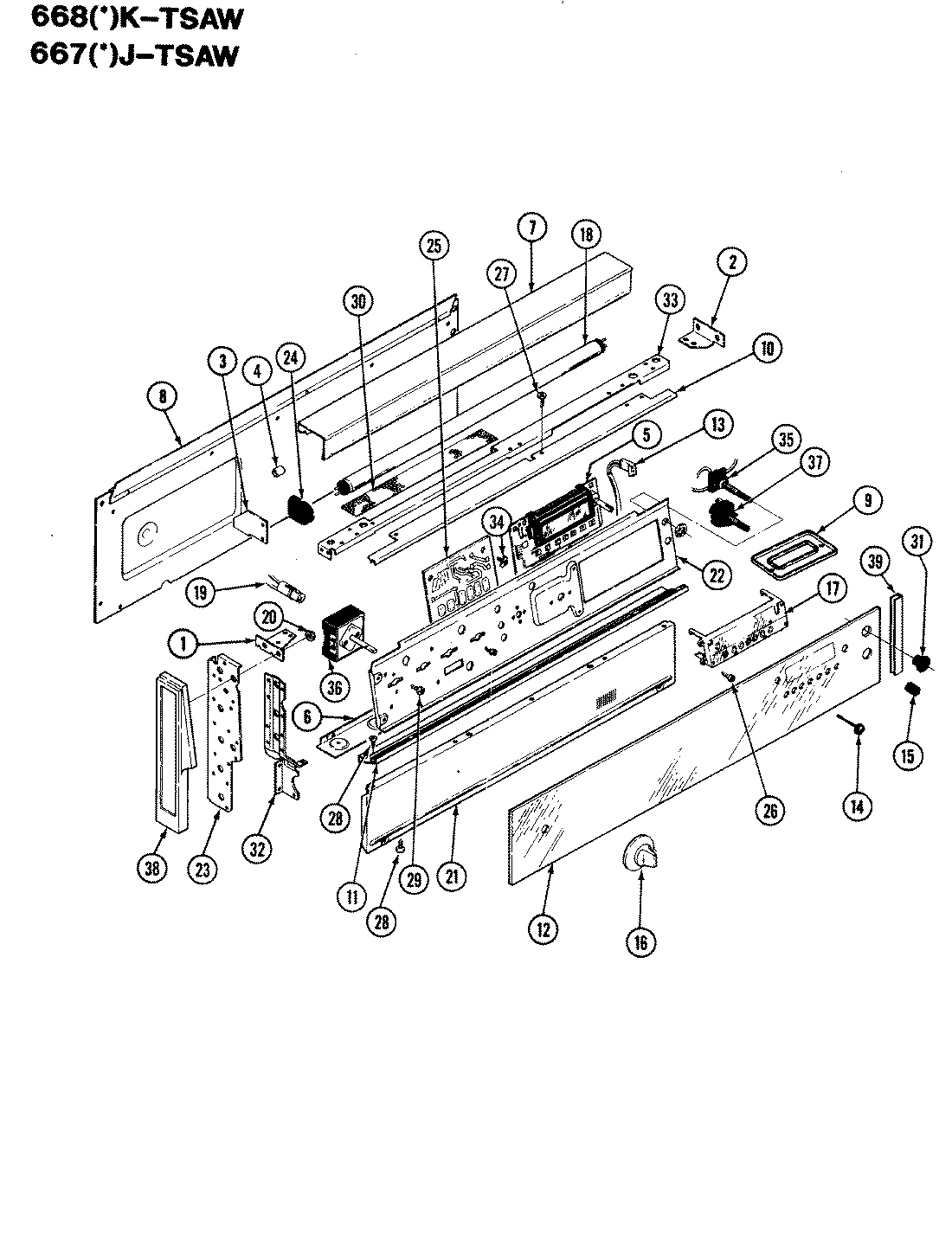

02 - CONTROL PANEL

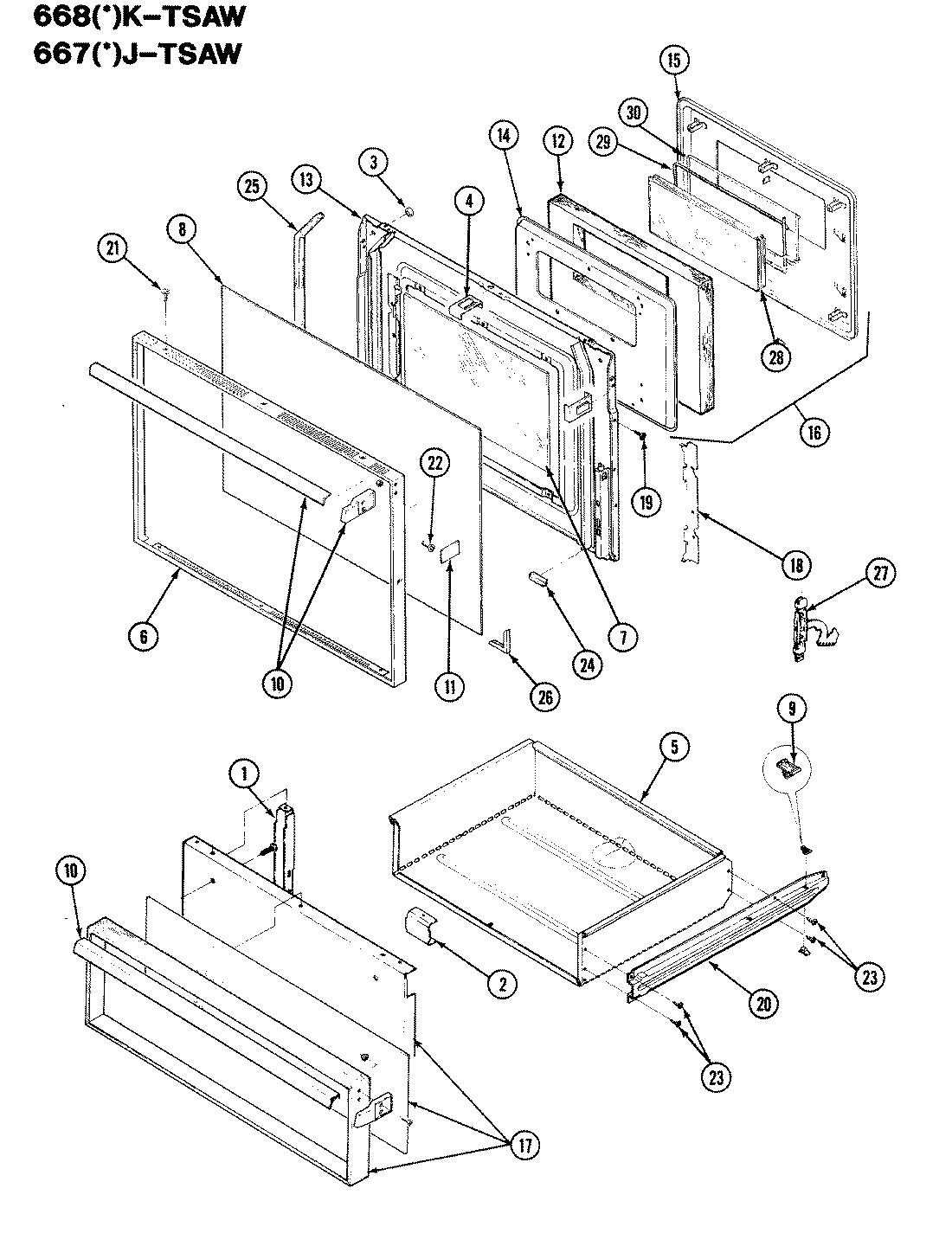

03 - DOOR
Common parts from model Whirlpool 667WJ-TSAW ELECTRIC RANGE
1
BACK, MAIN WPL 4002F10380 Contact Us For Availability
1
BRACKET (LEFT) WPL 3801F00234 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
2
BAFFLE ASSY., AIR DUCT WPL 3601W12080 Contact Us For Availability
2
(RIGHT) WPL 3801F10934 Contact Us For Availability
2
WASHER, NYLON WPL 7109P01060 Contact Us For Availability
2
BRACKET WPL 3801F03151 Contact Us For Availability
3
BALLAST WPL 7412P00560 Contact Us For Availability
3
BRACKET, LAMP WPL 3801F00651 Contact Us For Availability
3
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
3
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
4
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
4
BUSHING, LAMP COVER WPL 8007P00460 Contact Us For Availability
4
CLIP, RETAINER WPL 7112P05160 Contact Us For Availability
5
BOLT WPL 7116P00360 Contact Us For Availability
5
CLOCK WPL 7601P10060 Contact Us For Availability
5
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
6
COVER, BACK BURNER BOX WPL 4005F25780 Contact Us For Availability
6
BOTTOM, BURNER BOX WPL 4011F15880 Contact Us For Availability
6
COVER, BOTTOM WPL 4005F03480 Contact Us For Availability
6
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
7
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
7
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
7
COVER, BKGD LAMP (WHITE) WPL 7724P04560 Contact Us For Availability
7
COVER, BKGD LAMP (GRAY) WPL 7724P04660 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
8
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
8
COVER WPL 4005S30780 Contact Us For Availability
8
GLASS DOOR WPL 7902P27760 Contact Us For Availability
8
GLASS DOOR WPL 7902P27860 Contact Us For Availability
9
BRACKET WPL 3801F02451 Contact Us For Availability
9
COVER, UPPER FLUE BOX WPL 4005F29551 Contact Us For Availability
9
GASKET, COVER WPL 4005F29651 Contact Us For Availability
9
SEAL, COVER WPL 7212P03260 Contact Us For Availability
9
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
10
BRACKET, MAIN TOP RETAINER WPL 3801F12580 Contact Us For Availability
10
EXTRUSION, GLASS SPT WPL 7706P16660 Contact Us For Availability
10
HANDLE, DOOR WHITE WPL 7701P03160 Contact Us For Availability
10
HANDLE, DOOR ALMD WPL 7701P03260 Contact Us For Availability
11
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
11
EXTRUSION, GLASS SUPPORT WPL 7706P01960 Contact Us For Availability
11
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
12
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
12
GLASS, BKGD (GRAY) WPL 7910P13960 Contact Us For Availability
12
GLASS, BKGD (WHITE) WPL 7910P14260 Contact Us For Availability
12
INSULATION DOOR PAD WPL 4804F00660 Contact Us For Availability
13
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
13
HARNESS, RELAY WPL 5170P00660 Contact Us For Availability
13
HARNESS OVEN SENSOR WPL 5170P00760 Contact Us For Availability
13
LINING, DOOR WPL 2402W15315 Contact Us For Availability
13
LINING WPL 2402W17315 Contact Us For Availability
13
NUT, SNAP WPL 7103P11460 Contact Us For Availability
14
COVER, FAN ASSY WPL 4005F17980 Contact Us For Availability
14
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
14
KNOB, CLOCK (BUTTON-WHT) WPL 7711P42060 Contact Us For Availability
14
PAD, INNER WPL 2410F01651 Contact Us For Availability
15
COVER ACCESS WPL 4005F30251 Contact Us For Availability
15
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
15
KNOB, CLOCK (WHT) WPL 7711P41960 Contact Us For Availability
15
PAD, DOOR WPL 2410W04115 Contact Us For Availability
16
SCREW WPL 7101P06160 Contact Us For Availability
16
KNOB, SWITCH WPL 7711P38460 Contact Us For Availability
16
KNOB, CONTROL WPL 7711P43760 Contact Us For Availability
16
PAD, ASSY. WPL 2410A04115 Contact Us For Availability
17
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
17
LENS, CLOCK WPL 7730P00560 Contact Us For Availability
17
+ PANEL, STORAGE, DOOR WPL 5715A00371K Contact Us For Availability
18
COVER, WIRE HOUSING WPL 4005F18280 Contact Us For Availability
18
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
18
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
19
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
19
LIGHT, SIGNAL WPL 7407P02460 Contact Us For Availability
19
RIVET WPL 7107P01760 Contact Us For Availability
20
SCREW WPL 7101P06460 Contact Us For Availability
20
SCREW WPL 7101P10460 Contact Us For Availability
20
ELEMENT, BROIL WPL 7406P03260 Contact Us For Availability
20
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
20
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
20
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
21
ELEMENT, GIANT WPL 7406P05760 Contact Us For Availability
21
PANEL ASSY, LOWER BKGD WPL 2620W04281 Contact Us For Availability
21
PANEL, BKGD LOWER (ALMOND) WPL 2620W04284 Contact Us For Availability
21
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
22
ELEMENT, STD WPL 7406P05860 Contact Us For Availability
22
PLATE, SWITCH MTG. WPL 3605F15280 Contact Us For Availability
22
SCREW WPL 7101P12360 Contact Us For Availability
23
FAN ASSEMBLY WPL 7427P00560 Contact Us For Availability
23
PLATE, CONTROL PANEL END (LFT) WPL 3605F00680 Contact Us For Availability
23
PLATE WPL 3605F00880 Contact Us For Availability
23
SCREW, SVC DOOR WPL 7101P22560 Contact Us For Availability
24
BOX ASSY, VENT WPL 4006W05645 Contact Us For Availability
24
RECEPTACLE, LAMP WPL 7408P00560 Contact Us For Availability
24
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
25
BLOCK, DISCONNECT (PIN) WPL 7401P01760 Contact Us For Availability
25
BLOCK WPL 7401P01860 Contact Us For Availability
25
BLOCK, MAIN TERMINAL WPL 7401P02060 Contact Us For Availability
25
FRONT, BURNER BOX BOTTOM WPL 4012F01780 Contact Us For Availability
25
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
25
BLOCK, DISCONNECT WPL 7401P01960 Contact Us For Availability
25
RELAY, BOARD ASSY. WPL 7428P00560 Contact Us For Availability
25
SEAL WPL 7208P00260 Contact Us For Availability
26
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
26
NOT REQUIRED PART OR SEE NOTE FRAME, OVEN (NO WPL W10124350 Contact Us For Availability
26
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
26
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
27
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
27
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
27
SCREW WPL 7101P05860 Contact Us For Availability
28
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
28
SCREW WPL 7101P07460 Contact Us For Availability
28
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
29
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
29
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
29
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
30
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
30
SHIELD, OV LAMP RECPT WPL 3604F07980 Contact Us For Availability
30
RETAINER WPL 3804F02245 Contact Us For Availability
31
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
31
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
31
SLEEVE, SWITCH (WHT) WPL 7214P02360 Contact Us For Availability
32
HANDLE, DOOR LOCK (WHITE) WPL 7701P07260 Contact Us For Availability
32
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
32
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
32
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
33
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
33
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
33
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
33
SUPPORT, LAMP WPL 3807F21580 Contact Us For Availability
34
HOUSING, LAMP WPL 4001F02023 Contact Us For Availability
34
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
34
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
35
HOUSING,MAIN WIRE WPL 4001F05151 Contact Us For Availability
35
SWITCH BKGD LAMP WHT WPL 5700A28560 Contact Us For Availability
35
SWITCH, PUSH (BLK) WPL 7403P17960 Contact Us For Availability
36
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
36
CATCH ASSY. WPL 8002P02060 Contact Us For Availability
36
SWITCH, INF. CONTROL WPL 7403P18260 Contact Us For Availability
37
SCREW WPL 7101P01860 Contact Us For Availability
37
LEVER, DOOR LOCK WPL 8009P00960 Contact Us For Availability
37
SWITCH, OVE WPL 7403P10460 Contact Us For Availability
37
WPL 7403P19660 WPL 7403P19660 Contact Us For Availability
38
BULB, OVEN WPL 7407P02660 Contact Us For Availability
38
WPL 7726P02960 WPL 7726P02960 Contact Us For Availability
38
WPL 7726P03060 WPL 7726P03060 Contact Us For Availability
39
INNER SIDE LINING ASSY WPL 4009W05480 Contact Us For Availability
39
WPL 7720P01760 WPL 7720P01760 Contact Us For Availability
39
WPL 7720P06160 WPL 7720P06160 Contact Us For Availability
40
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
40
WPL 7728P07060 WPL 7728P07060 Contact Us For Availability
40
WPL 7728P07260 WPL 7728P07260 Contact Us For Availability
41
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
41
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
41
PANEL, SIDE (BLACK) WPL 2618F07370 Contact Us For Availability
41
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
41
WPL 8008P01360 WPL 8008P01360 Contact Us For Availability
42
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
43
WPL 3605F15651 WPL 3605F15651 Contact Us For Availability
44
WPL 4005F28251 WPL 4005F28251 Contact Us For Availability
44
WPL 5170A00760 WPL 5170A00760 Contact Us For Availability
44
WPL 7430P00560 WPL 7430P00560 Contact Us For Availability
45
WPL 7801P03060 WPL 7801P03060 Contact Us For Availability
46
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
47
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
48
WPL 3804F09380 WPL 3804F09380 Contact Us For Availability
49
WPL 3406F02551 WPL 3406F02551 Contact Us For Availability
50
WPL 7103P06260 WPL 7103P06260 Contact Us For Availability
50
WPL 7118P00160 WPL 7118P00160 Contact Us For Availability
51
WPL Y7101P25460 WPL Y7101P25460 Contact Us For Availability
52
WPL 3604F09245 WPL 3604F09245 Contact Us For Availability
53
WPL 8003P01160 WPL 8003P01160 Contact Us For Availability
53
WPL 8010P04860 WPL 8010P04860 Contact Us For Availability
54
WPL 7101P01760 WPL 7101P01760 Contact Us For Availability
54
WPL 7105P00560 WPL 7105P00560 Contact Us For Availability
55
WPL 7803P05560 WPL 7803P05560 Contact Us For Availability
57
WPL 3807F17615 WPL 3807F17615 Contact Us For Availability
58
WPL 3807F19545 WPL 3807F19545 Contact Us For Availability
59
WPL 3807F19345 WPL 3807F19345 Contact Us For Availability
60
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
61
WPL 3807F15760 WPL 3807F15760 Contact Us For Availability
62
WPL 7403P16460 WPL 7403P16460 Contact Us For Availability
63
WPL 7 WPL 7 Contact Us For Availability
× ![]()
Login and Registration Form
