Model Whirlpool 665HG-CHZ ELECTRIC RANGE – Common Parts & Diagrams

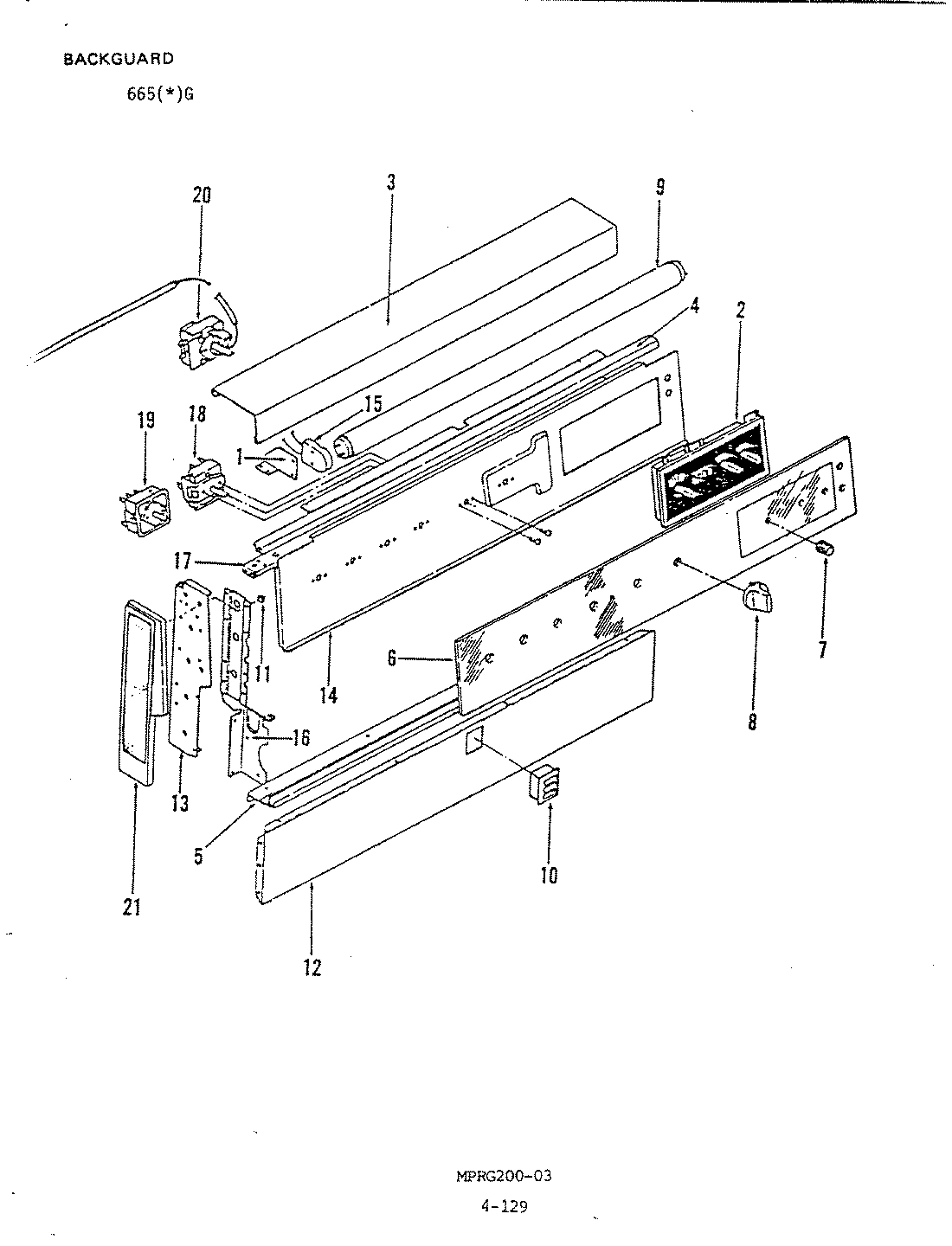

01 - CONTROL PANEL

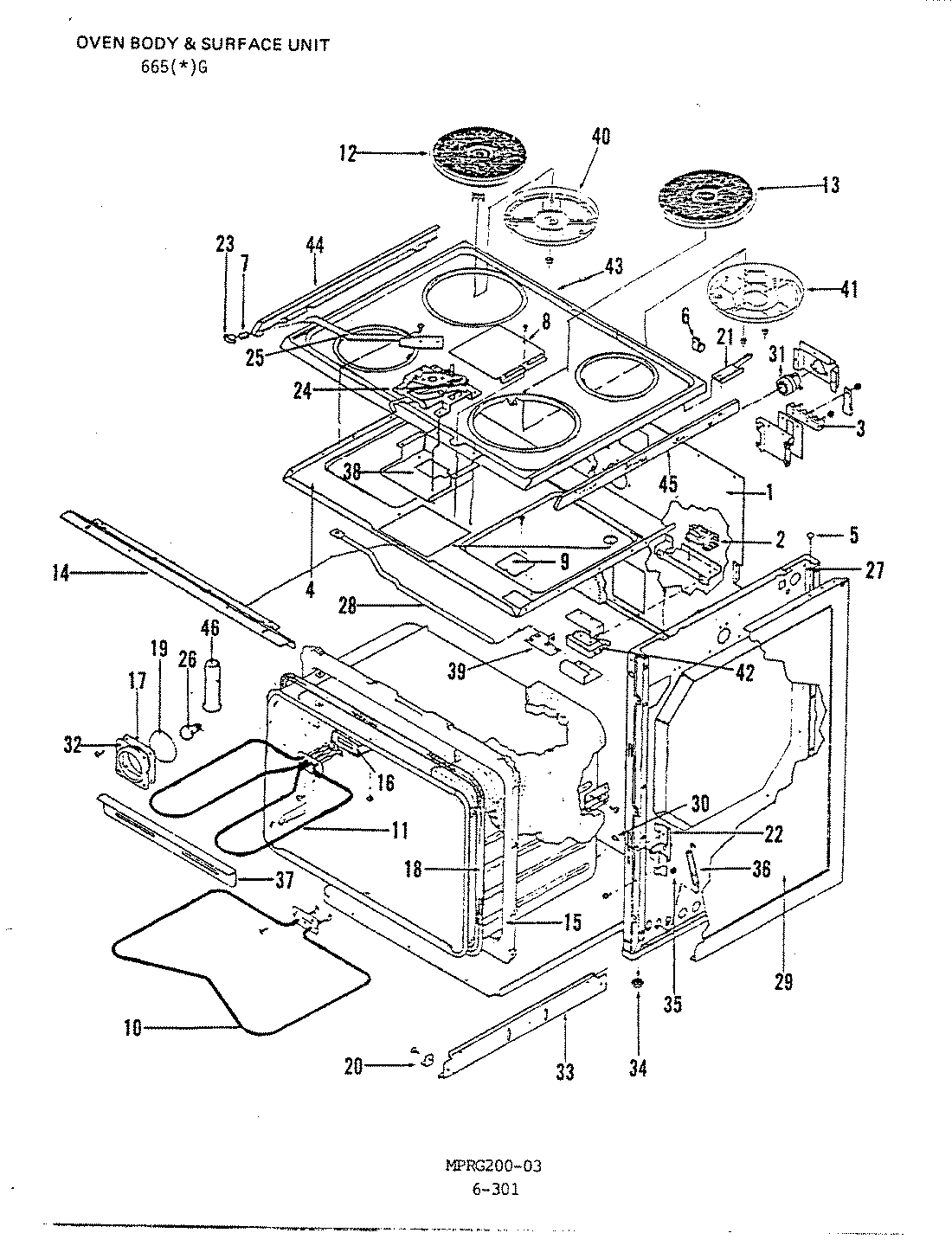

03 - TOP ASSEMBLY

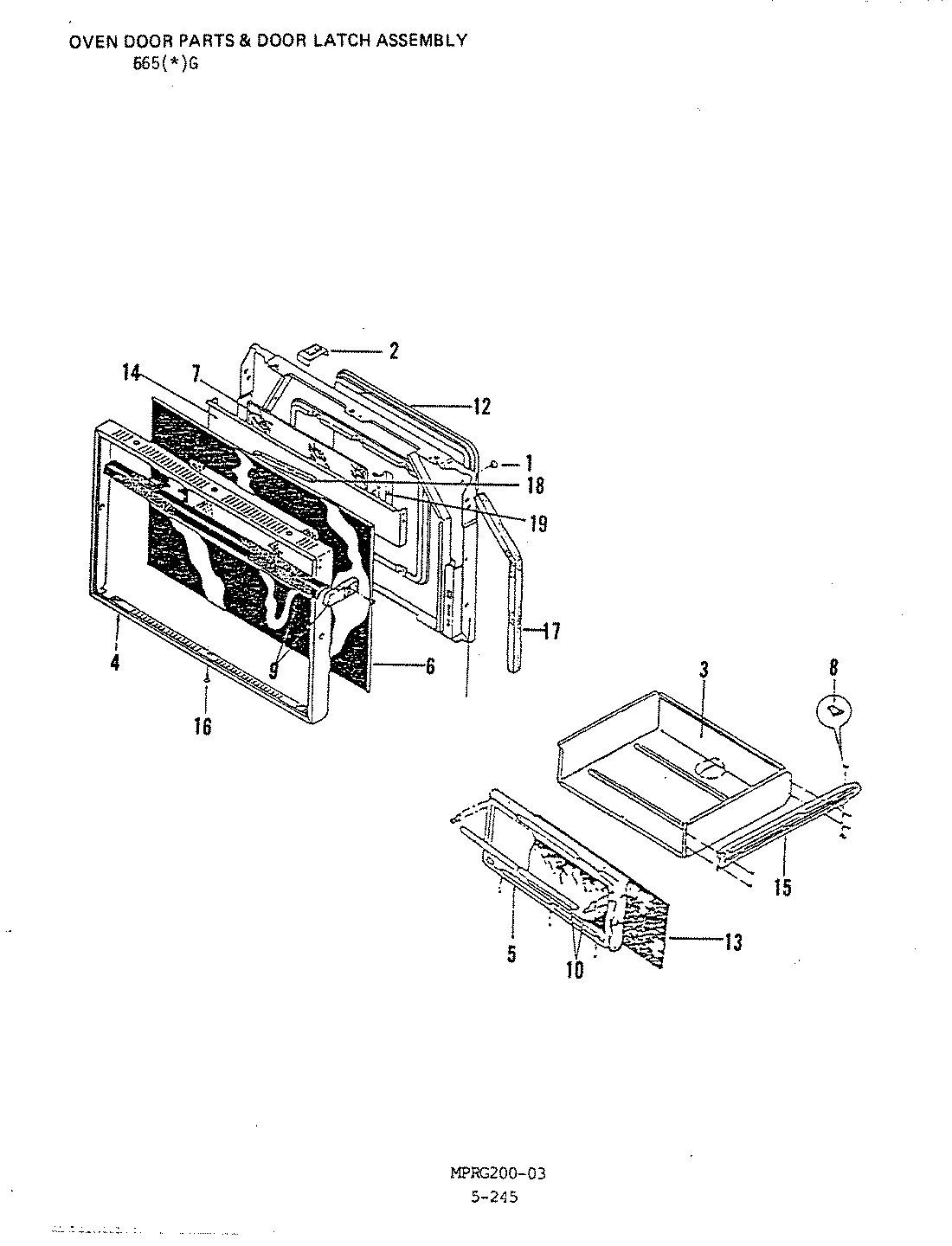

02 - DOOR & LATCH ASSY.
Common parts from model Whirlpool 665HG-CHZ ELECTRIC RANGE
1
BRACKET WPL 0284291 Contact Us For Availability
1
BRACKET WPL 0284298 Contact Us For Availability
1
BRACKET WPL 0284299 Contact Us For Availability
1
TIMER WPL 903114 Contact Us For Availability
1
BRACKET WPL 0284324 Contact Us For Availability
1
BUMPER WPL 1784200 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
2
+ CLOCK, EXPORT WPL 1895514 Contact Us For Availability
2
+ CLOCK, EXPORT WPL 1895515 Contact Us For Availability
2
+ CLOCK, EXPORT WPL 1895516 Contact Us For Availability
2
+ CLOCK, SELF CLEAN WPL 7601E031 Contact Us For Availability
2
BALLAST WPL 1023200 Contact Us For Availability
2
BAFFLE WPL 3601F058 Contact Us For Availability
2
CLIP, DOOR GLASS WPL 7712E031 Contact Us For Availability
3
COVER WPL 1201228 Contact Us For Availability
3
DRAWER ASSY. WPL 0384227 Contact Us For Availability
4
EXTRUSION, GLASS SPT WPL 7706P16660 Contact Us For Availability
4
BRACKET WPL 0284318 Contact Us For Availability
4
CATALYST WPL 1566294 Contact Us For Availability
4
BRACE, MAIN TOP WPL 277238 Contact Us For Availability
4
BRACE, INNER SIDE WPL 277257 Contact Us For Availability
4
BRACKET WPL 3801F093 Contact Us For Availability
4
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
4
BOX, BURNER WPL 4011F07823 Contact Us For Availability
4
FRAME, OVN DOOR WPL 7706E007 Contact Us For Availability
4
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
5
BUMPER WPL 1784202 Contact Us For Availability
5
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
5
BUMPER, MAIN TOP WPL 8010E012 Contact Us For Availability
5
GASKET WPL 1313269 Contact Us For Availability
5
FRAME, SERV DOOR WPL 7706E001 Contact Us For Availability
6
HAND, INDICATOR WPL 1350209 Contact Us For Availability
6
HAND, INDICATOR WPL 1350211 Contact Us For Availability
6
HAND, INDICATOR WPL 1350213 Contact Us For Availability
6
GLASS, BKGD WPL 7902P13660 Contact Us For Availability
6
CLAMP WPL 1140201 Contact Us For Availability
6
GLASS, DOOR WPL 7902E065 Contact Us For Availability
7
KNOB, SWITCH WPL 1359263 Contact Us For Availability
7
KNOB,THERMOSTAT(ELE) WPL 1360331 Contact Us For Availability
7
CLIP, DOOR LOCK WPL 7112E003 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
8
KNOB, SWITCH WPL 1359317 Contact Us For Availability
8
KNOB,THERMOSTAT(ELE) WPL 1360348 Contact Us For Availability
8
COVER, DOOR LOCK WPL 4005J137 Contact Us For Availability
8
GLIDE WPL 1329101 Contact Us For Availability
8
GLIDE, SERVICE DRAWER (FRONT) WPL 8016E005 Contact Us For Availability
9
COVER SWITCH LOCK WPL 4005F139 Contact Us For Availability
10
LIGHT, SIGNAL WPL 7407P02260 Contact Us For Availability
10
HANDLE, DOOR WPL 7701E019 Contact Us For Availability
10
INSERT, HANDLE WPL 7728E012 Contact Us For Availability
11
LINING ASSY, OV DR WPL 2402W12512 Contact Us For Availability
11
LINING WPL 2402W12815 Contact Us For Availability
11
LINING, OVN DOOR WPL 2422H082 Contact Us For Availability
12
PANEL, LOWER WPL 2620W00700 Contact Us For Availability
12
PANEL, BKGD - LOWER WPL 2620W01990 Contact Us For Availability
12
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
12
PAD, INNER OV DR WPL 2410F01151 Contact Us For Availability
12
PAD, INNER OVEN DOOR WPL 2410F01551 Contact Us For Availability
12
PAD ASSY, OVEN DOOR WPL 2410W02112 Contact Us For Availability
12
PAD, OVEN DOOR WPL 2430H019 Contact Us For Availability
13
PLATE WPL 0719268 Contact Us For Availability
13
PLATE WPL 0719269 Contact Us For Availability
13
ELEMENT (6``- AUTO SWITCH) WPL 7406P01960 Contact Us For Availability
13
ELEMENT (8``- AUTO SWITCH) WPL 7406P02260 Contact Us For Availability
13
ELEMENT, SOLID DISC (8``) WPL 7406P02460 Contact Us For Availability
13
PANEL, SVC DRW BLK WPL 2416F01270 Contact Us For Availability
13
PANEL, SVC DRAWER WPL 2426F006 Contact Us For Availability
14
PLATE, CLOCK MNTG WPL 3605F09820 Contact Us For Availability
14
FRAME, BURNER BOX WPL 4012J015 Contact Us For Availability
14
RETAINER, GLASS WPL 3804F040 Contact Us For Availability
15
RECEPTACLE, LAMP WPL 1448213 Contact Us For Availability
15
SLEEVE WPL 1762216 Contact Us For Availability
15
FRAME, OVEN FRONT WPL 2201C025 Contact Us For Availability
15
RUNNER, OUTER WPL 3406J007 Contact Us For Availability
15
WIRE WPL 766215 Contact Us For Availability
16
SUPPORT WPL 0862417 Contact Us For Availability
16
SUPPORT WPL 0862418 Contact Us For Availability
16
GASKET, LAMPGUARD WPL 1313259 Contact Us For Availability
16
GASKET, BROIL ELEMENT WPL 1313274 Contact Us For Availability
17
SUPPORT WPL 0862466 Contact Us For Availability
17
SWITCH WPL 1832379 Contact Us For Availability
17
SWITCH WPL 1832397 Contact Us For Availability
17
SWITCH, AUTO WPL 7403P06260 Contact Us For Availability
17
GASKET, LAMPGUARD RETAINER WPL 1313260 Contact Us For Availability
17
SEAL WPL 1726250 Contact Us For Availability
18
SWITCH, SELECTOR WPL 7403E023 Contact Us For Availability
18
GASKET, OVEN WPL 1313279 Contact Us For Availability
18
SEAL WPL 1726252 Contact Us For Availability
18
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
18
STOP, DOOR WPL Y0112241 Contact Us For Availability
19
SWITCH WPL 1832351 Contact Us For Availability
19
SWITCH, INF. CONTROL WPL 7403P06960 Contact Us For Availability
19
SWITCH, INF. CONTROL WPL 7403P07360 Contact Us For Availability
19
GLASS, LIGHTGUARD WPL 1327784 Contact Us For Availability
19
SUPPORT, GLASS WPL 3804J038 Contact Us For Availability
19
+ WINDOW, OV DR ASSY WPL 5700A08160 Contact Us For Availability
19
+ WINDOW, PKG WPL 5700A08460 Contact Us For Availability
19
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
20
THERMOSTAT ELE WPL 7404E003 Contact Us For Availability
21
TRIM WPL 1916292 Contact Us For Availability
21
TRIM WPL 1916960 Contact Us For Availability
21
TRIM WPL 1916961 Contact Us For Availability
21
TRIM WPL 1916988 Contact Us For Availability
21
HINGE, MAIN TOP-LEFT WPL 529103 Contact Us For Availability
21
HINGE, MAIN TOP-RIGHT WPL 529104 Contact Us For Availability
22
HOUSING, LAMP WPL 0537253 Contact Us For Availability
22
HINGE, OVEN DOOR (LT) WPL 3418Z022 Contact Us For Availability
23
INSERT, BROILER PAN WPL 507229 Contact Us For Availability
23
HANDLE, DOOR LOCK WPL 7701E003 Contact Us For Availability
24
CATCH WPL 8002E002 Contact Us For Availability
24
CATCH WPL 8002P01460 Contact Us For Availability
25
LEVER, DOOR LOCK WPL 8009E001 Contact Us For Availability
25
LEVER, DOOR LOCK WPL 8009P00660 Contact Us For Availability
27
LINING, INNER SIDE WPL 4009W02920 Contact Us For Availability
28
PAN, BROILER WPL 663202 Contact Us For Availability
28
LINK, DOOR LOCK WPL 8021E001 Contact Us For Availability
29
PANEL, SIDE ((COFFEE) WPL 0801240B Contact Us For Availability
29
PANEL, SIDE (FRESH AVOCADO) WPL 0801240G Contact Us For Availability
29
PANEL, SIDE WPL 0801240Y Contact Us For Availability
29
PANEL, SIDE (ALM) WPL 801240A Contact Us For Availability
29
PANEL, SIDE (WHT) WPL 801240N Contact Us For Availability
30
PIN, OVEN DOOR HINGE WPL 1584204 Contact Us For Availability
30
RACK, OVEN WPL 1636254 Contact Us For Availability
31
RECEPTACLE, OVEN LIGHT WPL 1657202 Contact Us For Availability
32
RETAINER, LAMPGUARD WPL 0749227 Contact Us For Availability
34
SHIELD, OVEN LAMP WPL 0787392 Contact Us For Availability
34
SHIELD, ACCESS WPL 0787407 Contact Us For Availability
34
SCREW, SPECIAL WPL 1986204 Contact Us For Availability
34
SCREW, TOP HINGE WPL 1986339 Contact Us For Availability
35
RING, SNAP WPL 1013214 Contact Us For Availability
36
WPL 0115100 WPL 0115100 Contact Us For Availability
37
WPL 8004P01360 WPL 8004P01360 Contact Us For Availability
37
WPL Y0862419 WPL Y0862419 Contact Us For Availability
38
WPL 3807F195 WPL 3807F195 Contact Us For Availability
39
WPL 3807F193 WPL 3807F193 Contact Us For Availability
40
WPL 8004P01160 WPL 8004P01160 Contact Us For Availability
41
WPL 8004P00960 WPL 8004P00960 Contact Us For Availability
41
WPL 8004P01060 WPL 8004P01060 Contact Us For Availability
41
WPL 8004P01260 WPL 8004P01260 Contact Us For Availability
42
WPL 7403E045 WPL 7403E045 Contact Us For Availability
43
WPL 2002W03201 WPL 2002W03201 Contact Us For Availability
43
WPL 2002W03204 WPL 2002W03204 Contact Us For Availability
43
WPL 2002W03207 WPL 2002W03207 Contact Us For Availability
43
WPL 2002W03208 WPL 2002W03208 Contact Us For Availability
44
WPL 1916306 WPL 1916306 Contact Us For Availability
45
WPL 1916307 WPL 1916307 Contact Us For Availability
46
WPL 8026A00960 WPL 8026A00960 Contact Us For Availability
46
WPL 8026E005 WPL 8026E005 Contact Us For Availability
× ![]()
