Model Whirlpool 665.75834003 Gas Range (Kenmore 66575834003) – Common Parts & Diagrams
COOKTOP
DOOR

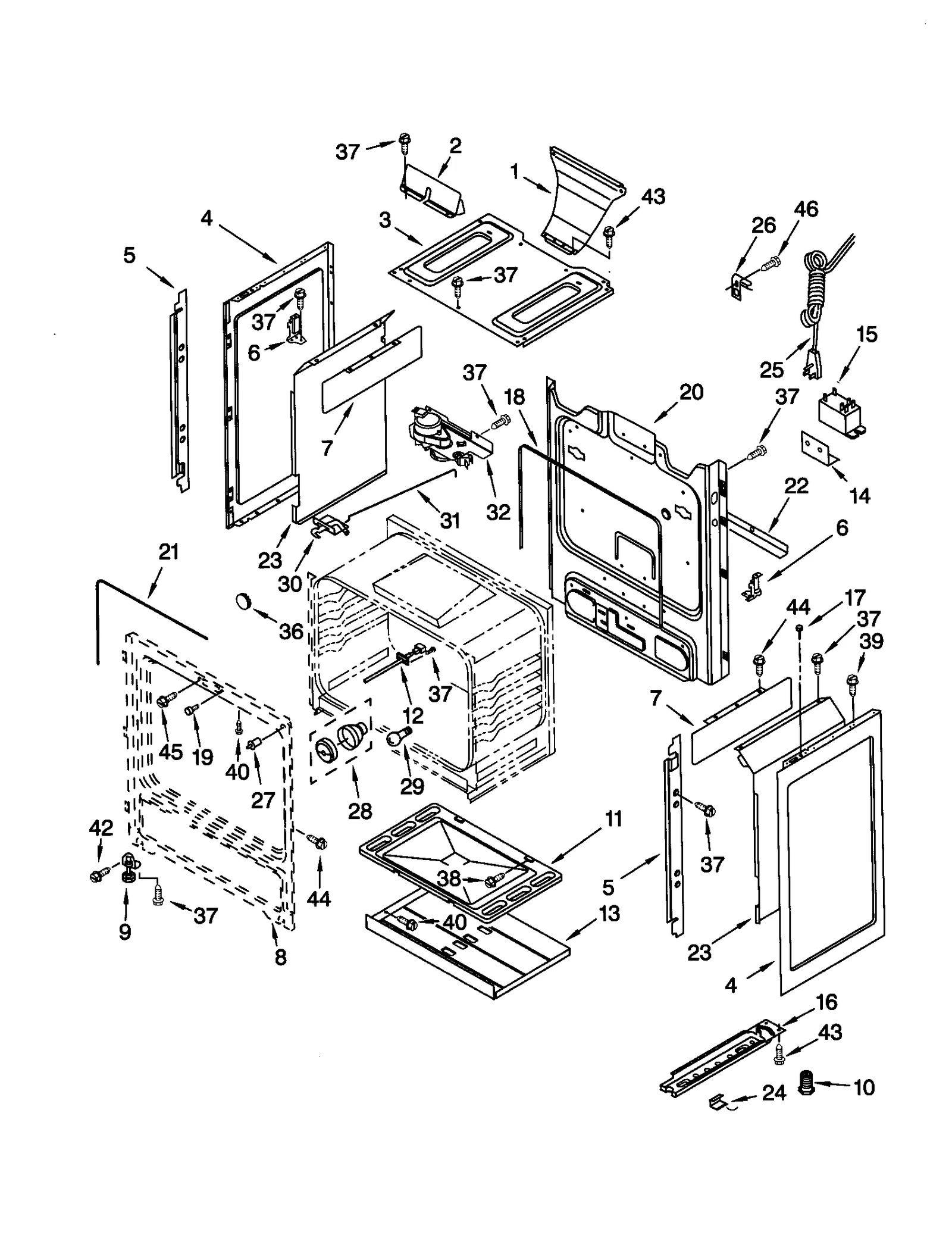

CHASSIS
All Parts

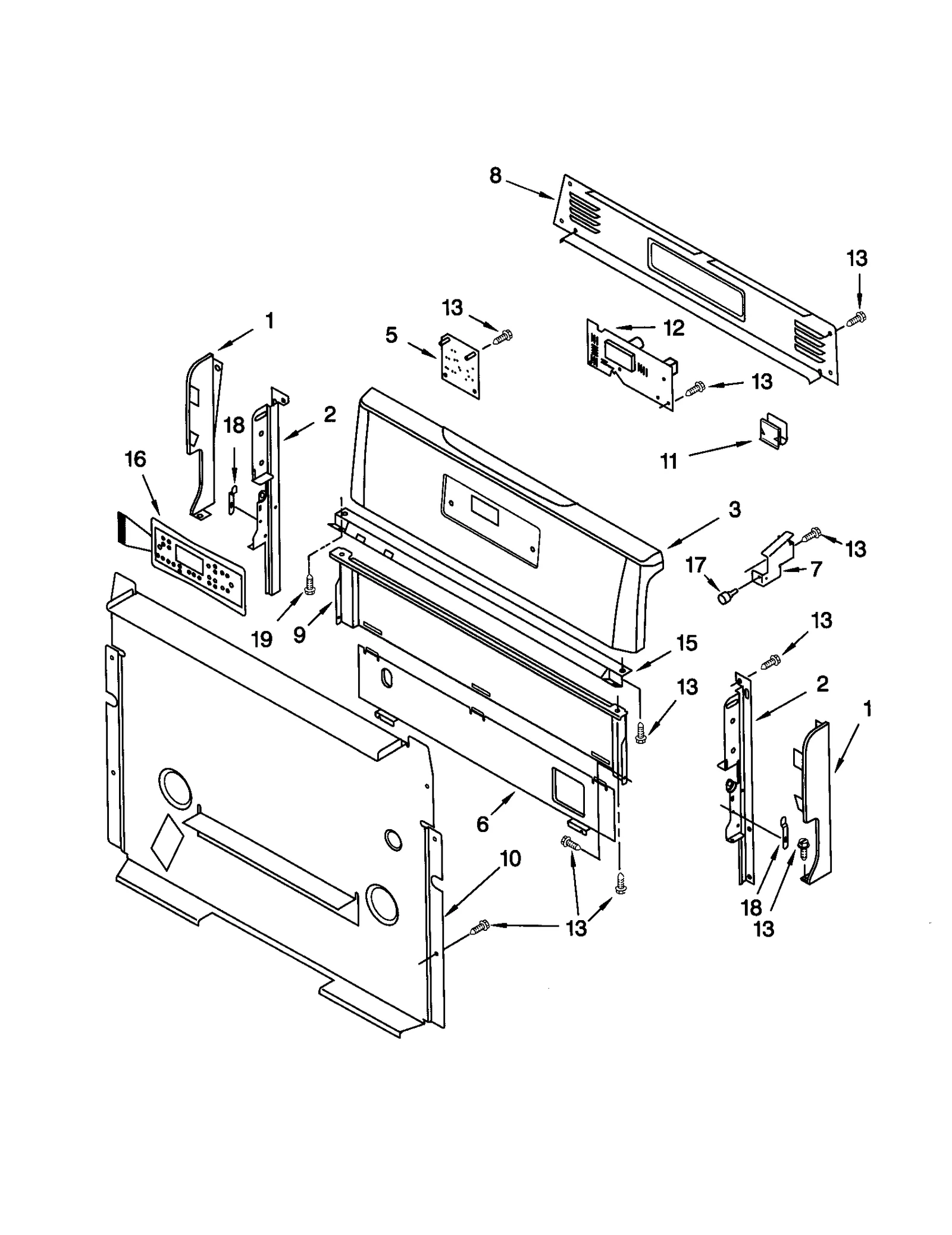

CONTROL PANEL

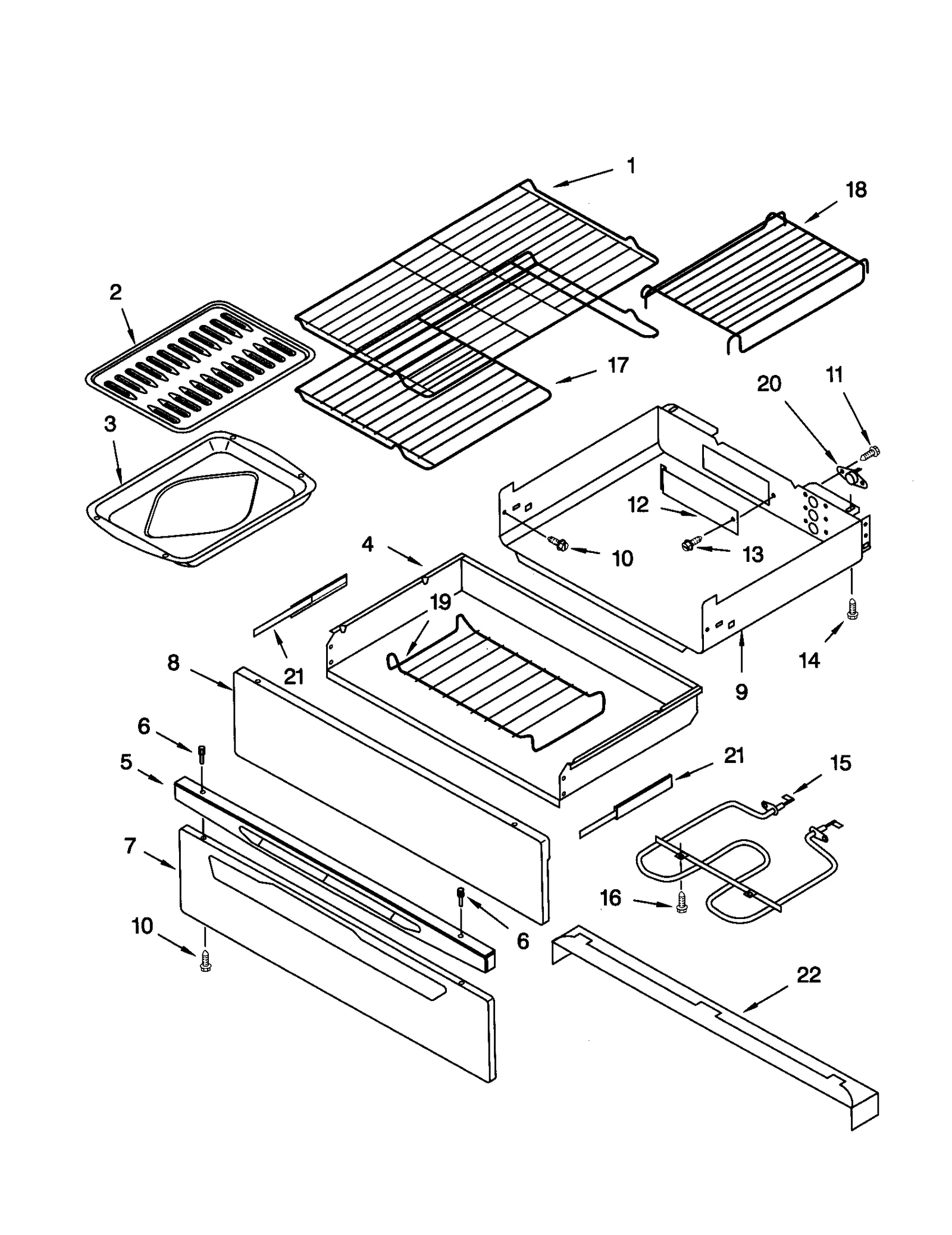

WARMING DRAWER AND BROILER

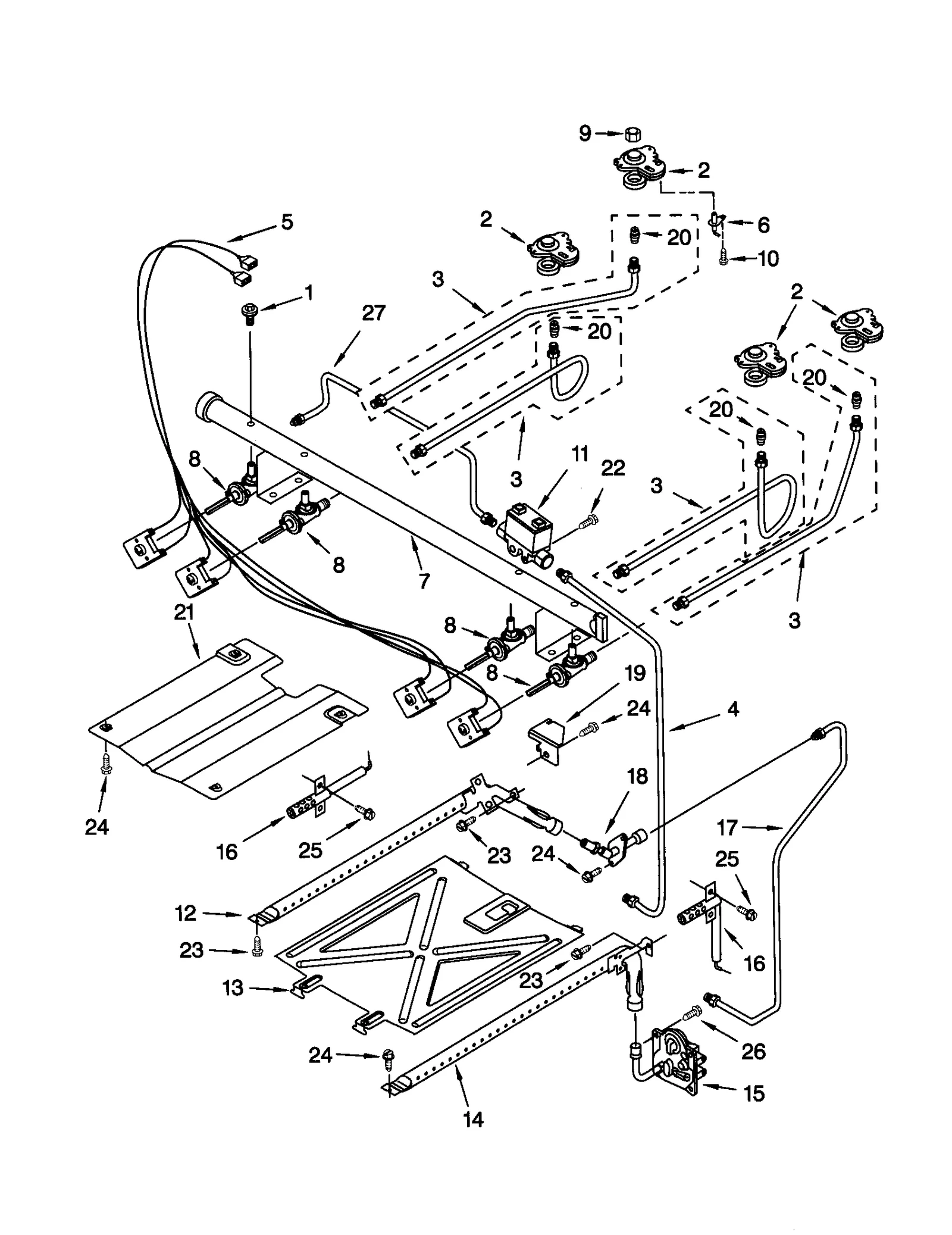

MANIFOLD
Common parts from model Whirlpool 665.75834003 Gas Range (Kenmore 66575834003)
1
Screw WPL 8273096 Contact Us For Availability
1
End Cap Panel WPL 8272633 Contact Us For Availability
1
Oven Rack WPL 8272576 Contact Us For Availability
1A
End Cap Panel WPL 8273586 Contact Us For Availability
1B
End Cap Panel WPL 8272631 Contact Us For Availability
1C
End Cap Panel WPL 8272634 Contact Us For Availability
1D
End Cap Panel WPL 8273587 Contact Us For Availability
1E
End Cap Panel WPL 8272632 Contact Us For Availability
2
Range Burner Cap WPL 3191899 Contact Us For Availability
2
Support WPL 8272637 Contact Us For Availability
2A
Support WPL 8272638 Contact Us For Availability
2A
Burner Base WPL 8273019 Contact Us For Availability
3
Control Panel WPL 8272735 Contact Us For Availability
3A
Control Panel WPL 8273583 Contact Us For Availability
3B
Control Panel WPL 8272734 Contact Us For Availability
3B
Tubing WPL 8272905 Contact Us For Availability
3C
Tubing WPL 8272907 Contact Us For Availability
4
Range Warming Drawer WPL 8272610 Contact Us For Availability
4
Gas Tubing WPL 8272470 Contact Us For Availability
5
Range Surface Burner Igniter Switch Assembly WPL 8273075 Contact Us For Availability
5
Door Handle WPL 8272439 Contact Us For Availability
5A
Door Handle WPL 8272881 Contact Us For Availability
5B
Door Handle WPL 8272440 Contact Us For Availability
6A
Range Broil Drawer Handle Push Rivet WPL 3196815 Contact Us For Availability
7
Mounting Bracket WPL 8273553 Contact Us For Availability
7
Panel WPL 8272596 Contact Us For Availability
7
Manifold Pipe WPL 8272411 Contact Us For Availability
7A
Range Surface Burner Knob WPL 8273565 Contact Us For Availability
7A
Mounting Bracket WPL 8273554 Contact Us For Availability
7A
Panel WPL 8273589 Contact Us For Availability
7B
Panel WPL 8272595 Contact Us For Availability
8
Rear Cover WPL 8272474 Contact Us For Availability
8
Drawer Panel WPL 8272608 Contact Us For Availability
8A
Range Surface Burner Valve WPL 8273004 Contact Us For Availability
9
Nut WPL 8273060 Contact Us For Availability
9
Shield WPL 8053910 Contact Us For Availability
9
Drawer Bracket WPL 8054059 Contact Us For Availability
10
Rear Cover WPL 8273132 Contact Us For Availability
11
Solenoid Valve WPL 8272467 Contact Us For Availability
11A
Range Surface Burner Grate (Espressor) WPL 8273348 Contact Us For Availability
11B
Range Surface Burner Grate (Black) WPL 8053905 Contact Us For Availability
12
Microcomputer WPL 8273774 Contact Us For Availability
12
Cover WPL 8054062 Contact Us For Availability
13
Oven Baffle WPL 8053970 Contact Us For Availability
15
Oven Door Clip WPL 3196925 Contact Us For Availability
15
Mounting Bracket WPL 8272629 Contact Us For Availability
16
Switch WPL 8272699 Contact Us For Availability
16A
Switch WPL 8273576 Contact Us For Availability
16B
Switch WPL 8272649 Contact Us For Availability
17
Gas Tubing WPL 8272222 Contact Us For Availability
18
Range Broil Burner Fitting WPL 3186489 Contact Us For Availability
19
Cover Plate WPL 8272403 Contact Us For Availability
19A
Screw WPL 3196167 Contact Us For Availability
20
Range Surface Burner Orifice WPL 8273063 Contact Us For Availability
21
Drawer Slide WPL 8054065 Contact Us For Availability
21A
Drawer Slide WPL 8054066 Contact Us For Availability
22
Brace WPL 8053971 Contact Us For Availability
22
Shield WPL 8273414 Contact Us For Availability
22
Screw WPL 8272893 Contact Us For Availability
23
Retainer WPL 3196523 Contact Us For Availability
23A
Retainer WPL 3195726 Contact Us For Availability
24
Range Body Side Panel Clip WPL 3196576 Contact Us For Availability
27
Gas Tubing WPL 8272469 Contact Us For Availability
36
Button Plug WPL 3196439 Contact Us For Availability
38
Screw WPL 3196152 Contact Us For Availability
42
Screw WPL 3196179 Contact Us For Availability
NI
Aluminum Foil WPL 241430 Contact Us For Availability
NI
Paint 1qt WPL 799344 Contact Us For Availability
NI
Wire (Black) WPL 242820 Contact Us For Availability
NI
Wire (Blue) WPL 242821 Contact Us For Availability
NI
Wire (Brown) WPL 242822 Contact Us For Availability
NI
Wire (Green) WPL 242823 Contact Us For Availability
NI
Wire (Orange) WPL 242824 Contact Us For Availability
NI
Wire (Red) WPL 242825 Contact Us For Availability
NI
Wire (White) WPL 242826 Contact Us For Availability
NI
Appliance Splicing Wire, 25-ft, 14-gauge (Yel WPL 242827 Contact Us For Availability
NI
Wire (Black) WPL 242828 Contact Us For Availability
NI
Wire WPL 242829 Contact Us For Availability
NI
Wire (Brown) WPL 242830 Contact Us For Availability
NI
Cooking Appliance 14-gauge Splicing Wire, 200 WPL 242831 Contact Us For Availability
NI
Wire (Yellow) WPL 242832 Contact Us For Availability
NI
Grease WPL 261582 Contact Us For Availability
NI
Epoxy WPL 799832 Contact Us For Availability
NI
Clip WPL 8053527 Contact Us For Availability
NI
Wire Harness WPL 8273341 Contact Us For Availability
NI
Range Wire Harness WPL 8273537 Contact Us For Availability
NI
Wire Harness WPL 8273538 Contact Us For Availability
NI
Wire WPL 8273557 Contact Us For Availability
NI
Wire Harness WPL 8273773 Contact Us For Availability
NI
Wire Harness WPL 8273966 Contact Us For Availability
NI
Wire Harness WPL 8273967 Contact Us For Availability
NI
Appliance Paint, 1-qt (Bisque) WPL 4392900 Contact Us For Availability
× ![]()
