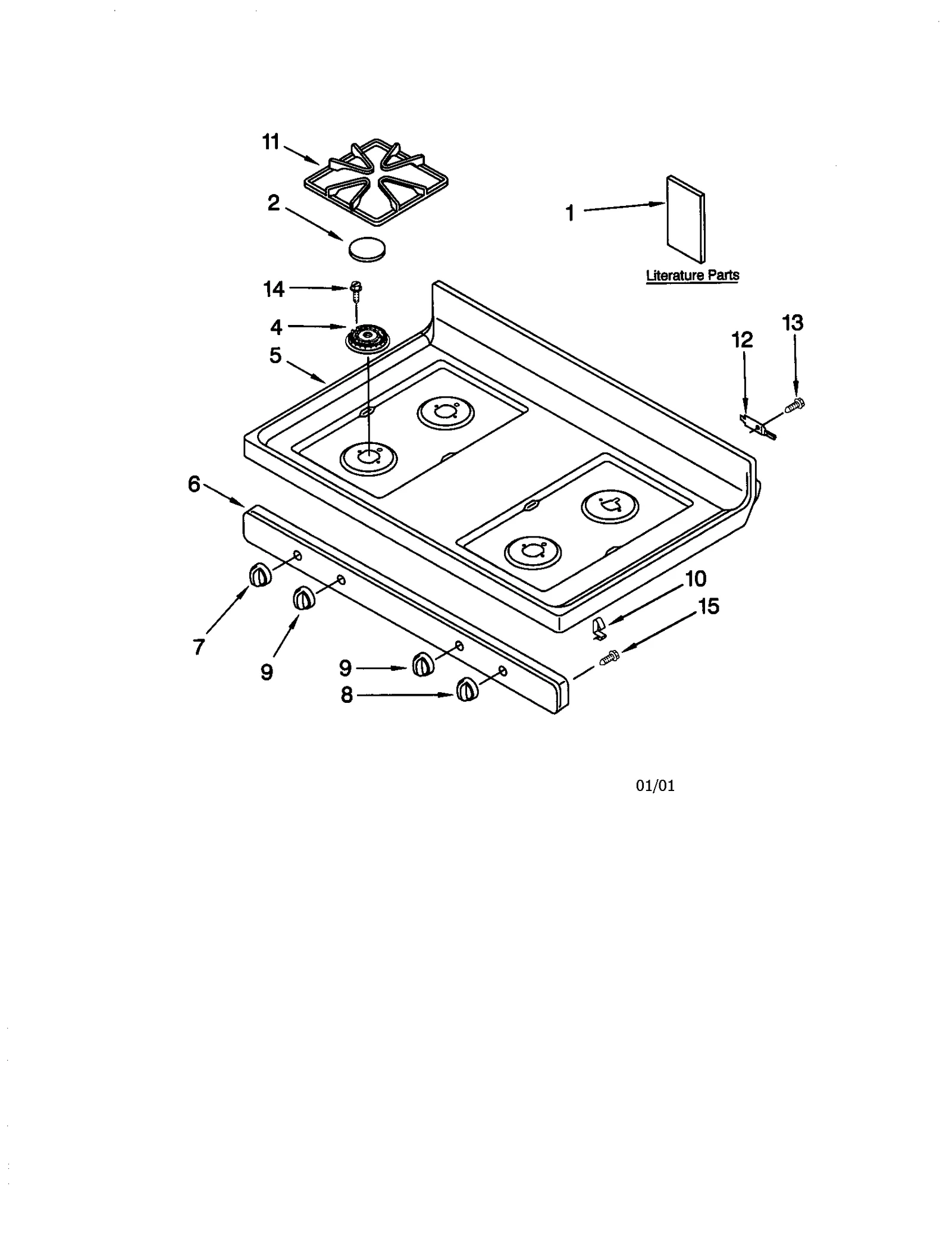

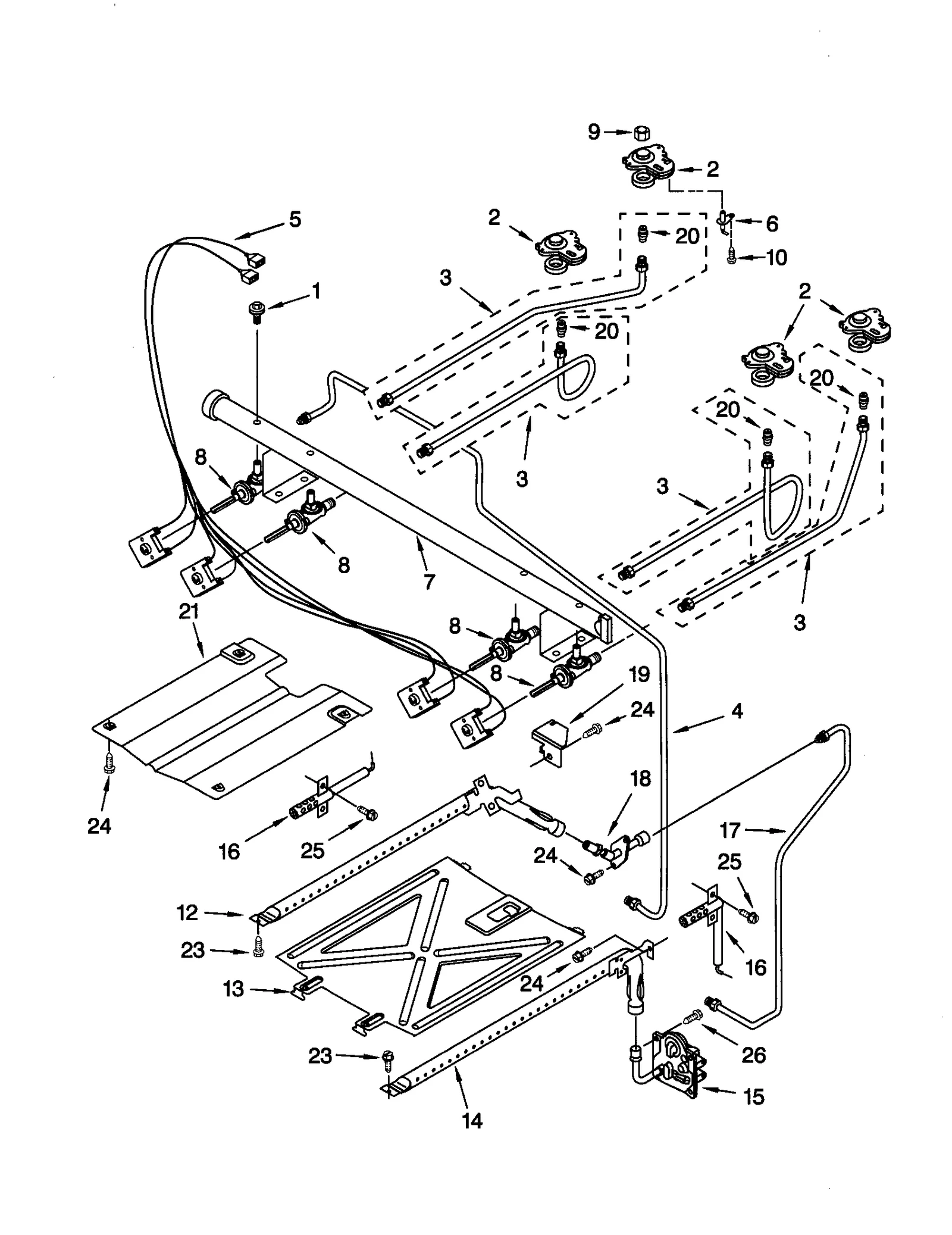

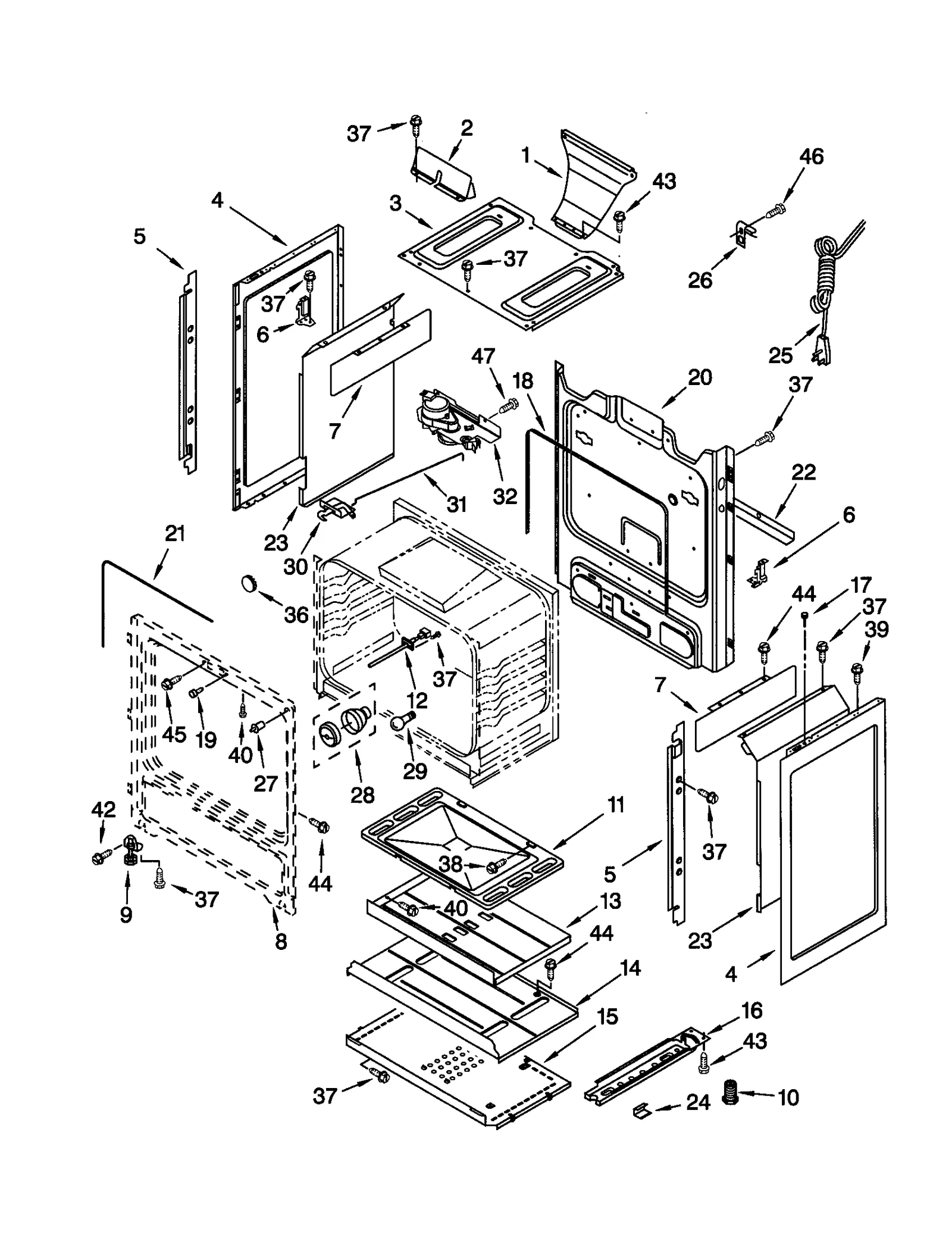

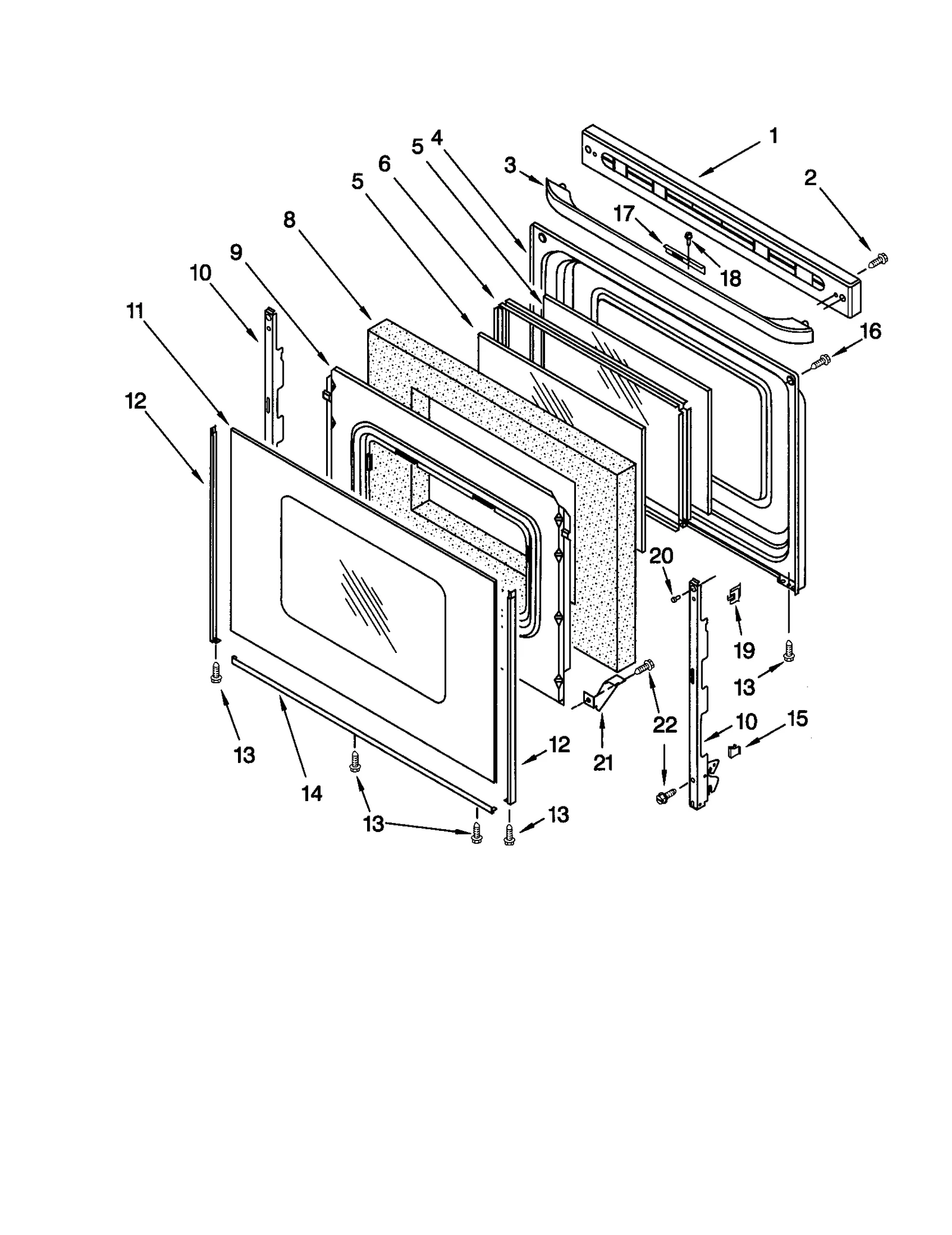

Model Whirlpool 665.75012100 Gas Range (Kenmore 66575012100) – Common Parts &amp; Diagrams

(NI)

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.23

1

Screw WPL 8273096 Contact Us For Availability

1

Installation Instructions WPL LIT8274178 Contact Us For Availability

1A

Instructions WPL LIT3195945 Contact Us For Availability

1B

Owner's Manual WPL LIT8274183 Contact Us For Availability

1C

Technical Sheet WPL LIT8274176 Contact Us For Availability

1D

Parts List WPL LIT8274064 Contact Us For Availability

1E

Installation Instructions WPL LIT8273410 Contact Us For Availability

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $47.45

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.68

2

WP8273700 Whirlpool Base Burner In Stock WPL WP8273700 $62.98

2

Range Burner Cap WPL 3191899 Contact Us For Availability

2A

WP8273343 Whirlpool Burner Cap In Stock WPL WP8273343 $39.90

2A

Range Burner Base WPL 8273701 Contact Us For Availability

2B

WP3191903 Whirlpool Burner Cap In Stock WPL WP3191903 $109.52

2C

WP8273344 Whirlpool Burner Cap Backorder WPL WP8273344 $39.90

2D

WP3191905 Whirlpool Burner Cap Backorder WPL WP3191905 $49.79

2E

WP8273345 Whirlpool Burner Cap Backorder WPL WP8273345 $99.07

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $187.97

3

Tubing W/orf WPL 8273693 Contact Us For Availability

3A

Gas Tubing WPL 8273694 Contact Us For Availability

3B

Range Surface Burner Tube and Orifice, Right WPL 8273696 Contact Us For Availability

3C

Gas Tubing WPL 8273697 Contact Us For Availability

4

WP4455981 Whirlpool Burner Head Backorder WPL WP4455981 $59.01

4

Gas Tubing WPL 8272685 Contact Us For Availability

4A

WP4455980 Whirlpool Burner Head In Stock WPL WP4455980 $42.35

4B

Burner Head WPL 8273216 Contact Us For Availability

5

WP8053948 Whirlpool Door Glass In Stock WPL WP8053948 $72.93

5

Range Surface Burner Igniter Switch Assembly WPL 8273075 Contact Us For Availability

5

Cktop-wh WPL 8272251 Contact Us For Availability

5A

8195546 Whirlpool Range Cooktop O/S2 Backorder WPL 8195546 $285.67

6

8053505 Whirlpool Range Shield Backorder WPL 8053505 $61.49

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.50

6

WP8523793 Whirlpool Oven Surface Igniter In Stock WPL WP8523793 $17.97

6

WP8523854 Whirlpool Manifold Panel Backorder WPL WP8523854 $128.93

6A

Manifold Bracket WPL 3186406 Contact Us For Availability

6A

Panel WPL 8273028 Contact Us For Availability

7

W10854481 Whirlpool Knob Backorder WPL W10854481 $11.61

7

Shield WPL 3196136 Contact Us For Availability

7

Manifold Pipe WPL 8272411 Contact Us For Availability

7A

Range Surface Burner Knob WPL 8273565 Contact Us For Availability

8

WP9757218 Whirlpool Burner Valve In Stock WPL WP9757218 $138.83

8

(LEFT W/DUAL) WPL N/P Contact Us For Availability

8A

8273566 Whirlpool Range Knob Backorder WPL 8273566 $34.63

8A

Range Surface Burner Valve WPL 8273004 Contact Us For Availability

9

8272766 Whirlpool Range Knob Backorder WPL 8272766 $11.10

9

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $29.96

9

Nut WPL 8273060 Contact Us For Availability

9A

8273567 Whirlpool Range Knob Backorder WPL 8273567 $34.63

WP8053807 Whirlpool Range Door Hinge In Stock WPL WP8053807 $49.45

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $2.55

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.76

Clip WPL 3195813 Contact Us For Availability

3196200 Whirlpool Clip In Stock WPL 3196200 $5.13

WP3195097 Whirlpool Range Bottom In Stock WPL WP3195097 $92.09

WP8053834 Whirlpool Door Glass Backorder WPL WP8053834 $145.83

WPW10447925 Whirlpool Grate Kit Backorder WPL WPW10447925 $214.28

11A

Range Surface Burner Grate (Espressor) WPL 8273348 Contact Us For Availability

12

WP3195060 Whirlpool Cooktop Pin In Stock WPL WP3195060 $4.30

12

WP8054078 Whirlpool Broiler Burner Backorder WPL WP8054078 $105.74

12

WPW10181986 Whirlpool Range Sensor In Stock WPL WPW10181986 $66.20

13

8053967 Whirlpool Range Heat Baffle Backorder WPL 8053967 $121.09

13

Oven Baffle WPL 8053970 Contact Us For Availability

14

8053969 Whirlpool Heat Shield Backorder WPL 8053969 $41.39

14

8190618 Whirlpool Gas Range Oven Burner Assem In Stock WPL 8190618 $141.70

14

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.64

15

8053968 Whirlpool Range Heat Shield Backorder WPL 8053968 $33.28

15

WPW10293048 Whirlpool Gas Valve In Stock WPL WPW10293048 $325.37

15

Oven Door Clip WPL 3196925 Contact Us For Availability

16

WP8054129 Whirlpool Range Igniter In Stock WPL WP8054129 $61.08

16

WPW10306546 Whirlpool Base Rail In Stock WPL WPW10306546 $56.65

16

Range Membrane Switch (White) WPL 8272702 Contact Us For Availability

17

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $77.11

17

Gas Tubing WPL 8272222 Contact Us For Availability

18

Range Broil Burner Fitting WPL 3186489 Contact Us For Availability

18

Oven Seal WPL 3195737 Contact Us For Availability

19

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $30.26

19

Cover Plate WPL 8272403 Contact Us For Availability

20

WP8273064 Whirlpool Orifice Backorder WPL WP8273064 $37.22

20

Rear Cover WPL 8272921 Contact Us For Availability

20A

WP8273065 Whirlpool Orifice Backorder WPL WP8273065 $37.22

20B

WP8273067 Whirlpool Orifice Backorder WPL WP8273067 $37.31

21

W10137062 Whirlpool Burner Baffle Backorder WPL W10137062 $174.52

21

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $23.27

22

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.55

22

Brace WPL 8053971 Contact Us For Availability

23

3196265 Whirlpool Range Screw Backorder WPL 3196265 $9.75

23

Retainer WPL 3196523 Contact Us For Availability

23A

Retainer WPL 3195726 Contact Us For Availability

24

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.75

24

Range Body Side Panel Clip WPL 3196576 Contact Us For Availability

25

W11684507 Whirlpool Screw In Stock WPL W11684507 $8.24

25

WP9757891 Whirlpool Power Cord Backorder WPL WP9757891 $54.74

26

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $7.05

26

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.55

27

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $66.37

28

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $39.14

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.37

30

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $98.05

31

W10078370 Whirlpool Latch Rod Backorder WPL W10078370 $32.59

32

WPW10107820 Whirlpool Door Latch In Stock WPL WPW10107820 $98.24

38

Screw WPL 3196152 Contact Us For Availability

39

3196166 Whirlpool Screw Backorder WPL 3196166 $4.93

39A

Screw WPL 3196167 Contact Us For Availability

39B

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.55

42

Screw WPL 3196179 Contact Us For Availability

43

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.55

44

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.55

45

Screw WPL 6196168 Contact Us For Availability

46

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.75

47

W10491985 Whirlpool Screw Backorder WPL W10491985 $2.55

16515 Whirlpool Clip Backorder WPL 16515 $11.81

285006 Whirlpool Spray In Stock WPL 285006 $45.11

3196896 Whirlpool Clip Backorder WPL 3196896 $5.23

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.76

350942 Whirlpool Spray Paint Backorder WPL 350942 $51.15

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.30

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.33

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $44.64

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.53

814381 Whirlpool Pin Backorder WPL 814381 $3.76

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $36.27

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.89

W10854965 Whirlpool Orifice Spud Backorder WPL W10854965 $36.01

W11688737 Whirlpool Insulation Backorder WPL W11688737 $51.26

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $32.59

Aluminum Foil WPL 241430 Contact Us For Availability

Paint 1qt WPL 799344 Contact Us For Availability

Wire (Black) WPL 242820 Contact Us For Availability

Wire (Blue) WPL 242821 Contact Us For Availability

Wire (Brown) WPL 242822 Contact Us For Availability

Wire (Green) WPL 242823 Contact Us For Availability

Wire (Orange) WPL 242824 Contact Us For Availability

Wire (Red) WPL 242825 Contact Us For Availability

Wire (White) WPL 242826 Contact Us For Availability

Appliance Splicing Wire, 25-ft, 14-gauge (Yel WPL 242827 Contact Us For Availability

Wire (Black) WPL 242828 Contact Us For Availability

Wire WPL 242829 Contact Us For Availability

Wire (Brown) WPL 242830 Contact Us For Availability

Cooking Appliance 14-gauge Splicing Wire, 200 WPL 242831 Contact Us For Availability

Wire (Yellow) WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Epoxy WPL 799832 Contact Us For Availability

Clip WPL 8053527 Contact Us For Availability

Wire Harness WPL 8273127 Contact Us For Availability

Wire WPL 8273557 Contact Us For Availability

Wire Harness WPL 8273966 Contact Us For Availability

Wire Harness WPL 8273967 Contact Us For Availability

Wire Harness WPL 8274195 Contact Us For Availability

Paint-al WPL 978883 Contact Us For Availability

Appliance Paint, 1-qt (Bisque) WPL 4392900 Contact Us For Availability
