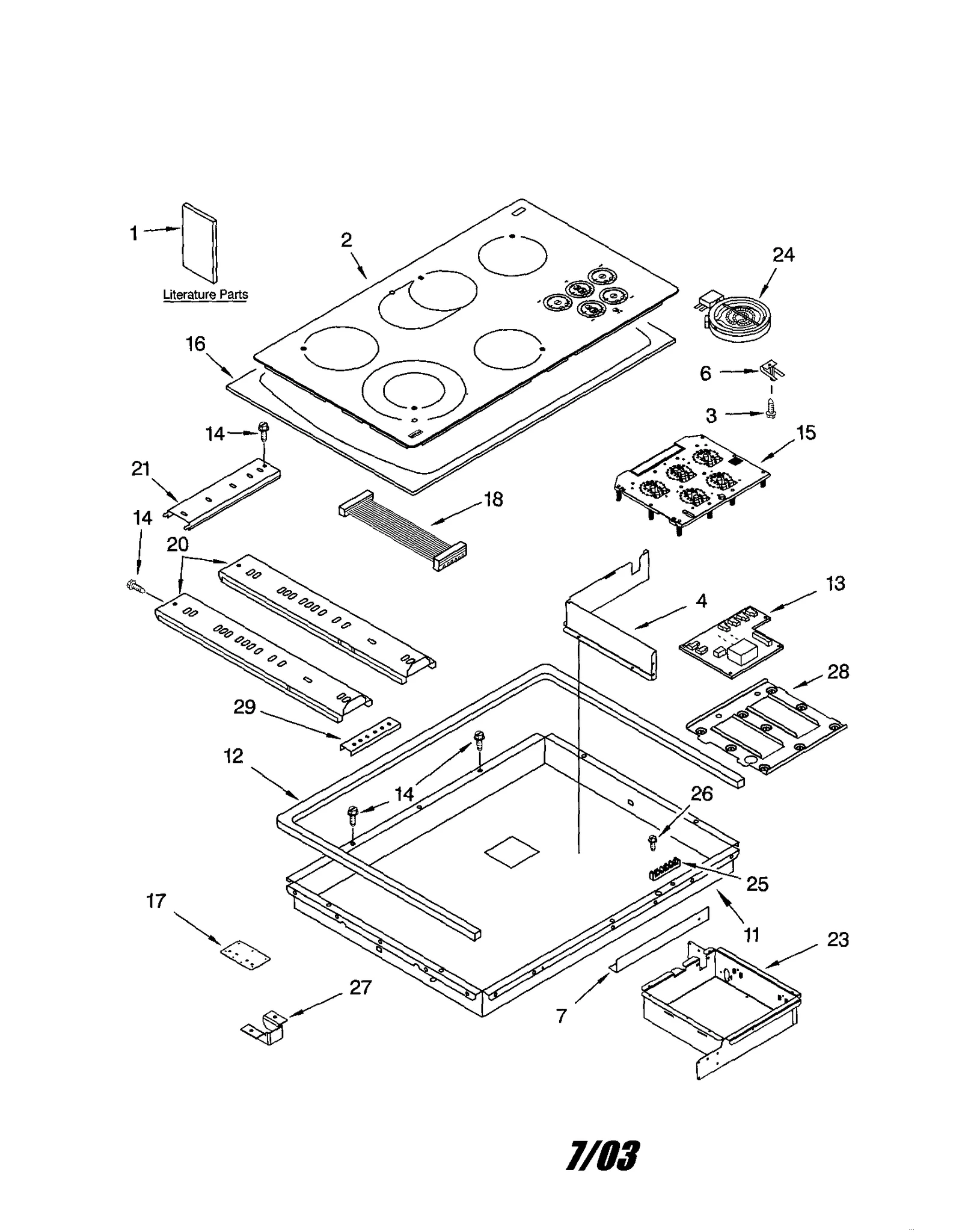

Model Whirlpool 665.44052300 Cooktop (Kenmore 66544052300) – Common Parts & Diagrams

1
Installation Instructions
Installation Instructions WPL LIT8285430 Contact Us For Availability
View on Model
1A
Wiring Diagram
Wiring Diagram WPL LIT8285436 Contact Us For Availability
View on Model
1B
Technical Sheet
Technical Sheet WPL LIT8285515 Contact Us For Availability
View on Model
1C
Owner's Manual
Owner's Manual WPL LIT8285367 Contact Us For Availability
View on Model
1D
Cook Guide
Cook Guide WPL LIT8285521 Contact Us For Availability
View on Model
2
Cooktop Main Top
Cooktop Main Top WPL 8285554 Contact Us For Availability
View on Model
2A
Main Top
Main Top WPL 8285555 Contact Us For Availability
View on Model
2B
Cooktop Main Top
Cooktop Main Top WPL 8285556 Contact Us For Availability
View on Model
2C
Cooktop Main Top Assembly
Cooktop Main Top Assembly WPL 8285560 Contact Us For Availability
View on Model
4
Heat Shield
Heat Shield WPL 8285573 Contact Us For Availability
View on Model
6
Spring
Spring WPL 3191791 Contact Us For Availability
View on Model
11
Burner Box
Burner Box WPL 8285184 Contact Us For Availability
View on Model
12
Cooktop Burner Box Seal
Cooktop Burner Box Seal WPL 3192737 Contact Us For Availability
View on Model
13
Cooktop Electronic Control
Cooktop Electronic Control WPL 8285347 Contact Us For Availability
View on Model
15
Electronic Control
Electronic Control WPL 8285581 Contact Us For Availability
View on Model
16
Frame
Frame WPL 8284628 Contact Us For Availability
View on Model
17
Mounting Bracket
Mounting Bracket WPL 8285534 Contact Us For Availability
View on Model
18
Wire Harness
Wire Harness WPL 8285323 Contact Us For Availability
View on Model
20
Support
Support WPL 8285104 Contact Us For Availability
View on Model
21
Support
Support WPL 3192269 Contact Us For Availability
View on Model
23
Control Box
Control Box WPL 8285597 Contact Us For Availability
View on Model
24
Surface Element
Surface Element WPL 8285233 Contact Us For Availability
View on Model
24C
Cooktop Surface Element
Cooktop Surface Element WPL 8285231 Contact Us For Availability
View on Model
27
Wire Cover
Wire Cover WPL 8285568 Contact Us For Availability
View on Model
28
Support
Support WPL 8285595 Contact Us For Availability
View on Model
NI04
Wire (Brown)
Wire (Brown) WPL 242830 Contact Us For Availability
View on Model
NI05
Wire (Green)
Wire (Green) WPL 242823 Contact Us For Availability
View on Model
NI06
Wire (Orange)
Wire (Orange) WPL 242824 Contact Us For Availability
View on Model
NI07
Wire
Wire WPL 242829 Contact Us For Availability
View on Model
NI08
Wire (Red)
Wire (Red) WPL 242825 Contact Us For Availability
View on Model
NI09
Cooking Appliance 14-gauge Splicing Wire, 200
Cooking Appliance 14-gauge Splicing Wire, 200 WPL 242831 Contact Us For Availability
View on Model
NI10
Wire (White)
Wire (White) WPL 242826 Contact Us For Availability
View on Model
NI11
Appliance Splicing Wire, 25-ft, 14-gauge (Yel
Appliance Splicing Wire, 25-ft, 14-gauge (Yel WPL 242827 Contact Us For Availability
View on Model
NI12
Wire (Yellow)
Wire (Yellow) WPL 242832 Contact Us For Availability
View on Model
NI14
Wire Harness
Wire Harness WPL 8285322 Contact Us For Availability
View on Model
NI15
Conduit
Conduit WPL 8285366 Contact Us For Availability
View on Model
