Model LG 66029 – Common Parts & Diagrams
Diagram 0
Diagram 1

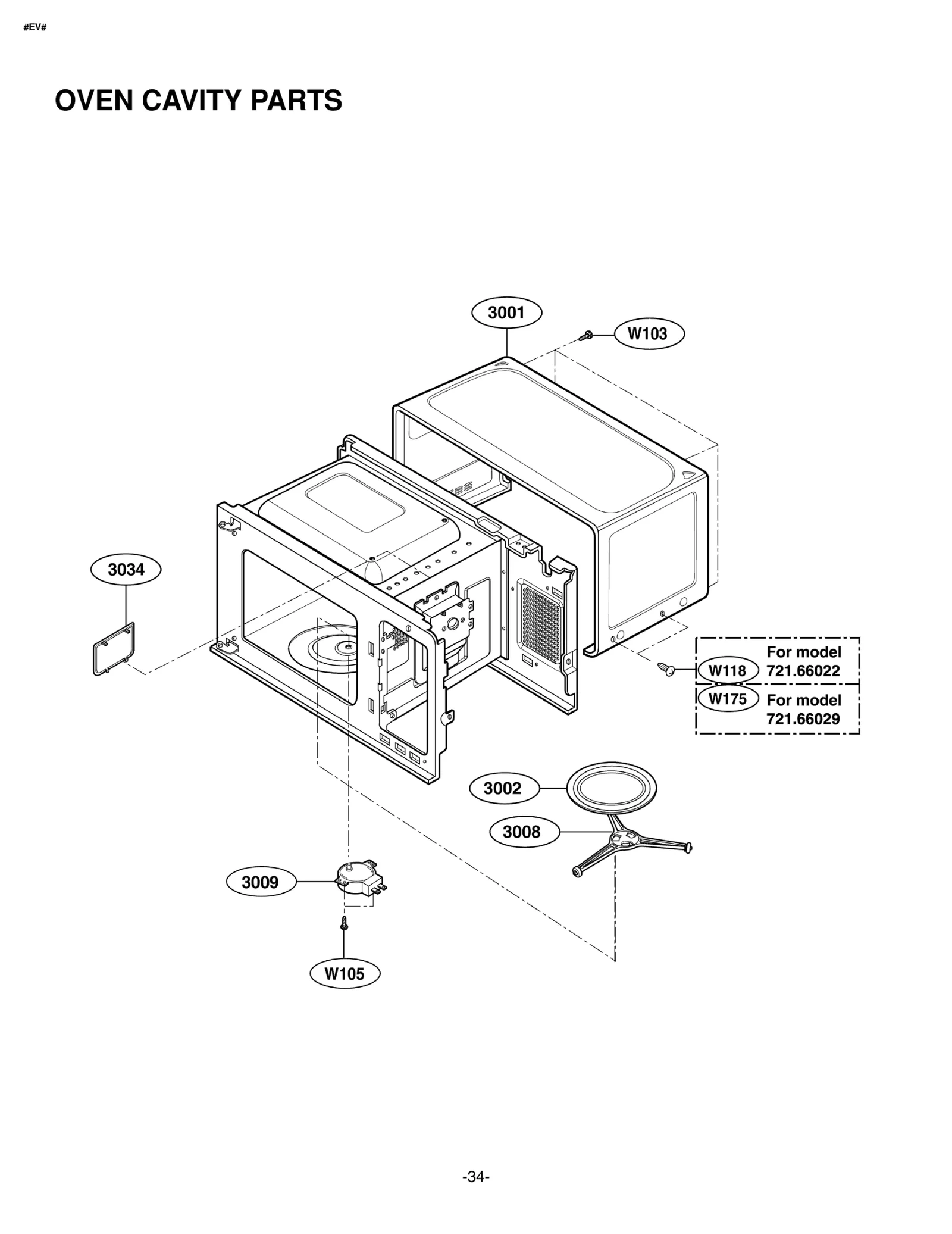

Diagram 2

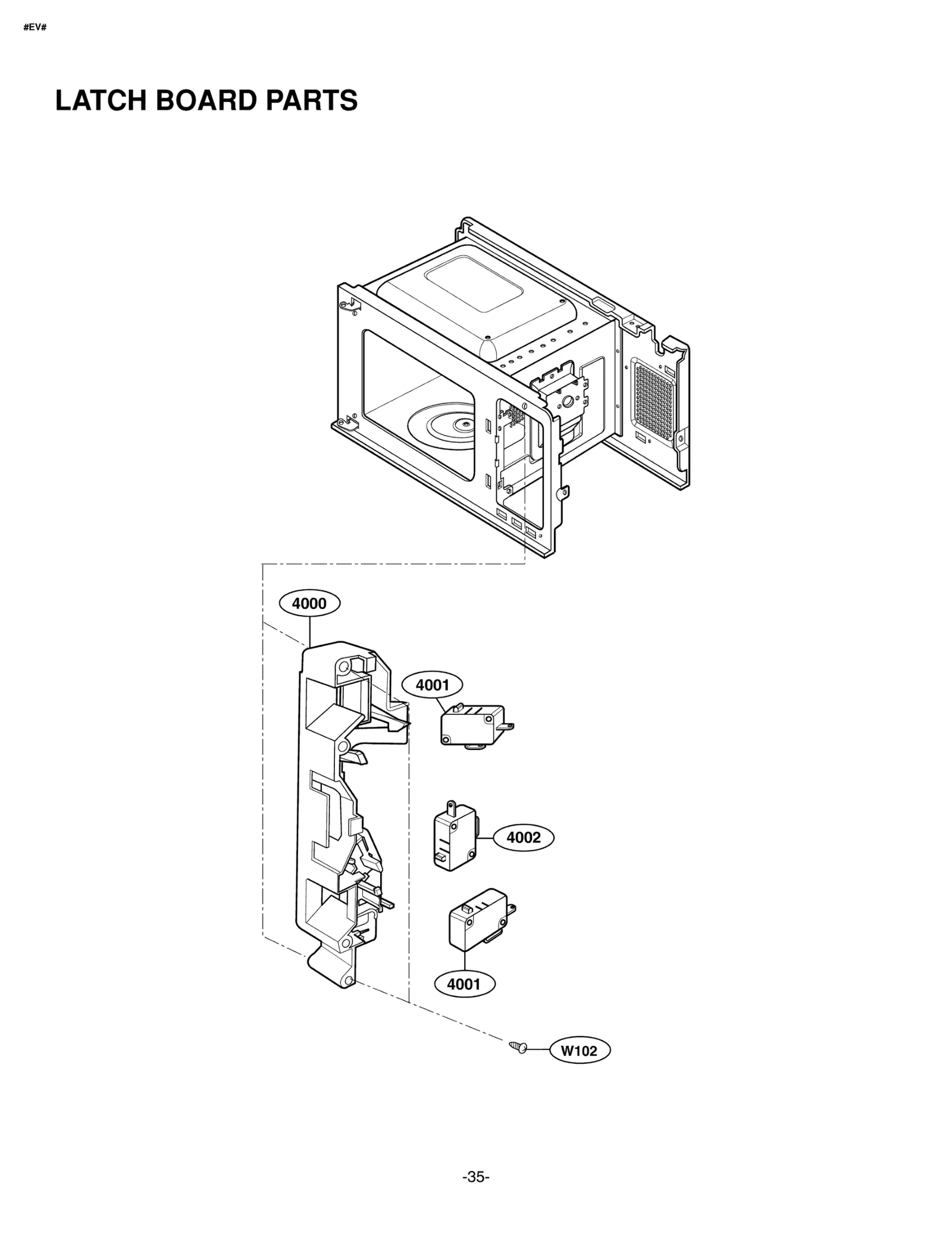

Diagram 3

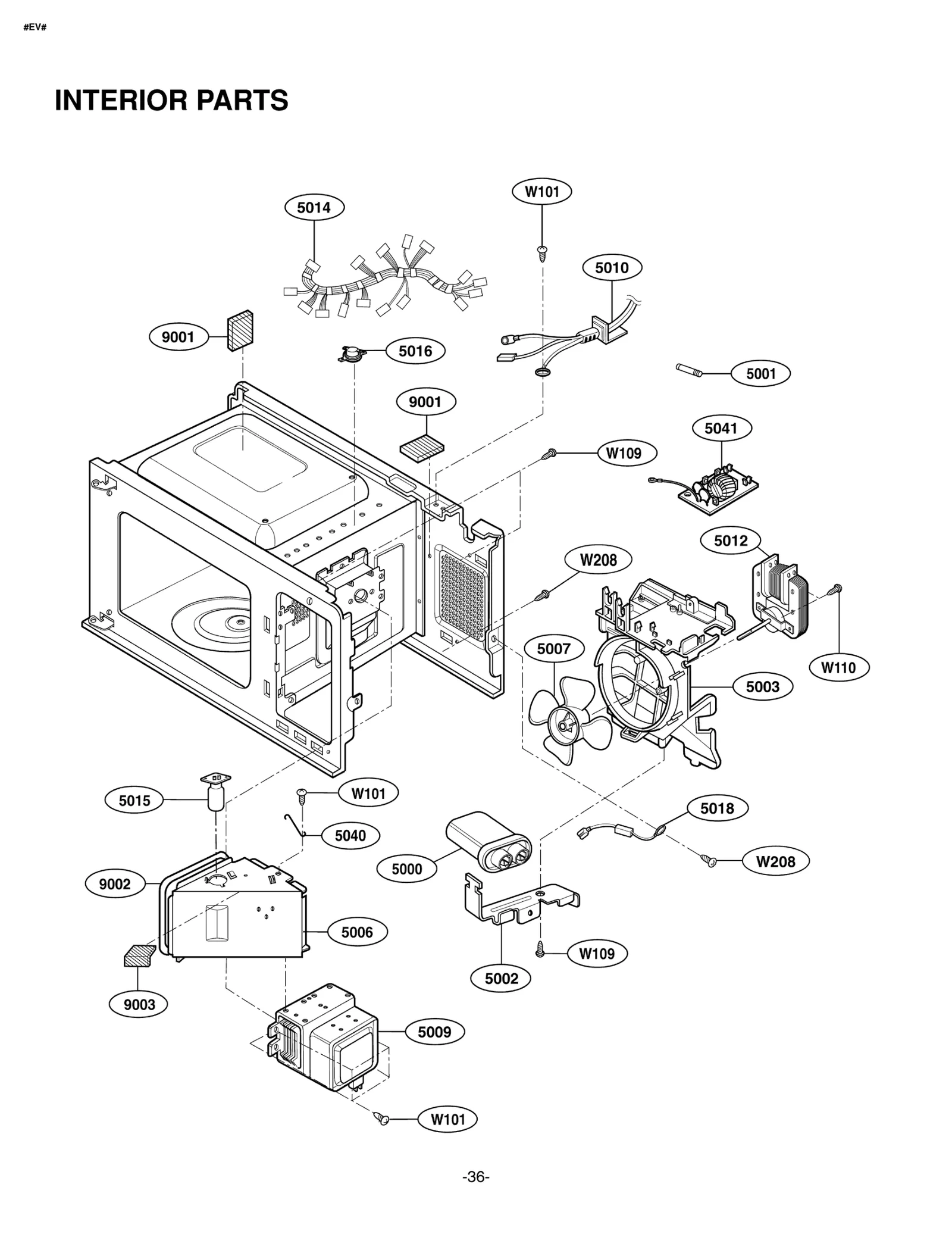

Diagram 4

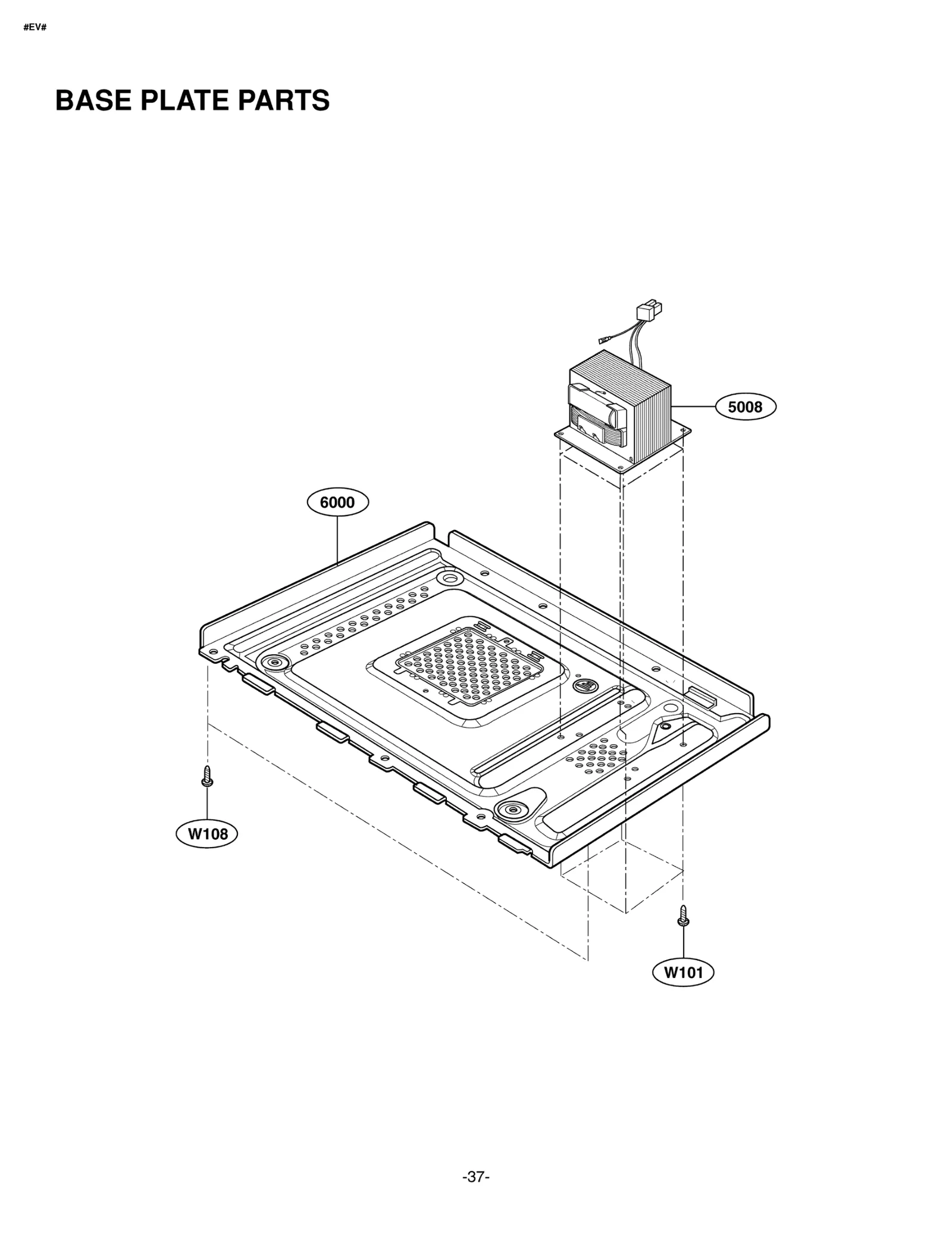

Diagram 5
Diagram 6
Common parts from model LG 66029
*01
MANUAL,OWNERS LGE 3828W5A8251 Contact Us For Availability
*02
MANUAL,SERVICE LGE 3828W5S5300 Contact Us For Availability
*07
CARD,TECHNICAL LGE 3840W1T156C Contact Us For Availability
*10
BOX,WHITE LGE 3890W3W562B Contact Us For Availability
2002
PANEL,CONTROL LGE 3720W0C272B Contact Us For Availability
2004
CONTROLLER ASSEMBLY,KEY PAD LGE 4781W0M067D Contact Us For Availability
2006
PCB Assembly,Sub LGE 6871W1A449B Contact Us For Availability
3001
OUT CASE,U-BENDING LGE 3112W0U082E Contact Us For Availability
3034
CANOPY,RESIN LGE 3052W1A007A Contact Us For Availability
4000
BOARD,LATCH LGE 3500W1A034B Contact Us For Availability
4001
BOARD ASSEMBLY,LATCH LGE 3501W1A042B Contact Us For Availability
4003
SWITCH,MICRO LGE 6600W1K004E Contact Us For Availability
5000
CAPACITOR,DRAWING[HIGH VOLTAGE] LGE 0CZZW1H004V Contact Us For Availability
5003
GUIDE,[SUCTION GUIDE] LGE 4974W1S052A Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D112A Contact Us For Availability
5010
POWER CORD ASSEMBLY LGE 6411W1A031M Contact Us For Availability
5012
MOTOR(CIRC),FAN LGE 6549W1F005P Contact Us For Availability
5014
HARNESS LGE 6877W1A346C Contact Us For Availability
× ![]()
