Model LG 65VS10-BAA – Common Parts & Diagrams

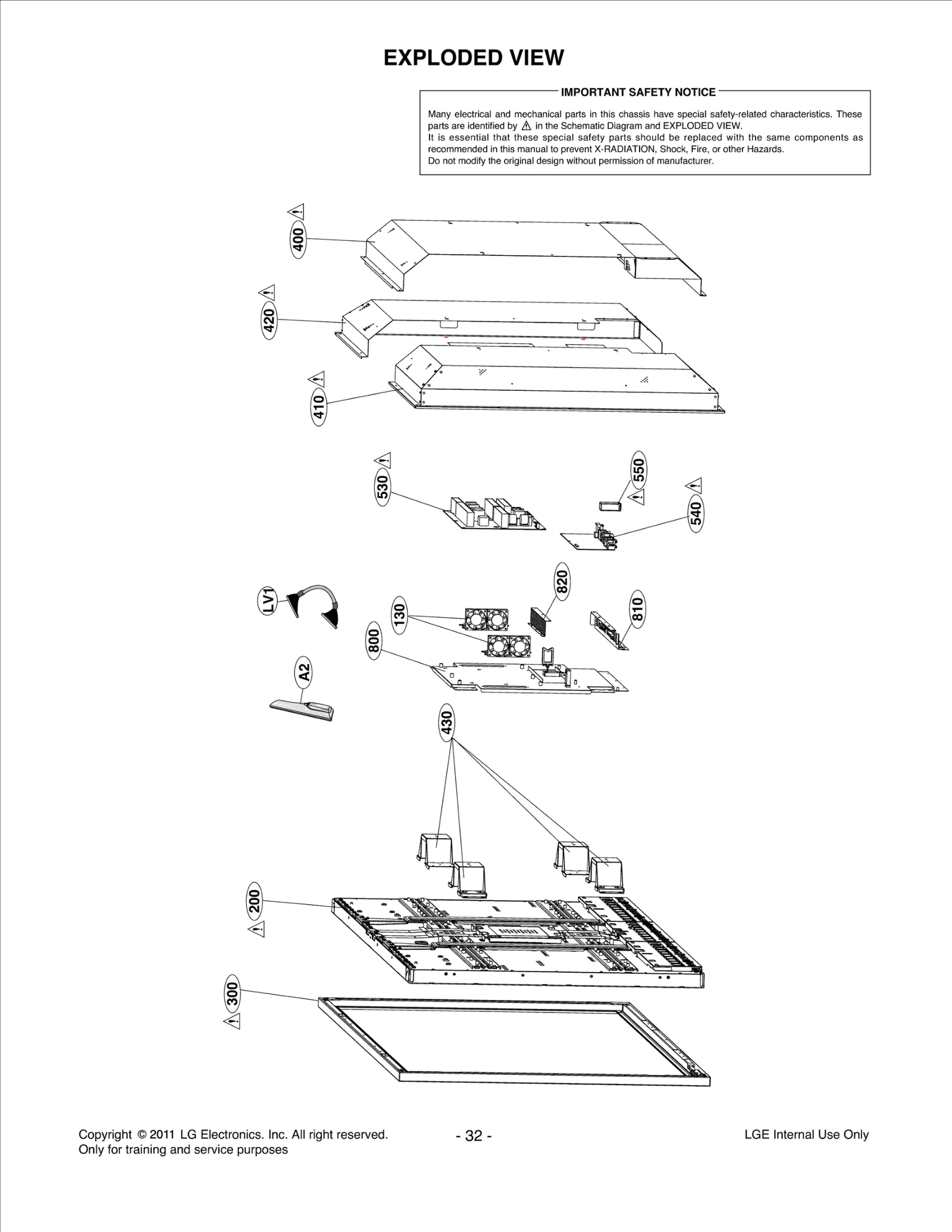

Diagram 0
Diagram 1
Common parts from model LG 65VS10-BAA
130
Fan Module LGE 5900906001G Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61829001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72921808 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ74732003 Contact Us For Availability
410
Cover Assembly,Rear LGE ACQ76173801 Contact Us For Availability
420
Cover Assembly,Rear LGE ACQ76173901 Contact Us For Availability
430
Plate,Metal LGE MGJ61970001 Contact Us For Availability
550
Filter,AC Line LGE EAM33984410 Contact Us For Availability
800
Frame Assembly LGE ADV72989303 Contact Us For Availability
810
Plate,Metal LGE MGJ61889706 Contact Us For Availability
820
Plate,Shield LGE MGJ37837201 Contact Us For Availability
A1
Title LGE SAC33111319 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915219 Contact Us For Availability
A4
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
AR104
Resistor,Array LGE EBC32260501 Contact Us For Availability
AR113
Resistor,Array LGE EBC39283301 Contact Us For Availability
C3
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C106
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C110
CAPACITOR,FIXED ELEC LGE 0CE227WJ6DC Contact Us For Availability
C115
Capacitor,AL,Radial LGE 0CZZTAB003T Contact Us For Availability
C127
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C160
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C179
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C216
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C239
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C246
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C251
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C255
Capacitor,Ceramic,Chip LGE 0CH2682K516 Contact Us For Availability
C267
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C276
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C283
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C294
Capacitor,Ceramic,Ch LGE 0CH5240K416 Contact Us For Availability
C299
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C300
Capacitor,AL,Chip LGE 0CE476WK6DC Contact Us For Availability
C330
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C333
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C342
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C347
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C389
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C390
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C398
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C400
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C402
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C405
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C406
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C421
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C462
Capacitor,Ceramic,Chip LGE EAE38454201 Contact Us For Availability
C473
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
D132
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D133
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D144
Diode,TVS LGE EAH39491701 Contact Us For Availability
D166
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D170
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC101
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC108
IC,EEPROM LGE EAN60997601 Contact Us For Availability
IC110
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC111
IC LGE 0IPH741400E Contact Us For Availability
IC112
Display SOC,Digital TV LGE EAN60350801 Contact Us For Availability
IC115
IC,OP Amplifier LGE 0IPRPAD024A Contact Us For Availability
IC115
IC,Video Amplifier LGE EAN60815201 Contact Us For Availability
IC116
IC,I/O Support Chip LGE EAN60668101 Contact Us For Availability
IC117
IC,OP Amplifier LGE EAN61829701 Contact Us For Availability
IC119
IC,Analog Switch LGE EAN30282502 Contact Us For Availability
IC120
IC Assembly LGE EAN61946001 Contact Us For Availability
IC121
IC,Multiplexer LGE 0ISTLTI047A Contact Us For Availability
IC124
IC,Analog Switch LGE EAN60223701 Contact Us For Availability
IC125
IC,DDR2 SDRAM LGE EAN60762902 Contact Us For Availability
IC126
IC,Audio Amplifier LGE EAN60969601 Contact Us For Availability
IC126
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC126
IC,Audio Amplifier LGE EAN62449901 Contact Us For Availability
IC127
IC,EEPROM LGE EAN58496301 Contact Us For Availability
IC128
IC,EEPROM LGE EAN61925801 Contact Us For Availability
IC129
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC130
IC,Timer LGE EAN54696201 Contact Us For Availability
IC131
S/W,Firmware LGE SAA36050403 Contact Us For Availability
J1
CONNECTOR (CIRC),WAF LGE 6602T20009J Contact Us For Availability
JK100
JACK,DIN LGE 6612B00015A Contact Us For Availability
JK101
JACK,PHONE LGE 6612F00059C Contact Us For Availability
JK102
Connector,BNC LGE 6630A90018E Contact Us For Availability
JK104
Jack,RCA LGE 380-344A Contact Us For Availability
JK107
Connector,Terminal LGE 385-173B Contact Us For Availability
JK109
Jack,Modular LGE EAG38645702 Contact Us For Availability
JK110
Connector,DSUB LGE EAG43472001 Contact Us For Availability
L1
Filter,Bead LGE EAM38769507 Contact Us For Availability
L138
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L141
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LED1
LED LGE 0DLLT0089AA Contact Us For Availability
LV1
Cable,FFC LGE EAD61668697 Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
P104
Connector,Wafer LGE EAG60376901 Contact Us For Availability
P106
Connector,Wafer LGE 6630V091112 Contact Us For Availability
P114
Connector,Wafer LGE 6602T20009D Contact Us For Availability
P115
Conector,Wafer LGE 6630V93270A Contact Us For Availability
Q118
FET LGE EBK60706901 Contact Us For Availability
Q120
TRANSISTOR,FETS LGE 0TFIR80016B Contact Us For Availability
Q127
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q133
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q134
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q134
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R1
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R8
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R9
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R136
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R150
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R200
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R206
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R207
RESISTOR,METAL GLAZE LGE 0RJ1601E472 Contact Us For Availability
R263
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R264
Resistor,Chip LGE 0RJ3600D477 Contact Us For Availability
R265
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
R268
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R298
Resistor,Chip LGE 0RJ1242D477 Contact Us For Availability
R311
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R317
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R320
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R342
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R348
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R359
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R379
RESISTOR,METAL GLAZE LGE 0RJ1302D677 Contact Us For Availability
R447
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R569
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R576
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R580
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R599
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R614
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R634
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R640
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R643
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R663
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R664
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R694
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R695
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R738
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R754
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R756
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R784
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R807
Resistor,Chip LGE 0RJ0562D477 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ4302D677 Contact Us For Availability
R823
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R904
Resistor,Chip LGE 0RJ2701D477 Contact Us For Availability
R905
RESISTOR,METAL GLAZE LGE 0RJ2001D477 Contact Us For Availability
S1
Lens LGE 3680TKP097A Contact Us For Availability
S2
Harness,Single LGE EAD60673312 Contact Us For Availability
S3
PCB Assembly,Sub LGE 6871TST481S Contact Us For Availability
S4
Harness,Single LGE 6631T20029C Contact Us For Availability
S5
Knob LGE 4940TKT204A Contact Us For Availability
S6
Plate,Metal LGE MGJ39722001 Contact Us For Availability
S7
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
S8
CONNECTOR ASSEMBLY LGE 6631T20041A Contact Us For Availability
SW6
Switch,Tact LGE 6600R00001B Contact Us For Availability
U1
REMOTE CONTROLLER RE LGE 6712SCA232A Contact Us For Availability
X102
Crystal LGE 6212AB2015C Contact Us For Availability
ZD4
Diode,Zener LGE EAH60270608 Contact Us For Availability
× ![]()
