Model LG 65UX340C – Common Parts & Diagrams

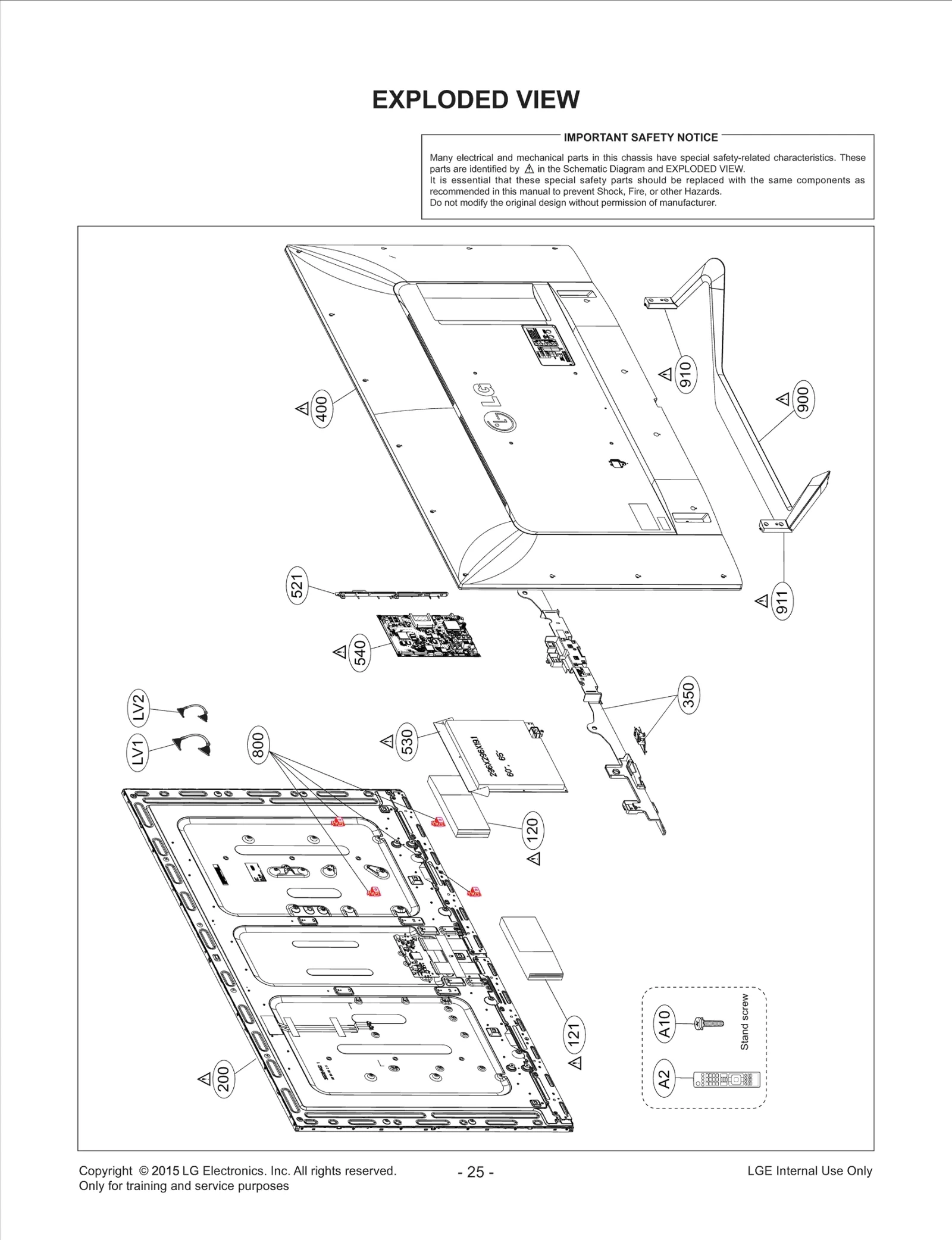

Diagram 0
Diagram 1
Common parts from model LG 65UX340C
2
Screw,Taptite LGE FAB31639801 Contact Us For Availability
2
Screw,Machine LGE FAB31843211 Contact Us For Availability
121
Speaker Assembly LGE EAB63688302 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63327701 Contact Us For Availability
350
Bracket Assembly LGE ABA75269635 Contact Us For Availability
400
Cover Assembly LGE ACQ87692857 Contact Us For Availability
521
Bracket LGE MAZ64584430 Contact Us For Availability
540
Chassis Assembly LGE EBT64000702 Contact Us For Availability
800
Supporter LGE MJH63133501 Contact Us For Availability
900
Base Assembly LGE AAN75070604 Contact Us For Availability
910
Base Assembly LGE AAN75090208 Contact Us For Availability
A2
Remocon kit,Package Assembly LGE AGF76692632 Contact Us For Availability
A2S
Remote Controller Assembly LGE AKB74475455 Contact Us For Availability
AM1
Manual,Owners LGE MFL68925842 Contact Us For Availability
AR102
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1391
Resistor,Array LGE EBC62582701 Contact Us For Availability
AR1394
Resistor,Array LGE EBC62582702 Contact Us For Availability
B1
Box LGE MAY67272602 Contact Us For Availability
C102
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C200
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C213
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C214
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C220
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C239
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C419
Capacitor,Ceramic,Chip LGE 0CK393CK56A Contact Us For Availability
C423
Capacitor,Ceramic,Chip LGE 0CC271BK4AA Contact Us For Availability
C425
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C428
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C431
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C433
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C704
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C2803
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C2810
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C3503
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C3506
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C3515
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C3701
Capacitor,Ceramic,Chip LGE 0CK102EY48A Contact Us For Availability
C4604
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5607
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C5611
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C5618
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C5625
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5626
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C5630
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C13404
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C13406
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C13408
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C13413
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C13434
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C136093
Capacitor,Ceramic,Ch LGE EAE30281901 Contact Us For Availability
CA1
Harness,Single LGE EAD62732506 Contact Us For Availability
CA2
Harness,Multi LGE EAD62847614 Contact Us For Availability
CA3
Harness,Multi LGE EAD63305303 Contact Us For Availability
D704
Diode,Switching LGE EAH60666101 Contact Us For Availability
D1395
Diode,Switching LGE EAH61714301 Contact Us For Availability
IC101
Display SOC,Monitor LGE EAN62929501 Contact Us For Availability
IC101
Display SOC,Monitor LGE EAN62929502 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60708703 Contact Us For Availability
IC104
IC,EEPROM LGE EAN62389502 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN62911401 Contact Us For Availability
IC405
IC,DC,DC Converter LGE EAN63530101 Contact Us For Availability
IC406
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC1300
IC,Serial Flash Memory LGE EAN63127201 Contact Us For Availability
IC1351
IC,Serial Flash Memory LGE EAN62459501 Contact Us For Availability
IC1391
IC,EEPROM LGE 0IMMRAL014E Contact Us For Availability
IC2600
IC,DDR3 SDRAM LGE EAN63370001 Contact Us For Availability
IC3500
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC5600
IC,Audio Amplifier LGE EAN62886102 Contact Us For Availability
IC13000
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC13101
IC,LDO Voltage Regulator LGE EAN63492401 Contact Us For Availability
IC13402
IC,DC,DC Converter LGE EAN62870301 Contact Us For Availability
JK700
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK701
Connector,USB LGE EAG59068702 Contact Us For Availability
JK2802
Jack,RCA LGE EAG60968213 Contact Us For Availability
L400
Filter,Bead LGE EAM62091201 Contact Us For Availability
L405
Inductor,Wire Wound,Chip LGE EAP62886506 Contact Us For Availability
L2801
Filter,Bead LGE EAM54407902 Contact Us For Availability
L3501
Inductor,Wire Wound,Chip LGE EAP61606601 Contact Us For Availability
L3503
Inductor,Multilayer,Chip LGE EAP39314712 Contact Us For Availability
L5600
Filter,Bead LGE EAM38769505 Contact Us For Availability
L5602
Inductor,Wire Wound,Chip LGE EAP38274505 Contact Us For Availability
L13403
Inductor,Wire Wound,Chip LGE EAP62886505 Contact Us For Availability
L13404
Inductor,Wire Wound,Chip LGE EAP62506407 Contact Us For Availability
L13410
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
M13005
Gasket LGE MDS62110225 Contact Us For Availability
P700
Connector,USB LGE EAG62571101 Contact Us For Availability
P702
Connector,DSUB LGE 6630G00001E Contact Us For Availability
P2800
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
P13001
Connector,FFC/FPC/PIC LGE EAG64329802 Contact Us For Availability
P13401
Connector,Wafer LGE 6630VK19605 Contact Us For Availability
Q404
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q405
FET LGE EBK61232301 Contact Us For Availability
Q1351
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q1402
FET LGE EBK62072501 Contact Us For Availability
R147
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R165
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R187
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R409
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R410
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R426
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R431
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R439
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R450
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R453
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1382
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1391
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R1396
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1405
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R1410
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1446
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R2800
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R2803
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R2805
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R2808
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R2819
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R2859
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R3509
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R5612
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R13042
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R13104
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R13121
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R13123
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R13400
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R13402
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R13403
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R13405
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R13406
Resistor,Chip LGE EBC34656201 Contact Us For Availability
R13407
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R13409
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R13411
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R13412
Resistor,Chip LGE EBC35293401 Contact Us For Availability
R13421
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R13422
Resistor,Chip LGE 0RJ3601C478 Contact Us For Availability
R13556
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R13593
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
SW1351
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TU3700
Tuner,Analog/Digital LGE EBL61540001 Contact Us For Availability
VA2808
Varistor LGE EAF61530301 Contact Us For Availability
X1351
Crystal LGE EAW61645502 Contact Us For Availability
ZD403
Diode,TVS LGE EAH62134701 Contact Us For Availability
× ![]()
