Model LG 65UV340C – Common Parts & Diagrams

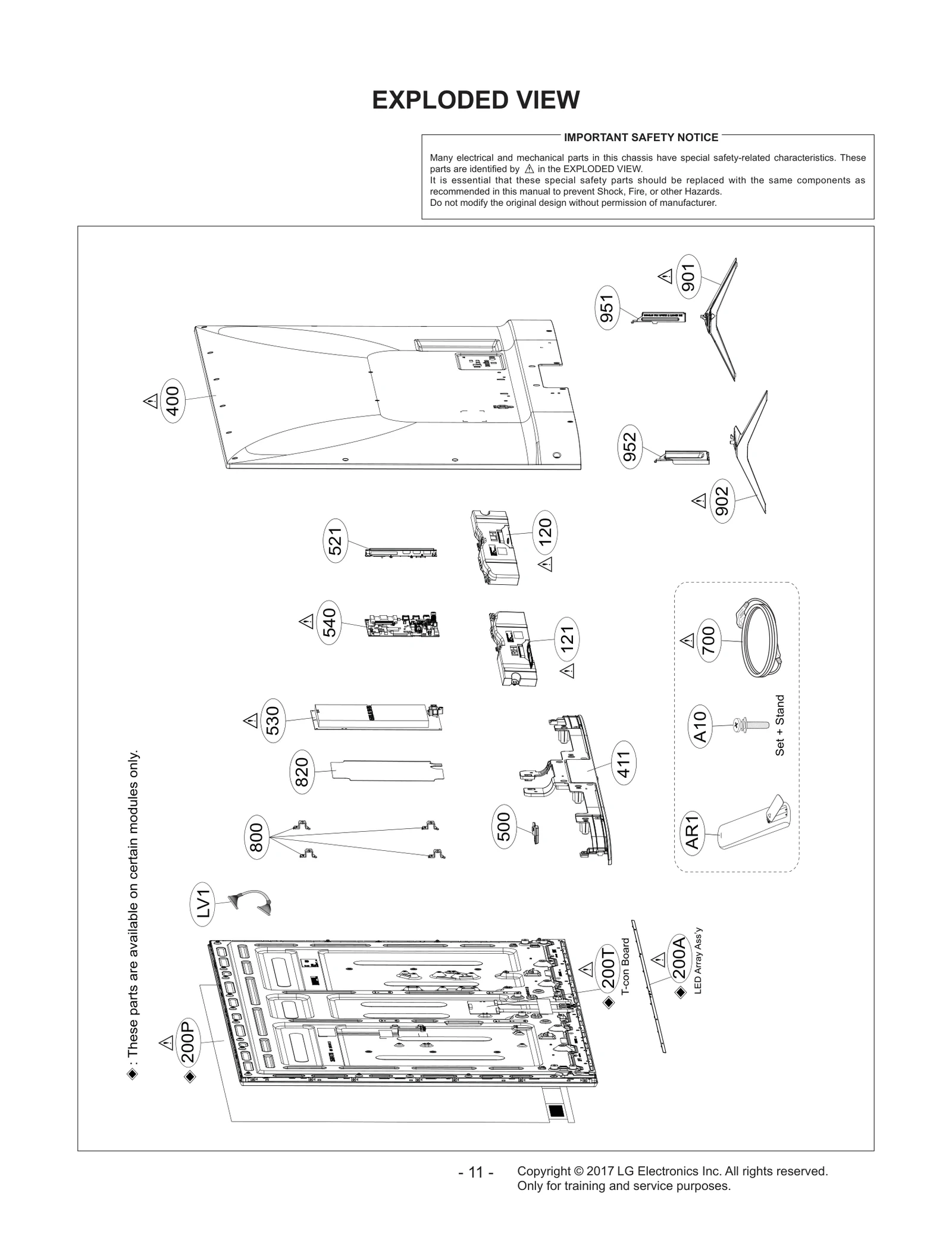

Diagram 0

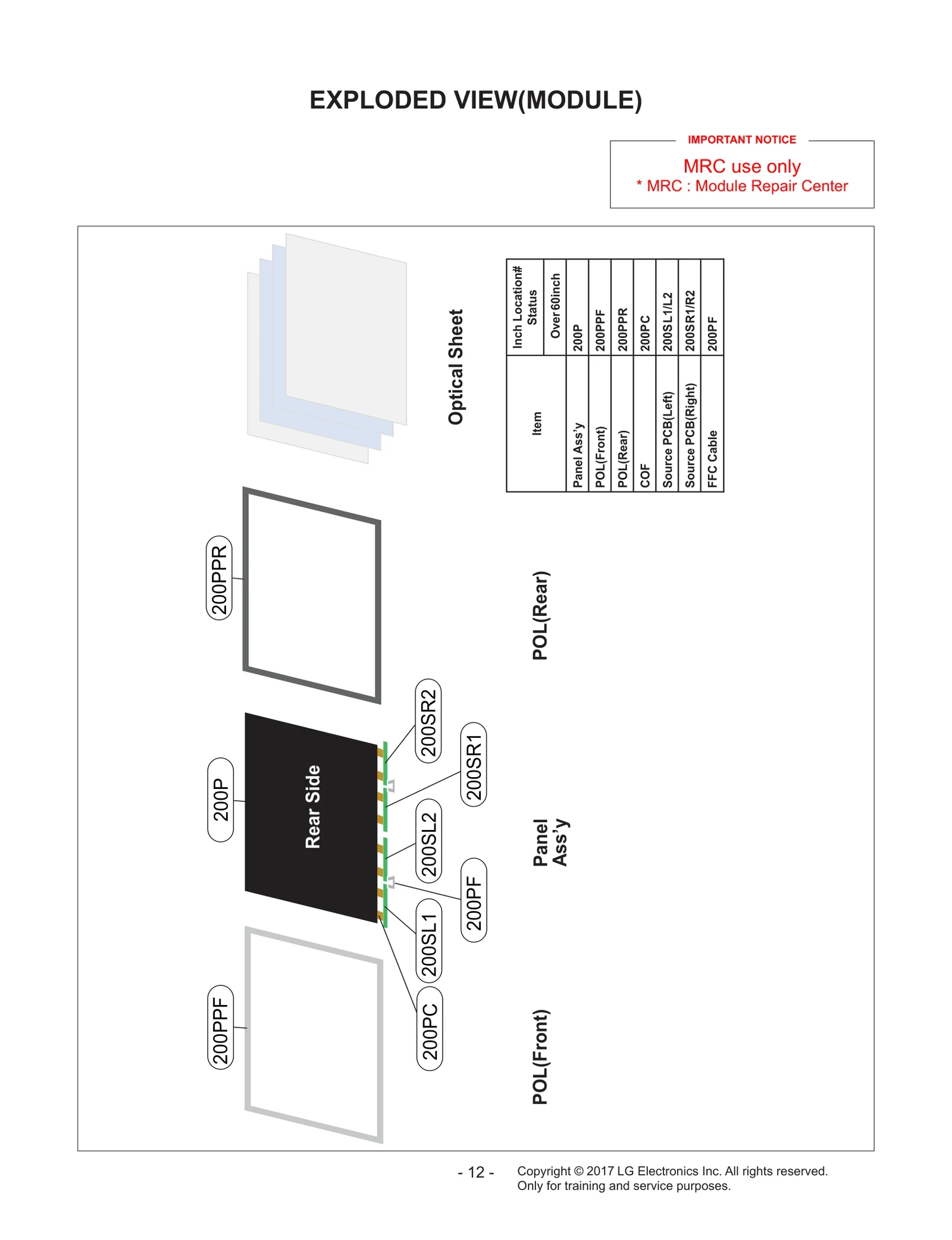

Diagram 1
Diagram 2
Common parts from model LG 65UV340C
200
LCD,Module-TFT LGE EAJ64548601 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63928201 Contact Us For Availability
200C
Frame Assembly LGE ADV76248101 Contact Us For Availability
200P
LCD,Panel-TFT LGE EAJ64510101 Contact Us For Availability
200PF
FFC Cable,Local Sourcing Parts LGE CLS31181201 Contact Us For Availability
200PPF
Polarizer,Local Sourcing Parts LGE CLS31160601 Contact Us For Availability
200PPR
Polarizer,Local Sourcing Parts LGE CLS31160701 Contact Us For Availability
200SL1
Source PCB,Local Sourcing Parts LGE CLS31262301 Contact Us For Availability
200SL2
Source PCB,Local Sourcing Parts LGE CLS31262302 Contact Us For Availability
200SR1
Source PCB,Local Sourcing Parts LGE CLS31262303 Contact Us For Availability
200T
Time Control LGE EAT63654101 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ89197555 Contact Us For Availability
411
Cover Assembly LGE ACQ89289203 Contact Us For Availability
500
PCB Assembly,IR Key LGE EBR83592303 Contact Us For Availability
521
Bracket LGE MAZ65396431 Contact Us For Availability
800
Supporter,VESA LGE MJH64334001 Contact Us For Availability
820
Insulator LGE MEV65877401 Contact Us For Availability
901
Base Assembly LGE AAN75792313 Contact Us For Availability
902
Base Assembly LGE AAN75792322 Contact Us For Availability
902
Base Assembly LGE AAN75792314 Contact Us For Availability
B1
Box LGE MAY67768402 Contact Us For Availability
CA1
Harness,Multi LGE EAD63727320 Contact Us For Availability
CA3
Harness,Single LGE EAD64030003 Contact Us For Availability
L1001
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
× ![]()
