Model LG 65UU340C – Common Parts & Diagrams

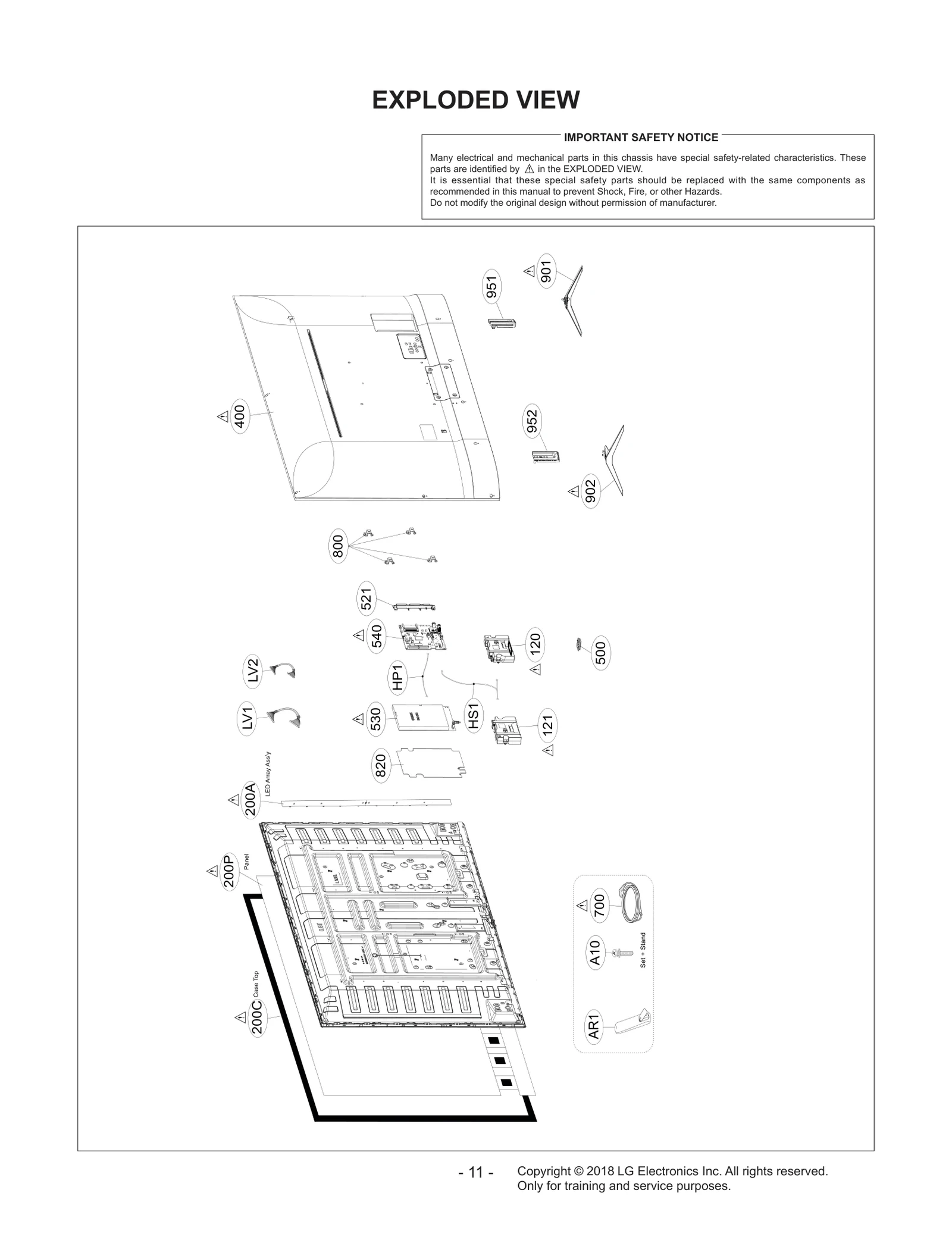

Diagram 0

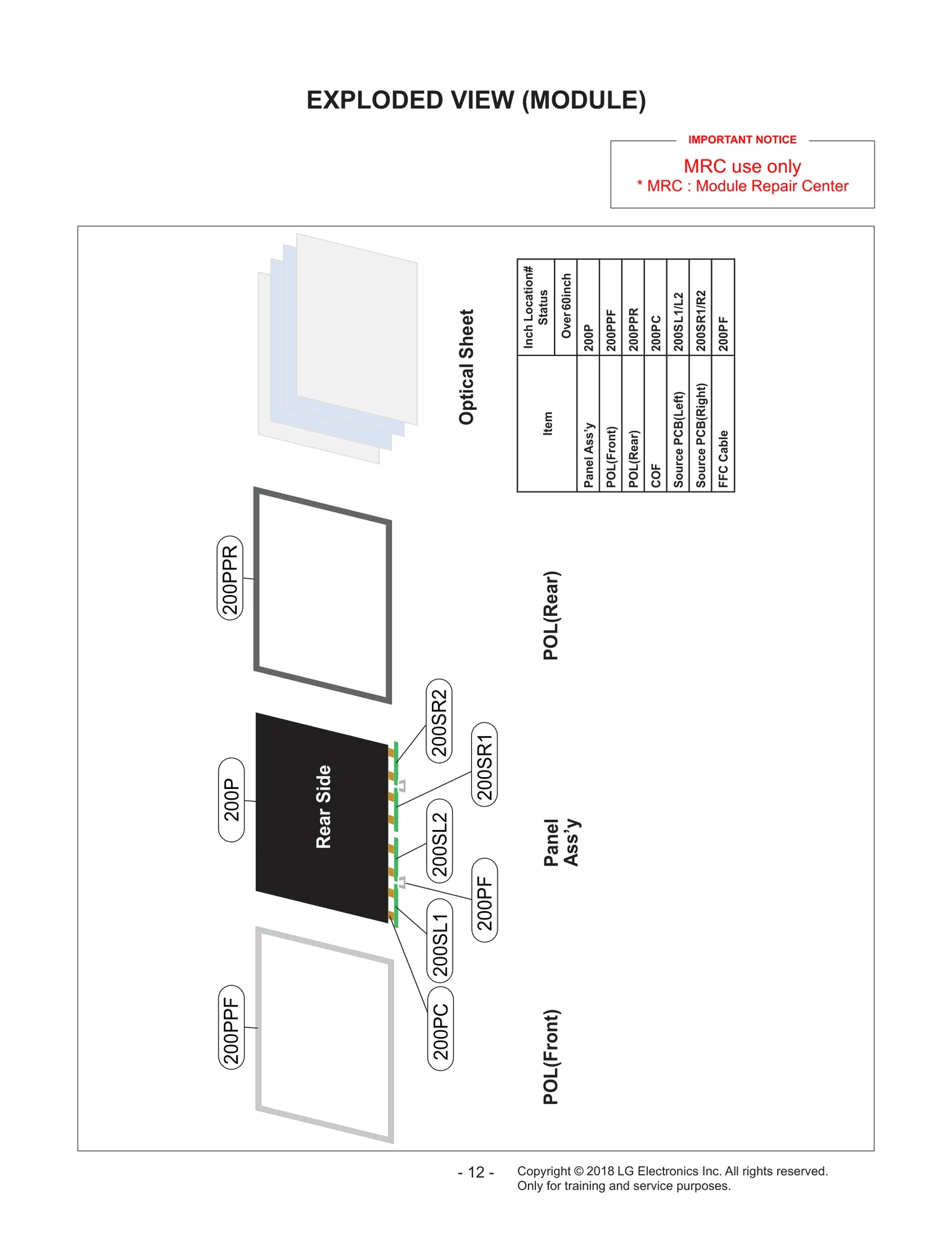

Diagram 1
Diagram 2
Common parts from model LG 65UU340C
200
LCD,Module-TFT LGE EAJ64409902 Contact Us For Availability
200C
Frame Assembly LGE ADV76687701 Contact Us For Availability
200P
LCD,Panel-TFT LGE EAJ64408601 Contact Us For Availability
200PPF
Polarizer,Local Sourcing Parts LGE CLS31160601 Contact Us For Availability
200PPR
Polarizer,Local Sourcing Parts LGE CLS31342401 Contact Us For Availability
200SL1
Source PCB,Local Sourcing Parts LGE CLS31342501 Contact Us For Availability
200SL2
Source PCB,Local Sourcing Parts LGE CLS31342601 Contact Us For Availability
200SR1
Source PCB,Local Sourcing Parts LGE CLS31342701 Contact Us For Availability
200SR2
Source PCB,Local Sourcing Parts LGE CLS31401301 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ90041460 Contact Us For Availability
521
Bracket LGE MAZ66165211 Contact Us For Availability
530
Power Supply Assembly LGE EAY64908701 Contact Us For Availability
540
Chassis Assembly LGE EBT65435602 Contact Us For Availability
800
Supporter,VESA LGE MJH64334002 Contact Us For Availability
800
Supporter,VESA LGE MJH64334001 Contact Us For Availability
820
Insulator LGE MEV65991401 Contact Us For Availability
901
Base Assembly LGE AAN76509123 Contact Us For Availability
901
Base Assembly LGE AAN76509113 Contact Us For Availability
902
Base Assembly LGE AAN76509114 Contact Us For Availability
902
Base Assembly LGE AAN76509124 Contact Us For Availability
951
Supporter LGE MJH65073602 Contact Us For Availability
952
Supporter LGE MJH65034602 Contact Us For Availability
HP1
Harness,Single LGE EAD64586003 Contact Us For Availability
HS1
Harness,Multi LGE EAD63727324 Contact Us For Availability
LV1
Cable,FFC LGE EAD64666101 Contact Us For Availability
LV2
Cable,FFC LGE EAD64666102 Contact Us For Availability
× ![]()
