Model LG 65UP5Q-E – Common Parts & Diagrams

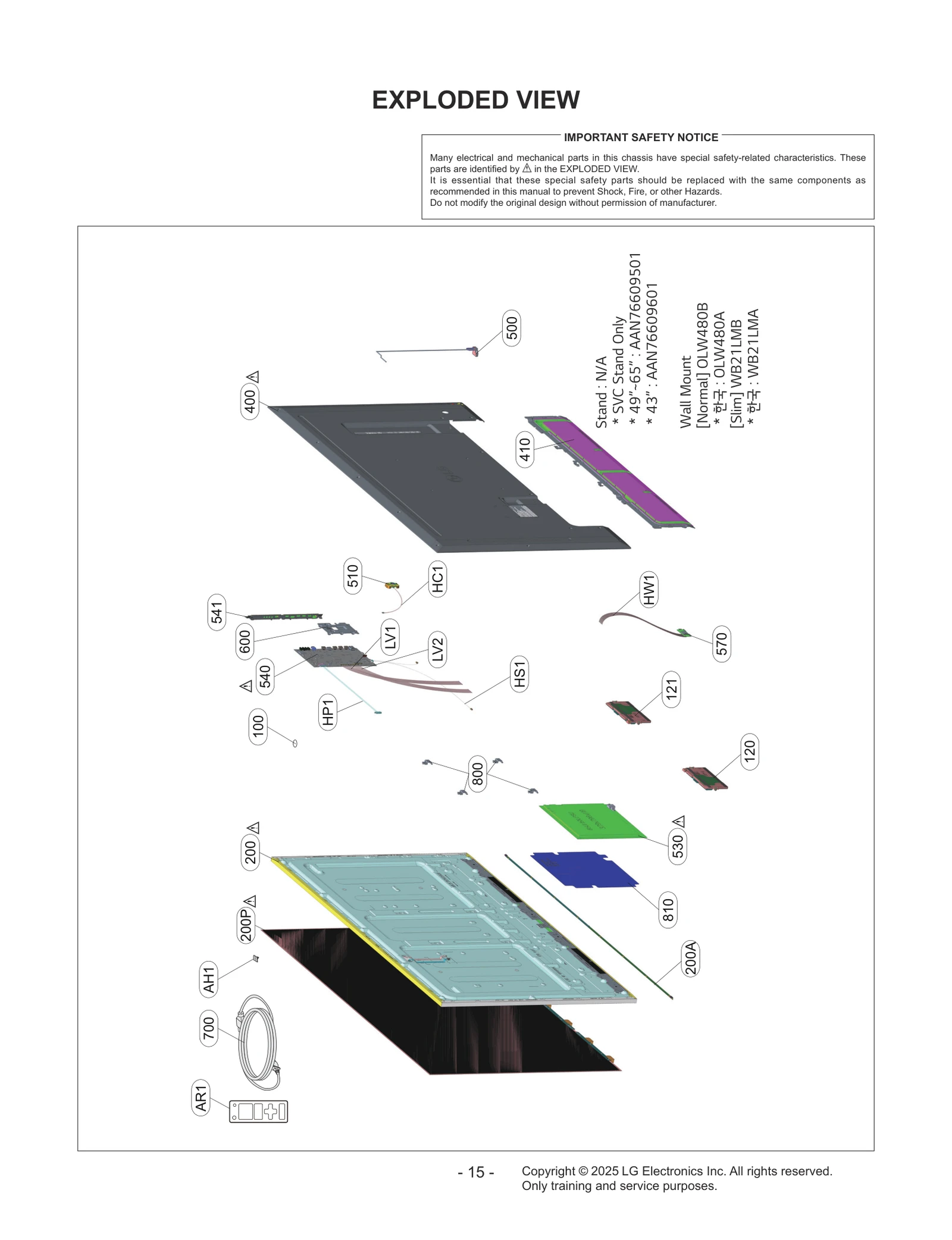

Diagram 0
Common parts from model LG 65UP5Q-E
100
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
100
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
121
Speaker Assembly LGE EAB65831302 Contact Us For Availability
200
LCD Module LGE EAJ65969206 Contact Us For Availability
200P
LCD,Panel-TFT LGE EAJ65865601 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30601453 Contact Us For Availability
410
Cover Assembly,Bottom LGE ACQ30601206 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR41760901 Contact Us For Availability
540
Main Board,BPR Total Assembly,SVC LGE EBU30330001 Contact Us For Availability
541
Bracket LGE MAZ67712306 Contact Us For Availability
600
Plate,Shield LGE MGJ67766601 Contact Us For Availability
AH1
Bracket LGE MAZ67715401 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB76039803 Contact Us For Availability
HC1
Harness,Single LGE EAD64145103 Contact Us For Availability
HP1
Harness,Single LGE EAD64586111 Contact Us For Availability
HS1
Harness,Multi LGE EAD63727370 Contact Us For Availability
× ![]()
