Model LG 65UK670H0UD – Common Parts & Diagrams

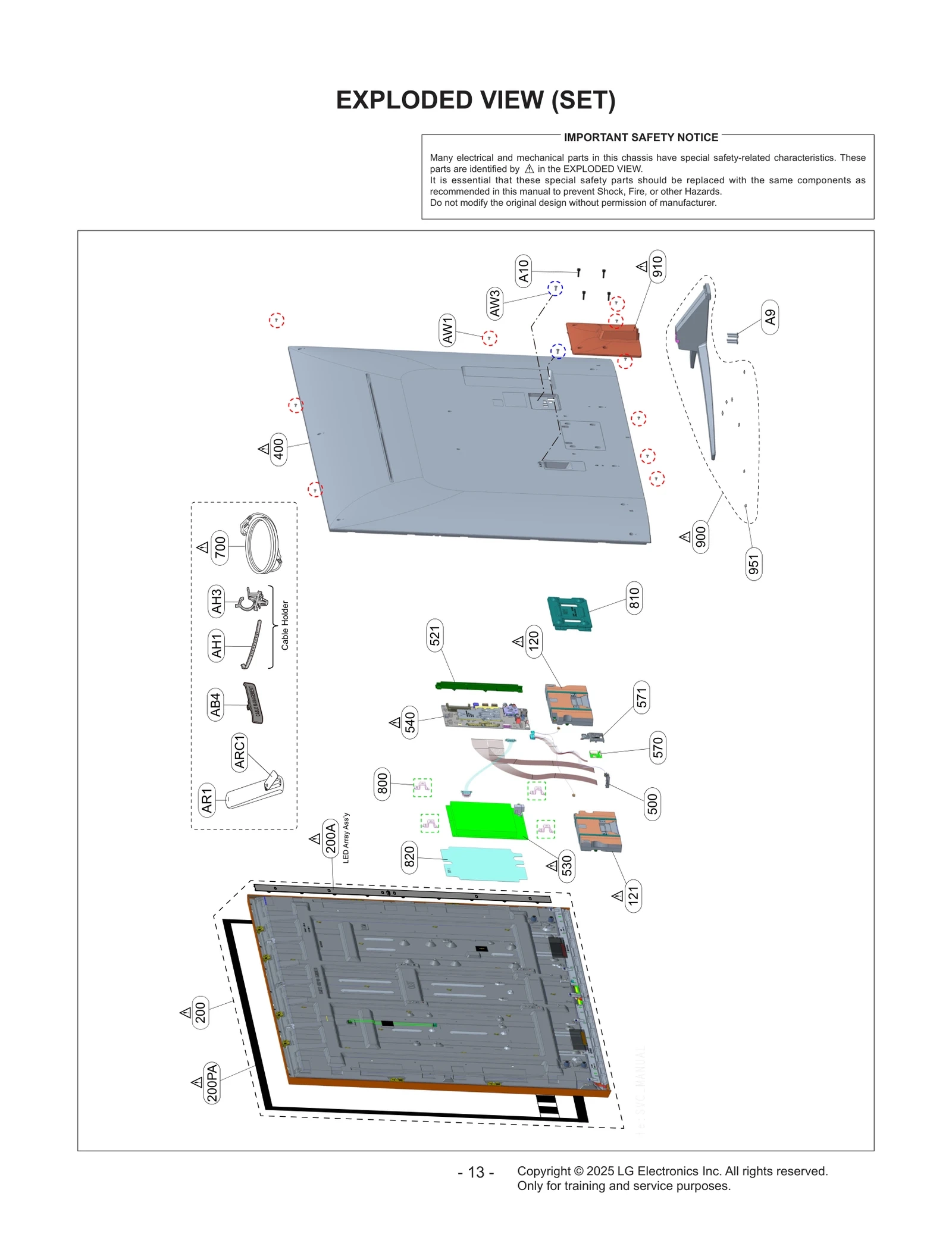

Diagram 0

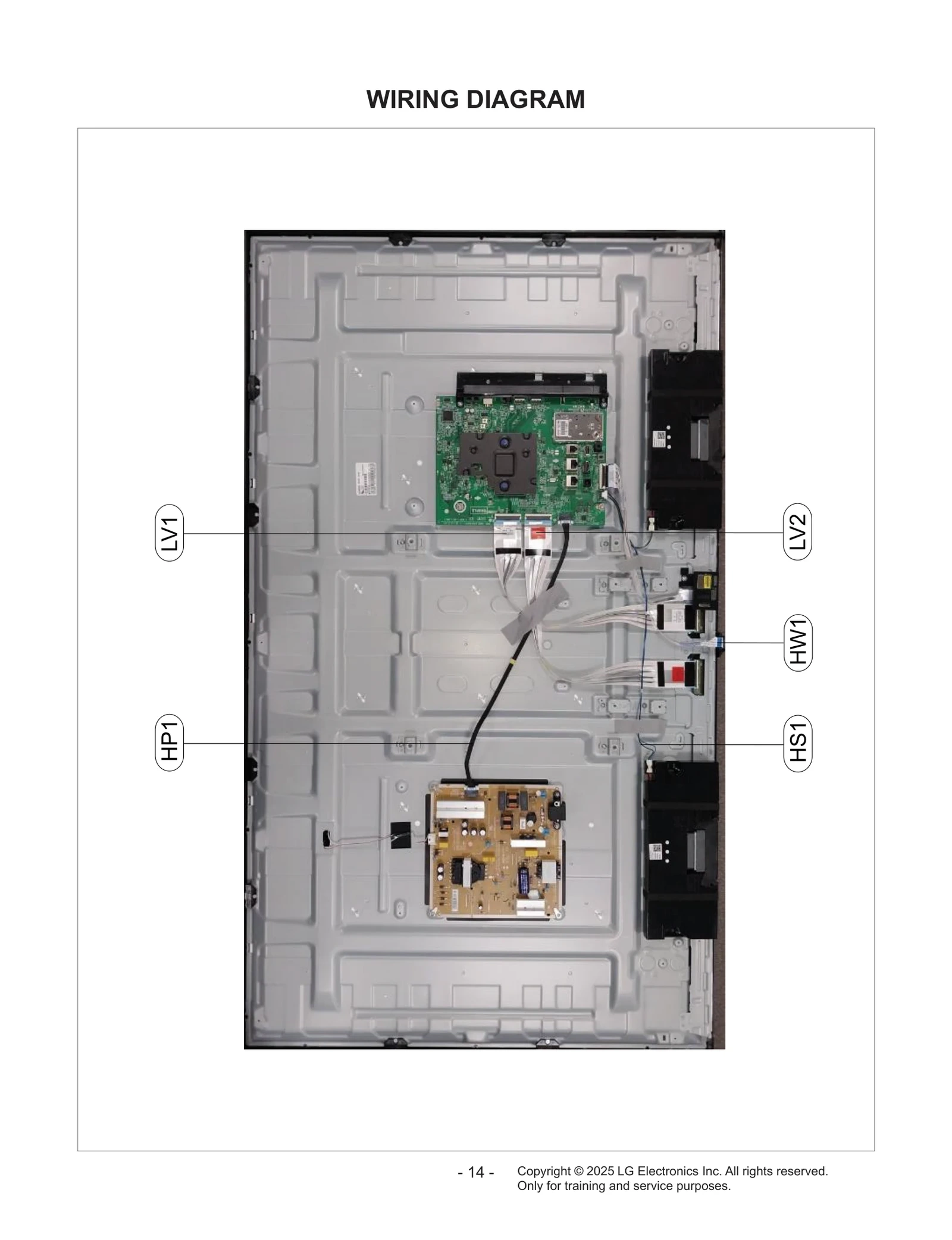

Diagram 1
Diagram 2
Common parts from model LG 65UK670H0UD
200
LCD,Module-TFT LGE EAJ65948903 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF30102413 Contact Us For Availability
200PA
LCD Panel Kit LGE EAJ65830903 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30659649 Contact Us For Availability
521
Bracket LGE MAZ67779525 Contact Us For Availability
521
Bracket LGE MAZ67779577 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU30333501 Contact Us For Availability
570
Module,Wifi Bluetooth Module LGE EAT65193302 Contact Us For Availability
571
Bracket LGE MAZ67664409 Contact Us For Availability
800
Supporter,VESA LGE MJH64334002 Contact Us For Availability
800
Supporter,VESA LGE MJH64334001 Contact Us For Availability
810
Bracket LGE MAZ67462802 Contact Us For Availability
820
Insulator LGE MEV67701605 Contact Us For Availability
900
Base Assembly LGE AAN76849072 Contact Us For Availability
900
Base Assembly LGE AAN76849074 Contact Us For Availability
910
Bracket,Stand LGE MAZ67455314 Contact Us For Availability
ARC1
Cover,Rear LGE MCK62976101 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
AW3
Screw,Taptite LGE FAB31639801 Contact Us For Availability
HP1
Harness,Single LGE EAD64586009 Contact Us For Availability
HS1
Harness,Multi LGE EAD63727351 Contact Us For Availability
LV1
Cable,FFC LGE EAD66038313 Contact Us For Availability
LV2
Cable,FFC LGE EAD66038314 Contact Us For Availability
× ![]()
