Model LG 65UH7F-B – Common Parts & Diagrams

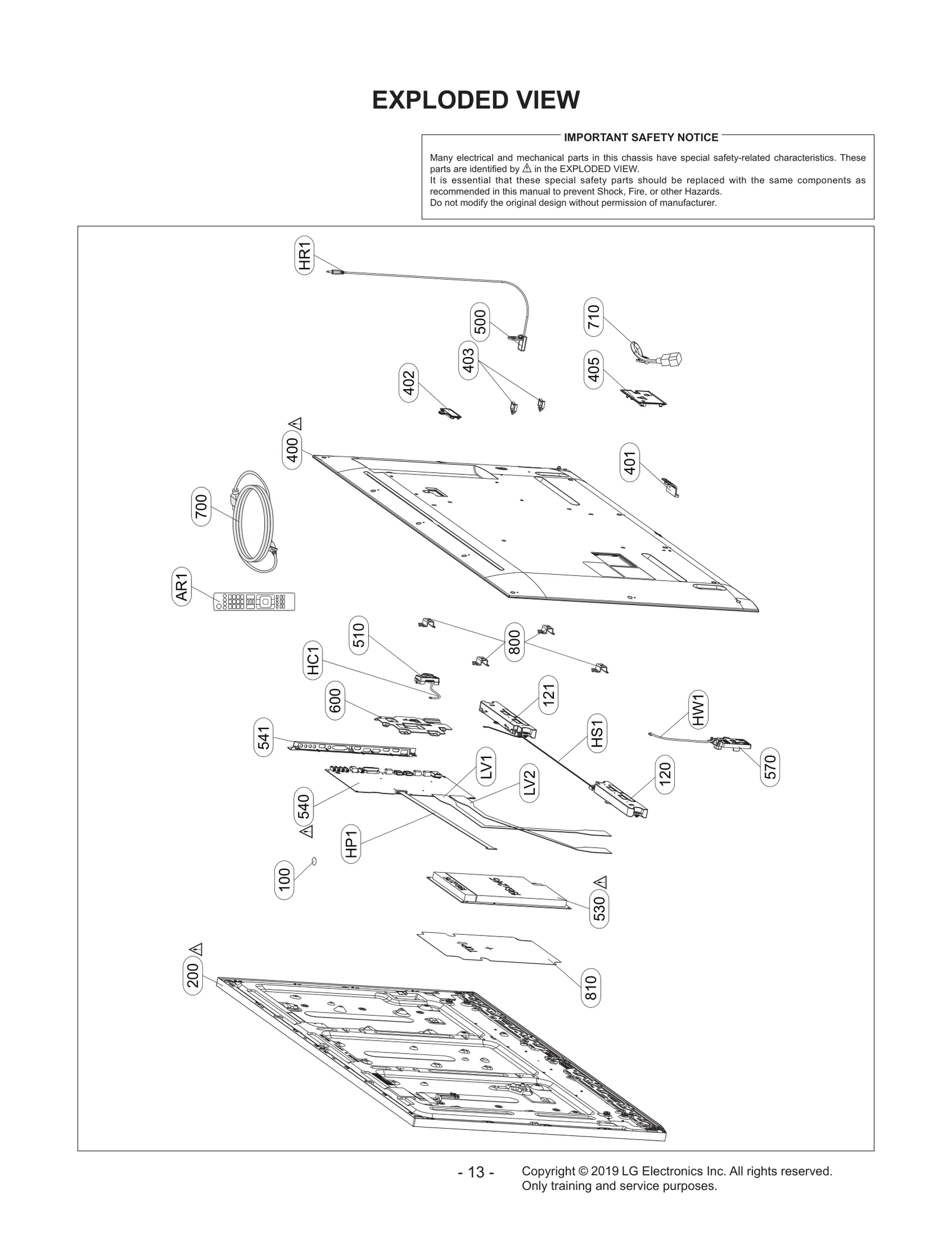

Diagram 0
Common parts from model LG 65UH7F-B
100
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
120
Speaker Assembly LGE EAB63628203 Contact Us For Availability
121
Speaker Assembly LGE EAB63628204 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65452201 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ91465702 Contact Us For Availability
401
Bracket LGE MAZ67107402 Contact Us For Availability
402
Cover LGE MCK71069901 Contact Us For Availability
403
Holder LGE 4930V00218C Contact Us For Availability
405
Cover LGE MCK71090402 Contact Us For Availability
500
Chassis Assembly LGE EBT63756604 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR89093001 Contact Us For Availability
540
Main Board,BPR Total Assembly LGE EBU65805201 Contact Us For Availability
541
Bracket LGE MAZ67087602 Contact Us For Availability
600
Heat Sink LGE MED64870902 Contact Us For Availability
800
Supporter,VESA LGE MJH64334001 Contact Us For Availability
810
Insulator LGE MEV67433401 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB75095363 Contact Us For Availability
HP1
Harness,Single LGE EAD64586106 Contact Us For Availability
HR1
Cable,Assembly LGE EAD63406601 Contact Us For Availability
HW1
Harness,Single LGE EAD64126102 Contact Us For Availability
LV1
Cable,FFC LGE EAD64666213 Contact Us For Availability
LV2
Cable,FFC LGE EAD64666214 Contact Us For Availability
× ![]()
