Model LG 65UF9500 – Common Parts & Diagrams

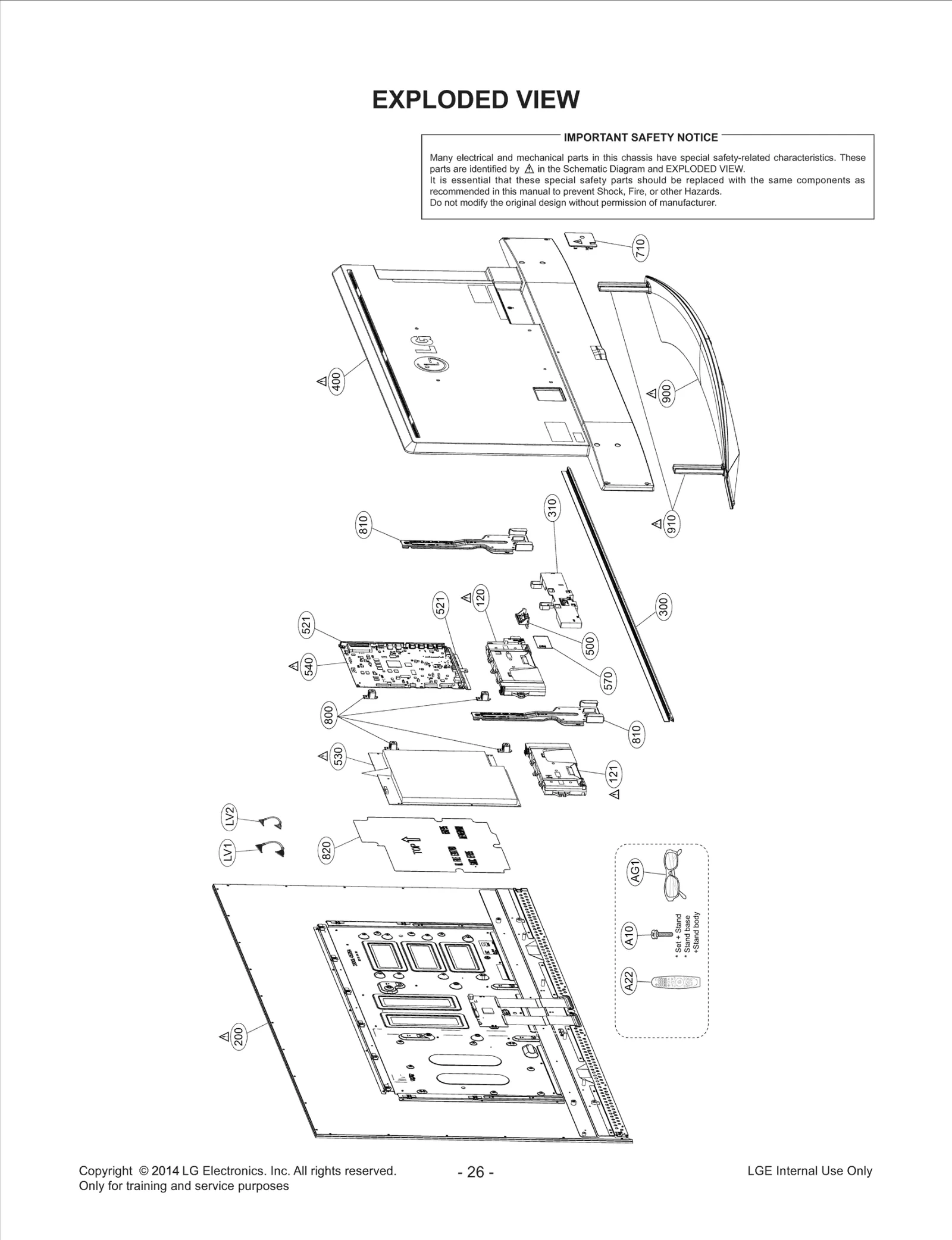

Diagram 0
Diagram 1
Common parts from model LG 65UF9500
200
LCD,Module-TFT LGE EAJ63089101 Contact Us For Availability
310
Bracket LGE MAZ64445303 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87677713 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR79943201 Contact Us For Availability
521
Bracket LGE MAZ64426508 Contact Us For Availability
530
Power Supply Assembly LGE EAY63709401 Contact Us For Availability
570
Module,WLAN LGE EAT62753401 Contact Us For Availability
700
Power Cord,Attach LGE EAD62394919 Contact Us For Availability
710
Bracket LGE MAZ64585202 Contact Us For Availability
810
Supporter LGE MJH63595602 Contact Us For Availability
820
Insulator LGE MEV65114101 Contact Us For Availability
900
Base Assembly LGE AAN75089302 Contact Us For Availability
A10
Screw Assembly, stand LGE FAB30016106 Contact Us For Availability
A22
Remocon kit,Package Assembly LGE AGF77840201 Contact Us For Availability
AG1
AG-F310---3D Glasses LGE EBX61668501 Contact Us For Availability
AM
Manual Assembly LGE AFN76832102 Contact Us For Availability
AM1
Manual,Owners LGE MFL68741502 Contact Us For Availability
AR103
Resistor,Array LGE EBC62582701 Contact Us For Availability
AR109
Resistor,Array LGE EBC62582702 Contact Us For Availability
AR3207
Resistor,Array LGE EBC62582707 Contact Us For Availability
AR8101
Resistor,Array LGE EBC32260501 Contact Us For Availability
AR8103
Resistor,Array LGE EBC32260401 Contact Us For Availability
AR13108
Resistor,Array LGE EBC32260601 Contact Us For Availability
B1
Box LGE MAY67050901 Contact Us For Availability
B1
Box LGE MAY66251012 Contact Us For Availability
C410
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C426
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C436
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C610
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C1904
Capacitor,Ceramic,Chip LGE EAE58746801 Contact Us For Availability
C1927
Capacitor,Ceramic,Chip LGE 0CC560BK41A Contact Us For Availability
C2214
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C2219
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C2235
Tantal Capacitor,Polymer LGE 0CZZB00084B Contact Us For Availability
C2243
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C2244
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C2247
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C2312
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C2314
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C2319
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C2328
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C2336
Capacitor,Ceramic,Chip LGE 0CK475DF40A Contact Us For Availability
C2338
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C2339
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C2340
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C2351
Capacitor,Ceramic,Chip LGE EAE58044701 Contact Us For Availability
C2352
Capacitor,Ceramic,Ch LGE EAE35171501 Contact Us For Availability
C2617
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C3001
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C3234
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C3236
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C3401
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C5206
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C5212
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C5900
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C5914
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5921
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C6103
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C6516
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C6703
Capacitor,Ceramic,Chip LGE EAE62928801 Contact Us For Availability
C8104
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C13112
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C13443
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C13444
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C13518
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
CA1
Harness,Multi LGE EAD63286707 Contact Us For Availability
CA3
Harness,Multi LGE EAD63305301 Contact Us For Availability
CA4
Harness,Multi LGE EAD63305601 Contact Us For Availability
CAB1
Cable,Assembly LGE EAD61273123 Contact Us For Availability
CAB2
Cable,Assembly LGE EAD61273133 Contact Us For Availability
CAB2
Cable,Assembly LGE EAD61077708 Contact Us For Availability
D1900
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D3000
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3210
Diode,Switching LGE EAH61714301 Contact Us For Availability
D3213
Diode,Rectifier LGE EAH61515701 Contact Us For Availability
D4400
Diode,TVS LGE EAH62135001 Contact Us For Availability
D4403
Diode,TVS LGE EAH62735601 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN63627001 Contact Us For Availability
IC102
IC,EEPROM LGE EAN62389502 Contact Us For Availability
IC600
IC,DDR3 SDRAM LGE EAN63053201 Contact Us For Availability
IC1901
IC,Serial Flash Memory LGE EAN62459501 Contact Us For Availability
IC2201
IC,DC,DC Converter LGE EAN62870701 Contact Us For Availability
IC2202
IC,DC,DC Converter LGE EAN62870401 Contact Us For Availability
IC2300
IC,DC,DC Converter LGE EAN62911501 Contact Us For Availability
IC2301
IC,LDO Voltage Regulator LGE EAN61387601 Contact Us For Availability
IC2302
IC,DC,DC Converter LGE EAN63646201 Contact Us For Availability
IC2303
IC,DC,DC Converter LGE EAN62870501 Contact Us For Availability
IC2307
IC,DC,DC Converter LGE EAN63646001 Contact Us For Availability
IC2500
Display SOC,Digital TV LGE EAN63010001 Contact Us For Availability
IC2800
IC,DDR3 SDRAM LGE EAN63511401 Contact Us For Availability
IC3202
IC,Tx/Rx LGE EAN63547901 Contact Us For Availability
IC3206
IC,Serial Flash Memory LGE EAN61009404 Contact Us For Availability
IC3208
IC,Level Translator LGE EAN63569401 Contact Us For Availability
IC4000
IC,Analog Switch LGE EAN63047601 Contact Us For Availability
IC4400
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC5200
IC,Ethernet LGE EAN62219201 Contact Us For Availability
IC5201
IC,Analog Switch LGE EAN62658501 Contact Us For Availability
IC5601
IC,Audio Amplifier LGE EAN62886102 Contact Us For Availability
IC6100
IC,Audio Amplifier LGE EAN62668301 Contact Us For Availability
IC8100
IC,MCP,eMMC LGE EAN63126301 Contact Us For Availability
IC13100
IC,LDO Voltage Regulator LGE EAN63492401 Contact Us For Availability
IC13402
IC,DC,DC Converter LGE EAN62870301 Contact Us For Availability
IC13403
IC,DC,DC Converter LGE EAN63530101 Contact Us For Availability
JK3203
Connector,HDMI LGE EAG63530102 Contact Us For Availability
JK3400
Jack,Phone LGE EAG61030017 Contact Us For Availability
JK3401
Jack,Fiber Optic LGE EAG37842004 Contact Us For Availability
JK3402
Jack,Phone LGE EAG61030016 Contact Us For Availability
JK4400
Connector,USB LGE EAG63374202 Contact Us For Availability
JK4402
Connector,USB LGE EAG62571102 Contact Us For Availability
JK5100
Jack,Modular LGE EAG62012408 Contact Us For Availability
JK6800
Jack,Phone LGE EAG61030015 Contact Us For Availability
L226
Filter,Bead LGE EAM54407902 Contact Us For Availability
L408
Inductor,Multilayer,Chip LGE EAP39314710 Contact Us For Availability
L2203
Inductor,Wire Wound,Chip LGE EAP62506412 Contact Us For Availability
L2206
Inductor,Wire Wound,Chip LGE EAP63025901 Contact Us For Availability
L2208
Inductor,Wire Wound,Chip LGE EAP62506413 Contact Us For Availability
L2302
Inductor,Wire Wound,Chip LGE EAP63066501 Contact Us For Availability
L2304
Inductor,Wire Wound,Chip LGE EAP62326301 Contact Us For Availability
L2307
Inductor,Wire Wound,Chip LGE EAP62506410 Contact Us For Availability
L2604
Filter,Bead LGE EAM38769505 Contact Us For Availability
L2608
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L5623
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
LD1900
LED LGE 0DL233309AC Contact Us For Availability
M6
Connector,BtoB LGE EAG64250901 Contact Us For Availability
M13526
Gasket LGE MDS62110209 Contact Us For Availability
P2601
Connector,Wafer LGE 6630VK19605 Contact Us For Availability
P4003
Connector,Wafer LGE EAG63590901 Contact Us For Availability
P5600
Conector,Wafer LGE 6602T25009L Contact Us For Availability
P13001
Connector,FFC/FPC/PIC LGE EAG64329802 Contact Us For Availability
Q200
FET LGE EBK61913702 Contact Us For Availability
Q1901
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q2301
FET LGE EBK62911501 Contact Us For Availability
Q2602
FET LGE EBK61313102 Contact Us For Availability
Q3200
FET LGE EBK60752601 Contact Us For Availability
Q13004
FET LGE EBK62072501 Contact Us For Availability
R157
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R204
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R410
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R417
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R421
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R455
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R456
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R1904
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R1925
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R1939
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1943
Resistor,Chip LGE ERHZ0000242 Contact Us For Availability
R1958
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R2210
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R2211
Resistor,Chip LGE EBC34656201 Contact Us For Availability
R2212
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R2217
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R2219
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R2222
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R2228
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R2235
Resistor,Chip LGE EBC35293401 Contact Us For Availability
R2236
Resistor,Chip LGE 0RJ2492C478 Contact Us For Availability
R2300
Resistor,Chip LGE 0RJ3000C478 Contact Us For Availability
R2303
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R2308
Resistor,Chip LGE 0RJ1803C478 Contact Us For Availability
R2314
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R2321
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2328
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R2329
Resistor,Chip LGE 0RJ0221D677 Contact Us For Availability
R2330
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R2334
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R2335
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R2339
Resistor,Chip LGE EBC63395501 Contact Us For Availability
R2345
Resistor,Chip LGE 0RJ3601C478 Contact Us For Availability
R2607
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R3009
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R3034
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R3209
Resistor,Chip LGE EBC30843201 Contact Us For Availability
R3213
Resistor,Chip LGE ERHZ0000461 Contact Us For Availability
R3239
Resistor,Chip LGE 0RJ1601C478 Contact Us For Availability
R3242
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R3245
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R3256
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R3277
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R3406
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R4402
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R5208
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R5606
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R5609
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R6505
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R13134
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R13403
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R13407
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R13408
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R13410
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R13421
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R13423
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
SW3000
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TU6703
Tuner,Analog/Digital LGE EBL61540002 Contact Us For Availability
VA3215
Varistor LGE EAF61530301 Contact Us For Availability
VA3405
Varistor LGE EAF61530102 Contact Us For Availability
VA5102
Varistor LGE EAF61530201 Contact Us For Availability
X400
Crystal LGE EAW61645502 Contact Us For Availability
X3000
Crystal LGE EAW30067102 Contact Us For Availability
X5200
Crystal LGE EAW61903501 Contact Us For Availability
ZD13400
Diode,TVS LGE EAH62134701 Contact Us For Availability
× ![]()
Login and Registration Form
