Model LG 65SM5C-B – Common Parts & Diagrams

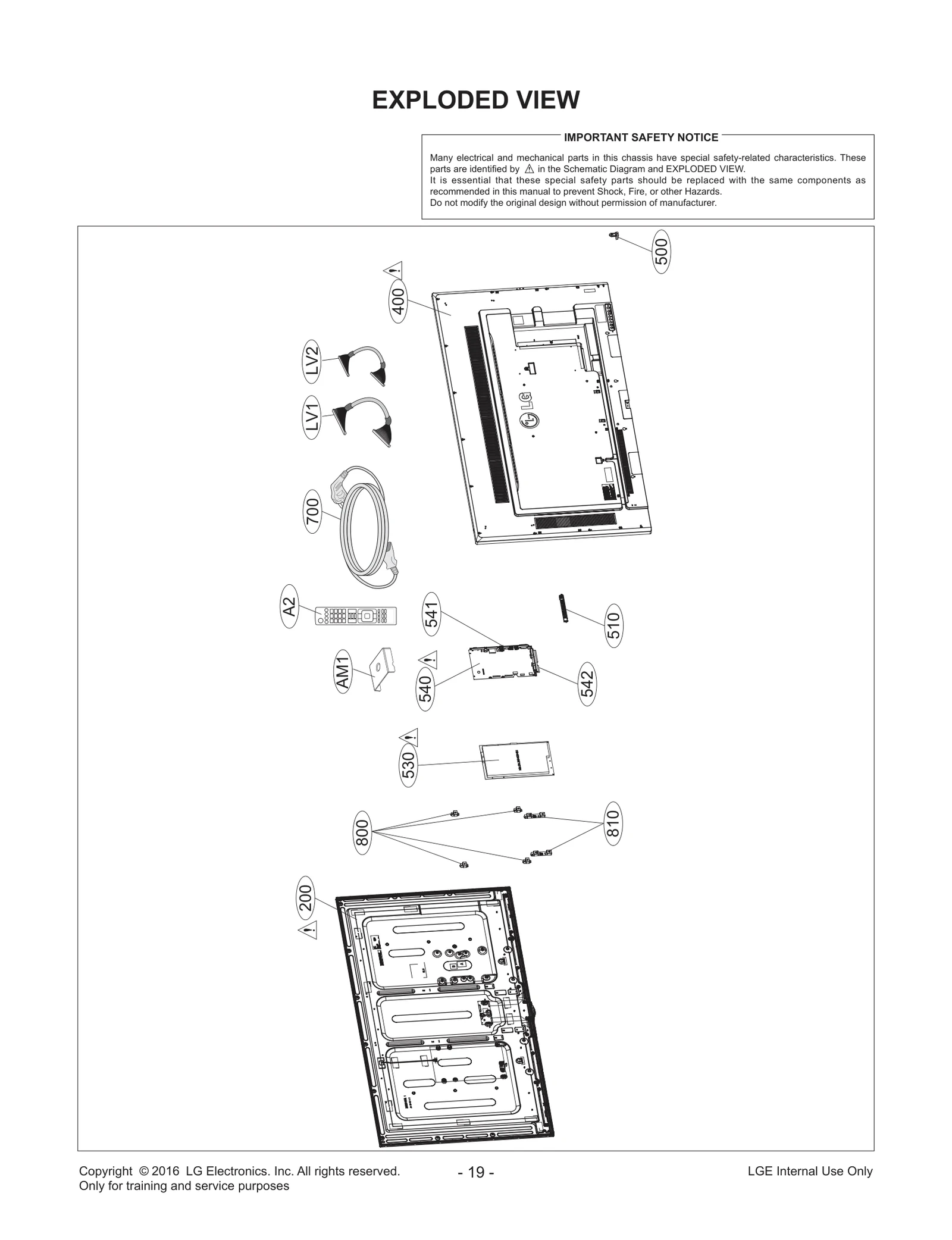

Diagram 0
Diagram 1
Common parts from model LG 65SM5C-B
200
LCD,Module-TFT LGE EAJ63329501 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87861254 Contact Us For Availability
500
Bracket LGE MAZ64684702 Contact Us For Availability
510
DMS Chassis Assembly LGE EBT63616402 Contact Us For Availability
530
Power Supply Assembly LGE EAY63689207 Contact Us For Availability
540
Chassis Assembly LGE EBT64263003 Contact Us For Availability
541
Cover LGE MCK68646003 Contact Us For Availability
542
Cover LGE MCK68591022 Contact Us For Availability
800
Supporter LGE MJH63133501 Contact Us For Availability
810
Supporter LGE MJH63794102 Contact Us For Availability
AM1
Cover LGE MCK68607502 Contact Us For Availability
C731
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C1002
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C3216
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C5304
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C9020
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C9033
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
L6201
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD63788004 Contact Us For Availability
NA
S/W Package LGE SAB36723601 Contact Us For Availability
NA1
S/W Package LGE SAB36723501 Contact Us For Availability
NA2
S/W Package LGE SAB36744801 Contact Us For Availability
NA3
S/W Package LGE SAB36744601 Contact Us For Availability
P3301
Connector,DSUB LGE 6630TGA005S Contact Us For Availability
Q1001
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q1002
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R8841
Resistor,Chip LGE 0RH2204C622 Contact Us For Availability
SW3201
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
× ![]()
