  • LG 65QNED9MAUA Parts List

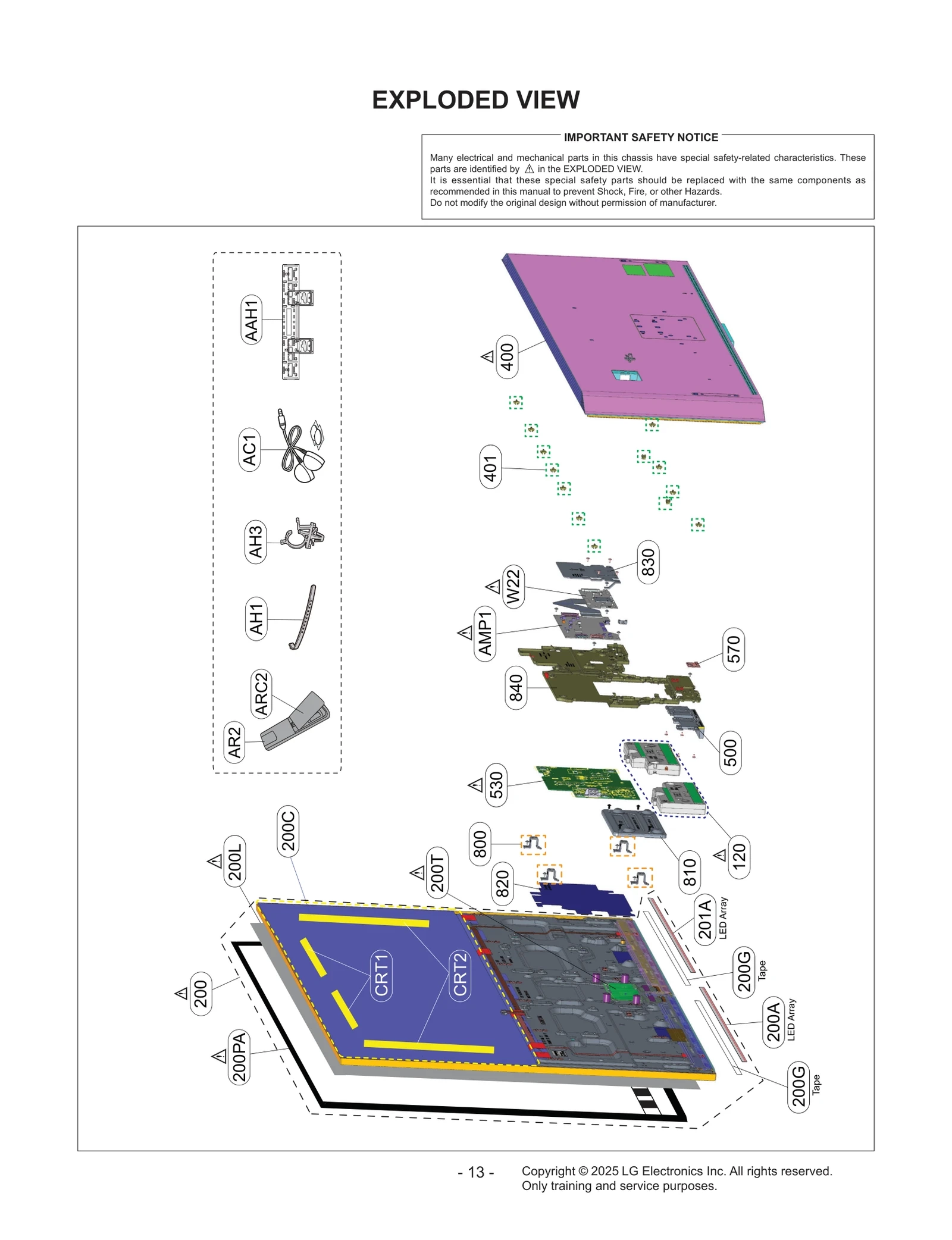

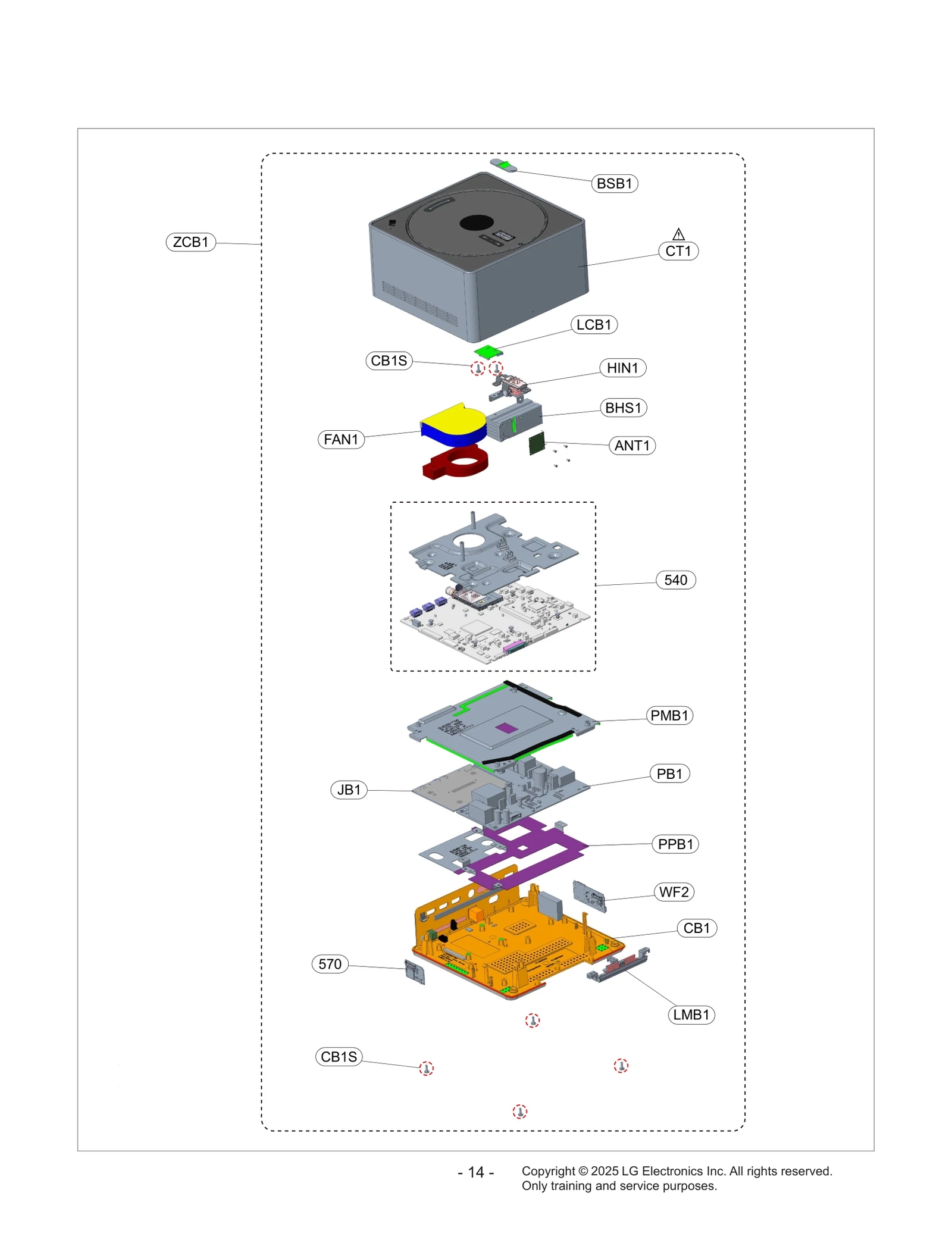

Model LG 65QNED9MAUA – Common Parts & Diagrams

120
Speaker Assembly
Speaker Assembly LGE EAB65837301 Contact Us For Availability
View on Model
200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ30036101 Contact Us For Availability
View on Model
200A
LED Assembly
LED Assembly LGE EAV65090701 Contact Us For Availability
View on Model
200C
Cover,Rear
Cover,Rear LGE MCK71964701 Contact Us For Availability
View on Model
200G
Gasket
Gasket LGE MDS67648911 Contact Us For Availability
View on Model
200PA
LCD Panel Kit
LCD Panel Kit LGE EAJ30040701 Contact Us For Availability
View on Model
200T
Time Control
Time Control LGE EAT65233201 Contact Us For Availability
View on Model
201A
LED Assembly
LED Assembly LGE EAV65090801 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ30739107 Contact Us For Availability
View on Model
500
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR45056801 Contact Us For Availability
View on Model
530
Power Supply Assembly
Power Supply Assembly LGE EAY65920821 Contact Us For Availability
View on Model
570
Module,Bluetooth
Module,Bluetooth LGE EAT65179503 Contact Us For Availability
View on Model
810
Supporter
Supporter LGE MJH66472702 Contact Us For Availability
View on Model
820
Insulator
Insulator LGE MEV67817701 Contact Us For Availability
View on Model
830
Plate,Shield
Plate,Shield LGE MGJ67761402 Contact Us For Availability
View on Model
830
Plate,Shield
Plate,Shield LGE MGJ67761401 Contact Us For Availability
View on Model
840
Bracket
Bracket LGE MAZ67862902 Contact Us For Availability
View on Model
AAH1
Hanger
Hanger LGE MEC30170514 Contact Us For Availability
View on Model
AMP1
sub PCBA,BPR Total Assembly,SVC
sub PCBA,BPR Total Assembly,SVC LGE EBU30211001 Contact Us For Availability
View on Model
ANT1
Antenna Assembly
Antenna Assembly LGE EAA65977801 Contact Us For Availability
View on Model
AR2
Remote Controller Assembly
Remote Controller Assembly LGE AKB76046602 Contact Us For Availability
View on Model
ARC2
Part
Part LGE EBZ30385903 Contact Us For Availability
View on Model
BHS1
Heat Sink
Heat Sink LGE MED65480002 Contact Us For Availability
View on Model
BSB1
Bracket
Bracket LGE MAZ67705304 Contact Us For Availability
View on Model
CB1
Cover Assembly
Cover Assembly LGE ACQ30371951 Contact Us For Availability
View on Model
CB1S
Screw,Taptite
Screw,Taptite LGE FAB32938601 Contact Us For Availability
View on Model
CRT1
Gasket
Gasket LGE MDS67648739 Contact Us For Availability
View on Model
CRT2
Gasket
Gasket LGE MDS67648736 Contact Us For Availability
View on Model
CT1
Cover Assembly
Cover Assembly LGE ACQ30671610 Contact Us For Availability
View on Model
FAN1
Fan Module
Fan Module LGE EAL61800814 Contact Us For Availability
View on Model
HAP1
Harness,Multi
Harness,Multi LGE EAD66010603 Contact Us For Availability
View on Model
HBA1
Harness,Single
Harness,Single LGE EAD66009502 Contact Us For Availability
View on Model
HBLP1
Harness,Multi
Harness,Multi LGE EAD66095901 Contact Us For Availability
View on Model
HL1
Harness,Single
Harness,Single LGE EAD65851106 Contact Us For Availability
View on Model
HRF1
Cable,Assembly
Cable,Assembly LGE EAD65924706 Contact Us For Availability
View on Model
HRF2
Cable,Assembly
Cable,Assembly LGE EAD65924707 Contact Us For Availability
View on Model
HW1
Harness,Single
Harness,Single LGE EAD65286008 Contact Us For Availability
View on Model
JB1
sub PCBA,BPR Total Assembly,SVC
sub PCBA,BPR Total Assembly,SVC LGE EBU67871801 Contact Us For Availability
View on Model
LCB1
PCB Assembly,IR Key
PCB Assembly,IR Key LGE EBR35208806 Contact Us For Availability
View on Model
LMB1
PCB Assembly,IR Key
PCB Assembly,IR Key LGE EBR35208809 Contact Us For Availability
View on Model
PB1
Power Supply Assembly
Power Supply Assembly LGE EAY65895005 Contact Us For Availability
View on Model
PMB1
Plate Assembly
Plate Assembly LGE AGU30019205 Contact Us For Availability
View on Model
PPB1
Plate Assembly
Plate Assembly LGE AGU30019103 Contact Us For Availability
View on Model
TP3
Tape,Polyester
Tape,Polyester LGE RAB33632877 Contact Us For Availability
View on Model
W22
sub PCBA,BPR Total Assembly,SVC
sub PCBA,BPR Total Assembly,SVC LGE EBU30210903 Contact Us For Availability
View on Model
ZCB1
Chassis Assembly
Chassis Assembly LGE EBT30114001 Contact Us For Availability
View on Model
