Model LG 65NANO95UNA – Common Parts & Diagrams

Common parts from model LG 65NANO95UNA

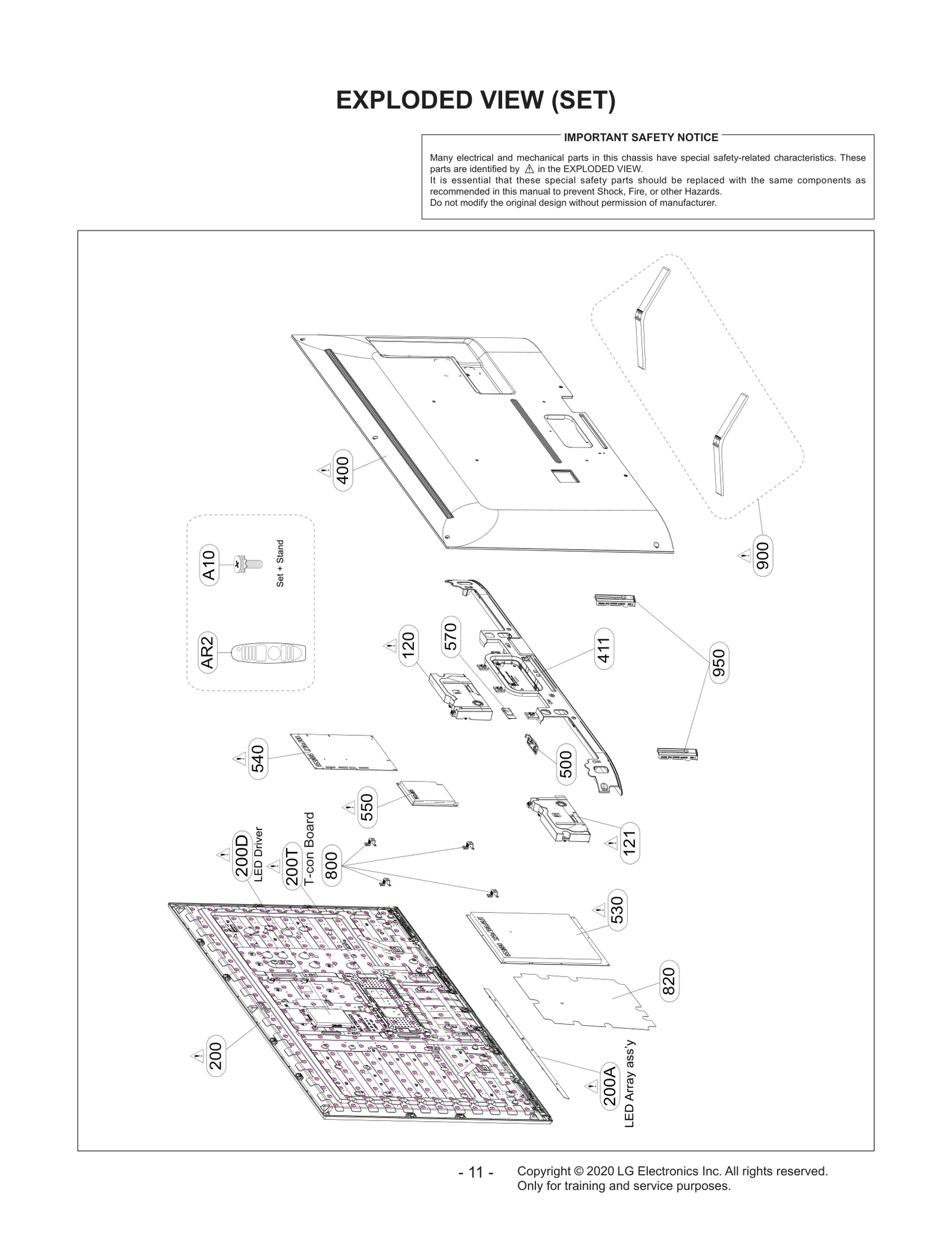

Diagram 0

Print

• This Diagram
• All Diagrams

200

LCD,Module-TFT LGE EAJ65455401 Contact Us For Availability

View on Model

200A

Package Assembly,LED Array LGE AGF30038801 Contact Us For Availability

View on Model

200D

PCB Assembly,LED Driver LGE EBR89830201 Contact Us For Availability

View on Model

200T

Time Control LGE EAT64880101 Contact Us For Availability

View on Model

400

Cover Assembly,Rear LGE ACQ91632113 Contact Us For Availability

View on Model

411

Cover Assembly LGE ACQ91613211 Contact Us For Availability

View on Model

500

PCB ASSEMBLY,IR KEY Backorder LGE EBR89471801 View Details $33.10

View on Model

530

Power Supply Assembly Backorder LGE EAY65729511 View Details $261.38

View on Model

540

Mainboard,BPR Total Assembly,SVC LGE EBU65837010 Contact Us For Availability

View on Model

550

sub PCBA,BPR Total Assembly,SVC LGE EBU66076001 Contact Us For Availability

View on Model

570

EAT64454801 LG WiFi Bluetooth Module Backorder LGE EAT64454801 View Details $54.09

View on Model

570

EAT64454802 LG Wi-Fi Bluetooth Module Backorder LGE EAT64454802 View Details $54.09

View on Model

700

EAD64026802 LG Power Cord Backorder LGE EAD64026802 View Details $16.34

View on Model

800

Supporter,VESA LGE MJH64333102 Contact Us For Availability

View on Model

820

Insulator LGE MEV67511901 Contact Us For Availability

View on Model

900

Base Assembly Backorder LGE AAN30000404 View Details $92.15

View on Model

950

Supporter LGE MJH66075504 Contact Us For Availability

View on Model

A10

FAB30016131 LG Screw Assembly Backorder LGE FAB30016131 View Details $2.09

View on Model

AR2

AGF30028401 LG Television Remote Control Backorder LGE AGF30028401 View Details $54.09

View on Model

HD1

Harness,Single Backorder LGE EAD63026117 View Details $7.81

View on Model

HF1

Harness,Single LGE EAD63647313 Contact Us For Availability

View on Model

HF2

Harness,Single LGE EAD63965906 Contact Us For Availability

View on Model

HF3

Cable,FFC LGE EAD63285741 Contact Us For Availability

View on Model

HP1

EAD63727115 LG Harness,Single Backorder LGE EAD63727115 View Details $21.45

View on Model

HS1

Harness,Multi Backorder LGE EAD63727428 View Details $7.81

View on Model

HT1

Harness,Single LGE EAD63725105 Contact Us For Availability

View on Model

HW1

Harness,Multi LGE EAD65605103 Contact Us For Availability

View on Model

LV1

Cable,FFC LGE EAD63285742 Contact Us For Availability

View on Model

LV2

Cable,FFC LGE EAD63285743 Contact Us For Availability

View on Model

×
