Model LG 65LY340C – Common Parts & Diagrams

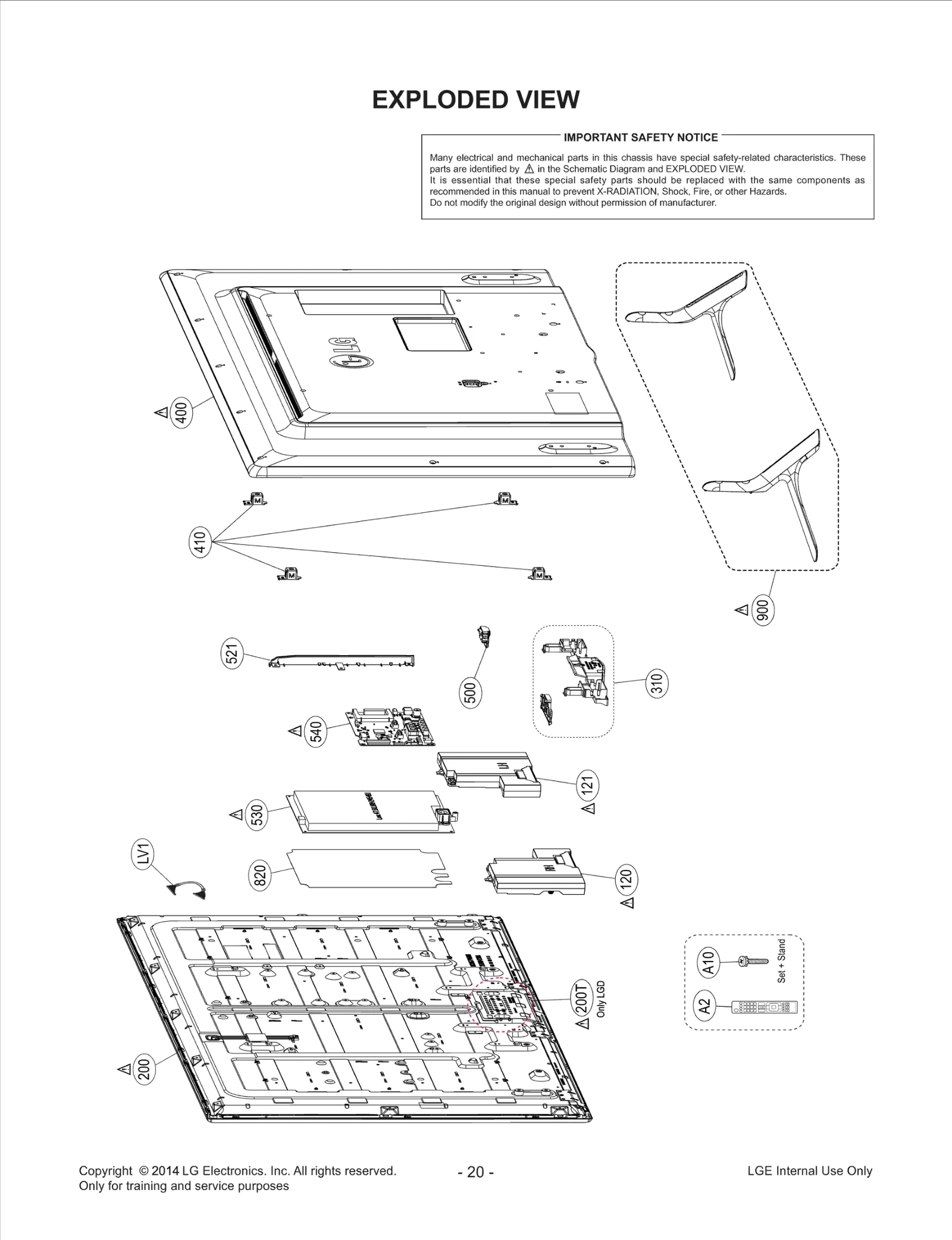

Diagram 0
Diagram 1
Common parts from model LG 65LY340C
121
Speaker Assembly LGE EAB62972101 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62549101 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86822820 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR77970401 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR78480601 Contact Us For Availability
521
Bracket Assembly LGE ABA74669835 Contact Us For Availability
530
Power Supply Assembly LGE EAY63190301 Contact Us For Availability
540
Chassis Assembly LGE EBT63317202 Contact Us For Availability
820
Insulator LGE MEV64691601 Contact Us For Availability
900
Base Assembly LGE AAN74649908 Contact Us For Availability
A2
Remocon kit,Package Assembly LGE AGF76631012 Contact Us For Availability
AM
Manual Assembly LGE AFN76212062 Contact Us For Availability
AM1
Manual,Owners LGE MFL68080362 Contact Us For Availability
AR102
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
B1
Box LGE MAY66157803 Contact Us For Availability
C203
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C211
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C227
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C234
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C236
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C246
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C248
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C270
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C404
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C411
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C416
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C419
Capacitor,Ceramic,Chip LGE 0CK393CK56A Contact Us For Availability
C423
Capacitor,Ceramic,Chip LGE 0CC271BK4AA Contact Us For Availability
C427
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C432
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C433
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C434
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C700
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C706
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C911
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C917
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C919
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C924
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C1002
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1602
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C1615
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5613
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C5615
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C5616
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C5629
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C5630
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C5634
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C6147
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C6310
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C6320
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
CA1
Harness,Single LGE EAD62526502 Contact Us For Availability
CA3
Harness,Single LGE EAD61646293 Contact Us For Availability
D400
Diode,Schottky LGE EAH40478101 Contact Us For Availability
D707
Diode,Switching LGE EAH60666101 Contact Us For Availability
D802
Diode,Switching LGE EAH61714301 Contact Us For Availability
D804
Diode,TVS LGE EAH61332601 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62887201 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN35669103 Contact Us For Availability
IC400
IC,DC,DC Converter LGE EAN62911301 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN62911401 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC901
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC1300
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC1300
IC,Serial Flash Memory LGE EAN55718402 Contact Us For Availability
IC5600
IC,Audio Amplifier LGE EAN62494901 Contact Us For Availability
IC6302
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC6303
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
JK700
Connector,USB LGE EAG62571101 Contact Us For Availability
JK705
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK706
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1001
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1702
Jack,RCA LGE EAG60968213 Contact Us For Availability
L401
Filter,Bead LGE EAM62091201 Contact Us For Availability
L402
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L405
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L701
Filter,Bead LGE EAM54407902 Contact Us For Availability
L1600
Filter,Bead LGE EAM38769505 Contact Us For Availability
L5603
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L6102
Filter,Bead LGE EAM32500903 Contact Us For Availability
L6303
Inductor,Wire Wound,Chip LGE EAP62326501 Contact Us For Availability
LV1
Cable,FFC LGE EAD62572201 Contact Us For Availability
LV2
Cable,FFC LGE EAD62572301 Contact Us For Availability
P401
Connector,Wafer LGE EAG63590901 Contact Us For Availability
P5600
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P6401
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P6402
Connector,Wafer LGE 6630V93270K Contact Us For Availability
Q401
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q405
FET LGE EBK61913601 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R105
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R109
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R136
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R232
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R239
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R254
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R255
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R422
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R425
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R427
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R428
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R436
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R437
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R439
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R450
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R466
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R802
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R813
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R817
Resistor,Chip LGE ERHZ0000461 Contact Us For Availability
R935
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1209
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1606
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1704
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1705
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1707
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R5607
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R5608
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R5610
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R6152
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R6302
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R6304
Resistor,Chip LGE ERHZ0000242 Contact Us For Availability
R6307
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R6308
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R6314
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R6315
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
VA704
Varistor LGE EAF61530301 Contact Us For Availability
VA1701
Varistor LGE EAF61530101 Contact Us For Availability
ZD401
Diode,TVS LGE EAH62134701 Contact Us For Availability
× ![]()
