Model LG 65LA9700 – Common Parts & Diagrams

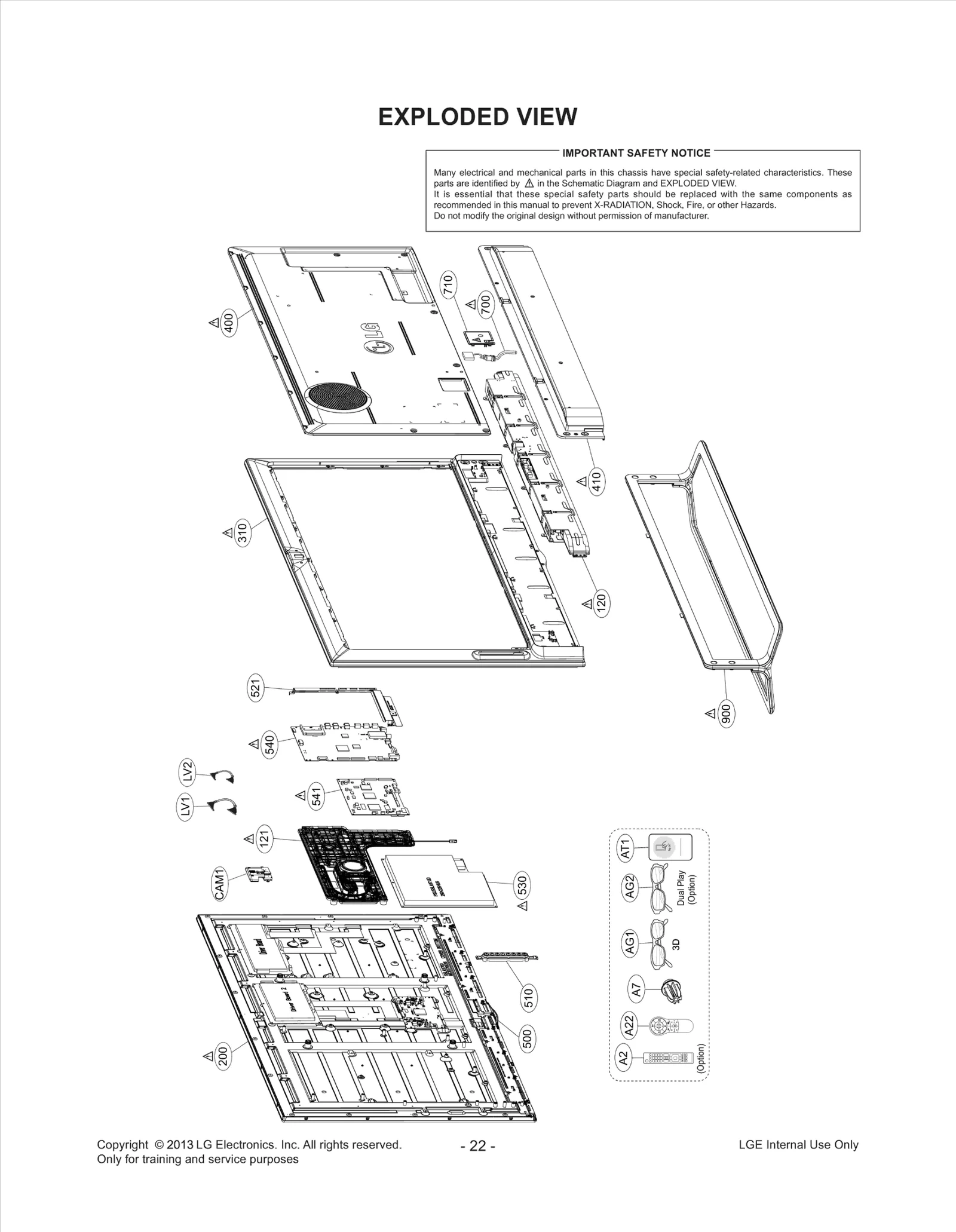

Diagram 0
Diagram 1
Common parts from model LG 65LA9700
120
Bracket Assembly LGE ABA74570101 Contact Us For Availability
121
Speaker Assembly LGE EAB62910401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62452101 Contact Us For Availability
400
Cover Assembly LGE ACQ86585014 Contact Us For Availability
410
Cover Assembly,Rear LGE ACQ86591101 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR77493301 Contact Us For Availability
530
Power Supply Assembly LGE EAY63069101 Contact Us For Availability
540
BPR Total Assembly LGE EBU62321904 Contact Us For Availability
541
Chassis Assembly LGE EBT62664701 Contact Us For Availability
710
Bracket LGE MAZ63412603 Contact Us For Availability
900
Base Assembly LGE AAN74411201 Contact Us For Availability
A7
Bracket LGE MAZ63718302 Contact Us For Availability
A22
Remote Controller Assembly LGE AKB73757502 Contact Us For Availability
AG1
Accessory,3D Glasses LGE EBX61668503 Contact Us For Availability
AT1
Accessory,Wireless LGE EBX61849401 Contact Us For Availability
C415
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1217
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1402
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1405
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1408
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C1414
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C1431
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C1433
Capacitor,Ceramic,Chip LGE 0CC271BK4AA Contact Us For Availability
C1462
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C1514
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C2111
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C2313
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C2314
Capacitor,Ceramic,Chip LGE 0CK682CK51A Contact Us For Availability
C3001
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C4213
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C5824
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C5831
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
CAM1
Accessory,Camera VCS LGE EBX61809201 Contact Us For Availability
D1900
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
IC200
Display SOC,Digital TV LGE EAN62789101 Contact Us For Availability
IC400
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
IC700
S/W Package LGE SAB35225901 Contact Us For Availability
IC800
S/W Package LGE SAB35225902 Contact Us For Availability
IC1100
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC1401
IC,DC,DC Converter LGE EAN62788801 Contact Us For Availability
IC1901
S/W Package LGE SAB35225802 Contact Us For Availability
IC2000
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC2301
IC,DC,DC Converter LGE EAN62653301 Contact Us For Availability
IC2500
Display SOC,Digital TV LGE EAN62789201 Contact Us For Availability
IC3001
IC,LDO Voltage Regulator LGE EAN61387601 Contact Us For Availability
L1403
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L1404
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L2204
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Harness,Single LGE EAD61987207 Contact Us For Availability
LV2
Harness,Single LGE EAD62107414 Contact Us For Availability
P100
Connector,Wafer LGE EAG61091502 Contact Us For Availability
P104
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P105
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P200
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P201
Connector,Wafer LGE 6630V93270K Contact Us For Availability
P1400
Connector,Wafer LGE 6630VK19610 Contact Us For Availability
P1401
Connector,Wafer LGE 6630VK19605 Contact Us For Availability
Q200
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q201
FET LGE EBK36722001 Contact Us For Availability
Q1400
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q1401
FET LGE EBK61313101 Contact Us For Availability
Q1404
FET LGE EBK60752601 Contact Us For Availability
R142
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R225
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R351
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R355
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R357
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R642
Resistor,Chip LGE 0RH2204C622 Contact Us For Availability
R929
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1103
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R1400
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R1403
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R1404
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R1405
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R1406
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R1407
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R1409
Resistor,Chip LGE 0RJ1301D477 Contact Us For Availability
R1430
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1433
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R1504
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R1509
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1711
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1751
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1902
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1904
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R1917
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1925
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R2305
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R2309
Resistor,Chip LGE ERHZ0000242 Contact Us For Availability
R2310
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R3000
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R3009
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R3011
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
SW3000
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X502
Crystal LGE EAW58812603 Contact Us For Availability
X1900
Crystal LGE EAW61645502 Contact Us For Availability
× ![]()
