Model Whirlpool 6551WRA ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY

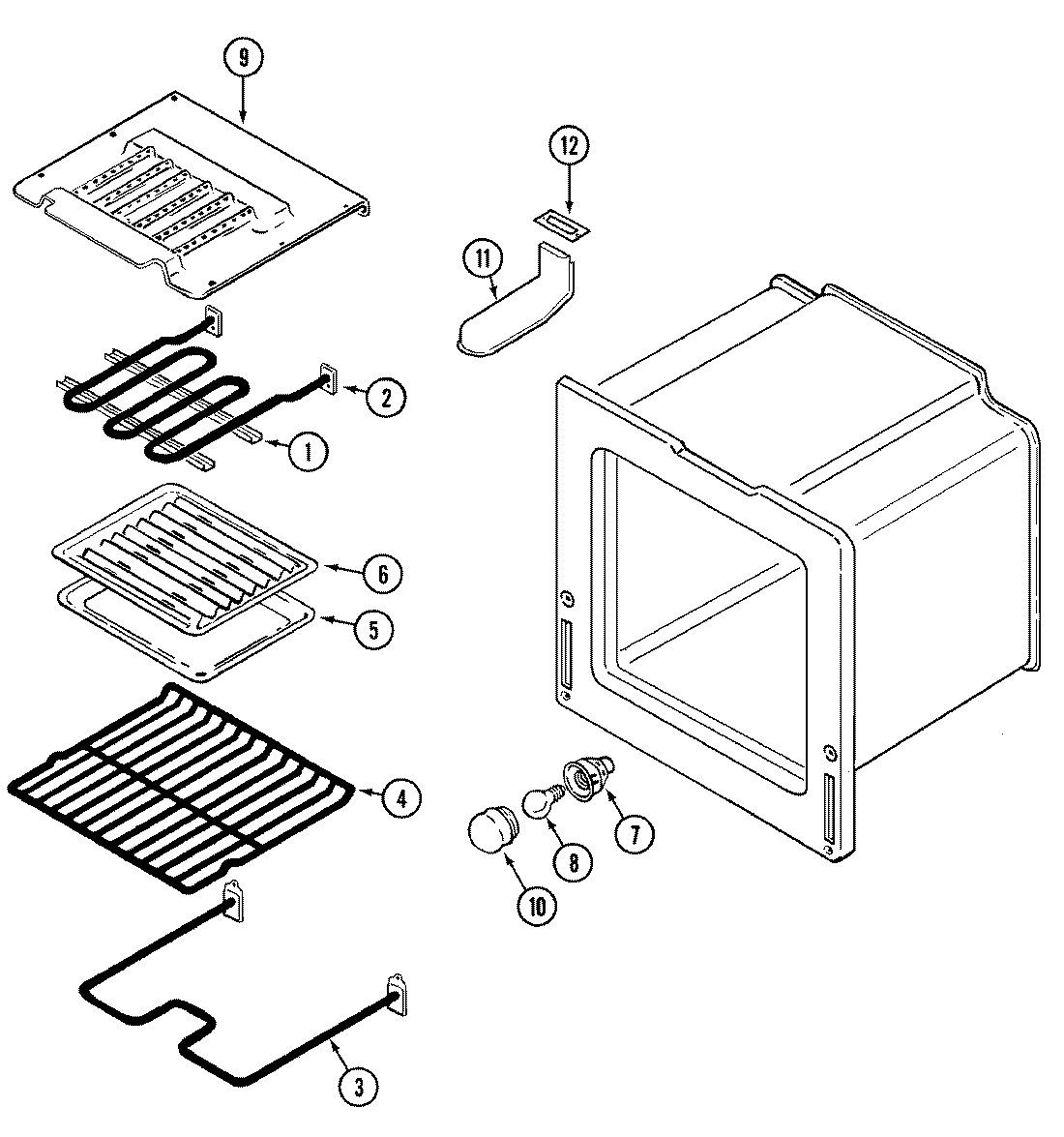

03 - OVEN

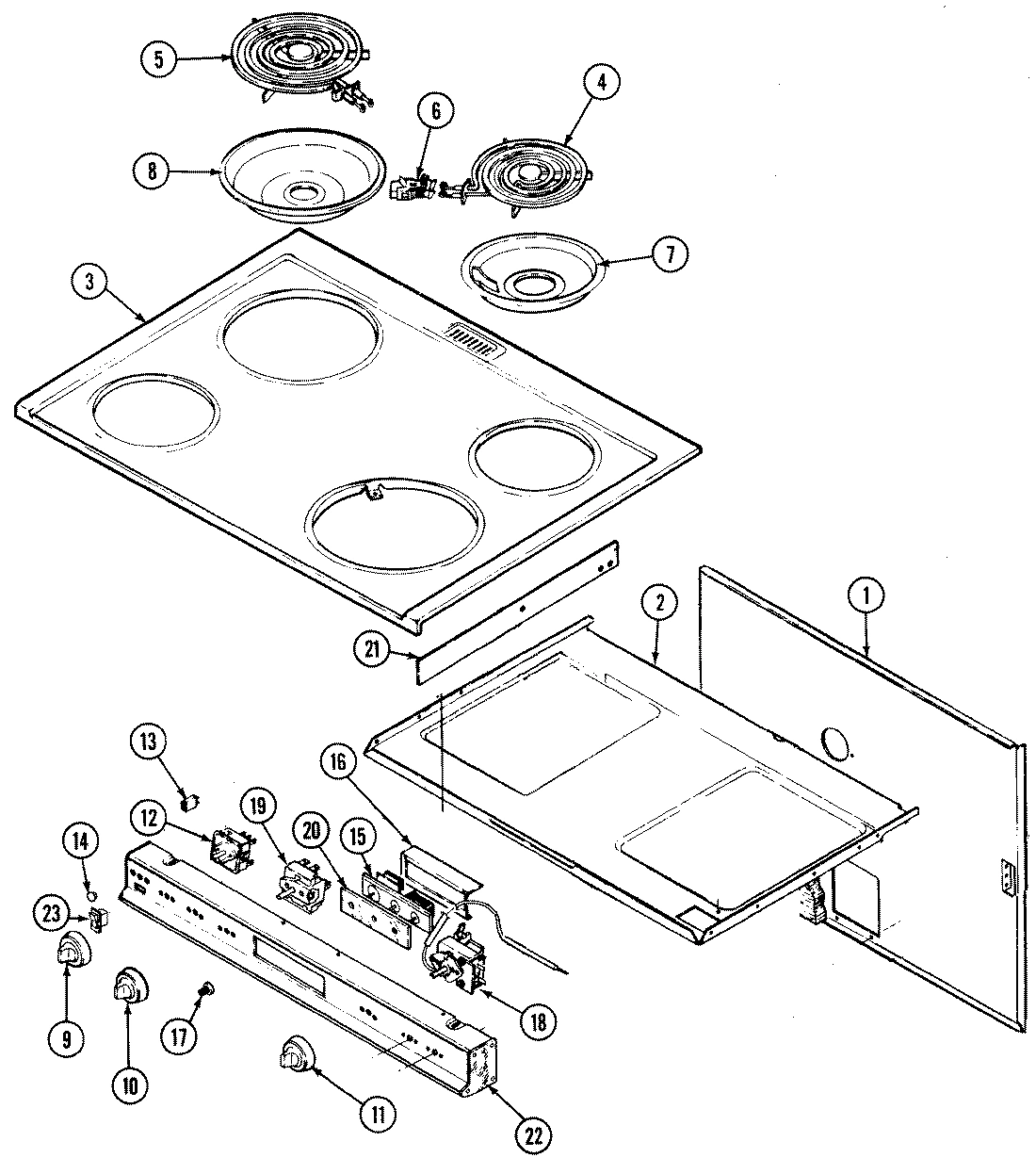

02 - MAIN TOP
Common parts from model Whirlpool 6551WRA ELECTRIC RANGE
1
BACK, MAIN WPL 4002F16480 Contact Us For Availability
1
SCREW WPL 7101P29060 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P30060 Contact Us For Availability
1
BACK, MAIN WPL 4002F15780 Contact Us For Availability
2
PANEL, SIDE (LT-ALM) WPL 2618F07874 Contact Us For Availability
2
PANEL, SIDE (RT-ALM) WPL 2618F07974 Contact Us For Availability
2
PANEL, SIDE (LT-ALM) WPL 2618F09574 Contact Us For Availability
2
PANEL, SIDE (RT-ALM) WPL 2618F09674 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P07260 Contact Us For Availability
2
BOX, BURNER WPL 4011F23080 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
3
TOP, MAIN WPL 2002W08484 Contact Us For Availability
3
EXTRUSION, FILLER WPL 7706P30160 Contact Us For Availability
4
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
4
RACK WPL 7801P04660 Contact Us For Availability
5
SCREW WPL 7101P33460 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
LEG, LEVELING WPL 7101P31660 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
CLIP, RECEPTACLE WPL 7112P05960 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
7
HINGE WPL 7106P05560 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
8
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
8
BULB, OVEN WPL 7407P09560 Contact Us For Availability
8
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
9
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
KNOB, INF. SWITCH WPL 7737P03360 Contact Us For Availability
10
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
KNOB, SELECTOR WPL 7739P04160 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
11
BOX, VENT WPL 4006W11245 Contact Us For Availability
11
KNOB, THERMOSTAT ELECTRIC WPL 7735P04360 Contact Us For Availability
12
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
12
GASKET, VENT WPL 7201P05560 Contact Us For Availability
12
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
12
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
13
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
13
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
13
LIGHT, INDICATOR WPL W10127320 Contact Us For Availability
14
COVER, MAIN BACK WPL 4005F35651 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
15
COVER, LEVELING LEG WPL 4005F42080 Contact Us For Availability
15
PEDESTAL (SIDES) WPL 4020W01180 Contact Us For Availability
15
CLOCK WPL 7602P10560 Contact Us For Availability
15
SHAFT, BIT GENERATOR WPL 8312P01960 Contact Us For Availability
16
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
16
BRACKET, CLOCK WPL 3801F22345 Contact Us For Availability
16
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
17
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
17
KNOB, CLOCK WPL 7711P42260 Contact Us For Availability
18
SCREW WPL 7101P10360 Contact Us For Availability
18
SCREW WPL 7101P30960 Contact Us For Availability
18
THERMOSTAT WPL 7404P07260 Contact Us For Availability
19
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
19
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
19
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
20
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
20
GLASS, CLOCK WPL 7902P36960 Contact Us For Availability
21
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
21
SHIELD, HEAT (LT) WPL 3604F17351 Contact Us For Availability
21
SHIELD, HEAT (RT) WPL 3604F17451 Contact Us For Availability
22
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
22
BRACKET, PANEL WPL 3801F25651 Contact Us For Availability
22
PANEL, CONTROL WPL 7722P11560 Contact Us For Availability
23
HARNESS, TO COOKTOP WPL 5175D06460 Contact Us For Availability
23
HARNESS, CONTROL PANEL WPL 5195D09460 Contact Us For Availability
23
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
24
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
24
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
× ![]()
