Model Whirlpool 64H-4TKXW GAS RANGE – Common Parts & Diagrams

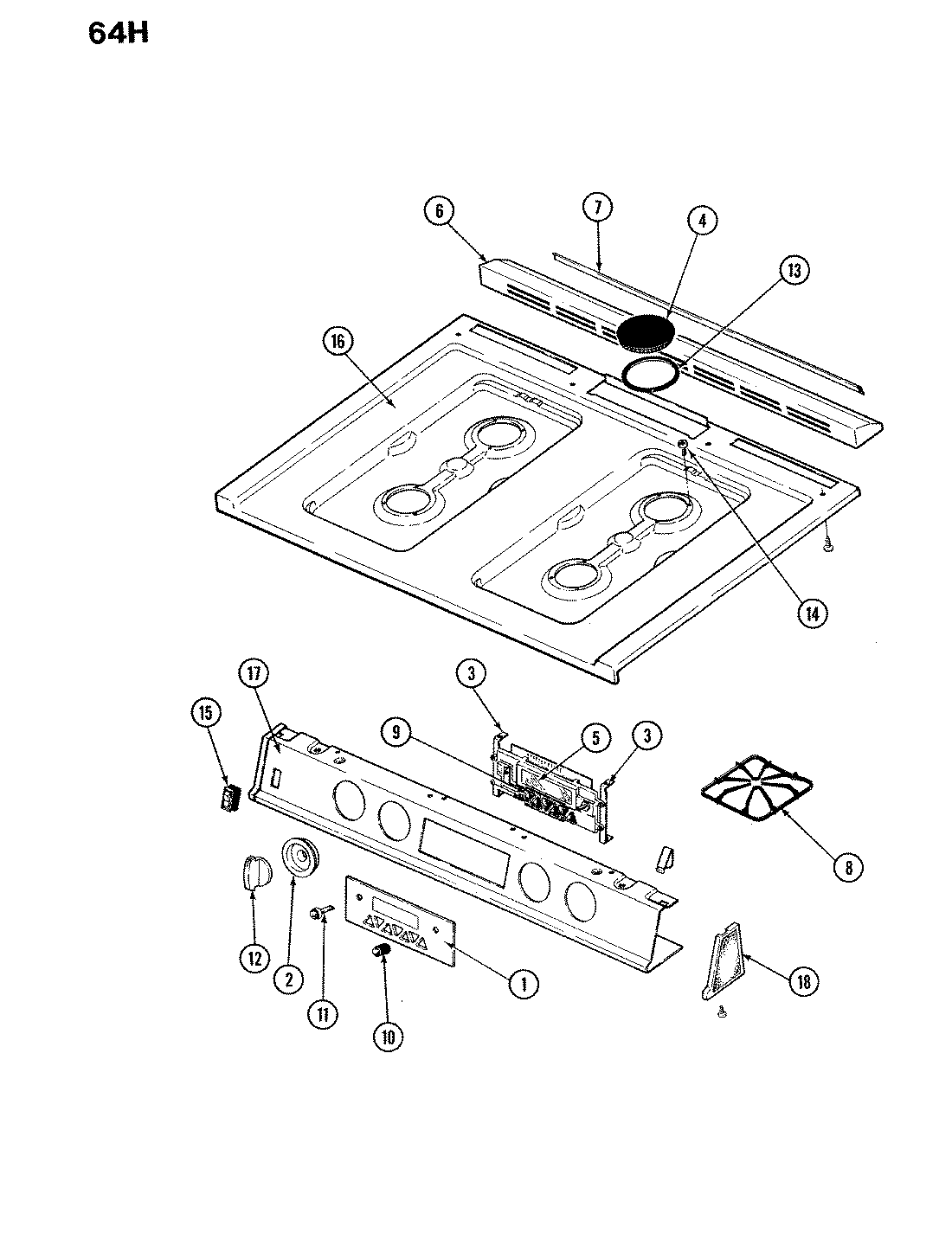

01 - MANIFOLD PANEL - MAIN TOP
Common parts from model Whirlpool 64H-4TKXW GAS RANGE
3
BRACKET, CLOCK MTG WPL 3801F19945 Contact Us For Availability
3
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
4
CAP, BURNER ASSY WPL 3403A01960 Contact Us For Availability
4
CAP, BURNER WPL 7504P00560 Contact Us For Availability
4
CAP, SURFACE BURNER, BLACK WPL 7504P00760 Contact Us For Availability
5
CLOCK WPL 7601P13360 Contact Us For Availability
5
CLOCK WPL 7601P15860 Contact Us For Availability
6
COVER, VENT TRIM WPL 7724P02660 Contact Us For Availability
6
COVER, VENT TRIM WPL 7724P05560 Contact Us For Availability
7
GASKET, VENT WPL 7201P04060 Contact Us For Availability
8
GRATE (BLK) WPL 2003W02300 Contact Us For Availability
8
HARNESS, OVEN SENSOR WPL 5170P07960 Contact Us For Availability
8
HARNESS, WIRE WPL 5170P08160 Contact Us For Availability
8
HARNESS, RELAY WPL 5170P09560 Contact Us For Availability
8
GRATE, BLACK WPL 7518P00960 Contact Us For Availability
8
GRATE, BURNER WPL Y04000011 Contact Us For Availability
8
GRATE, BURNER WPL Y04000012 Contact Us For Availability
12
PAD, FOAM GASKET WPL 7201P04160 Contact Us For Availability
13
RING, BLACK WPL 2014F00100 Contact Us For Availability
14
SCREW WPL 7101P25660 Contact Us For Availability
14
SLEEVE, WIRE PROTECTOR WPL 7214P04160 Contact Us For Availability
16
CLIP, TOP RETAINER WPL 7112P04260 Contact Us For Availability
18
SCREW WPL 7101P06560 Contact Us For Availability
18
TRIM, MANIFOLD PANEL END L WPL 7713P00560 Contact Us For Availability
18
TRIM, END CAP (LT) WPL 7713P00660 Contact Us For Availability
× ![]()
