Model Whirlpool 64FN-3CKVW GAS RANGE – Common Parts & Diagrams
01 - BODY

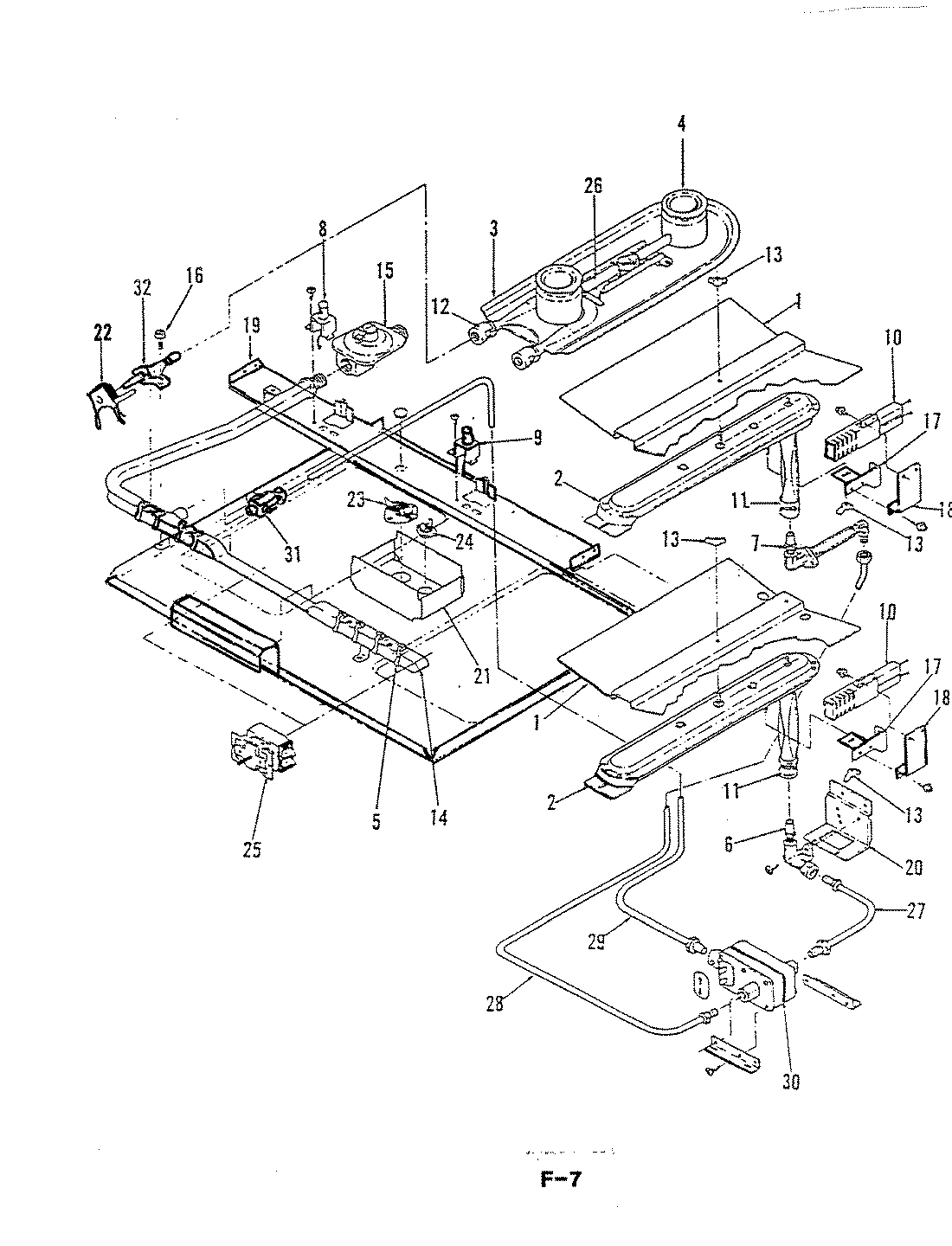

03 - GAS CONTROLS
02 - DOOR
Common parts from model Whirlpool 64FN-3CKVW GAS RANGE
1
BACK, BR CENTER WPL 4002F06245 Contact Us For Availability
1
BAFFLE, BAKE&BROIL WPL 3601F11113 Contact Us For Availability
1
BAFFLE, ASSY WPL 3601W12913 Contact Us For Availability
1
BRACKET, H.L. SWIT WPL 3801F09645 Contact Us For Availability
1
PAD, INNER OVEN DOOR WPL 2410F01551 Contact Us For Availability
1
BAFFLE WPL 3601F058 Contact Us For Availability
2
BACK, BR LEFT WPL 4002F06045 Contact Us For Availability
2
BURNER OVEN WPL 3403A01545 Contact Us For Availability
2
BURNER ASSY BROIL WPL 3403A01645 Contact Us For Availability
2
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
2
CATCH WPL 1135224 Contact Us For Availability
2
BUMPER WPL 1784200 Contact Us For Availability
2
SPACER WPL 8010P01860 Contact Us For Availability
3
BACK, BR RIGHT WPL 4002F06145 Contact Us For Availability
3
+ BURNER ASSY., TOP WPL Y0300252 Contact Us For Availability
3
CLIP, DOOR GLASS WPL 7112E031 Contact Us For Availability
3
FRAME, SERV DOOR WPL 7706E056 Contact Us For Availability
4
BAFFLE, BAKE & BROIL WPL 3601W11113 Contact Us For Availability
4
BACK, MAIN WPL 4002F06820 Contact Us For Availability
4
CAP, BURNER WPL 1083219 Contact Us For Availability
4
GASKET WPL 1313269 Contact Us For Availability
4
FRAME, OVN DOOR WPL 7706E007 Contact Us For Availability
4
FRAME, OVEN DOOR WPL 7706P22260 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
5
BAFFLE WPL 3601F11645 Contact Us For Availability
5
CLIP WPL 1141225 Contact Us For Availability
5
COVER, MODULE WPL 4005F17680 Contact Us For Availability
5
GLASS, INNER WPL 7902P09760 Contact Us For Availability
6
BAFFLE, OVEN FRT WPL 3601F11712 Contact Us For Availability
6
FITTING, BROIL BURNE WPL 7507P02460 Contact Us For Availability
6
GLASS -OV DOOR OUTER WHT WPL 7902P23460 Contact Us For Availability
6
DRAWER, SERVICE WPL W10127315 Contact Us For Availability
7
BLOCK WPL 1867269 Contact Us For Availability
7
BLOCK WPL 1867271 Contact Us For Availability
7
BAFFLE, OVN FRT UPPE WPL 3601F10812 Contact Us For Availability
7
FITTING, BROIL BURNER WPL 7507P02860 Contact Us For Availability
7
LINING, BROILER DRAWER WPL 2404F015 Contact Us For Availability
7
HANDLE, OVEN DR WPL 7701P02760 Contact Us For Availability
7
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
8
BOLT, DOOR LOCK WPL 7116P00260 Contact Us For Availability
8
IGNITOR WPL 1482223 Contact Us For Availability
9
BOTTOM, BURNER BOX WPL 4011J067 Contact Us For Availability
9
IGNITOR WPL 1482222 Contact Us For Availability
9
LINING ASSY, OV DR WPL 2402W12512 Contact Us For Availability
9
LINING WPL 2402W12815 Contact Us For Availability
9
LINING, OVN DOOR WPL 2422H082 Contact Us For Availability
10
BOTTOM, OVEN WPL 2205F02015 Contact Us For Availability
10
+ BOTTOM ASY OVN WPL Y0234281 Contact Us For Availability
10
KNOB, THERMOSTAT WPL 7711P32260 Contact Us For Availability
10
KNOB, THERMOSTAT WPL 7731P02060 Contact Us For Availability
10
KNOB, VALVE WPL 7711P17360 Contact Us For Availability
10
KNOB, VALVE WPL 7733P03860 Contact Us For Availability
10
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
10
PAD ASSY, OV. DR. WPL 2410W02912 Contact Us For Availability
10
PANEL, STORAGE DOOR WHITE WPL 2416F02771 Contact Us For Availability
10
+ PAD ASSEMBLY WPL 2430F016 Contact Us For Availability
11
BRACE WPL 0277257 Contact Us For Availability
11
BRACKET WPL 0284304 Contact Us For Availability
11
BRACKET WPL 3801F093 Contact Us For Availability
11
BRACE WPL 3802F04880 Contact Us For Availability
11
BRACE, INNER SIDE WPL 3802F05045 Contact Us For Availability
11
BOX, FLUE WPL 4006W02613 Contact Us For Availability
11
MIXER, AIR WPL 0607214 Contact Us For Availability
11
PIN WPL 1584209 Contact Us For Availability
11
PIN WPL 1584211 Contact Us For Availability
12
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
12
MODULE, SPARK WPL 1522102 Contact Us For Availability
12
MIXER, AIR WPL Y0607215 Contact Us For Availability
12
RETAINER, GLASS WPL 3804F040 Contact Us For Availability
13
BRACKET WPL 0284306 Contact Us For Availability
13
BRACKET WPL 0284315 Contact Us For Availability
13
BRACKET WPL 0284316 Contact Us For Availability
13
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
13
WING NUT WPL 1555254 Contact Us For Availability
13
SCREW, SPECIAL WPL 1986258 Contact Us For Availability
14
BUMPER WPL 1784202 Contact Us For Availability
14
PIPE, MANIFOLD WPL 7513P04460 Contact Us For Availability
14
PIPE MANIFOLD WPL 7513P10360 Contact Us For Availability
14
SEAL WPL 1726250 Contact Us For Availability
15
RING, SNAP WPL 1013214 Contact Us For Availability
15
REGULATOR, PRESSURE WPL 1665248 Contact Us For Availability
15
SEAL WPL 1726252 Contact Us For Availability
15
STOP, DOOR WPL Y0112241 Contact Us For Availability
16
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
16
CLIP, WIRE WPL 7112P04560 Contact Us For Availability
16
SCREW VALVE WPL 1986319 Contact Us For Availability
16
MIXER AIR OVEN BURNER WPL 3411F00634 Contact Us For Availability
16
MIXER, AIR WPL 3411F00635 Contact Us For Availability
17
CLOCK WPL 7601P05760 Contact Us For Availability
17
CLOCK WPL 7601P06360 Contact Us For Availability
17
NOT REQUIRED PART OR SEE NOTE TRIM, HANDLE (N WPL W10124350 Contact Us For Availability
17
SUPPORT WPL 0862434 Contact Us For Availability
18
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
18
SUPPORT WPL 0862420 Contact Us For Availability
19
COVER, MODULE WPL 4005F17420 Contact Us For Availability
19
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
19
SUPPORT, TOP BURNER WPL 3807F22180 Contact Us For Availability
20
COVER SWITCH LOCK WPL 4005F139 Contact Us For Availability
20
SUPPORT, VALVE WPL 3807F21645 Contact Us For Availability
21
DRAWER ASSY. WPL 0384227 Contact Us For Availability
21
SUPPORT, THERM DISC WPL 3807F21951 Contact Us For Availability
22
SHIELD WPL 3604F01651 Contact Us For Availability
22
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
22
INSULATION, SWITCH (UPPER) WPL 7003P01960 Contact Us For Availability
22
SWITCH, TOP BURNER WPL 7403P04160 Contact Us For Availability
22
SWITCH, LIGHTER BURNER WPL 7403P23560 Contact Us For Availability
23
FRONT, OVEN WPL 2201F03323 Contact Us For Availability
23
SWITCH, THERMAL WPL 7403P09160 Contact Us For Availability
24
SWITCH, HI LIMIT WPL 7403P18760 Contact Us For Availability
25
FRAME, BURNER BOX FRONT WPL 4012F013 Contact Us For Availability
25
THERMOSTAT WPL 7404P06460 Contact Us For Availability
25
THERMOSTAT, GAS WPL 7515E005 Contact Us For Availability
25
THERMOSTAT, OV WPL 7515P02060 Contact Us For Availability
26
GASKET WPL 1313276 Contact Us For Availability
26
TUBE WPL 1930342 Contact Us For Availability
27
GASKET, LAMPGUARD RETAINER WPL 1313260 Contact Us For Availability
27
3/8 X 8 TUBING WPL Y0936104 Contact Us For Availability
28
GASKET, OVEN WPL 1313279 Contact Us For Availability
28
GLASS, CLOCK WPL 1327135 Contact Us For Availability
28
GASKET, VENT WPL 7201P02360 Contact Us For Availability
28
GASKET, VENT WPL 7201P04060 Contact Us For Availability
28
GLASS, CLOCK WPL 7902P02760 Contact Us For Availability
28
3/8 X 45 TUBING WPL Y0936103 Contact Us For Availability
29
GLASS, LIGHTGUARD WPL 1327784 Contact Us For Availability
29
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
30
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
30
VALVE, OVEN WPL 7501P03060 Contact Us For Availability
30
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
30
VALVE, BROIL & BAKE - NAT WPL 7501P09560 Contact Us For Availability
31
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
31
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
31
VALVE, SHUT OFF WPL 1951367 Contact Us For Availability
32
GRATE WPL Y0505218 Contact Us For Availability
32
VALVE, TOP BURNER WPL 1951372 Contact Us For Availability
32
VALVE, BURNER WPL 7502P11160 Contact Us For Availability
32
VALVE WPL 7502P22460 Contact Us For Availability
33
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
34
HANDLE, DOOR WPL 1355304 Contact Us For Availability
34
HINGE, MAIN TOP WPL 7706P17060 Contact Us For Availability
35
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
35
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
35
HOUSING, BAKE BURNER WPL 4001F03645 Contact Us For Availability
36
HOUSING, LAMP WPL 0537253 Contact Us For Availability
36
INSERT WPL Y0507229 Contact Us For Availability
37
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
38
KNOB, SELECTOR WPL 7711E106 Contact Us For Availability
38
KNOB, SELECTOR WPL 7711P38160 Contact Us For Availability
40
WPL 8002E009 WPL 8002E009 Contact Us For Availability
40
WPL 8002P01560 WPL 8002P01560 Contact Us For Availability
41
WPL 8009E003 WPL 8009E003 Contact Us For Availability
41
WPL 8009P00760 WPL 8009P00760 Contact Us For Availability
43
WPL 7407P02860 WPL 7407P02860 Contact Us For Availability
44
WPL 4009W03880 WPL 4009W03880 Contact Us For Availability
44
WPL 4009W05880 WPL 4009W05880 Contact Us For Availability
45
WPL 8021E001 WPL 8021E001 Contact Us For Availability
46
WPL 1522106 WPL 1522106 Contact Us For Availability
47
WPL 2416F01471 WPL 2416F01471 Contact Us For Availability
47
WPL 2614F00820 WPL 2614F00820 Contact Us For Availability
48
WPL 7712A01560 WPL 7712A01560 Contact Us For Availability
49
WPL 2618F05071 WPL 2618F05071 Contact Us For Availability
49
WPL 2618F07371 WPL 2618F07371 Contact Us For Availability
50
WPL 1584204 WPL 1584204 Contact Us For Availability
51
WPL 7801P03160 WPL 7801P03160 Contact Us For Availability
52
WPL 1657202 WPL 1657202 Contact Us For Availability
53
WPL 0749227 WPL 0749227 Contact Us For Availability
54
WPL Y0766215 WPL Y0766215 Contact Us For Availability
55
WPL 3406J007 WPL 3406J007 Contact Us For Availability
56
WPL 7101P05560 WPL 7101P05560 Contact Us For Availability
56
WPL 7101P05860 WPL 7101P05860 Contact Us For Availability
56
WPL 7101P07760 WPL 7101P07760 Contact Us For Availability
57
WPL Y0787421 WPL Y0787421 Contact Us For Availability
58
WPL 0537252 WPL 0537252 Contact Us For Availability
59
WPL 3604F08551 WPL 3604F08551 Contact Us For Availability
60
WPL 3604F08345 WPL 3604F08345 Contact Us For Availability
60
WPL 7214P00460 WPL 7214P00460 Contact Us For Availability
× ![]()
