Model LG 64689 MWO-OTR – Common Parts & Diagrams
Diagram 0
Diagram 1
Diagram 2

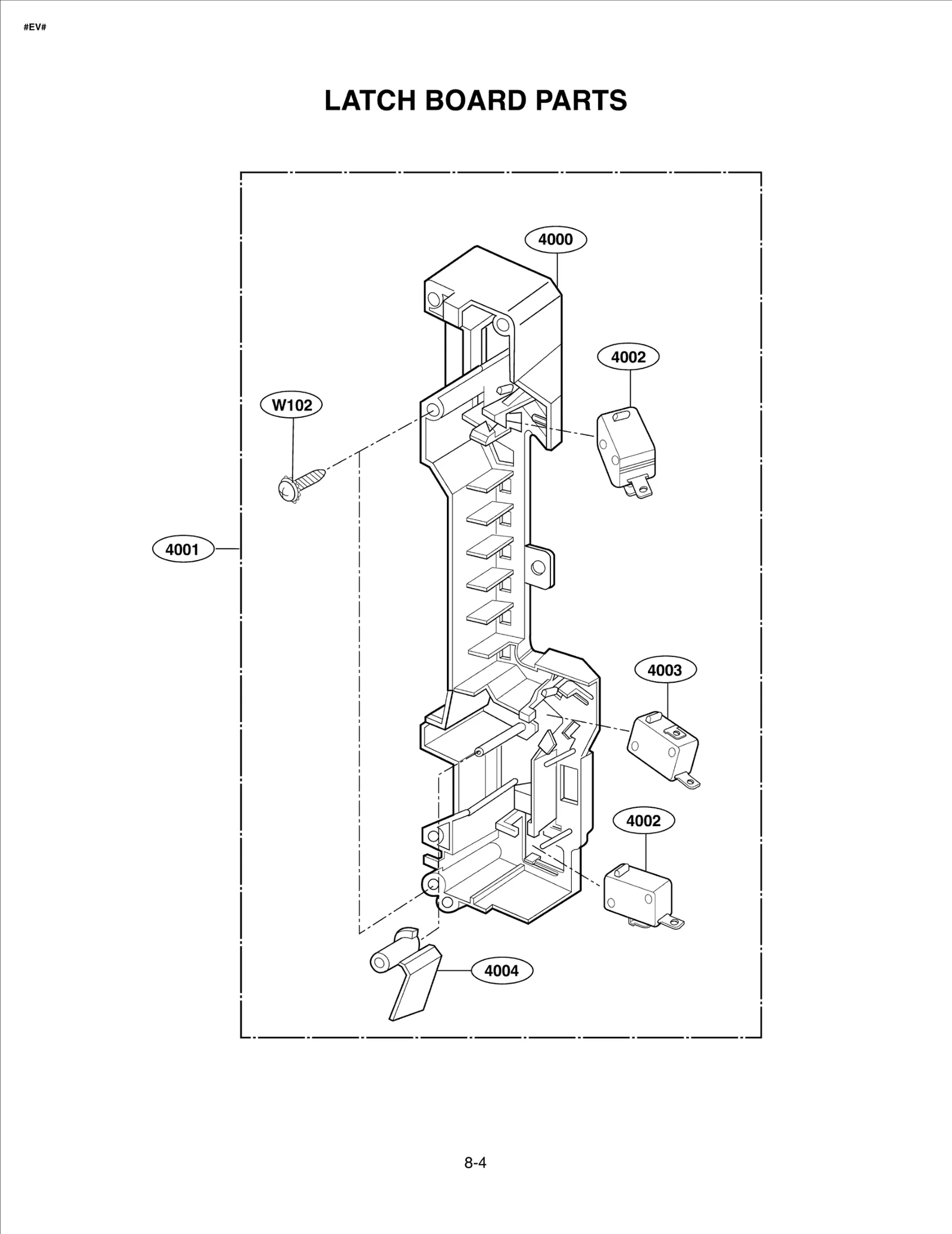

Diagram 3

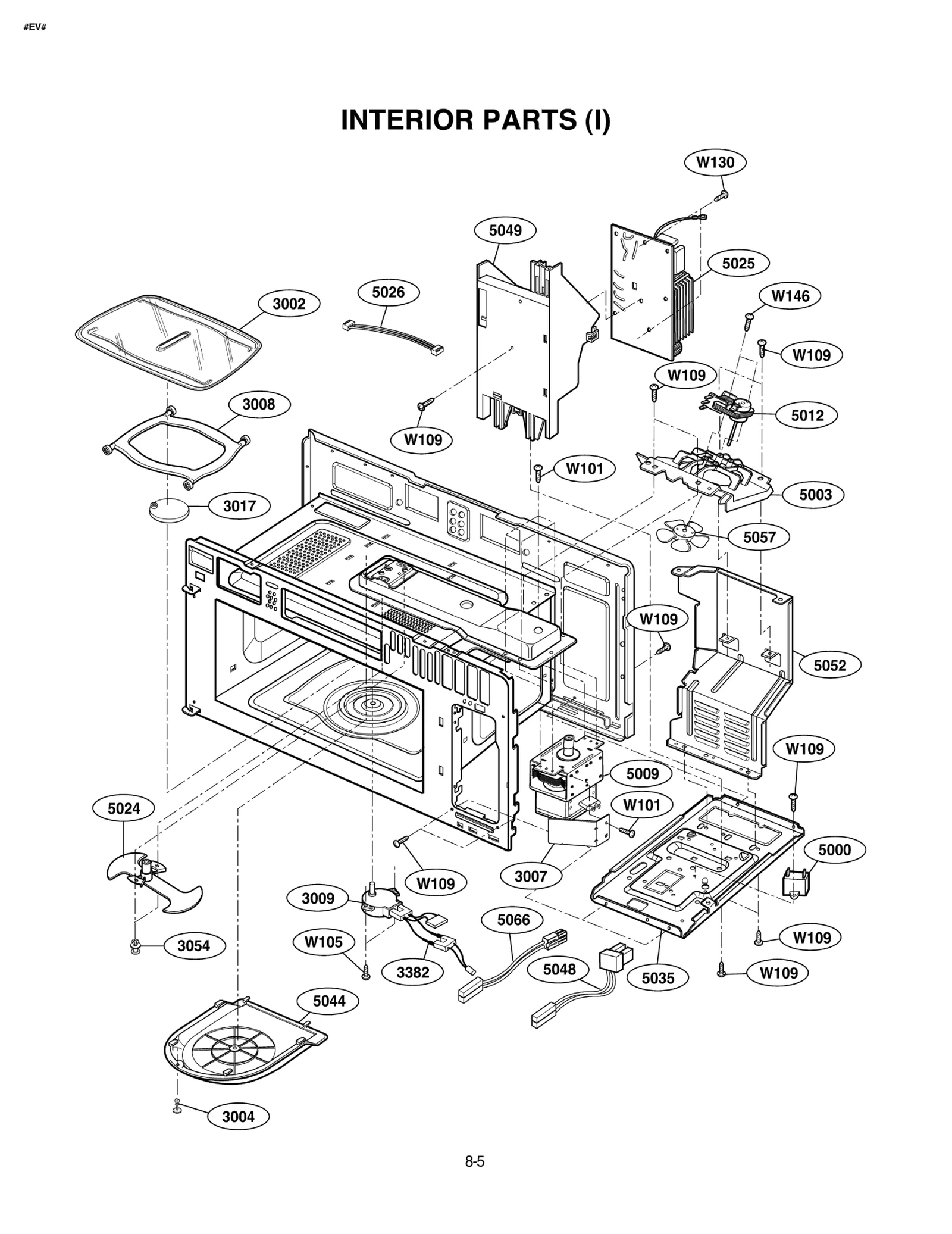

Diagram 4

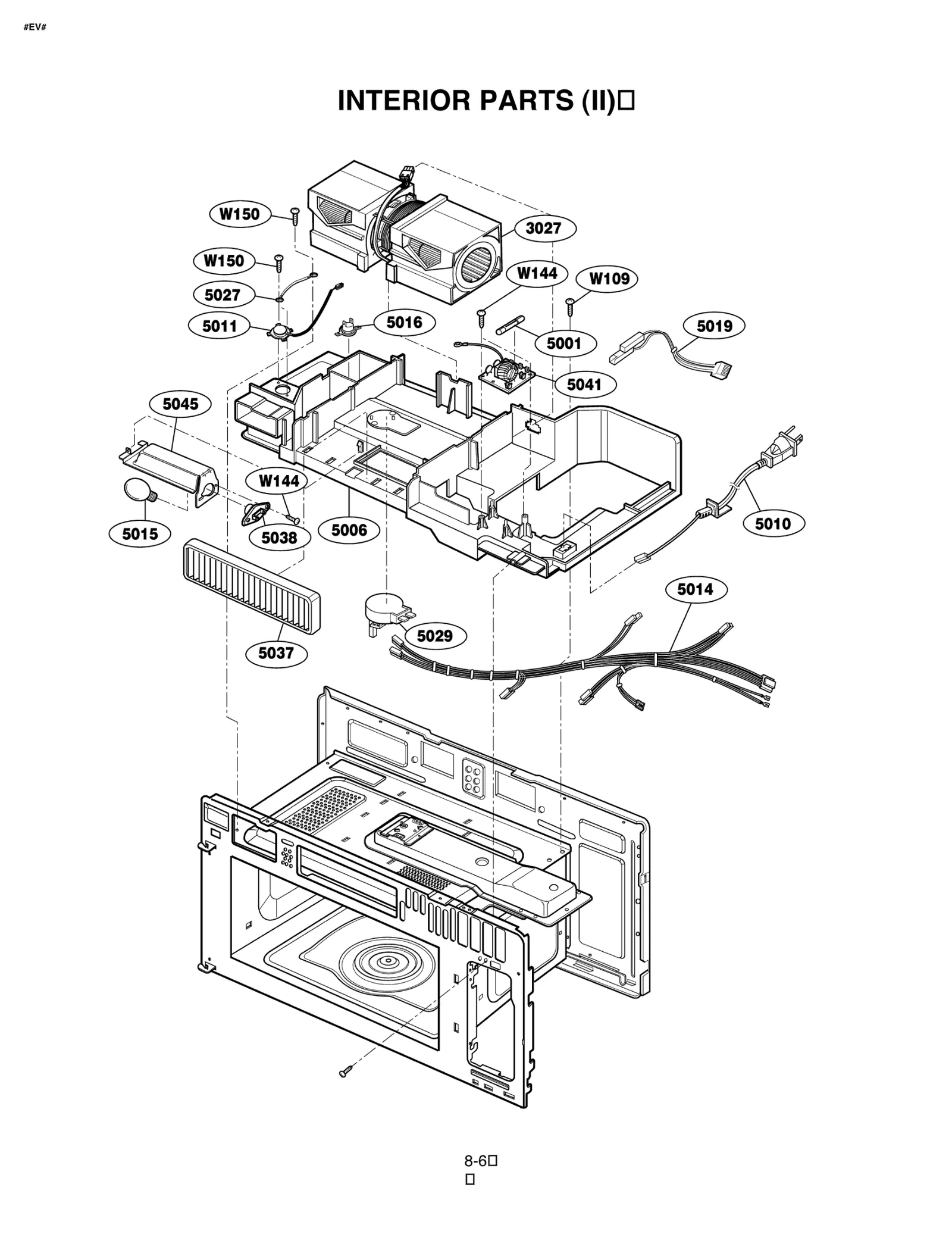

Diagram 5

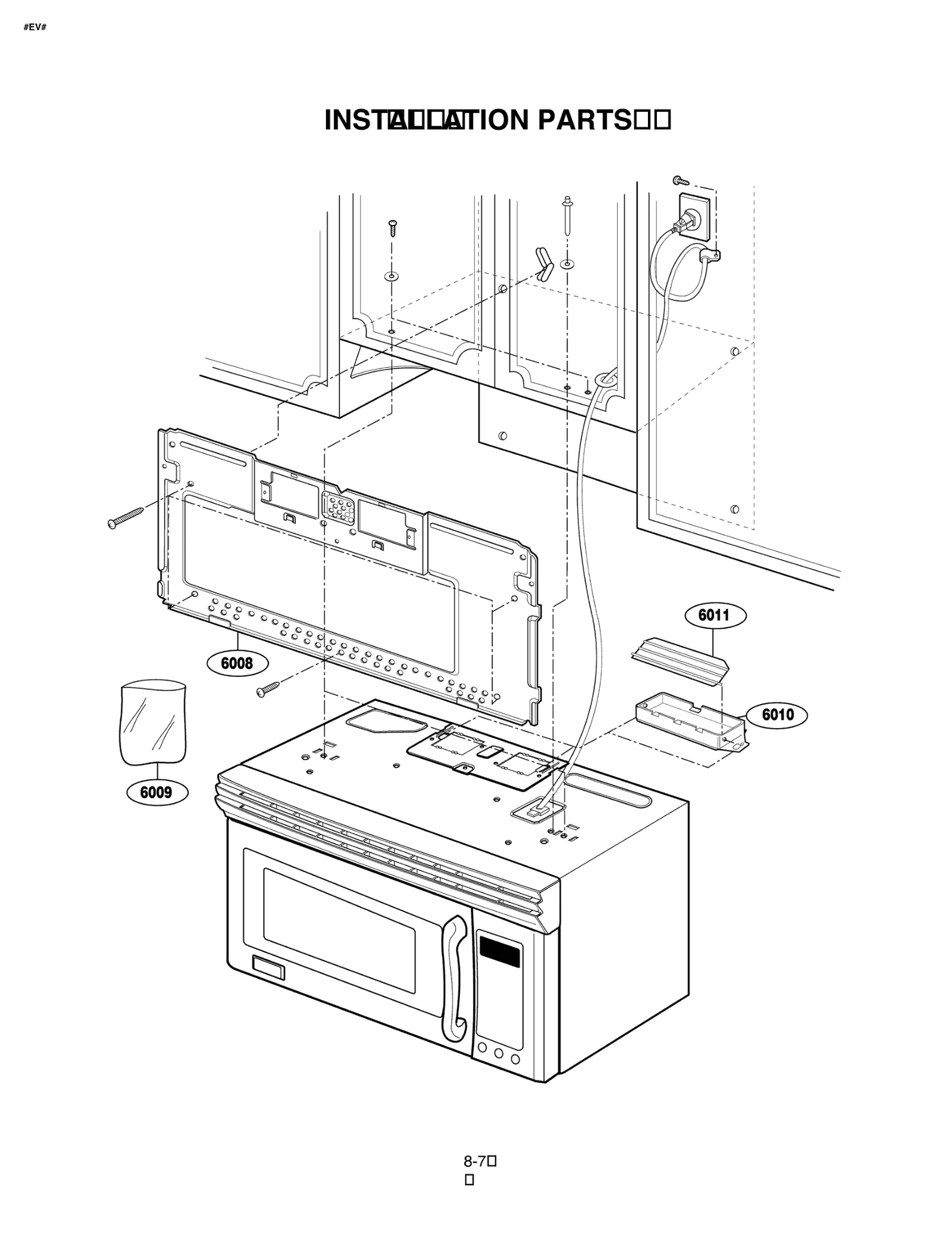

Diagram 6
Diagram 7
Common parts from model LG 64689 MWO-OTR
*01
MANUAL,OWNERS LGE 3828W5A3631 Contact Us For Availability
*02
MANUAL,SERVICE LGE 3828W5S3334 Contact Us For Availability
*04
MANUAL,INSTALLATION LGE 3828W5U0317 Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W1D083A Contact Us For Availability
*06
TEMPLATE LGE 4922W5A047A Contact Us For Availability
*07
CARD,TECHNICAL LGE 3840W1T009A Contact Us For Availability
*10
LGE 3890W3Y578T LGE 3890W3Y578T Contact Us For Availability
1002
SEAL TAPE LGE 3536WRA001T Contact Us For Availability
1004
CHOKE COVER LGE 3552W0A001B Contact Us For Availability
3002
GLASS TRAY LGE 3390W0A001A Contact Us For Availability
3007
GUIDE,AIR LGE 4974W1A021A Contact Us For Availability
3008
ROTATING RING ASSEMBLY LGE 5889W1A007A Contact Us For Availability
3017
RING ASSEMBLY LGE 4351W1A001C Contact Us For Availability
3026
FILTER(MECH) LGE 5230W2A004A Contact Us For Availability
3029
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
3043
TRAY,PLASTIC LGE 3390W1A023B Contact Us For Availability
3054
RIVET ASSEMBLY LGE 4051W3A001C Contact Us For Availability
3382
SURGE ABSORBER KIT LGE 383EW5A245A Contact Us For Availability
4004
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
5003
GUIDE,SUCTION LGE 4974W1A019A Contact Us For Availability
5006
DUCT LGE 5208W0A009A Contact Us For Availability
5009
MAGNETRON LGE 6324W1A002C Contact Us For Availability
5010
POWER CORD ASSY A-Z SJT,AWG16/ LGE 6411W2A002E Contact Us For Availability
5014
HARNESS LGE 6877W1A450B Contact Us For Availability
5015
OVEN LAMP 125V 30W E17, ER-71 LGE 3B70067A Contact Us For Availability
5019
HARNESS LGE 6877W2S002F Contact Us For Availability
5024
FAN ASSEMBLY LGE 5901W1A002A Contact Us For Availability
5025
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S019A Contact Us For Availability
5026
HARNESS LGE 6631W3A003S Contact Us For Availability
5027
HARNESS LGE 3B72342U Contact Us For Availability
5035
PLATE,[BOTTOM PLATE] LGE 3300W1B001A Contact Us For Availability
5036
COVER,[LAMP COVER] LGE 3550W2L001A Contact Us For Availability
5041
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
5044
COVER,STIRRER FAN LGE 3550W1A169A Contact Us For Availability
5048
CABLE,HIGH VOLTAGE LGE 6850W1A001A Contact Us For Availability
5052
GUIDE,AIR LGE 4974W1A020A Contact Us For Availability
5057
PROPELLER LGE 2B72125A Contact Us For Availability
5066
HARNESS LGE 6877W1A452A Contact Us For Availability
5382
Parts Assembly LGE 383EW1A077C Contact Us For Availability
6000
BASE PLATE LGE 3302W0A038B Contact Us For Availability
6008
PLATE,[MOUNTING PLATE] LGE 3300W0M003A Contact Us For Availability
6009
KIT ASSEMBLY LGE 2B72771H Contact Us For Availability
6011
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
9500
ACCESSORY ASSEMBLY LGE 5001W1A009B Contact Us For Availability
AR1
RESISTOR ARRAY LGE 0RZ4702G610 Contact Us For Availability
C01
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C02
CAPACITOR ELECTROLYTIC 470UF S LGE 0CE4776J618 Contact Us For Availability
C04
CAPACITOR ELECTROLYTIC LGE 0CE1076D638 Contact Us For Availability
C10
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C16
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
C82
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CN8
HARNESS LGE 6631W3A006S Contact Us For Availability
CR1
RESONATOR LGE 6212JB8001A Contact Us For Availability
D10
DIODE,RECTIFIERS LGE 0DRSB00093A Contact Us For Availability
D25
DIODE,SWITCHING LGE 0DSSB00023A Contact Us For Availability
D39
DIODE 1N4004TA(06220071)MV-100 LGE 0DD400409AA Contact Us For Availability
D94
DIODE,SWITCHING LGE 0DSSB00083A Contact Us For Availability
DP1
DIGITRON LGE 6302W5A023A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,12V/277M LGE 6010W2P008A Contact Us For Availability
Q02
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q20
TRANSISTOR MA-885M SGESEA MA-1 LGE 0TR107009AD Contact Us For Availability
Q38
TRANSISTOR,BIPOLARS LGE 0TR387609BA Contact Us For Availability
Q98
TRANSISTOR LGE 0TR107009AC Contact Us For Availability
R02
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R1
ABSORBER LGE 3B71247D Contact Us For Availability
R10
LGE 0RD2200G608 LGE 0RD2200G608 Contact Us For Availability
R13
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R20
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R25
RESISTOR FIXED CARBON FILM LGE 0RD3901G608 Contact Us For Availability
R33
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R36
RESISTOR FIXED CARBON FILM /R LGE 0RD1000G608 Contact Us For Availability
R39
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R45
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R46
Resistor,Carbon Film LGE 0RD3302F608 Contact Us For Availability
R50
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R60
RESISTOR FIXED CARBON FILM MV- LGE 0RD4702G608 Contact Us For Availability
R61
LGE 0RD1201G608 LGE 0RD1201G608 Contact Us For Availability
R62
Resistor,Chip LGE 0RH2003L422 Contact Us For Availability
R70
RESISTOR,FIXED CARBON FILM LGE 0RD6600H602 Contact Us For Availability
R71
RESISTOR FIXED CARBO LGE 0RD2004F608 Contact Us For Availability
R72
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R73
Resistor,Carbon Film LGE 0RD5103F608 Contact Us For Availability
R74
Resistor,Carbon Film LGE 0RD3303F608 Contact Us For Availability
R75
Resistor,Carbon Film LGE 0RD1503F608 Contact Us For Availability
R85
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R90
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
RY15
RELAY LGE 6920WRD008A Contact Us For Availability
U01
LGE 0IZZW5A205B LGE 0IZZW5A205B Contact Us For Availability
U04
IC KIA4558P(8DIP LIN OP-AMP/BI LGE 0IKE455800A Contact Us For Availability
VR1
VARISTOR LGE 6102W5V006A Contact Us For Availability
W121
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
× ![]()
