Model LG 64663 MWO-OTR – Common Parts & Diagrams
Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4

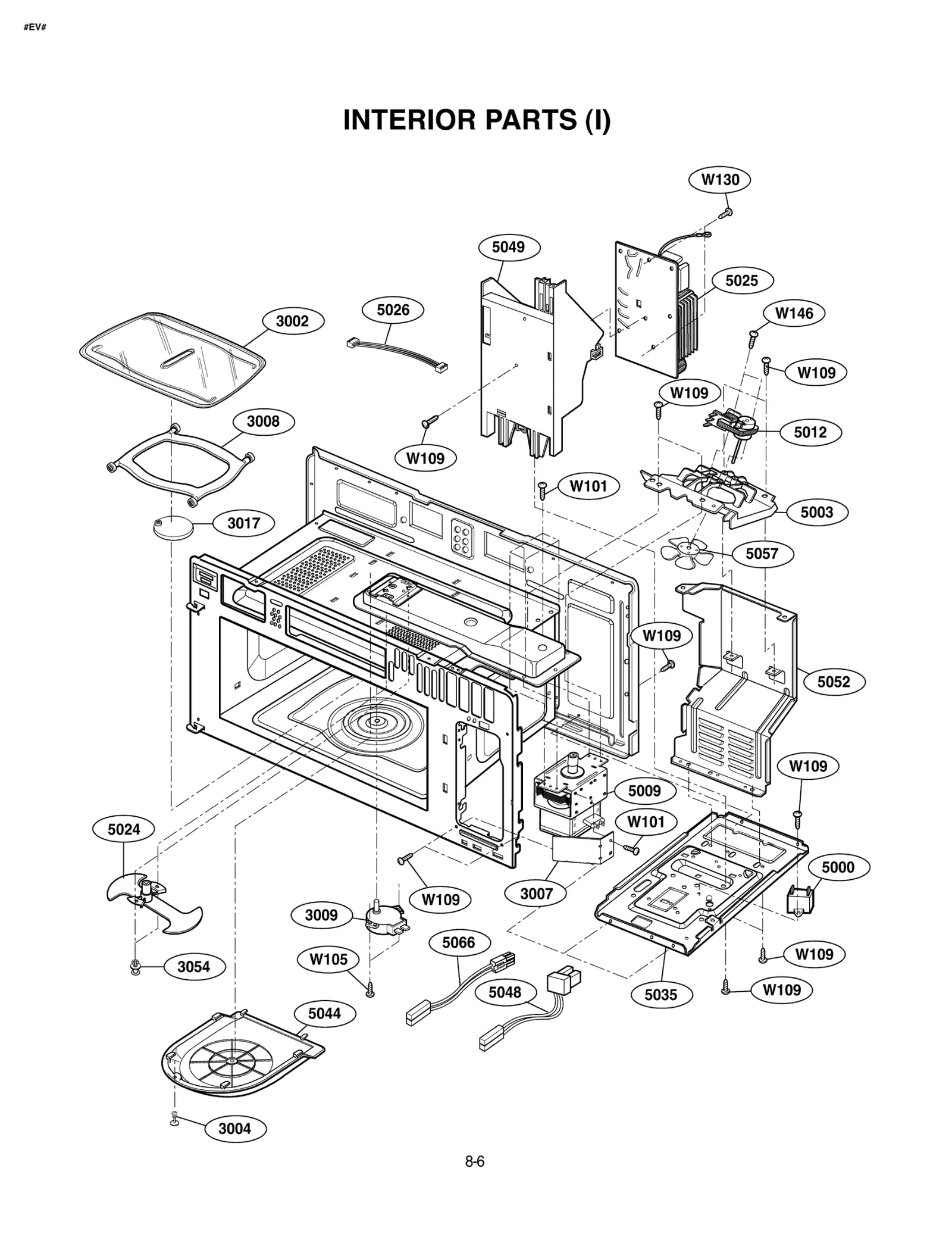

Diagram 5
Diagram 6

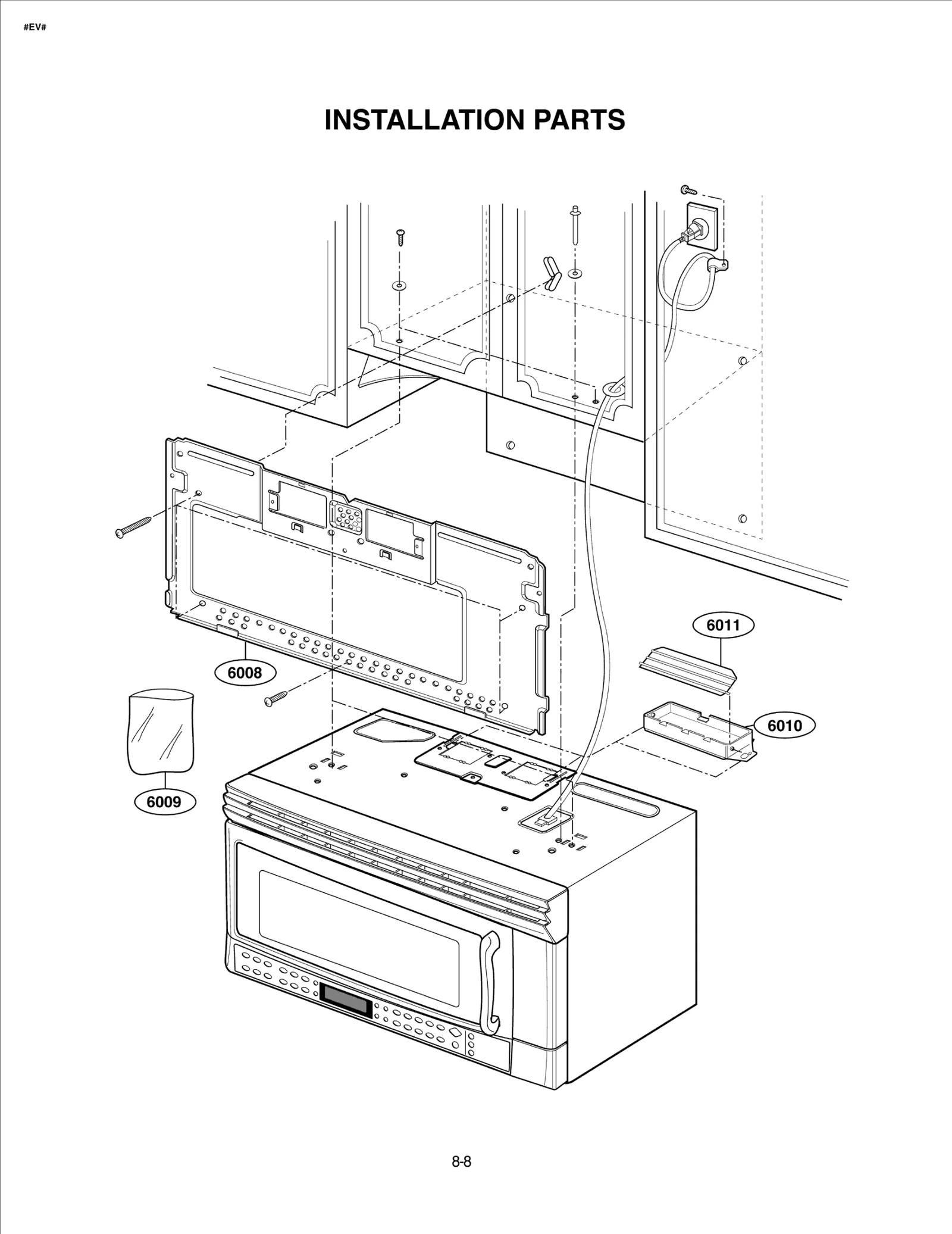

Diagram 7
Diagram 8
Common parts from model LG 64663 MWO-OTR
*01
MANUAL,OWNERS LGE 3828W5A3632 Contact Us For Availability
*02
MANUAL,SERVICE LGE 3828W5S3335 Contact Us For Availability
*04
MANUAL,INSTALLATION LGE 3828W5U0318 Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W1D084A Contact Us For Availability
*06
TEMPLATE LGE 4922W5A047A Contact Us For Availability
*07
CARD,TECHNICAL LGE 3840W1T008A Contact Us For Availability
*10
BOX,YELLOW LGE 3890W3Y578Z Contact Us For Availability
1002
SEAL TAPE LGE 3536WRA001T Contact Us For Availability
1004
CHOKE COVER LGE 3552W0A001B Contact Us For Availability
3002
GLASS TRAY LGE 3390W0A001A Contact Us For Availability
3007
GUIDE,AIR LGE 4974W1A021A Contact Us For Availability
3008
ROTATING RING ASSEMBLY LGE 5889W1A007A Contact Us For Availability
3017
RING ASSEMBLY LGE 4351W1A001C Contact Us For Availability
3024
GRILLE,VENT LGE 3530W0A033D Contact Us For Availability
3026
FILTER(MECH) LGE 5230W2A004A Contact Us For Availability
3029
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
3031
COVER ALL MV-1320,COVER,POWER LGE 3550W3A084A Contact Us For Availability
3032
REFLECTOR RIGHT LGE 3034W2A002B Contact Us For Availability
3033
REFLECTOR LEFT LGE 3034W2A003B Contact Us For Availability
3036
HOLDER,COOK AUXILIARY LGE 4930W1A026A Contact Us For Availability
3043
TRAY,PLASTIC LGE 3390W1A023B Contact Us For Availability
3054
RIVET ASSEMBLY LGE 4051W3A001C Contact Us For Availability
4004
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
5003
GUIDE,SUCTION LGE 4974W1A019A Contact Us For Availability
5006
DUCT LGE 5208W0A009A Contact Us For Availability
5009
MAGNETRON LGE 6324W1A002C Contact Us For Availability
5010
POWER CORD ASSY A-Z SJT,AWG16/ LGE 6411W2A002E Contact Us For Availability
5015
LAMP,HALOGEN LGE 6912A40002D Contact Us For Availability
5019
HARNESS LGE 6877W2S002F Contact Us For Availability
5024
FAN ASSEMBLY LGE 5901W1A002A Contact Us For Availability
5025
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S019A Contact Us For Availability
5026
HARNESS LGE 6631W3A003S Contact Us For Availability
5027
HARNESS LGE 3B72342U Contact Us For Availability
5035
PLATE,[BOTTOM PLATE] LGE 3300W1B001A Contact Us For Availability
5036
COVER,[LAMP COVER] LGE 3550W2L001A Contact Us For Availability
5041
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
5044
COVER,STIRRER FAN LGE 3550W1A169A Contact Us For Availability
5048
CABLE,HIGH VOLTAGE LGE 6850W1A001A Contact Us For Availability
5052
GUIDE,AIR LGE 4974W1A020A Contact Us For Availability
5056
HOLDER ASSEMBLY LGE 4931W1A011D Contact Us For Availability
5057
PROPELLER LGE 2B72125A Contact Us For Availability
5064
HARNESS LGE 6877W1A453B Contact Us For Availability
5066
HARNESS LGE 6877W1A452A Contact Us For Availability
5382
Parts Assembly LGE 383EW1A077C Contact Us For Availability
6000
BASE PLATE LGE 3302W0A038B Contact Us For Availability
6008
PLATE,[MOUNTING PLATE] LGE 3300W0M003A Contact Us For Availability
6009
KIT ASSEMBLY LGE 2B72771H Contact Us For Availability
6011
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
9500
ACCESSORY ASSEMBLY LGE 5001W1A009B Contact Us For Availability
AR1
RESISTOR ARRAY LGE 0RZ4702G610 Contact Us For Availability
C01
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C02
CAPACITOR ELECTROLYTIC 470UF S LGE 0CE4776J618 Contact Us For Availability
C04
CAPACITOR ELECTROLYTIC LGE 0CE1076D638 Contact Us For Availability
C11
CAPACITOR ELECTROLYTIC LGE 0CE2276K618 Contact Us For Availability
C15
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
C20
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C61
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CN
HARNESS LGE 6877W1A453C Contact Us For Availability
CN
HARNESS LGE 6877W1A453D Contact Us For Availability
CN3
HARNESS LGE 6631W3A006K Contact Us For Availability
CR1
RESONATOR LGE 6212JB8001A Contact Us For Availability
CU1
CUSHION LGE 4850W4C001Q Contact Us For Availability
D10
DIODE,RECTIFIERS LGE 0DRSB00093A Contact Us For Availability
D20
DIODE,SWITCHING LGE 0DSSB00023A Contact Us For Availability
D35
DIODE,SWITCHING LGE 0DSSB00083A Contact Us For Availability
D39
DIODE 1N4004TA(06220071)MV-100 LGE 0DD400409AA Contact Us For Availability
DP1
DIGITRON LGE 6302W5A018A Contact Us For Availability
IC1
IC,KEC LGE 0IKE781500A Contact Us For Availability
IC2
IC KIA4558P(8DIP LIN OP-AMP/BI LGE 0IKE455800A Contact Us For Availability
PT1
TRANSFORMER,POWER LGE 6170W1G013A Contact Us For Availability
Q02
TRANSISTOR,BIPOLARS LGE 0TR387609BA Contact Us For Availability
Q03
TRANSISTOR LGE 0TR107009AC Contact Us For Availability
R1
ABSORBER LGE 3B71247D Contact Us For Availability
R11
LGE 0RD1003G608 LGE 0RD1003G608 Contact Us For Availability
R20
RESISTOR FIXED CARBON FILM 22 LGE 0RD2202G608 Contact Us For Availability
R27
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
R36
RESISTOR FIXED CARBON FILM /R LGE 0RD1000G608 Contact Us For Availability
R45
RESISTOR FIXED CARBON FILM MV- LGE 0RD4702G608 Contact Us For Availability
R50
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R61
LGE 0RD1201G608 LGE 0RD1201G608 Contact Us For Availability
R62
LGE 0RN2003F408 LGE 0RN2003F408 Contact Us For Availability
R63
Resistor,Metal Film LGE 0RN1001F408 Contact Us For Availability
R67
LGE 0RN1072G408 LGE 0RN1072G408 Contact Us For Availability
R68
LGE 0RN1002G408 LGE 0RN1002G408 Contact Us For Availability
R69
RESISTOR,FIXED CARBON FILM LGE 0RD6600H602 Contact Us For Availability
R96
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
RY15
RELAY OJ-SS-112LM MA-693M MA-6 LGE 6920W2D010A Contact Us For Availability
VR1
VARISTOR LGE 6102W5V006A Contact Us For Availability
W121
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
ZD1
LGE 0DZ510009AA LGE 0DZ510009AA Contact Us For Availability
ZD2
LGE 0DZ750009AB LGE 0DZ750009AB Contact Us For Availability
× ![]()
