Model LG 63992 – Common Parts & Diagrams

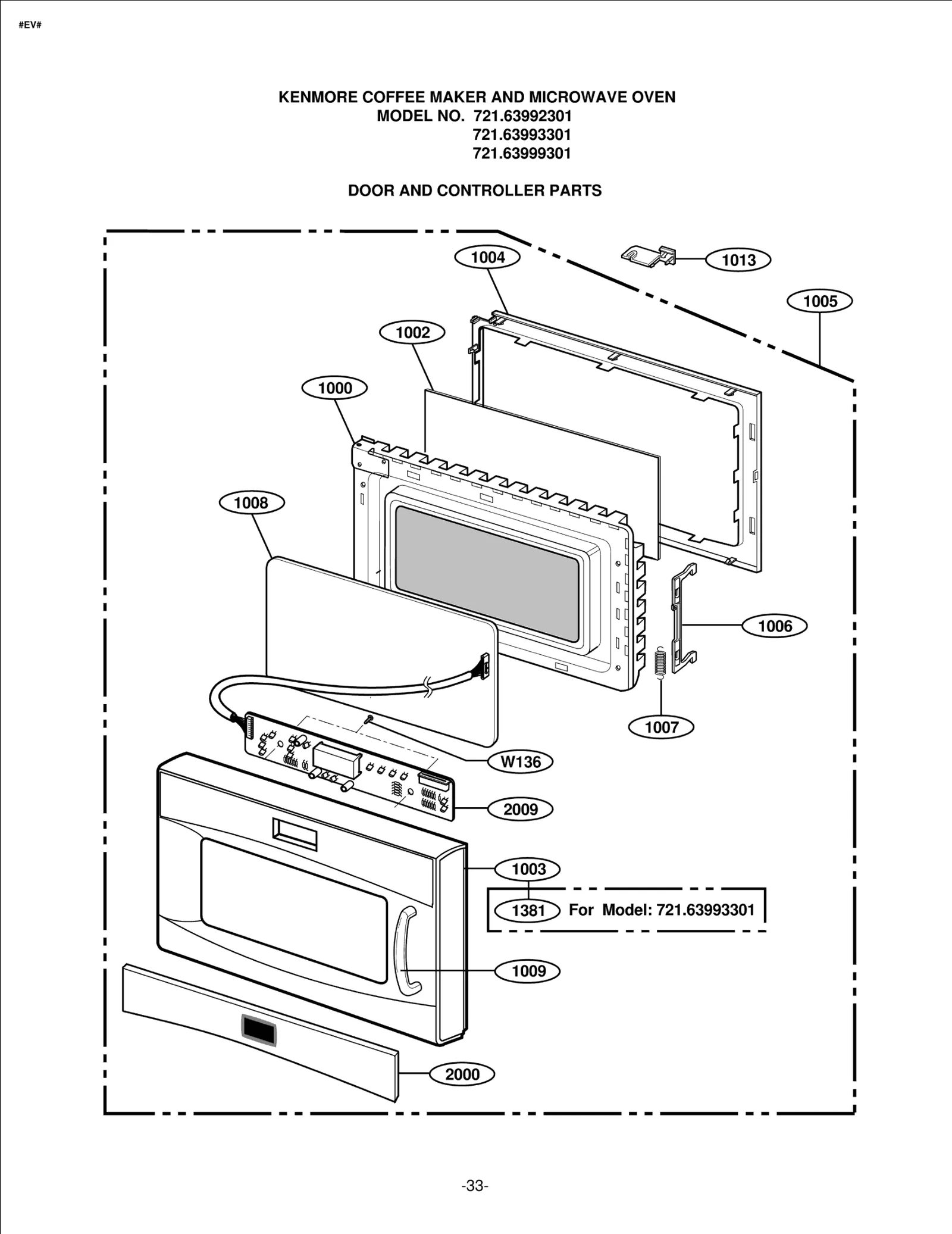

Diagram 0

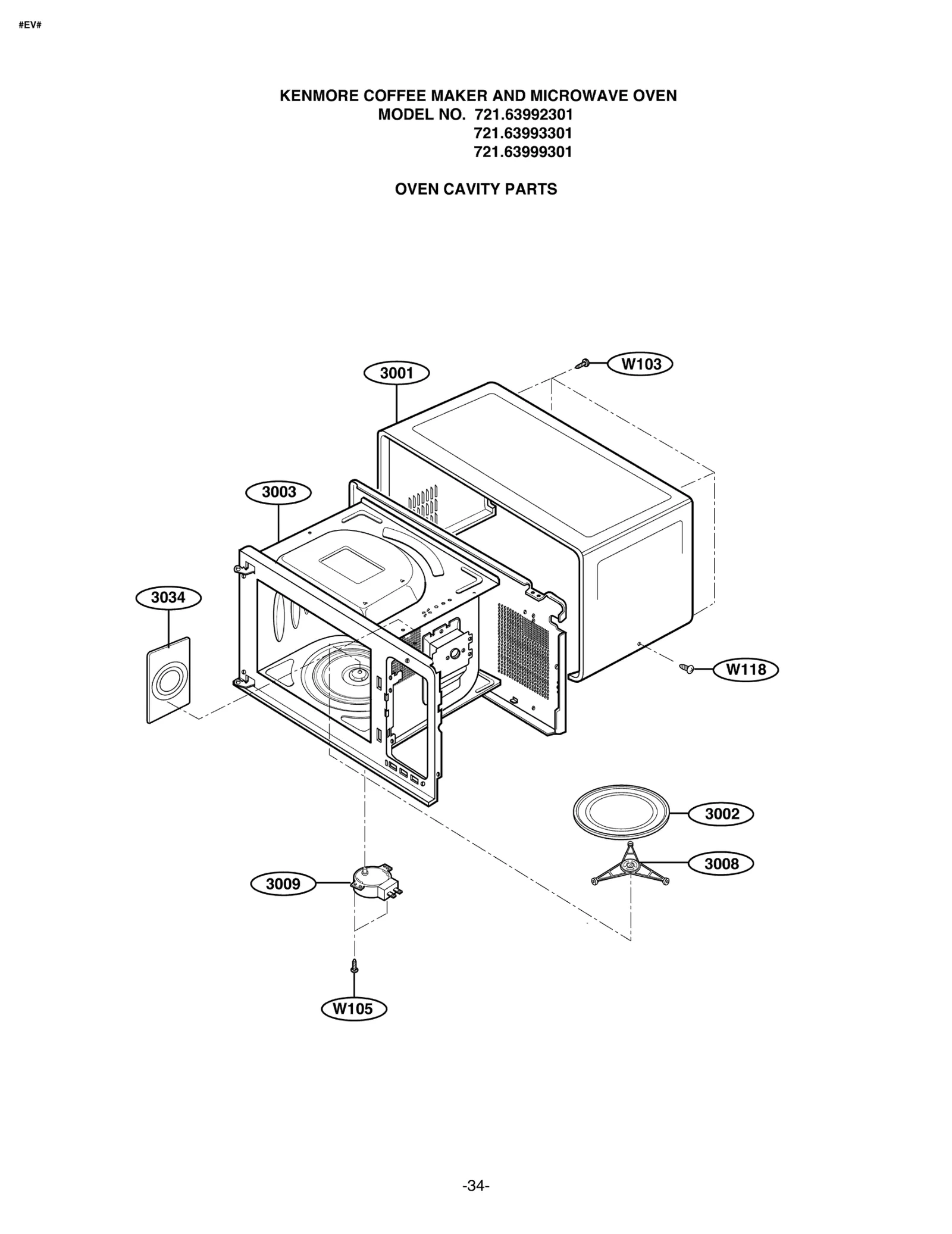

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Common parts from model LG 63992
*01
MANUAL,OWNERS LGE 3828W5A3602 Contact Us For Availability
*02
MANUAL,SERVICE LGE 3828W5S3407 Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W1D063L Contact Us For Availability
*07
CARD,TECHNICAL LGE 3840W5T124C Contact Us For Availability
*10
LGE 3890W3L022D LGE 3890W3L022D Contact Us For Availability
2006
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S313A Contact Us For Availability
3003
CAVITY ASSEMBLY LGE 3461W1A084F Contact Us For Availability
3007
INSULATOR LGE 5012W3A020A Contact Us For Availability
3008
ROTATING RING ASSEMBLY LGE 5889W1A003A Contact Us For Availability
3009
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S011C Contact Us For Availability
3029
BRACKET,MOUNT LGE 4810W1A212B Contact Us For Availability
3034
CANOPY,RESIN LGE 3052W1A005A Contact Us For Availability
4000
BOARD,LATCH LGE 3500W0A005A Contact Us For Availability
4001
BOARD ASSEMBLY,LATCH LGE 3501W1A016R Contact Us For Availability
4002
SWITCH,MICRO LGE 6600W1K004C Contact Us For Availability
4003
SWITCH,MICRO LGE 6600W1K004B Contact Us For Availability
5002
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
5003
GUIDE,SUCTION LGE 4974W0A011A Contact Us For Availability
5004
DUCT LGE 5208W1A026A Contact Us For Availability
5005
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
5006
DUCT LGE 5208W1A027A Contact Us For Availability
5007
PROPELLER LGE 2B72125A Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D023U Contact Us For Availability
5012
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
5014
HARNESS LGE 6877W1A494E Contact Us For Availability
5019
HARNESS LGE 6877W1A494B Contact Us For Availability
6000
BASE PLATE LGE 3302W0A049B Contact Us For Availability
6001
BASE PLATE ASSEMBLY LGE 3303W0A027B Contact Us For Availability
6002
LEG LGE 4B73900A Contact Us For Availability
6012
CAP,PROTECTOR LGE 5006W1A003B Contact Us For Availability
8000
COFFEE MAKER ASSEMBLY LGE 3496W0A001E Contact Us For Availability
8002
CASE,LOWER LGE 3110W0A012A Contact Us For Availability
8003
CASE ASSEMBLY LGE 3111W1A027A Contact Us For Availability
8005
PIPE LGE 5200W1A005A Contact Us For Availability
8007
SPRING LGE 4970W1A016A Contact Us For Availability
8009
TANK ASSEMBLY,WATER LGE 4839W1A001A Contact Us For Availability
8010
TANK,WATER LGE 4838W1A001A Contact Us For Availability
8011
PANEL,EXTRA LGE 3720W1E035A Contact Us For Availability
8012
HANDLE,DOOR LGE 3650W1A128A Contact Us For Availability
8013
VALVE LGE 5220W1A003A Contact Us For Availability
8015
PACKING,SEAL LGE 3920W1A012A Contact Us For Availability
8016
PACKING,SEAL LGE 3920W1A011A Contact Us For Availability
8018
COVER ASSEMBLY,TOP COVER LGE 3551W1A029A Contact Us For Availability
8019
COVER,INNER LGE 3550W0A100A Contact Us For Availability
8020
LEVER LGE 4510W1A014A Contact Us For Availability
8022
HARNESS LGE 3B72342Z Contact Us For Availability
8023
HEATER,SHEATH LGE 5300W1S018B Contact Us For Availability
8025
BRACKET,MOUNT LGE 4810W1A211A Contact Us For Availability
8026
THERMOSTAT LGE 6930W1A001N Contact Us For Availability
8027
SUPPORTER LGE 4980W1A082A Contact Us For Availability
8028
CANOPY,MICA LGE 3052W1M010A Contact Us For Availability
8029
LGE 3495W1A001A LGE 3495W1A001A Contact Us For Availability
8031
COVER,TOP LGE 3550W1A231A Contact Us For Availability
8381
PIPE ASSY LGE 383EW5A160A Contact Us For Availability
8382
CARAFE ASSEMBLY LGE 383EW5A162A Contact Us For Availability
8383
WARMING PLATE ASSY LGE 383EW5A161A Contact Us For Availability
AR1
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
AR2
RESISTOR ARRAY LGE 0RZ4702G610 Contact Us For Availability
C02
CAPACITOR ELECTROLYTIC LGE 0CE2276K618 Contact Us For Availability
C03
CAPACITOR ELECTROLYTIC 470UF S LGE 0CE4776J618 Contact Us For Availability
C06
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C10
CHIP CAPA CERAMIC M/L H.D F/S LGE 0CH1104K946 Contact Us For Availability
C15
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
C16
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C65
CAPACITOR CHIP[CERAMIC M/L HD LGE 0CH1223K566 Contact Us For Availability
C82
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
C92
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
CN7
HARNESS LGE 6631W3A006Y Contact Us For Availability
D10
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D11
DIODE,SWITCHING LGE 0DS414809AB Contact Us For Availability
D61
DIODE SWIT, 1N4148, MA-654MQ LGE 0DD414809AA Contact Us For Availability
D90
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
IC1
IC,SAMSUNG ELECTRONICS LGE 0ISS791500A Contact Us For Availability
J301
RESISTOR,CHIP LGE 0RH0000L622 Contact Us For Availability
L1
FILTER(CIRC),EMC LGE 6210JB8001A Contact Us For Availability
LW1
EARTH WIRE 1P/ MA-1554M MWEGS LGE 3B72342B Contact Us For Availability
Q20
LGE 0TR181509AB LGE 0TR181509AB Contact Us For Availability
Q30
TRANSISTOR (A1015 OR A1266)MA- LGE 0TR101509AB Contact Us For Availability
Q32
LGE 0TR105009AD LGE 0TR105009AD Contact Us For Availability
Q37
TRANSISTOR LGE 0TR105008CA Contact Us For Availability
Q50
TRANSISTOR LGE 0TR107009AC Contact Us For Availability
R02
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R03
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R11
LGE 0RH0102G632 LGE 0RH0102G632 Contact Us For Availability
R13
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R22
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R25
RESISTOR FIXED CARBON FILM LGE 0RD3901G608 Contact Us For Availability
R28
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R30
RESISTOR FIXED CARBON FILM /R LGE 0RD1000G608 Contact Us For Availability
R33
JUMP WIRE LGE 6854A50001A Contact Us For Availability
R35
Resistor,Carbon Film LGE 0RD3301F608 Contact Us For Availability
R36
LGE 0RD3301G608 LGE 0RD3301G608 Contact Us For Availability
R51
RESISTOR,METAL GLAZED(CHIP) LGE 0RH1000L622 Contact Us For Availability
R60
RESISTOR FIXED CARBON FILM MV- LGE 0RD4702G608 Contact Us For Availability
R61
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R62
Resistor,Chip LGE 0RH2003L422 Contact Us For Availability
R63
LGE 0RH1001L422 LGE 0RH1001L422 Contact Us For Availability
R67
LGE 0RH1072L422 LGE 0RH1072L422 Contact Us For Availability
R68
LGE 0RH1002L422 LGE 0RH1002L422 Contact Us For Availability
R71
RESISTOR FIXED CARBO LGE 0RD2004F608 Contact Us For Availability
R72
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R73
Resistor,Carbon Film LGE 0RD5103F608 Contact Us For Availability
R74
LGE 0RD2703F608 LGE 0RD2703F608 Contact Us For Availability
R75
Resistor,Carbon Film LGE 0RD1503F608 Contact Us For Availability
R92
RESISTOR FIXED CARBON FILM 22 LGE 0RD2202G608 Contact Us For Availability
R99
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R111
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R132
LGE 0RN2701G408 LGE 0RN2701G408 Contact Us For Availability
R141
LGE 0RD5600G608 LGE 0RD5600G608 Contact Us For Availability
RY1
RELAY OJ-SS-112LM MA-693M MA-6 LGE 6920W2D010A Contact Us For Availability
RY2
RELAY LGE 6920W5A009A Contact Us For Availability
RY3
RELAY LGE 6920W5A014A Contact Us For Availability
U01
IC,DRAWING LGE 0IZZW5A253B Contact Us For Availability
U02
IC KIA4558P(8DIP LIN OP-AMP/BI LGE 0IKE455800A Contact Us For Availability
W168
SCREW TAPPING,PAN HEAD LGE 1TPL0402432 Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE ZENER LGE 0DZ750009AC Contact Us For Availability
× ![]()
