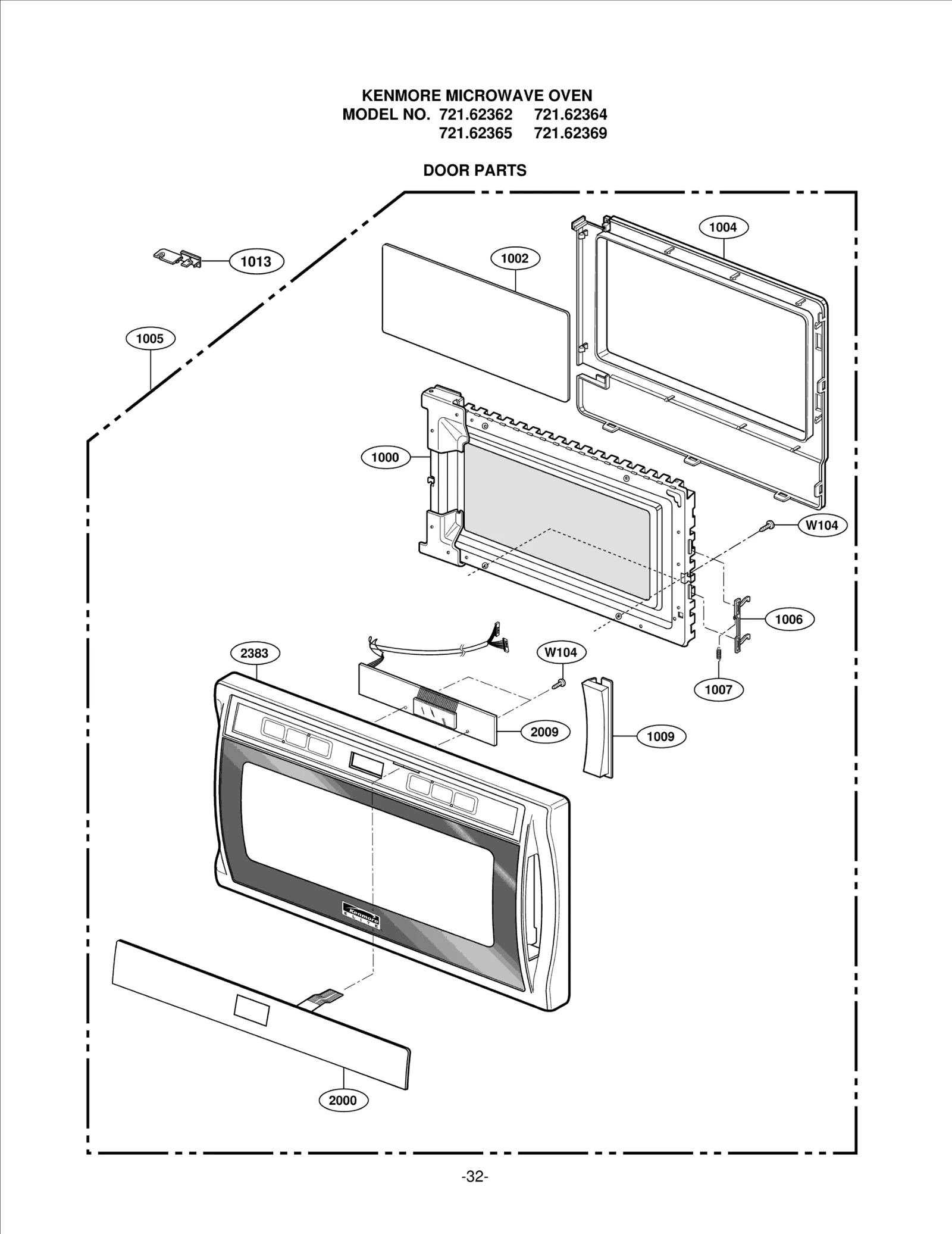

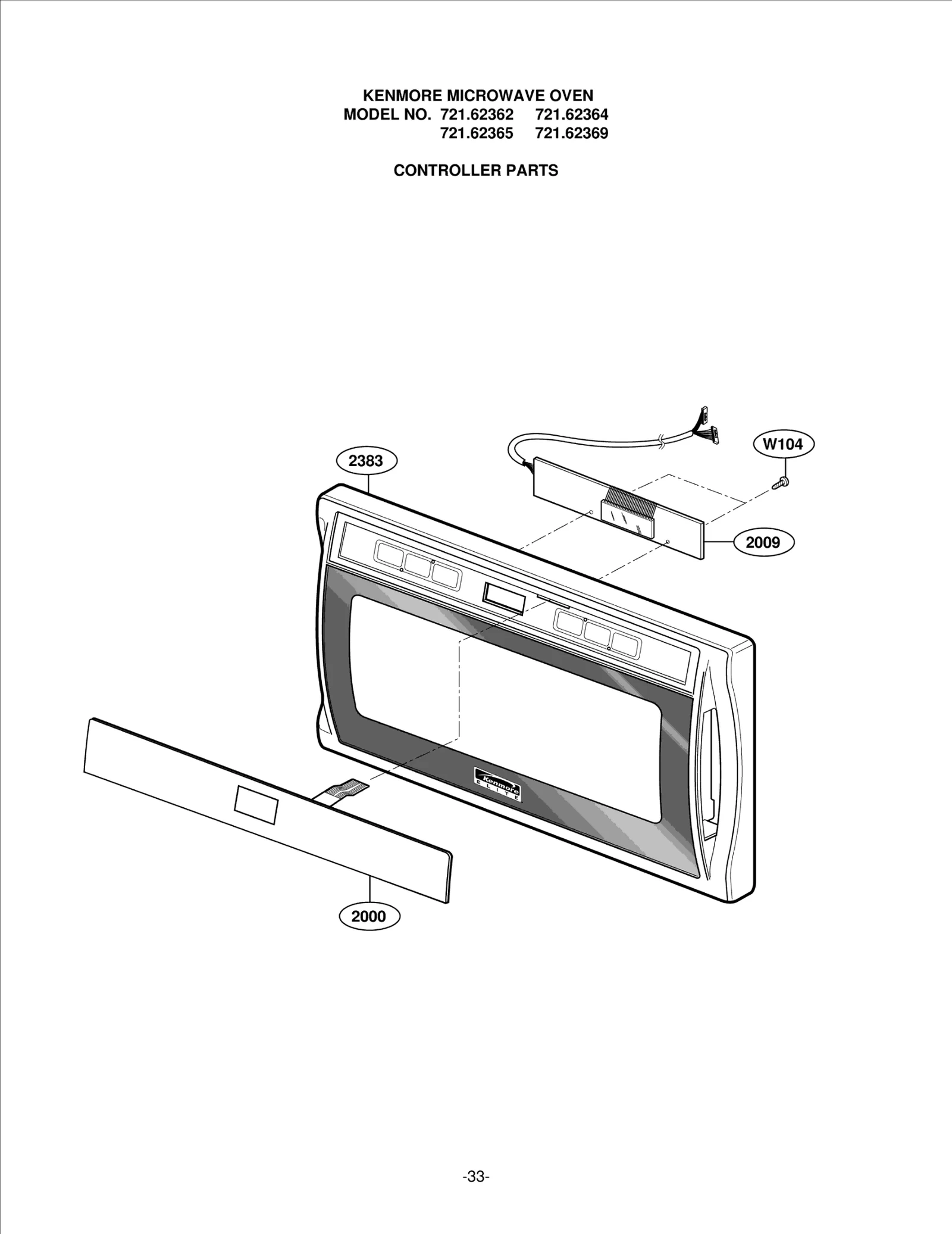

Model LG 62369 – Common Parts & Diagrams

1001
FRONT SCREEN
FRONT SCREEN LGE 3352W1A138A Contact Us For Availability
View on Model
1010
DECO,FRONT
DECO,FRONT LGE 3806W1A062A Contact Us For Availability
View on Model
2000
KEY MEMBRANE
KEY MEMBRANE LGE 3506W1A344A Contact Us For Availability
View on Model
2006
PWB(PCB) ASSEMBLY,SUB
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S145A Contact Us For Availability
View on Model
2009
PWB(PCB) ASSEMBLY,SUB
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S144A Contact Us For Availability
View on Model
2013
PWB(PCB) ASSEMBLY,SUB
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S019A Contact Us For Availability
View on Model
3001
Case,Flat
Case,Flat LGE 3112W0F020E Contact Us For Availability
View on Model
3003
CAVITY ASSEMBLY
CAVITY ASSEMBLY LGE 3461W0A051C Contact Us For Availability
View on Model
3008
ROTATING RING ASSEMBLY
ROTATING RING ASSEMBLY LGE 5889W1A003A Contact Us For Availability
View on Model
3009
MOTOR(CIRC),SYNCHRONOUS
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S015A Contact Us For Availability
View on Model
3021
GUIDE,AIR
GUIDE,AIR LGE 4974W0A006A Contact Us For Availability
View on Model
4000
BOARD,LATCH
BOARD,LATCH LGE 3500W0A002A Contact Us For Availability
View on Model
4001
BOARD ASSEMBLY,LATCH
BOARD ASSEMBLY,LATCH LGE 3501W1A030A Contact Us For Availability
View on Model
5003
GUIDE,SUCTION
GUIDE,SUCTION LGE 4974W1A014A Contact Us For Availability
View on Model
5004
BRACKET,SENSOR
BRACKET,SENSOR LGE 4810W1A079A Contact Us For Availability
View on Model
5007
PROPELLER
PROPELLER LGE 2B72125A Contact Us For Availability
View on Model
5009
MAGNETRON
MAGNETRON LGE 6324W1A002B Contact Us For Availability
View on Model
5010
POWER CORD
POWER CORD LGE 6411W1A027B Contact Us For Availability
View on Model
5010
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411W1A027A Contact Us For Availability
View on Model
5011
SENSOR ASSEMBLY
SENSOR ASSEMBLY LGE 6501W1A006E Contact Us For Availability
View on Model
5012
MOTOR(CIRC),FAN
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
View on Model
5015
LAMP,DRAWING
LAMP,DRAWING LGE 6912W3B002Q Contact Us For Availability
View on Model
5019
HARNESS
HARNESS LGE 6877W1A434A Contact Us For Availability
View on Model
5041
FILTER ASSEMBLY(CIRC)
FILTER ASSEMBLY(CIRC) LGE 6201W1A008F Contact Us For Availability
View on Model
5047
PCB SUPPORT DASS-9N MV-1120M W
PCB SUPPORT DASS-9N MV-1120M W LGE 4B73792B Contact Us For Availability
View on Model
5048
CABLE,HIGH VOLTAGE
CABLE,HIGH VOLTAGE LGE 6850W1A001B Contact Us For Availability
View on Model
5049
GUIDE,AIR
GUIDE,AIR LGE 4974W1A013A Contact Us For Availability
View on Model
6000
BASE PLATE
BASE PLATE LGE 3302W0A041A Contact Us For Availability
View on Model
6002
LEG
LEG LGE 4778W1A002A Contact Us For Availability
View on Model
7023
HARNESS
HARNESS LGE 6631W3A003Q Contact Us For Availability
View on Model
MBM2
Card,Technical
Card,Technical LGE 3840W1T007A Contact Us For Availability
View on Model
MEZ1
LABEL,COOKING GUIDE
LABEL,COOKING GUIDE LGE 3850W1D076A Contact Us For Availability
View on Model
MFL1
MANUAL,OWNERS
MANUAL,OWNERS LGE 3828W5A2791 Contact Us For Availability
View on Model
