Model LG 60WL30MS-D – Common Parts & Diagrams

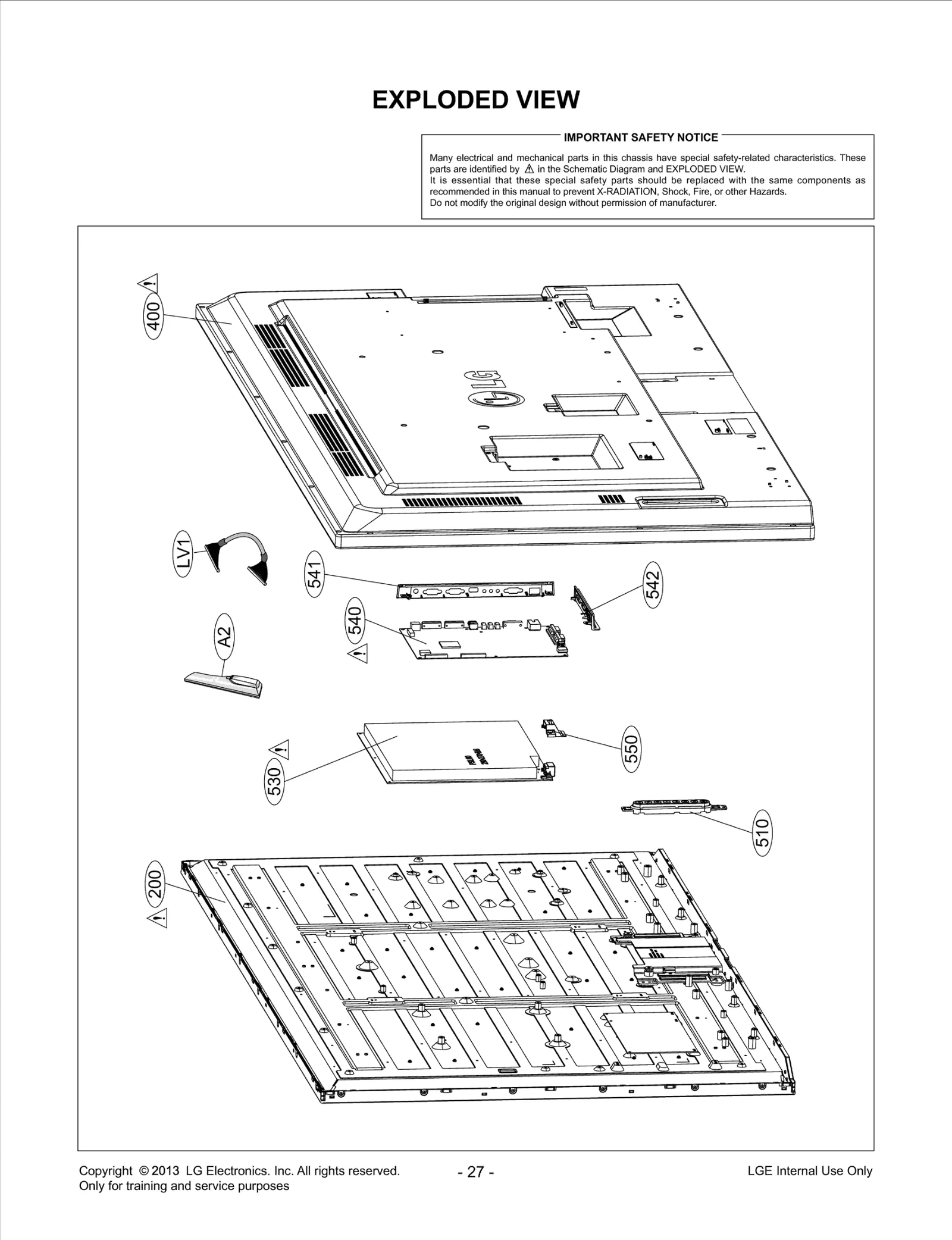

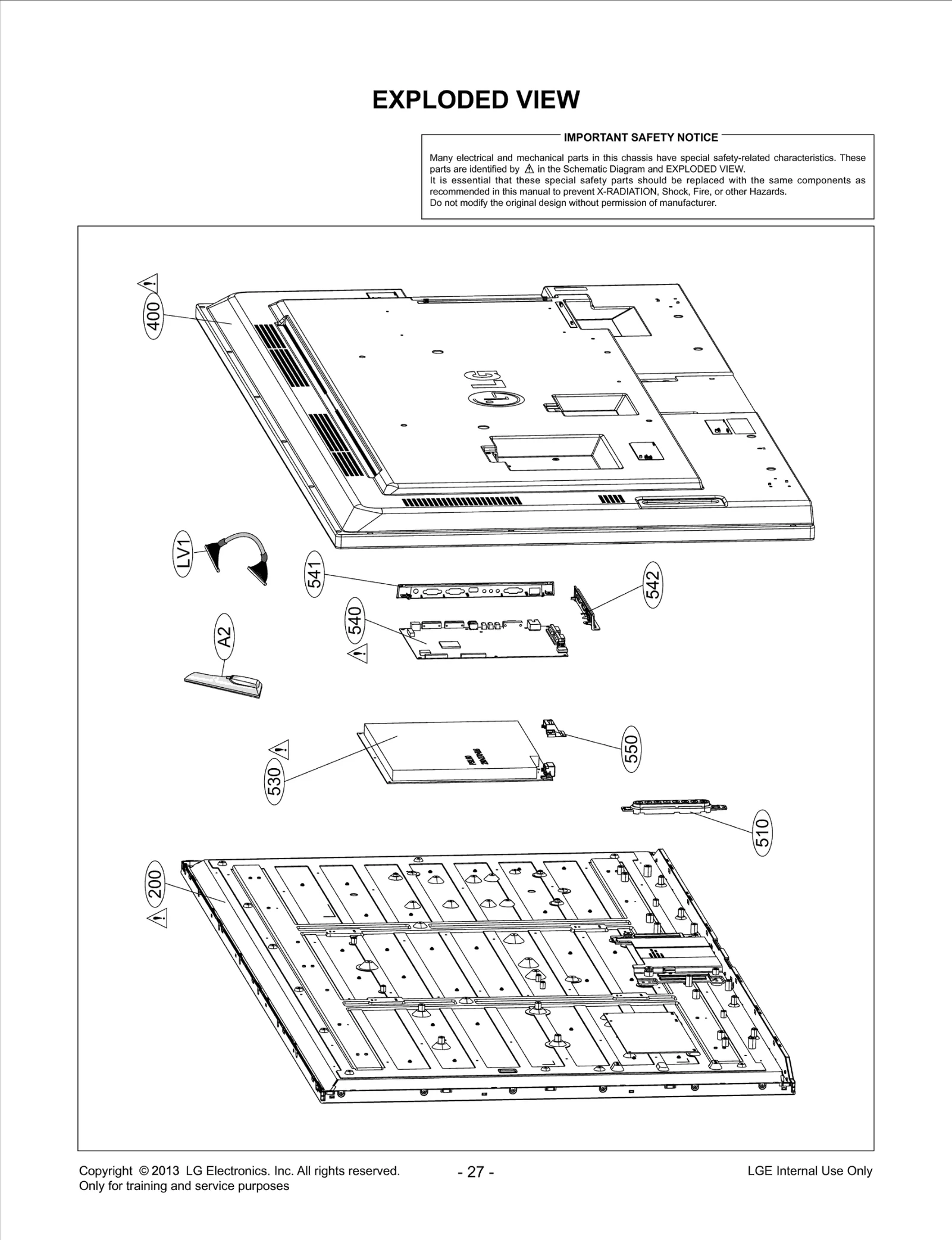

Diagram 0
Diagram 1
Common parts from model LG 60WL30MS-D
200
LCD,Module-TFT LGE EAJ62273301 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62330401 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86669001 Contact Us For Availability
530
Power Supply Assembly LGE EAY62851304 Contact Us For Availability
540
BPR Total Assembly LGE EBU62069701 Contact Us For Availability
542
Cover LGE MCK67636501 Contact Us For Availability
550
Bracket LGE MAZ63702301 Contact Us For Availability
A1
Title LGE SAC33111348 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73715642 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734003 Contact Us For Availability
AR2
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1219
Resistor,Array LGE EBC32260404 Contact Us For Availability
C16
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C17
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C60
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C208
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C390
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C395
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C520
Capacitor,Ceramic,Chip LGE EAE58165801 Contact Us For Availability
C542
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C546
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C552
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C553
Capacitor,Ceramic,Chip LGE EAE58746801 Contact Us For Availability
C554
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C608
Capacitor,Ceramic,Ch LGE EAE32479401 Contact Us For Availability
C701
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C706
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C709
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C720
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C733
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C809
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C845
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C847
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C901
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C917
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C1409
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
D6
Diode,Schottky LGE EAH60993301 Contact Us For Availability
D501
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D803
Diode,TVS LGE EAH61515001 Contact Us For Availability
D902
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D907
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D1002
Diode,TVS LGE EAH61714601 Contact Us For Availability
F501
Fuse,Time Delay LGE EAF61870002 Contact Us For Availability
IC1
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC3
S/W,Firmware LGE SAA36557808 Contact Us For Availability
IC4
Display SOC,Digital TV LGE EAN61856001 Contact Us For Availability
IC5
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC6
S/W,Firmware LGE SAA36558009 Contact Us For Availability
IC8
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC10
IC,Tx/Rx LGE EAN62582701 Contact Us For Availability
IC11
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC111
S/W,Firmware LGE SAA36410304 Contact Us For Availability
IC202
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
IC501
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC505
IC,Reset LGE EAN60670101 Contact Us For Availability
IC505
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC507
IC,DC,DC Converter LGE EAN62206101 Contact Us For Availability
IC508
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC601
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC602
IC,Timer LGE EAN62693501 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC804
IC,Analog Switch LGE EAN62227502 Contact Us For Availability
IC1006
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC1401
IC,Ethernet LGE EAN62219202 Contact Us For Availability
JK601
JACK,PHONE LGE 6612F00059C Contact Us For Availability
JK604
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK707
Connector,USB LGE EAG62571101 Contact Us For Availability
JK801
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK802
Connector,DSUB LGE 6630TGA005S Contact Us For Availability
JK902
Connector,DSUB LGE EAG63030203 Contact Us For Availability
JK903
Connector,DSUB LGE EAG62012201 Contact Us For Availability
JK1401
Jack,Modular LGE EAG62012402 Contact Us For Availability
L509
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L513
Inductor,Wire Wound,Chip LGE EAP62326501 Contact Us For Availability
L514
Inductor,Wire Wound,Chip LGE EAP32842803 Contact Us For Availability
L516
Filter,Bead LGE EAM58113401 Contact Us For Availability
L704
Inductor,Wire Wound,Chip LGE EAP62326601 Contact Us For Availability
L803
Filter,Bead LGE EAM32500903 Contact Us For Availability
L901
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD62046918 Contact Us For Availability
M601
Holder LGE MEG41035801 Contact Us For Availability
P2
Connector,Wafer LGE EAG58732906 Contact Us For Availability
P501
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P1301
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P1302
Connector,Wafer LGE 6630V93270K Contact Us For Availability
Q6
FET LGE EBK42767801 Contact Us For Availability
Q502
FET LGE EBK60752601 Contact Us For Availability
Q503
TR,Bipolar LGE EBK61012501 Contact Us For Availability
Q905
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q1401
FET LGE EBK60752501 Contact Us For Availability
R11
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R12
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R17
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R42
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R75
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R89
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R135
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R151
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R186
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R188
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R192
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R195
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R226
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R227
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R242
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R256
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R263
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R273
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R279
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R319
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R342
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R345
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R352
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R356
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R377
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R385
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R387
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R523
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R528
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R531
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R533
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R539
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R541
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R542
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R547
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R550
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R551
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R555
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R608
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R630
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R724
Resistor,Chip LGE EBC32174501 Contact Us For Availability
R728
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R811
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R815
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R824
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R826
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R830
Resistor,Chip LGE EBC32476501 Contact Us For Availability
R836
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R927
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R928
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R929
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R943
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R949
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R1207
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
S1
USB Memory Stick LGE EAN62701501 Contact Us For Availability
S2
Harness,Single LGE EAD62094508 Contact Us For Availability
S3
Harness,Single LGE EAD60958303 Contact Us For Availability
S4
Heat Sink LGE 4920900013B Contact Us For Availability
S5
Harness,Single LGE EAD60732913 Contact Us For Availability
S6
Cable,FFC LGE EAD62047008 Contact Us For Availability
S7
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
SW1
Switch,Tact LGE EBF55334201 Contact Us For Availability
VA602
Varistor LGE EAF61530201 Contact Us For Availability
VA905
Varistor LGE EAF61530301 Contact Us For Availability
X2
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
X1401
Crystal LGE 6212AB2872B Contact Us For Availability
X1402
Crystal LGE EAW58239602 Contact Us For Availability
× ![]()
