Model LG 60UF7300 – Common Parts & Diagrams

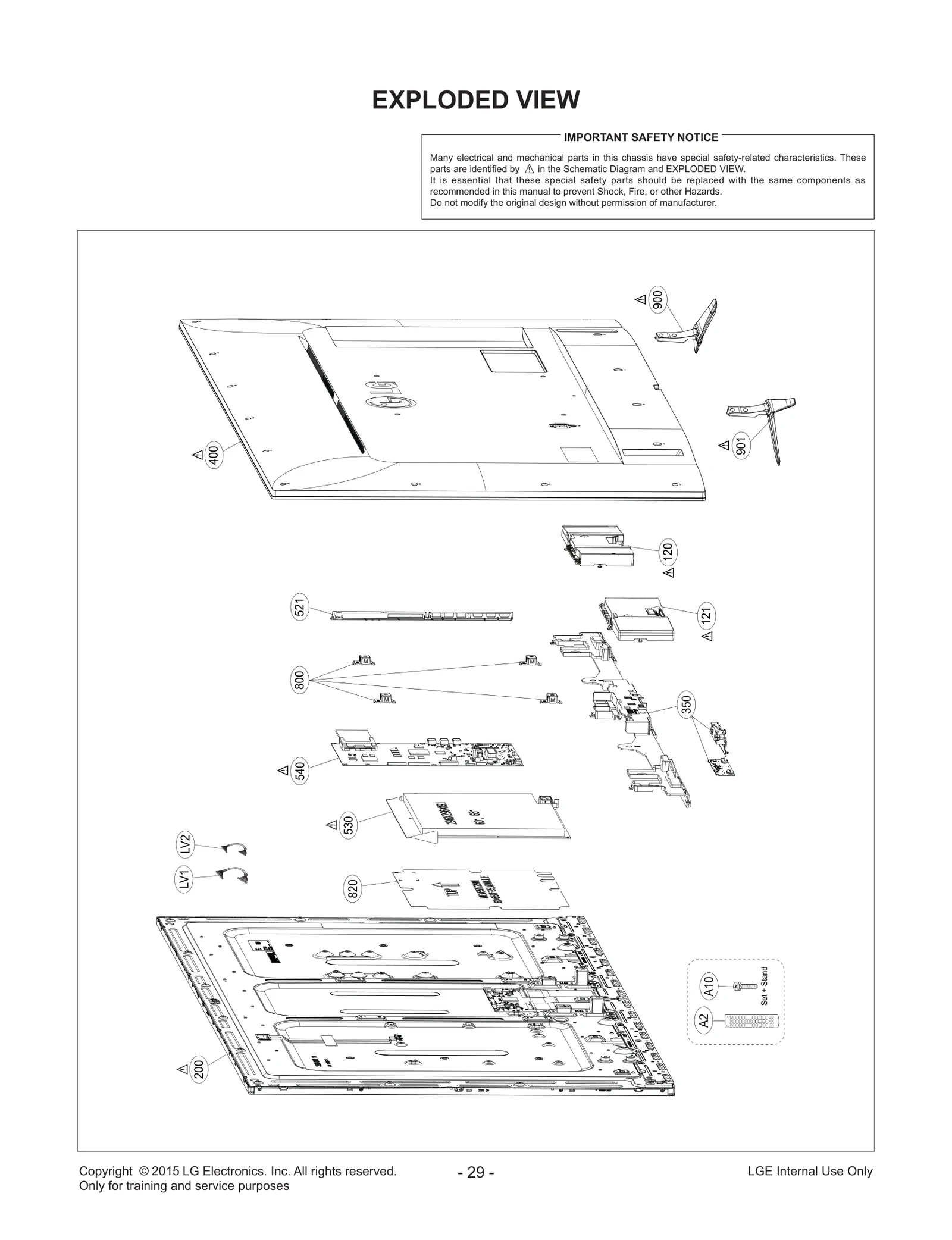

Diagram 0
Diagram 1
Common parts from model LG 60UF7300
2
Screw,Machine LGE FAB31843211 Contact Us For Availability
121
Speaker Assembly LGE EAB63688304 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63110301 Contact Us For Availability
350
Bracket Assembly LGE ABA75229515 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87719739 Contact Us For Availability
521
Bracket LGE MAZ64584412 Contact Us For Availability
800
Supporter LGE MJH63133501 Contact Us For Availability
820
Insulator LGE MEV65172902 Contact Us For Availability
AM
Manual Assembly LGE AFN76832136 Contact Us For Availability
AM1
Manual,Owners LGE MFL68741506 Contact Us For Availability
AR3000
Resistor,Array LGE EBC62582702 Contact Us For Availability
AR3307
Resistor,Chip LGE EBC62798406 Contact Us For Availability
AR4102
Resistor,Array LGE EBC62582706 Contact Us For Availability
AR6500
Resistor,Array LGE EBC62582701 Contact Us For Availability
AR7101
Resistor,Array LGE EBC62582704 Contact Us For Availability
AR8102
Resistor,Array LGE EBC32260501 Contact Us For Availability
AR8104
Resistor,Array LGE EBC32260401 Contact Us For Availability
AR13006
Resistor,Array LGE EBC39283301 Contact Us For Availability
B1
Box LGE MAY67375201 Contact Us For Availability
C108
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C320
Capacitor,Ceramic,Ch LGE EAE30281901 Contact Us For Availability
C474
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C602
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C609
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C2301
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2313
Capacitor,Ceramic,Chip LGE EAE58044701 Contact Us For Availability
C2333
Capacitor,TA,Polymer LGE EAE62987401 Contact Us For Availability
C2346
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C2357
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C3002
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C3811
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C3816
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C4105
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5804
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C5816
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5819
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C5824
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C6106
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C6708
Capacitor,Ceramic,Chip LGE 0CK102EY48A Contact Us For Availability
C13009
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C13404
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C13443
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C13446
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C13451
Tantal Capacitor,Polymer LGE 0CZZB00084B Contact Us For Availability
C14860
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
CA1
Harness,Single LGE EAD62732506 Contact Us For Availability
CA2
Harness,Multi LGE EAD62847614 Contact Us For Availability
CA3
Harness,Multi LGE EAD63305303 Contact Us For Availability
D3000
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3305
Diode,Switching LGE EAH61714301 Contact Us For Availability
D4300
Diode,TVS LGE EAH61515101 Contact Us For Availability
D4305
Diode,TVS LGE EAH61232601 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN63027603 Contact Us For Availability
IC201
IC,Analog Switch LGE EAN62658501 Contact Us For Availability
IC403
IC,DDR3 SDRAM LGE EAN63391401 Contact Us For Availability
IC2301
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC2303
IC,DC,DC Converter LGE EAN63530101 Contact Us For Availability
IC2305
IC,DC,DC Converter LGE EAN62911501 Contact Us For Availability
IC2307
IC,Voltage Detector LGE EAN61829902 Contact Us For Availability
IC2309
FET LGE EBK61313102 Contact Us For Availability
IC2501
IC,DC,DC Converter LGE EAN62653301 Contact Us For Availability
IC2502
IC,DC,DC Converter LGE EAN62788601 Contact Us For Availability
IC4100
IC,Analog Switch LGE EAN63047601 Contact Us For Availability
IC4300
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC5800
IC,Audio Amplifier LGE EAN62886102 Contact Us For Availability
IC6100
IC,Audio Amplifier LGE EAN62668301 Contact Us For Availability
IC13000
IC,LDO Voltage Regulator LGE EAN63492401 Contact Us For Availability
IC13001
IC,DDR3 SDRAM LGE EAN63370001 Contact Us For Availability
IC13200
IC,Serial Flash Memory LGE EAN62459501 Contact Us For Availability
IC13402
IC,DC,DC Converter LGE EAN62870301 Contact Us For Availability
JK3800
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK4301
Connector,USB LGE EAG63374203 Contact Us For Availability
JK4302
Connector,USB LGE EAG62571101 Contact Us For Availability
JK5000
Jack,Modular LGE EAG35781015 Contact Us For Availability
L2306
Inductor,Wire Wound,Chip LGE EAP63025901 Contact Us For Availability
L2308
Filter,Bead LGE EAM38769505 Contact Us For Availability
L2309
Filter,Bead LGE EAM61130602 Contact Us For Availability
L2313
Inductor,Wire Wound,Chip LGE EAP62506410 Contact Us For Availability
L5804
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L7201
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L13403
Inductor,Wire Wound,Chip LGE EAP62506413 Contact Us For Availability
M4113
Gasket LGE MDS62110225 Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T12004C Contact Us For Availability
P4100
Connector,Wafer LGE EAG63590901 Contact Us For Availability
P7200
Connector,FFC/FPC/PIC LGE EAG64329802 Contact Us For Availability
P7203
Connector,Wafer LGE 6630VK19605 Contact Us For Availability
Q3301
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q7101
FET LGE EBK62072501 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R137
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R168
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R184
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R186
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R413
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R611
Resistor,Chip LGE EBC35273701 Contact Us For Availability
R631
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R2302
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R2305
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R2307
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R2308
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R2309
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R2320
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R2336
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2342
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R2351
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R2511
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R2512
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
R2515
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R2516
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R2520
Resistor,Chip LGE 0RJ1601C478 Contact Us For Availability
R2521
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R2522
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R3034
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R3301
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R3310
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R3800
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R3808
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R4107
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R4303
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R4305
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R4306
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R5810
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R6516
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R12804
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
R13017
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R13254
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R13268
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R13400
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R13401
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R13403
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R13405
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R13406
Resistor,Chip LGE EBC34656201 Contact Us For Availability
R13407
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R13409
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R13411
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R13413
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R13414
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R13422
Resistor,Chip LGE 0RJ3601C478 Contact Us For Availability
SW3000
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TU6705
Tuner,Analog/Digital LGE EBL61540001 Contact Us For Availability
VA3307
Varistor LGE EAF61530301 Contact Us For Availability
VA3803
Varistor LGE EAF61530101 Contact Us For Availability
VA3805
Varistor LGE EAF61630101 Contact Us For Availability
VA5000
Varistor LGE EAF61530201 Contact Us For Availability
X600
Crystal LGE EAW61645502 Contact Us For Availability
X3000
Crystal LGE EAW30067102 Contact Us For Availability
ZD13400
Diode,TVS LGE EAH62134701 Contact Us For Availability
× ![]()
