Model LG 60PZ550 – Common Parts & Diagrams

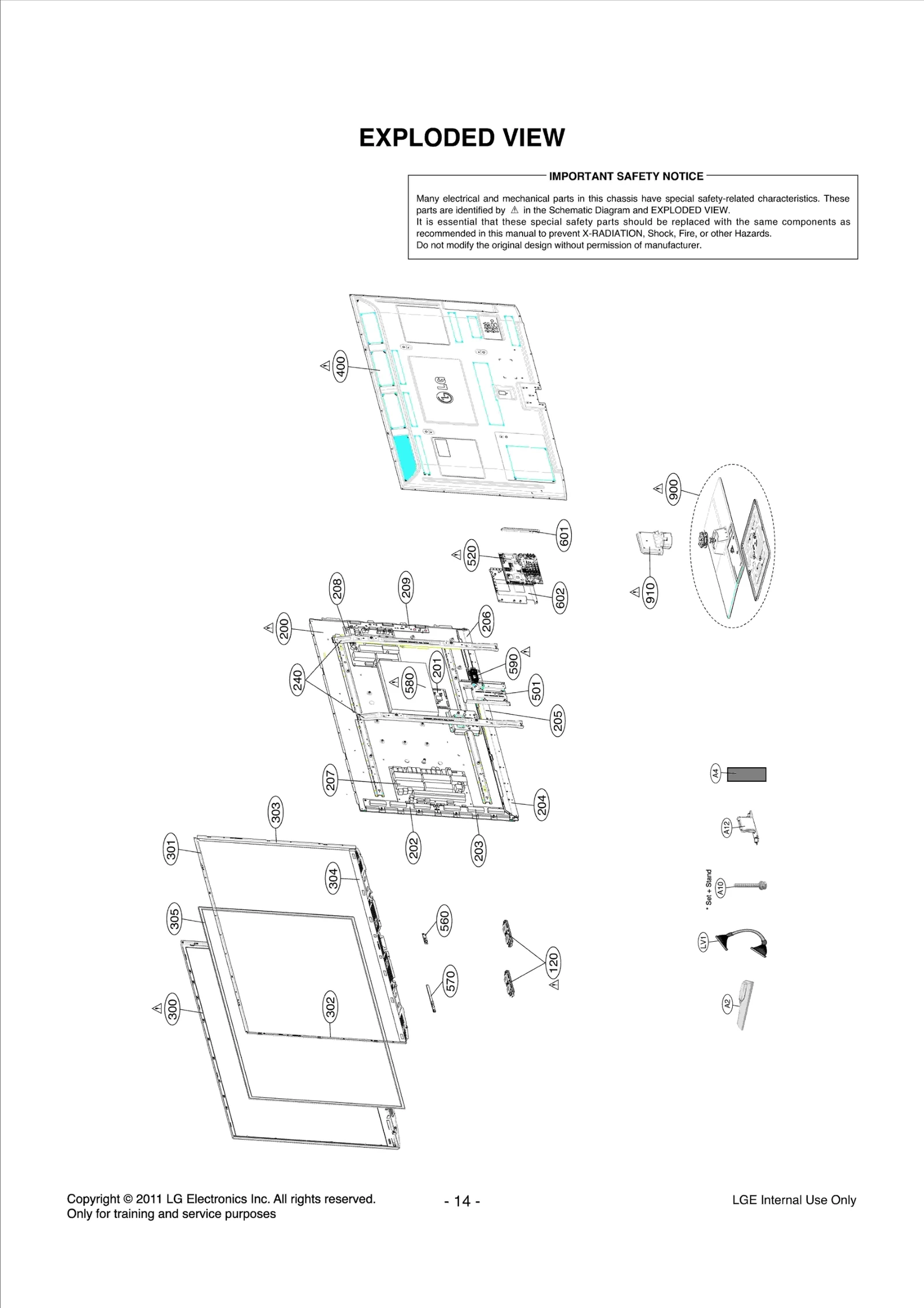

Diagram 0
Diagram 1
Common parts from model LG 60PZ550
200
PDP,Module-FullHD LGE EAJ61528006 Contact Us For Availability
201
Hand Insert PCB Assembly LGE EBR67818201 Contact Us For Availability
203
Hand Insert PCB Assembly LGE EBR71849401 Contact Us For Availability
204
Hand Insert PCB Assembly LGE EBR71726101 Contact Us For Availability
205
Hand Insert PCB Assembly LGE EBR71726401 Contact Us For Availability
206
Hand Insert PCB Assembly LGE EBR71726501 Contact Us For Availability
208
Hand Insert PCB Assembly LGE EBR67820001 Contact Us For Availability
209
Hand Insert PCB Assembly LGE EBR67820301 Contact Us For Availability
240
Supporter Assembly LGE AJJ73259305 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73307517 Contact Us For Availability
301
Supporter Assembly LGE AJJ73259005 Contact Us For Availability
302
Supporter Assembly LGE AJJ73278505 Contact Us For Availability
303
Supporter Assembly LGE AJJ73259205 Contact Us For Availability
304
Supporter Assembly LGE AJJ73259105 Contact Us For Availability
305
Filter LGE MDJ63005405 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83869539 Contact Us For Availability
501
Supporter Assembly LGE AJJ73259402 Contact Us For Availability
520
DMS Chassis Assembly LGE EBT61533403 Contact Us For Availability
560
PCB Assembly,RF LGE EBR72499601 Contact Us For Availability
570
PCB Assembly,Sub LGE EBR72650101 Contact Us For Availability
590
Filter,AC Line LGE EAM62090701 Contact Us For Availability
601
Bracket Assembly LGE ABA73488709 Contact Us For Availability
602
Plate,Shield LGE MGJ62764403 Contact Us For Availability
604
Plate,Shield LGE MGJ62912001 Contact Us For Availability
900
Base Assembly LGE AAN73509009 Contact Us For Availability
910
Supporter LGE MJH62537701 Contact Us For Availability
A1
Manual,Owners LGE MFL62882751 Contact Us For Availability
A4
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A12
Cover LGE MCK66009602 Contact Us For Availability
AR309
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR609
Resistor,Array LGE EBC37094001 Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C107
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C129
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C221
Capacitor,Ceramic,Chip LGE 0CH2682K516 Contact Us For Availability
C313
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C314
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C318
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C322
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C326
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C337
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C472
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C477
Capacitor,Ceramic,Chip LGE 0CK821CK56A Contact Us For Availability
C485
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C623
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
C633
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C646
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C651
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C668
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C672
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C687
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C724
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C730
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C900
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C908
Capacitor,Ceramic,Chip LGE EAE60685701 Contact Us For Availability
C930
Capacitor,Ceramic,Chip LGE EAE60685801 Contact Us For Availability
C942
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C971
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C1002
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C1124
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1301
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C1302
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C1408
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1421
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1431
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1821
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
CA1
Harness,Single LGE EAD43532606 Contact Us For Availability
CA3
Harness,Single LGE EAD61646702 Contact Us For Availability
CA4
Harness,Single LGE EAD60958308 Contact Us For Availability
CA5
Harness,Single LGE EAD60958414 Contact Us For Availability
CA6
Harness,Single LGE EAD61649308 Contact Us For Availability
CA7
Harness,Single LGE EAD61646202 Contact Us For Availability
D44
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
D45
Diode,TVS LGE EAH33945901 Contact Us For Availability
D122
Diode,TVS LGE EAH60667401 Contact Us For Availability
D200
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D400
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
D1109
Diode,TVS LGE EAH42720601 Contact Us For Availability
IC101
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC101
IC,EEPROM LGE 0IMMRAL014E Contact Us For Availability
IC200
IC,Analog Switch LGE EAN60992401 Contact Us For Availability
IC201
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC300
IC,Audio Amplifier LGE EAN60354701 Contact Us For Availability
IC402
IC,DC,DC Converter LGE EAN60660601 Contact Us For Availability
IC403
IC,LDO Voltage Regul LGE 0IPMG78346A Contact Us For Availability
IC405
IC,DC,DC Converter LGE EAN61548102 Contact Us For Availability
IC406
IC,POWER MANAGEMENT LGE 0IPMG00048A Contact Us For Availability
IC501
Display SOC,Digital TV LGE EAN60345909 Contact Us For Availability
IC606
IC,DDR2 SDRAM LGE EAN61129702 Contact Us For Availability
IC606
IC,DDR2 SDRAM LGE EAN60992101 Contact Us For Availability
IC700
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC701
IC,Microcontrollers LGE EAN61367101 Contact Us For Availability
IC704
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC705
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC707
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC1101
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC1400
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
IC1500
Display SOC,Digital TV LGE EAN61853901 Contact Us For Availability
IC1502
IC,Serial Flash Memory LGE EAN60915401 Contact Us For Availability
IC1700
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC1702
IC,DDR2 SDRAM LGE EAN61850501 Contact Us For Availability
JK100
Jack,RCA LGE EAG61007801 Contact Us For Availability
JK101
Jack,RCA LGE EAG61007601 Contact Us For Availability
JK103
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK104
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK105
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK203
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK701
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1101
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1300
Connector,I/O LGE EAG61008301 Contact Us For Availability
L404
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L416
Filter,Bead LGE EAM58113401 Contact Us For Availability
L418
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L420
Filter,Bead LGE EAM38769505 Contact Us For Availability
L707
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L907
Inductor,Wire Wound, LGE EAP37991401 Contact Us For Availability
L1712
Filter,Bead LGE EAM32500903 Contact Us For Availability
LV1
Cable,FFC LGE EAD61668703 Contact Us For Availability
M1
Gasket LGE MDS62110205 Contact Us For Availability
P300
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P400
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P700
Connector,Wafer LGE 6602T12004L Contact Us For Availability
P710
Connector,Wafer LGE 6630V90141D Contact Us For Availability
P900
Connector,Wafer LGE 6630V90209C Contact Us For Availability
P1001
Connector,Wafer LGE 6630V90141H Contact Us For Availability
P1500
Connector,FFC/FPC/PIC LGE EAG61008602 Contact Us For Availability
Q101
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q200
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1300
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q1301
FET LGE EBK60752501 Contact Us For Availability
R135
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R146
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R151
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R152
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R155
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ8202D677 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R321
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R330
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R348
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R404
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R426
Resistor,Chip LGE EBC32306001 Contact Us For Availability
R427
RESISTOR,METAL GLAZE LGE 0RJ0662D477 Contact Us For Availability
R428
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R430
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R431
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R442
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R455
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R458
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R459
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R462
Resistor,Chip LGE EBC42649901 Contact Us For Availability
R466
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R539
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R558
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R568
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R596
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R599
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R613
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R614
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R621
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R711
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R727
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R738
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R749
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R811
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R817
RESISTOR,METAL GLAZE LGE 0RJ0822D477 Contact Us For Availability
R820
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R821
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R828
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R829
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R830
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R911
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R912
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R913
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R976
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1303
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R1403
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R1414
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R1438
Resistor,Chip LGE 0RH2000D422 Contact Us For Availability
R1445
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R1504
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1639
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R1648
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R1653
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R1659
Resistor,Chip LGE EBC32176601 Contact Us For Availability
R1694
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1704
RESISTOR,METAL GLAZE LGE 0RJ9101C478 Contact Us For Availability
R1707
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R1708
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R1710
Resistor,Chip LGE EBC35172101 Contact Us For Availability
R1715
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
TU1400
Tuner,Analog/Digital LGE EBL60720401 Contact Us For Availability
X701
Crystal LGE EAW58239602 Contact Us For Availability
X900
Crystal LGE 6212AA2600E Contact Us For Availability
X1500
Crystal LGE 6212AB2015L Contact Us For Availability
× ![]()
Login and Registration Form
