Model LG 60PV400 – Common Parts & Diagrams

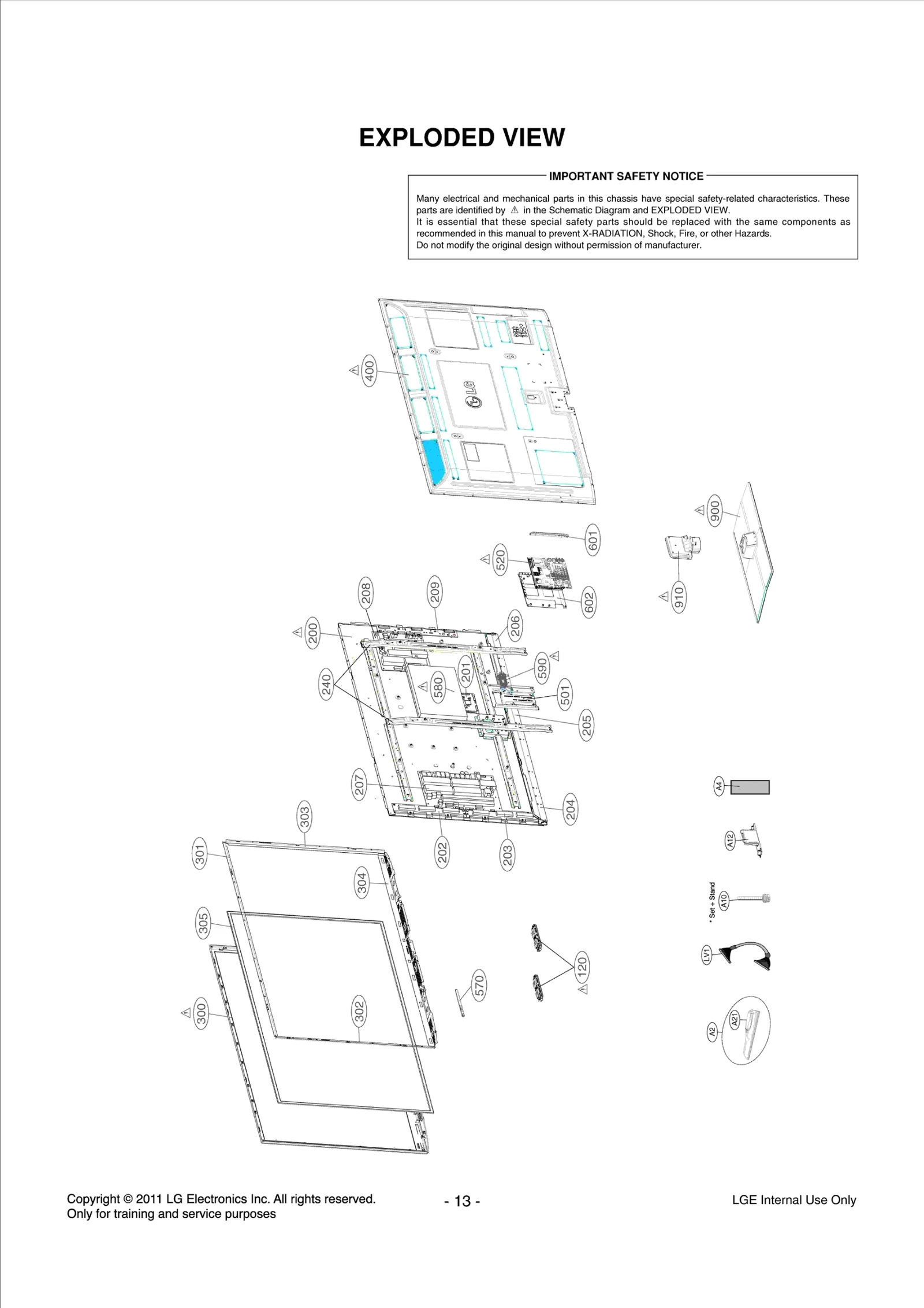

Diagram 0
Diagram 1
Common parts from model LG 60PV400
120
Speaker,Full Range LGE EAB62028901 Contact Us For Availability
200
PDP,Module-FullHD LGE EAJ61528021 Contact Us For Availability
201
Hand Insert PCB Assembly LGE EBR73837101 Contact Us For Availability
202
Hand Insert PCB Assembly LGE EBR73560801 Contact Us For Availability
204
Hand Insert PCB Assembly LGE EBR73531701 Contact Us For Availability
206
Hand Insert PCB Assembly LGE EBR73531901 Contact Us For Availability
209
Hand Insert PCB Assembly LGE EBR73562301 Contact Us For Availability
240
Supporter Assembly LGE AJJ73259305 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73388905 Contact Us For Availability
301
Supporter Assembly LGE AJJ73259005 Contact Us For Availability
302
Supporter Assembly LGE AJJ73278505 Contact Us For Availability
303
Supporter Assembly LGE AJJ73259205 Contact Us For Availability
304
Supporter Assembly LGE AJJ73259105 Contact Us For Availability
305
Filter LGE MDJ63105704 Contact Us For Availability
305
Filter LGE MDJ63005405 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83869524 Contact Us For Availability
501
Supporter Assembly LGE AJJ73259402 Contact Us For Availability
570
PCB Assembly,Sub LGE EBR72650101 Contact Us For Availability
570
PCB Assembly,Sub LGE EBR72650102 Contact Us For Availability
590
Filter,AC Line LGE EAM62090701 Contact Us For Availability
601
Bracket Assembly LGE ABA73488816 Contact Us For Availability
900
Base Assembly LGE AAN73509009 Contact Us For Availability
910
Supporter LGE MJH62255802 Contact Us For Availability
A1
Manual,Owners LGE MFL62861007 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915235 Contact Us For Availability
A4
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A12
Cover LGE MCK66009602 Contact Us For Availability
A14
Filter,Ferrite Core LGE EAM62154801 Contact Us For Availability
A21
Cover,Rear LGE MCK62976001 Contact Us For Availability
AR202
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR402
Resistor,Array LGE 0RR0472T621 Contact Us For Availability
C24
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C32
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C33
Capacitor,Ceramic,Chip LGE EAE38454201 Contact Us For Availability
C40
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C108
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C312
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C330
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C355
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C402
Capacitor,Ceramic,Chip LGE 0CC560BK41A Contact Us For Availability
C403
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C404
Capacitor,Ceramic,Ch LGE EAE35171501 Contact Us For Availability
C405
Capacitor,Ceramic,Ch LGE 0CC390BK4AA Contact Us For Availability
C420
Capacitor,Ceramic,Chip LGE EAE58746801 Contact Us For Availability
C436
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C442
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C449
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C458
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C622
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C628
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C703
Capacitor,Ceramic,Chip LGE 0CK472CK56A Contact Us For Availability
C713
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C721
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C725
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C739
Capacitor,Ceramic,Chip LGE 0CH2122K516 Contact Us For Availability
C809
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C811
Capacitor,AL,Chip LGE EAE60171702 Contact Us For Availability
C812
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C825
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C826
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C833
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C836
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
CA1
Harness,Single LGE EAD61646701 Contact Us For Availability
CA1
Harness,Single LGE EAD61646202 Contact Us For Availability
CA2
Harness,Single LGE EAD61646601 Contact Us For Availability
CA2
Harness,Single LGE EAD61649301 Contact Us For Availability
CA3
Harness,Single LGE EAD43532606 Contact Us For Availability
CA10
Harness,Single LGE EAD60958306 Contact Us For Availability
D1
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D401
Diode,TVS LGE EAH36618701 Contact Us For Availability
D402
Diode,Switching LGE EAH60666101 Contact Us For Availability
D502
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D622
Diode,TVS LGE EAH39491701 Contact Us For Availability
GHJ
Card LGE 3840TRL098E Contact Us For Availability
IC1
Display SOC,Digital TV LGE EAN60351402 Contact Us For Availability
IC201
IC,DDR2 SDRAM LGE EAN55706101 Contact Us For Availability
IC301
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC304
IC,Voltage Regulator LGE EAN60994801 Contact Us For Availability
IC307
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC308
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC401
IC,Tuner LGE EAN61857401 Contact Us For Availability
IC402
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC501
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC602
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC602
IC,EEPROM LGE EAN35989901 Contact Us For Availability
IC704
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC801
IC,Audio Amplifier LGE EAN60354701 Contact Us For Availability
JK401
Connector,RF LGE EAG60685102 Contact Us For Availability
JK503
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK601
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK602
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK603
Jack,RCA LGE EAG61007601 Contact Us For Availability
JK604
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK609
Jack,RCA LGE EAG61007801 Contact Us For Availability
JK701
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK702
Connector,USB LGE EAG62571101 Contact Us For Availability
L313
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L403
Inductor,Wire Wound,Chip LGE EAP59193504 Contact Us For Availability
L405
Inductor,Wire Wound,Chip LGE EAP59177601 Contact Us For Availability
L801
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD61668703 Contact Us For Availability
M10
Gasket LGE MDS62110205 Contact Us For Availability
P301
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P701
Connector,FFC/FPC/PIC LGE EAG61008602 Contact Us For Availability
P704
Connector,Wafer LGE EAG58732901 Contact Us For Availability
P802
Connector,Wafer LGE EAG61091601 Contact Us For Availability
Q301
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q502
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R6
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R14
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R26
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R33
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R34
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R35
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R204
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R219
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R221
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R304
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R406
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ4991C478 Contact Us For Availability
R412
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R414
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R429
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R437
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R516
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R531
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R537
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R604
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R625
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R641
Resistor,Chip LGE 0RJ0272C678 Contact Us For Availability
R704
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R707
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R716
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R723
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R746
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R753
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R803
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R807
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R811
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
SCD
Card LGE 3840VA0042L Contact Us For Availability
VR502
VARISTOR LGE 6102W5V016A Contact Us For Availability
X401
Crystal LGE EAW43548907 Contact Us For Availability
X402
Crystal LGE 6212AB2015C Contact Us For Availability
× ![]()
