Model LG 60PT200C – Common Parts & Diagrams

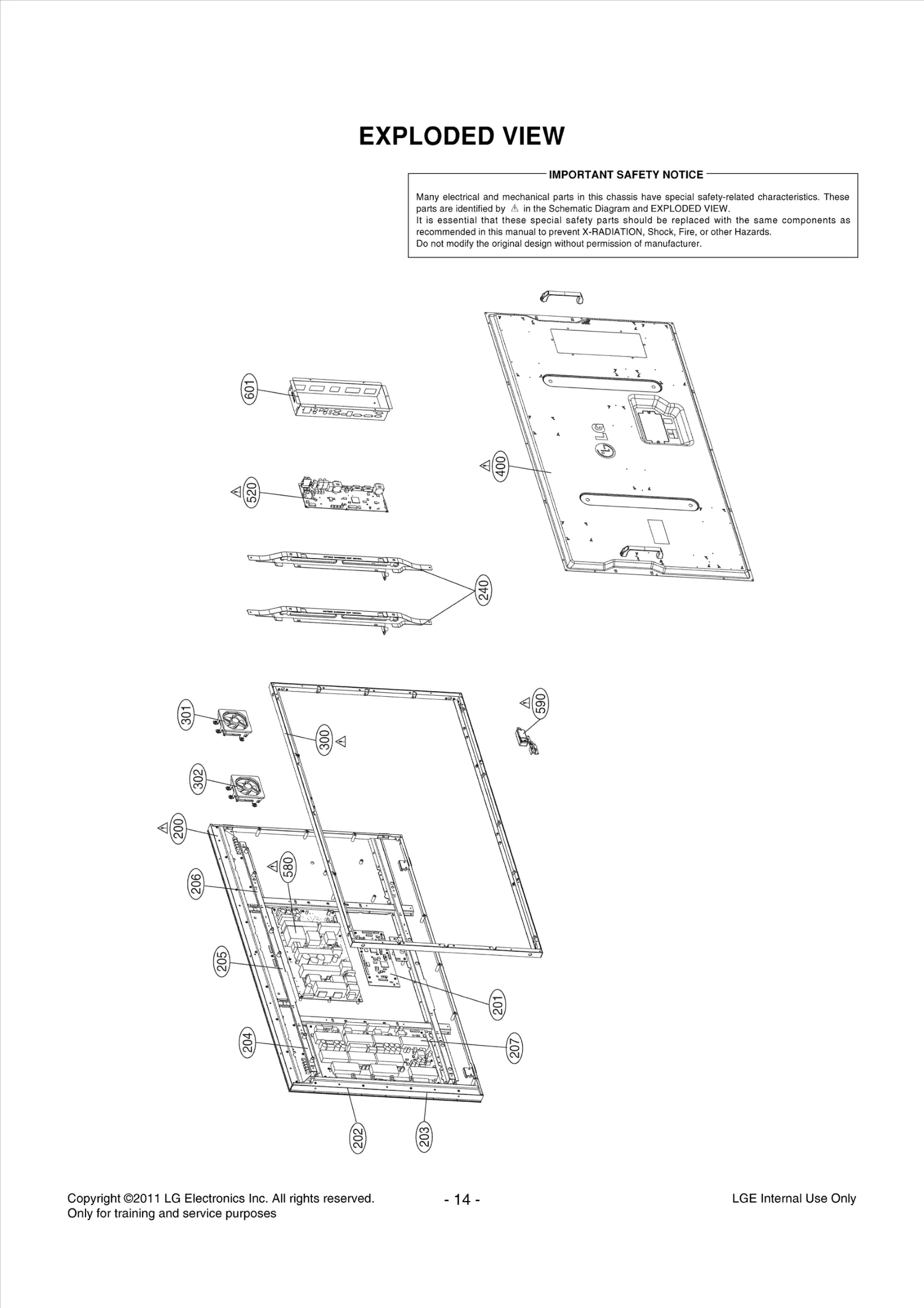

Diagram 0
Diagram 1
Common parts from model LG 60PT200C
200
PDP,Module-XGA LGE EAJ60990025 Contact Us For Availability
201
Hand Insert PCB Assembly LGE EBR73501101 Contact Us For Availability
202
Hand Insert PCB Assembly LGE EBR73499001 Contact Us For Availability
204
Hand Insert PCB Assembly LGE EBR72960701 Contact Us For Availability
205
Hand Insert PCB Assembly LGE EBR72960801 Contact Us For Availability
207
Hand Insert PCB Assembly LGE EBR72958601 Contact Us For Availability
240
Supporter LGE MJH62639301 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73569201 Contact Us For Availability
302
Supporter Assembly LGE AJJ73098605 Contact Us For Availability
400
Cover Assembly LGE ACQ85911101 Contact Us For Availability
520
PCB Assembly,Main LGE EBR73921901 Contact Us For Availability
580
SMPS,AC/DC LGE EAY62509701 Contact Us For Availability
590
Cover Assembly LGE ACQ75455503 Contact Us For Availability
601
Supporter LGE MJH62639401 Contact Us For Availability
AR103
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR1202
Resistor,Array LGE EBC32260404 Contact Us For Availability
C246
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C249
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C258
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C332
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C371
Capacitor,AL,Chip LGE EAE32707901 Contact Us For Availability
C519
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C520
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C525
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C526
Capacitor,AL,Chip LGE EAE32707101 Contact Us For Availability
C529
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C534
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C537
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C545
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C547
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C549
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C552
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C553
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C571
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
C701
Capacitor,AL,Chip LGE EAE62522301 Contact Us For Availability
C705
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C710
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C713
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C714
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C717
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C718
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C733
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C736
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C800
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C903
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C908
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C909
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C912
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C1004
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C1245
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
D500
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D503
LED LGE 0DL233309AC Contact Us For Availability
D800
Diode,TVS LGE EAH42720601 Contact Us For Availability
D811
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D903
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D1000
Diode,TVS LGE EAH39491701 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN60920001 Contact Us For Availability
IC102
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC103
S/W,Firmware LGE SAA35862901 Contact Us For Availability
IC104
S/W,Firmware LGE SAA35903701 Contact Us For Availability
IC105
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC107
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC108
S/W,Firmware LGE SAA35144206 Contact Us For Availability
IC109
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC501
IC,DC,DC Converter LGE EAN61548102 Contact Us For Availability
IC502
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC503
IC,DC,DC Converter LGE EAN31346002 Contact Us For Availability
IC504
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC506
IC,LDO Voltage Regulator LGE EAN61328601 Contact Us For Availability
IC700
IC,Audio Amplifier LGE EAN60354701 Contact Us For Availability
IC800
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC801
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC803
IC,Multiplexer LGE EAN61133301 Contact Us For Availability
IC902
IC LGE 0IPH741400E Contact Us For Availability
IC905
IC,OP Amplifier LGE 0IPRPAD024A Contact Us For Availability
JK801
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK1001
Connector,BNC LGE 6630A90018E Contact Us For Availability
JK1003
Jack,RCA LGE 380-344A Contact Us For Availability
L321
Filter,Bead LGE EAM32500903 Contact Us For Availability
L503
Inductor,Wire Wound,Chip LGE EAP36703101 Contact Us For Availability
L507
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L802
FILTER(CIRC),EMC LGE 6200J00012A Contact Us For Availability
L903
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L909
Filter,Bead LGE EAM54407902 Contact Us For Availability
P500
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P700
Connector,Terminal LGE 385-173B Contact Us For Availability
P801
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
P900
Connector,DSUB LGE EAG43472001 Contact Us For Availability
P902
Connector,Wafer LGE EAG58732902 Contact Us For Availability
P905
Connector,Wafer LGE 6602T25008B Contact Us For Availability
P907
Connector,Wafer LGE EAG61091701 Contact Us For Availability
Q601
TRANSISTOR,FETS LGE 0TFIR80016B Contact Us For Availability
R46
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R53
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R67
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R69
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R75
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R126
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R228
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R244
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R255
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R264
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R514
Resistor,Chip LGE 0RH5102D622 Contact Us For Availability
R516
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R520
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R523
Resistor,Chip LGE 0RJ1052C478 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R529
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R605
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R705
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R714
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R718
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R728
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R834
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R864
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R899
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R916
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R939
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R945
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R962
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R966
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R982
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R995
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R1002
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R1003
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1005
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R1008
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R1014
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R1023
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R1225
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1226
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R1237
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
S1
Harness,Single LGE EAD37438304 Contact Us For Availability
S2
Harness,Single LGE EAD43532605 Contact Us For Availability
S3
Cable,Assembly LGE EAD40162502 Contact Us For Availability
S5
Cable,Assembly LGE EAD61485508 Contact Us For Availability
S6
Cable,Assembly LGE EAD61485509 Contact Us For Availability
S8
Harness,Single LGE EAD60974004 Contact Us For Availability
VR807
VARISTOR LGE 6102W5V016A Contact Us For Availability
X101
Crystal LGE EAW58239602 Contact Us For Availability
ZD801
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
