Model LG 60PS11 – Common Parts & Diagrams
Diagram 0

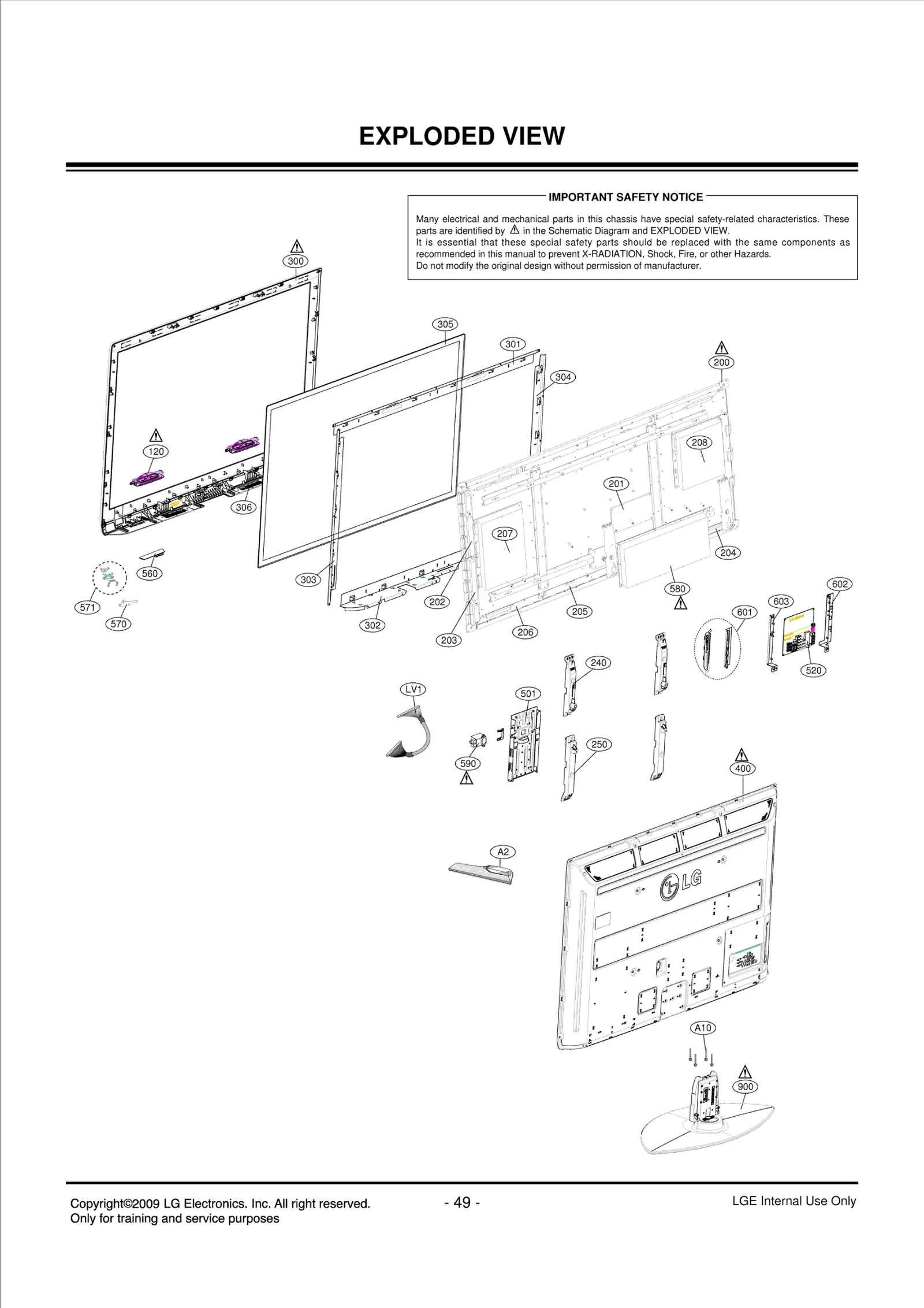

Diagram 1
Common parts from model LG 60PS11
120
Speaker,Full Range LGE EAB42609902 Contact Us For Availability
200
PDP,Module-FullHD LGE EAJ39979316 Contact Us For Availability
200
PDP,Module-FullHD LGE EAJ39979309 Contact Us For Availability
201
Hand Insert PCB Assembly LGE EBR55609201 Contact Us For Availability
204
Hand Insert PCB Assembly LGE EBR51552101 Contact Us For Availability
205
Hand Insert PCB Assembly LGE EBR51552301 Contact Us For Availability
206
Hand Insert PCB Assembly LGE EBR51552201 Contact Us For Availability
207
Hand Insert PCB Assembly LGE EBR55492901 Contact Us For Availability
208
Hand Insert PCB Assembly LGE EBR55492601 Contact Us For Availability
240
Supporter Assembly LGE AJJ35686102 Contact Us For Availability
250
Supporter Assembly LGE AJJ35097502 Contact Us For Availability
300
Cabinet Assembly LGE ABJ34780918 Contact Us For Availability
303
Supporter Assembly LGE AJJ34781902 Contact Us For Availability
304
Supporter Assembly LGE AJJ34781702 Contact Us For Availability
305
Filter LGE MDJ61888303 Contact Us For Availability
306
Bracket Assembly LGE ABA36825015 Contact Us For Availability
400
Cover Assembly LGE ACQ34782012 Contact Us For Availability
401
Cover,Rear LGE MCK40397403 Contact Us For Availability
501
Supporter LGE MJH40272603 Contact Us For Availability
520
PCB Assembly,Main LGE EBR58969205 Contact Us For Availability
520
PCB Assembly,Main LGE EBR58969223 Contact Us For Availability
560
PCB Assembly,Sub LGE EBR57840605 Contact Us For Availability
570
PCB Assembly,Sub LGE EBR61720103 Contact Us For Availability
571
Button,Power LGE MBG40265501 Contact Us For Availability
580
SMPS,AC/DC LGE EAY59547001 Contact Us For Availability
590
Filter,AC Line LGE EAM35012716 Contact Us For Availability
601
Bracket Assembly LGE ABA35619243 Contact Us For Availability
602
Bracket LGE MAZ40267901 Contact Us For Availability
603
Plate LGE MGJ41164537 Contact Us For Availability
900
Base Assembly LGE AAN67566411 Contact Us For Availability
A1
Manual,Owners LGE MFL58372904 Contact Us For Availability
A2
Remote Controller LGE MKJ42519617 Contact Us For Availability
A10
Screw,Machine LGE FAB30017506 Contact Us For Availability
A21
Cover LGE 3550V00590A Contact Us For Availability
AR6
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR503
Resistor,Array LGE 0RR0472T621 Contact Us For Availability
AR801
Resistor,Array LGE EBC32260501 Contact Us For Availability
C10
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C34
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C37
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C101
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C103
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C106
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C107
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C108
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
C325
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C340
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C361
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C531
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C542
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C552
Capacitor,AL,Chip LGE EAE36144701 Contact Us For Availability
C611
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C633
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C635
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C1022
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C1033
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C1036
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C1038
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C1041
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C1043
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C1045
Capacitor,Ceramic,Chip LGE 0CK472CK56A Contact Us For Availability
C1046
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C1047
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1048
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C1053
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C1061
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1063
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
CA1
Harness,Single LGE EAD42463807 Contact Us For Availability
CA2
Harness,Single LGE EAD37438303 Contact Us For Availability
CA3
Harness,Single LGE EAD43532601 Contact Us For Availability
CA5
Harness,Single LGE EAD39295723 Contact Us For Availability
CA6
Harness,Single LGE EAD35983002 Contact Us For Availability
CA7
Harness,Single LGE EAD57675110 Contact Us For Availability
CA10
Harness,Single LGE EAD42065908 Contact Us For Availability
D105
Diode,TVS LGE EAH33945901 Contact Us For Availability
D303
DIODE,SWITCHING LGE 0DD226239AA Contact Us For Availability
D607
Diode,TVS LGE EAH39491701 Contact Us For Availability
D628
Diode,TVS LGE EAH37828901 Contact Us For Availability
D802
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D1001
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
IC1
Display SOC,Digital TV LGE EAN60351401 Contact Us For Availability
IC1
Receiver Module LGE EAV38493101 Contact Us For Availability
IC2
IC,Ambient Light Sensor LGE EBD60010902 Contact Us For Availability
IC201
IC,EEPROM LGE EAN43349002 Contact Us For Availability
IC202
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC203
IC,DDR2 SDRAM LGE EAN55705501 Contact Us For Availability
IC203
IC,DDR2 SDRAM LGE EAN60762901 Contact Us For Availability
IC302
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC304
IC,POWER MANAGEMENT LGE 0IPMG00048A Contact Us For Availability
IC503
IC,POWER MANAGEMENT LGE 0IPMGKE044A Contact Us For Availability
IC504
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC802
IC,EEPROM LGE EAN35989901 Contact Us For Availability
IC804
IC,Analog Switch LGE EAN60223701 Contact Us For Availability
IC1001
IC,Audio Amplifier LGE EAN60354701 Contact Us For Availability
JK601
Jack,Complex LGE EAG59951701 Contact Us For Availability
JK604
Connector,DSUB LGE 6630TGA004P Contact Us For Availability
JK604
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK605
Connector,DSUB LGE 6630G00001D Contact Us For Availability
JK606
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK607
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK802
Jack,DIN LGE EAG39789402 Contact Us For Availability
L318
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L331
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L502
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L507
Inductor,Multilayer,Chip LGE EAP57674101 Contact Us For Availability
L508
Inductor,Multilayer,Chip LGE EAP43931506 Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P101
Connector,Wafer LGE 6630V90141D Contact Us For Availability
P102
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P1001
Connector,Wafer LGE EAG58732901 Contact Us For Availability
P1003
Connector,FFC/FPC/PIC LGE EAG60692001 Contact Us For Availability
P1005
WAFER LGE 6602T25009C Contact Us For Availability
Q801
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1002
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R47
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R54
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R68
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R69
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD6200F609 Contact Us For Availability
R106
RESISTOR FIXED CARBON FILM APG LGE 0RD3601F609 Contact Us For Availability
R106
Resistor,Chip LGE EBC32176501 Contact Us For Availability
R107
Resistor,Carbon Film LGE 0RD9101F609 Contact Us For Availability
R114
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R115
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R118
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ9103C478 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R321
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R326
Resistor,Chip LGE 0RJ0562D477 Contact Us For Availability
R327
Resistor,Chip LGE 0RJ1180D477 Contact Us For Availability
R340
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R504
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R531
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R621
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R672
Resistor,Chip LGE 0RJ0272D677 Contact Us For Availability
R681
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R709
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R839
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R881
Resistor,Chip LGE 0RH1800D422 Contact Us For Availability
R886
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R890
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R922
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R939
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1004
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1041
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R1044
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R1048
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R1056
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1081
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1083
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
SW101
Switch,Tact LGE EBF43466201 Contact Us For Availability
TU501
Tuner,Analog/Digital LGE EBL60152901 Contact Us For Availability
VR921
VARISTOR LGE 6102W5V016A Contact Us For Availability
X501
Crystal LGE 6212AB2015C Contact Us For Availability
× ![]()
