Model LG 60PN5700 – Common Parts & Diagrams

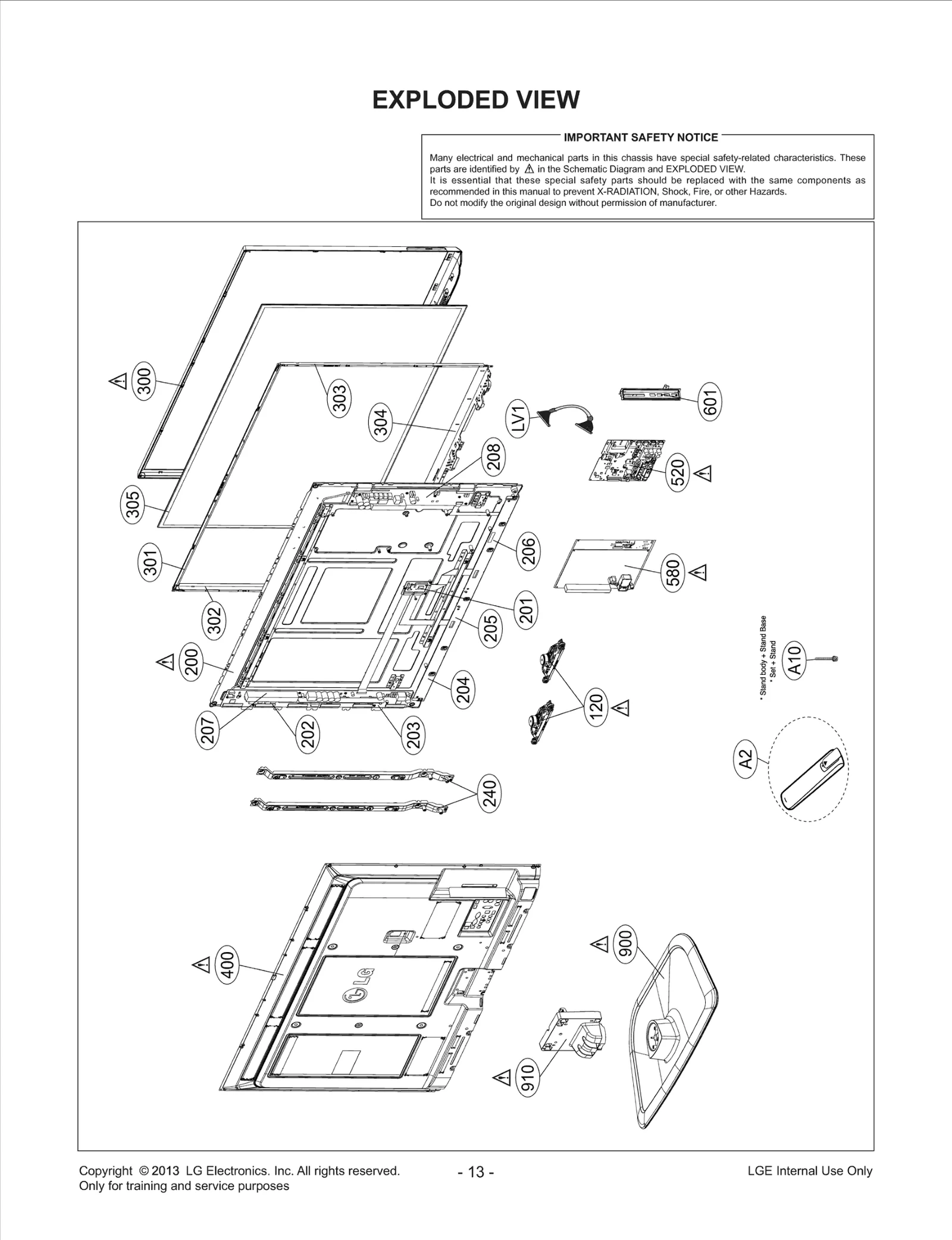

Diagram 0
Diagram 1
Common parts from model LG 60PN5700
200
PDP,Module-FullHD LGE EAJ61908715 Contact Us For Availability
201
Hand Insert PCB Assembly LGE EBR75545101 Contact Us For Availability
204
Hand Insert PCB Assembly LGE EBR75512701 Contact Us For Availability
206
Hand Insert PCB Assembly LGE EBR75513301 Contact Us For Availability
207
Hand Insert PCB Assembly LGE EBR75455701 Contact Us For Availability
208
Hand Insert PCB Assembly LGE EBR75486901 Contact Us For Availability
240
Supporter Assembly LGE AJJ73859405 Contact Us For Availability
300
Cover Assembly LGE ACQ86528503 Contact Us For Availability
301
Supporter Assembly LGE AJJ73859005 Contact Us For Availability
302
Supporter Assembly LGE AJJ73859105 Contact Us For Availability
303
Supporter Assembly LGE AJJ73859205 Contact Us For Availability
304
Supporter Assembly LGE AJJ73859305 Contact Us For Availability
305
Filter LGE MDJ63725401 Contact Us For Availability
305
Filter LGE MDJ63428204 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86271951 Contact Us For Availability
520
Chassis Assembly LGE EBT62495012 Contact Us For Availability
530
Module,WLAN LGE EAT61813801 Contact Us For Availability
601
Bracket Assembly LGE ABA74310123 Contact Us For Availability
900
Base Assembly LGE AAN74288607 Contact Us For Availability
910
Supporter LGE MJH62876005 Contact Us For Availability
AM
Manual Assembly LGE AFN75893317 Contact Us For Availability
AR100
Resistor,Array LGE EBC32260401 Contact Us For Availability
AR8100
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
B1
Box LGE MAY65969602 Contact Us For Availability
B2
Box LGE MAY65490739 Contact Us For Availability
C107
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CZZB00042A Contact Us For Availability
C312
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C355
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C375
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C511
Capacitor,Ceramic,Chip LGE EAE62764101 Contact Us For Availability
C707
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C735
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1114
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C1118
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1123
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C1125
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C1127
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C3004
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C3319
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C3625
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C3802
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C3811
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C3812
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C3816
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C3820
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C4104
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C4105
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C4305
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
C6551
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
CA1
Harness,Single LGE EAD61646234 Contact Us For Availability
CA2
Harness,Single LGE EAD62331501 Contact Us For Availability
CA3
Harness,Single LGE EAD60958310 Contact Us For Availability
CA4
Harness,Single LGE EAD62292801 Contact Us For Availability
D100
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D3301
Diode,Switching LGE EAH61714301 Contact Us For Availability
D3312
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3314
Diode,Schottky LGE EAH40478101 Contact Us For Availability
IC100
IC,EEPROM LGE EAN61548301 Contact Us For Availability
IC100
IC,EEPROM LGE EAN62665901 Contact Us For Availability
IC105
Display SOC,Digital TV LGE EAN62651401 Contact Us For Availability
IC702
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC702
IC,DDR3 SDRAM LGE EAN62668101 Contact Us For Availability
IC703
IC,DDR3 SDRAM LGE EAN62668001 Contact Us For Availability
IC703
IC,DDR3 SDRAM LGE EAN62571101 Contact Us For Availability
IC703
IC,DDR3 SDRAM LGE EAN62429101 Contact Us For Availability
IC1101
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC1102
IC,DC,DC Converter LGE EAN62653301 Contact Us For Availability
IC3303
IC,Receiver LGE EAN62458601 Contact Us For Availability
IC3801
IC,Audio Amplifier LGE EAN62668201 Contact Us For Availability
IC4305
IC,Analog Switch LGE EAN62786701 Contact Us For Availability
IC6503
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC8100
IC,MCP,eMMC LGE EAN62570501 Contact Us For Availability
JK3302
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK3607
Jack,Modular LGE EAG35781006 Contact Us For Availability
JK3608
Jack,RCA LGE EAG60968202 Contact Us For Availability
JK4302
Connector,USB LGE EAG62571101 Contact Us For Availability
L1102
Filter,Bead LGE EAM38769505 Contact Us For Availability
L1107
Inductor,Wire Wound,Chip LGE EAP62026301 Contact Us For Availability
L3805
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
MA2
Bracket LGE MAZ63514902 Contact Us For Availability
P300
Connector,FFC/FPC/PIC LGE EAG61008602 Contact Us For Availability
P1100
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P3801
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P4100
Connector,Wafer LGE EAG61091502 Contact Us For Availability
Q100
FET LGE EBK61913601 Contact Us For Availability
Q1100
FET LGE EBK60752601 Contact Us For Availability
Q1102
FET LGE EBK60752501 Contact Us For Availability
Q3305
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q3307
FET LGE EBK42767801 Contact Us For Availability
Q7103
FET LGE EBK62091801 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R133
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R142
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R315
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R334
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R363
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R380
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R590
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R711
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1102
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R1103
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R1106
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R1108
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R1115
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R1121
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R1122
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
R1146
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R1198
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R3022
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R3033
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R3034
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R3307
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R3331
Resistor,Chip LGE 0RJ0511C478 Contact Us For Availability
R3366
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R3368
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R3373
Resistor,Chip LGE 0RJ8200C478 Contact Us For Availability
R3376
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R3378
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R3606
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R3613
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R3619
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R3620
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R3813
RESISTOR,METAL GLAZE LGE 0RJ0392D677 Contact Us For Availability
R4111
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R6531
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
X100
Crystal LGE EAW61645503 Contact Us For Availability
X3000
Crystal LGE EAW58239602 Contact Us For Availability
ZD3605
Diode,Zener LGE EAH61752501 Contact Us For Availability
ZD36006
Varistor LGE EAF61530101 Contact Us For Availability
ZD36023
Varistor LGE EAF61630101 Contact Us For Availability
× ![]()
