Model LG 60PN530P – Common Parts & Diagrams

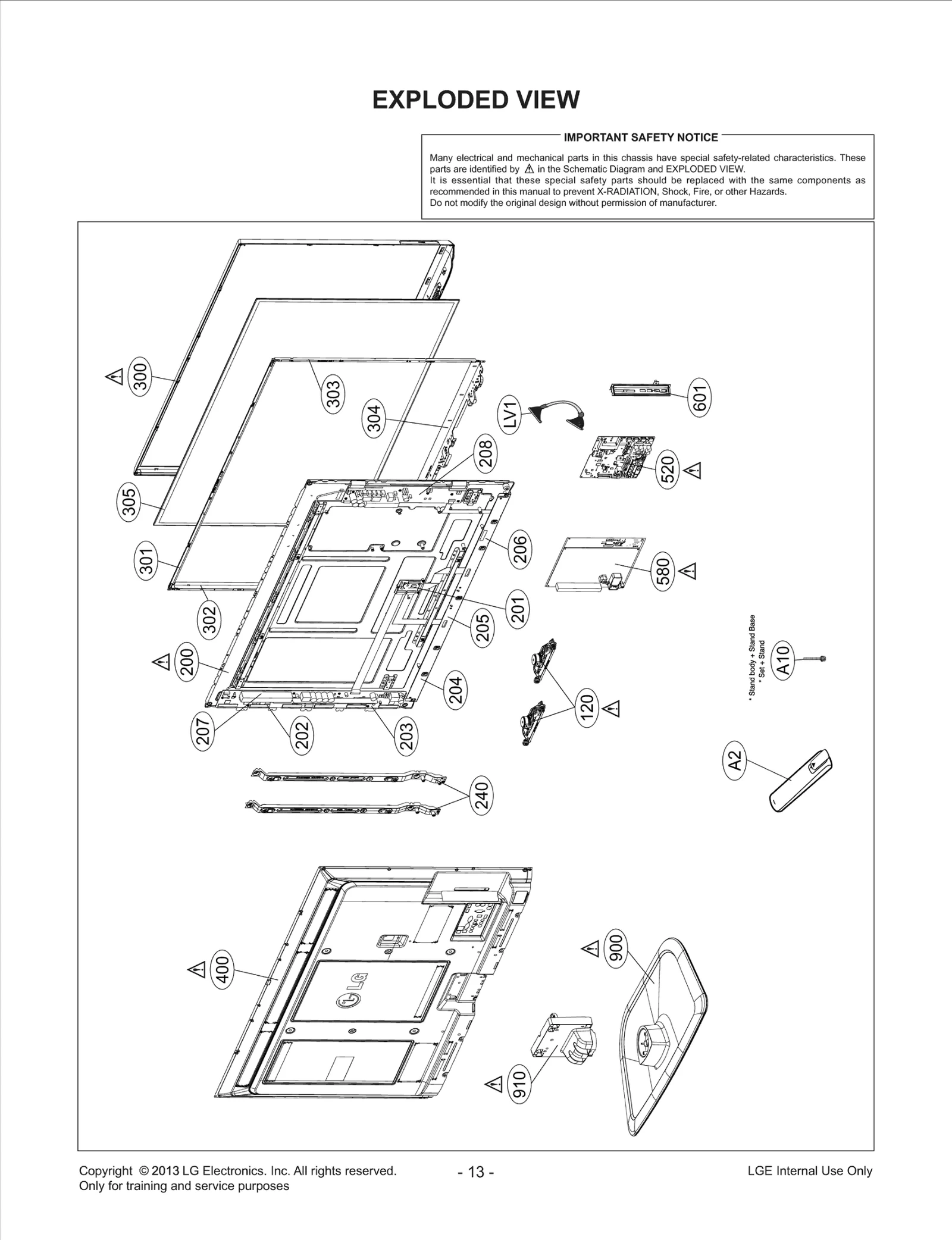

Diagram 0
Diagram 1
Common parts from model LG 60PN530P
200
PDP,Module-FullHD LGE EAJ61908715 Contact Us For Availability
201
Hand Insert PCB Assembly LGE EBR75545101 Contact Us For Availability
204
Hand Insert PCB Assembly LGE EBR75512701 Contact Us For Availability
206
Hand Insert PCB Assembly LGE EBR75513301 Contact Us For Availability
207
Hand Insert PCB Assembly LGE EBR75455701 Contact Us For Availability
208
Hand Insert PCB Assembly LGE EBR75486901 Contact Us For Availability
240
Supporter Assembly LGE AJJ73859405 Contact Us For Availability
300
Cover Assembly LGE ACQ86528502 Contact Us For Availability
301
Supporter Assembly LGE AJJ73859205 Contact Us For Availability
302
Supporter Assembly LGE AJJ73859005 Contact Us For Availability
303
Supporter Assembly LGE AJJ73859305 Contact Us For Availability
304
Supporter Assembly LGE AJJ73859105 Contact Us For Availability
305
Filter LGE MDJ63428204 Contact Us For Availability
305
Filter LGE MDJ63725401 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86271949 Contact Us For Availability
520
Chassis Assembly LGE EBT62394295 Contact Us For Availability
601
Bracket Assembly LGE ABA74310104 Contact Us For Availability
900
Base Assembly LGE AAN74288607 Contact Us For Availability
910
Supporter LGE MJH62876005 Contact Us For Availability
A2
Package Assembly LGE AGF76692601 Contact Us For Availability
AR600
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR1218
Resistor,Array LGE EBC39283301 Contact Us For Availability
B1
Box LGE MAY65632202 Contact Us For Availability
B2
Box LGE MAY65490739 Contact Us For Availability
C229
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C408
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C409
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C429
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C451
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C466
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C467
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C467
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C493
Capacitor,Ceramic,Chip LGE EAE62764101 Contact Us For Availability
C611
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C620
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C623
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C626
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C628
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C633
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C679
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C684
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C686
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C692
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
CA2
Harness,Single LGE EAD61646234 Contact Us For Availability
CA3
Harness,Single LGE EAD62292801 Contact Us For Availability
CA4
Harness,Single LGE EAD58345802 Contact Us For Availability
D400
Diode,Switching LGE EAH41961301 Contact Us For Availability
D400
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D502
Varistor LGE EAF61530301 Contact Us For Availability
IC400
Display SOC,Digital TV LGE EAN62575501 Contact Us For Availability
IC503
IC,EEPROM LGE EAN43349004 Contact Us For Availability
IC503
IC,EEPROM LGE EAN43349003 Contact Us For Availability
IC601
IC,LDO Voltage Regulator LGE EAN62673301 Contact Us For Availability
IC603
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC604
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC606
IC,Audio Amplifier LGE EAN62668201 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61836301 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
JK203
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK204
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK205
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK206
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK208
Jack,RCA LGE EAG60968202 Contact Us For Availability
JK209
Connector,USB LGE EAG62571101 Contact Us For Availability
L402
Filter,Bead LGE EAM62091101 Contact Us For Availability
L409
Filter,Bead LGE EAM32500903 Contact Us For Availability
L409
Filter,Bead LGE EAM62272001 Contact Us For Availability
L605
Inductor,Wire Wound,Chip LGE EAP62107401 Contact Us For Availability
L612
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L1202
Filter,Bead LGE EAM58113401 Contact Us For Availability
L1202
Filter,Bead LGE EAM62091201 Contact Us For Availability
P500
Connector,FFC/FPC/PIC LGE EAG61008602 Contact Us For Availability
P600
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P601
Connector,Wafer LGE EAG61091601 Contact Us For Availability
Q603
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q604
FET LGE EBK60752501 Contact Us For Availability
R204
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R218
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R233
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R238
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R308
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R409
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R421
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R423
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R443
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R444
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R614
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R617
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R619
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R632
RESISTOR,METAL GLAZE LGE 0RJ0392D677 Contact Us For Availability
R639
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R641
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R648
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R662
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R673
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R674
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1203
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1235
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
VA210
Varistor LGE EAF61630101 Contact Us For Availability
VA213
Varistor LGE EAF61530101 Contact Us For Availability
X400
Crystal LGE EAW61645501 Contact Us For Availability
× ![]()
