Model LG 60PK750 – Common Parts & Diagrams

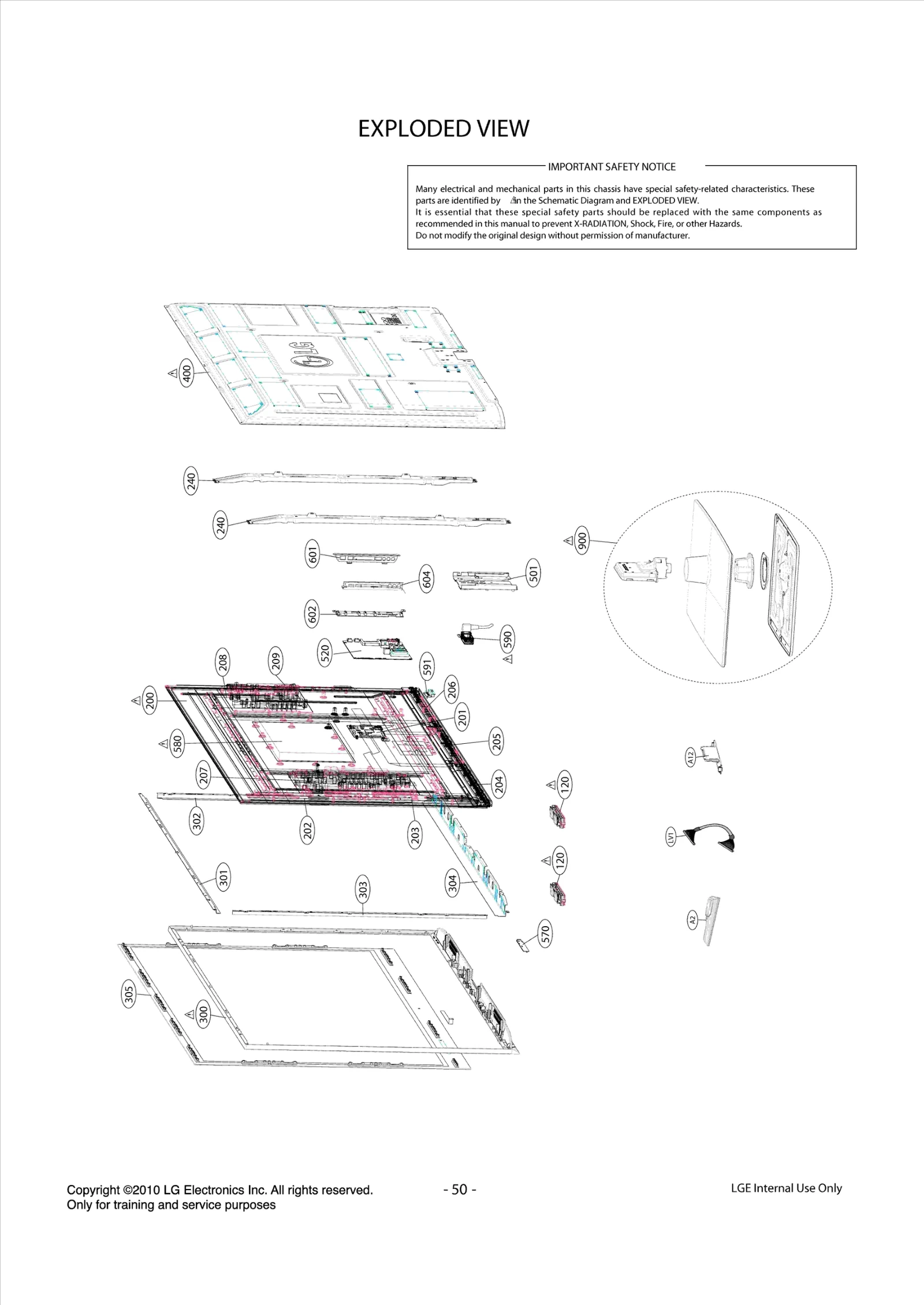

Diagram 0
Diagram 1
Common parts from model LG 60PK750
120
Speaker,Full Range LGE EAB60962801 Contact Us For Availability
200
PDP,Module-FullHD LGE EAJ60716505 Contact Us For Availability
200
PDP,Module-FullHD LGE EAJ60716507 Contact Us For Availability
201
Hand Insert PCB Assembly LGE EBR63450301 Contact Us For Availability
202
Hand Insert PCB Assembly LGE EBR63451001 Contact Us For Availability
204
Hand Insert PCB Assembly LGE EBR63451201 Contact Us For Availability
205
Hand Insert PCB Assembly LGE EBR63451301 Contact Us For Availability
206
Hand Insert PCB Assembly LGE EBR63452101 Contact Us For Availability
207
Hand Insert PCB Assembly LGE EBR63450401 Contact Us For Availability
208
Hand Insert PCB Assembly LGE EBR63450501 Contact Us For Availability
209
Hand Insert PCB Assembly LGE EBR65400401 Contact Us For Availability
240
Supporter Assembly LGE AJJ72914802 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72921103 Contact Us For Availability
301
Supporter Assembly LGE AJJ72914402 Contact Us For Availability
302
Supporter Assembly LGE AJJ72914603 Contact Us For Availability
304
Supporter Assembly LGE AJJ72914502 Contact Us For Availability
305
Filter LGE MDJ61968307 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ74713706 Contact Us For Availability
501
Supporter Assembly LGE AJJ72914902 Contact Us For Availability
520
PCB Assembly LGE EBR68027902 Contact Us For Availability
570
PCB Assembly,Sub LGE EBR65007702 Contact Us For Availability
580
SMPS,AC/DC LGE EAY60968901 Contact Us For Availability
590
Filter,AC Line LGE EAM60352510 Contact Us For Availability
602
Plate,Metal LGE MGJ62481721 Contact Us For Availability
604
Plate,Shield LGE MGJ61965303 Contact Us For Availability
900
Base Assembly LGE AAN72944904 Contact Us For Availability
A1
Manual,Owners LGE MFL62882705 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72914002 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A12
Cover LGE MCK62681502 Contact Us For Availability
A21
Cover,Rear LGE MCK62976001 Contact Us For Availability
AR612
Resistor,Array LGE EBC37094001 Contact Us For Availability
C107
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C127
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C221
Capacitor,Ceramic,Chip LGE 0CH2682K516 Contact Us For Availability
C222
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C228
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C302
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C309
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C314
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C318
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C321
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C322
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C337
Capacitor,Ceramic,Chip LGE 0CK684CK94A Contact Us For Availability
C339
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C407
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C420
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C424
Capacitor,Ceramic,Chip LGE EAE60985601 Contact Us For Availability
C430
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C441
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C455
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C643
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C645
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C646
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C682
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C724
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C727
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C900
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C908
Capacitor,Ceramic,Chip LGE EAE60685701 Contact Us For Availability
C933
Capacitor,Ceramic,Chip LGE EAE60685801 Contact Us For Availability
C937
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C971
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C1124
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1301
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C1302
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C1422
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1424
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
CA3
Harness,Single LGE EAD60958410 Contact Us For Availability
CA4
Harness,Single LGE EAD43532601 Contact Us For Availability
CA5
Harness,Single LGE EAD37438306 Contact Us For Availability
CA10
Harness,Single LGE EAD60958306 Contact Us For Availability
D44
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
D46
Diode,TVS LGE EAH33945901 Contact Us For Availability
D121
Diode,TVS LGE EAH60667401 Contact Us For Availability
D200
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
HT500
Heat Sink LGE MED61849701 Contact Us For Availability
IC101
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC300
IC,Audio Amplifier LGE EAN60354701 Contact Us For Availability
IC402
IC,DC,DC Converter LGE EAN31346002 Contact Us For Availability
IC403
IC,LDO Voltage Regul LGE 0IPMG78346A Contact Us For Availability
IC406
IC,POWER MANAGEMENT LGE 0IPMG00048A Contact Us For Availability
IC500
IC,NAND Flash Memory LGE EAN61009301 Contact Us For Availability
IC501
Display SOC,Digital TV LGE EAN60345901 Contact Us For Availability
IC700
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC701
IC,Microcontrollers LGE EAN59750501 Contact Us For Availability
IC704
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC705
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC707
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC1102
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC1400
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
JK100
Jack,RCA LGE EAG61007801 Contact Us For Availability
JK101
Jack,RCA LGE EAG61007601 Contact Us For Availability
JK104
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK200
Jack,DIN LGE EAG59023303 Contact Us For Availability
JK203
Jack,DIN LGE EAG42025501 Contact Us For Availability
JK1300
Connector,I/O LGE EAG61008301 Contact Us For Availability
L303
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L404
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L411
Filter,Bead LGE EAM38769505 Contact Us For Availability
L414
Filter,Bead LGE EAM58113401 Contact Us For Availability
L907
Inductor,Wire Wound, LGE EAP37991401 Contact Us For Availability
LV1
Cable,FFC LGE EAD60856512 Contact Us For Availability
P100
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
P300
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P400
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P700
Connector,Wafer LGE 6602T12004L Contact Us For Availability
P701
Connector,DSUB LGE 6630G00001E Contact Us For Availability
P703
Connector,Wafer LGE 6630V90141H Contact Us For Availability
P900
Connector,Wafer LGE 6630V90209C Contact Us For Availability
P902
Connector,FFC/FPC/PIC LGE EAG60692001 Contact Us For Availability
Q106
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q200
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1300
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q1301
FET LGE EBK60752501 Contact Us For Availability
R115
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R142
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R143
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R148
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R155
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R270
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R283
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R321
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R326
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R327
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R403
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R404
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R409
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R426
Resistor,Chip LGE EBC32306001 Contact Us For Availability
R427
RESISTOR,METAL GLAZE LGE 0RJ0662D477 Contact Us For Availability
R430
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R431
RESISTOR,METAL GLAZE LGE 0RJ1302E472 Contact Us For Availability
R436
Resistor,Chip LGE EBC44038701 Contact Us For Availability
R442
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R445
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R550
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R568
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R613
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R614
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R621
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R738
Resistor,Chip LGE 0RJ1503D677 Contact Us For Availability
R746
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R754
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R755
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R759
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R773
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R783
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R785
Resistor,Chip LGE EBC32176601 Contact Us For Availability
R792
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R813
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R817
RESISTOR,METAL GLAZE LGE 0RJ0822D477 Contact Us For Availability
R821
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R828
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R829
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R830
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R879
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R910
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R912
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R913
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R1129
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1318
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1403
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R1426
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1436
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
SWM
Switch,Membrane LGE EBF60735401 Contact Us For Availability
TU1400
Tuner,Analog/Digital LGE EBL60720401 Contact Us For Availability
X701
Crystal LGE EAW39040101 Contact Us For Availability
X900
Crystal LGE 6212AA2600E Contact Us For Availability
× ![]()
Login and Registration Form
