Model LG 60PJ104C – Common Parts & Diagrams

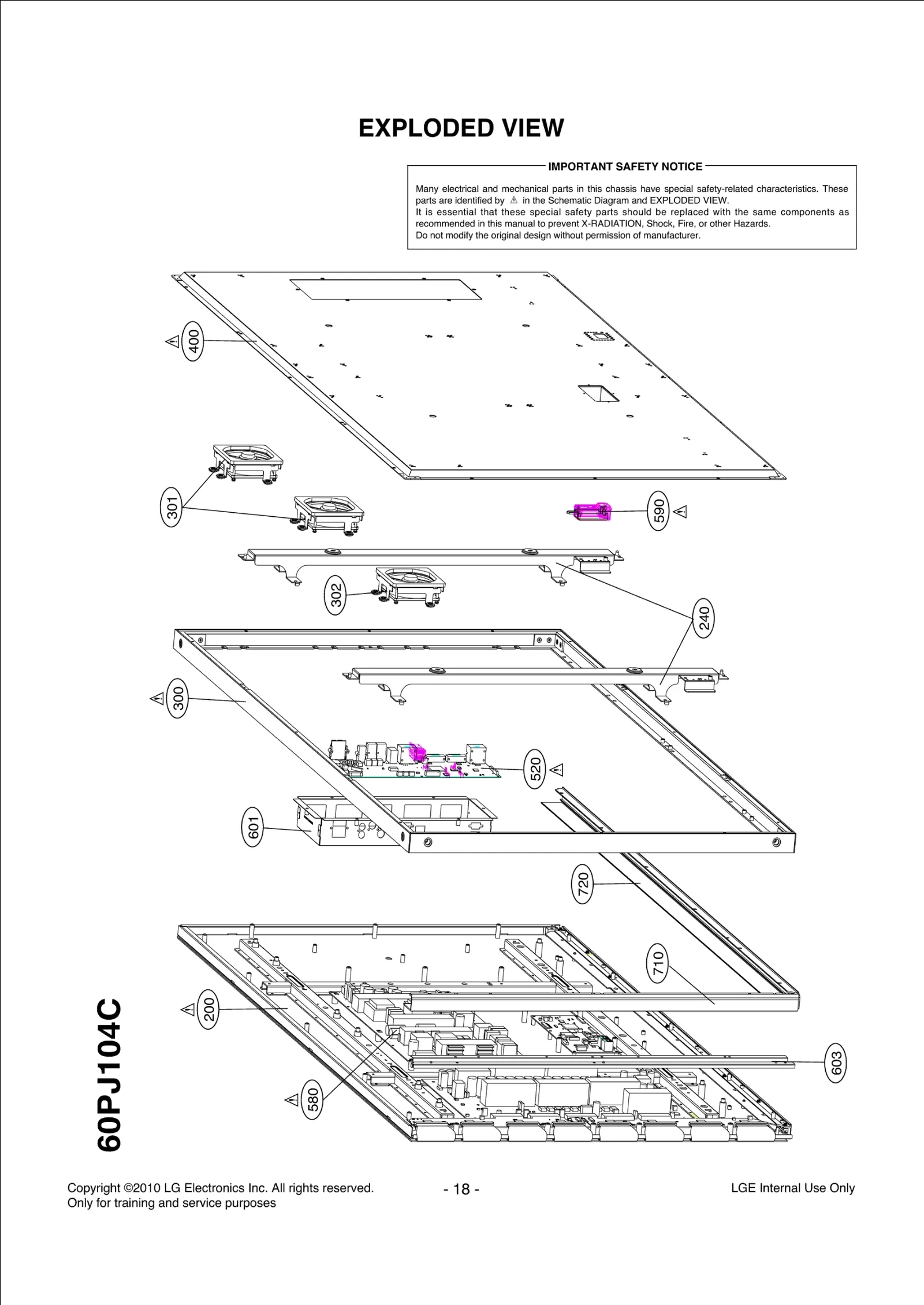

Diagram 0
Diagram 1
Common parts from model LG 60PJ104C
200
PDP,Module-XGA LGE EAJ60990023 Contact Us For Availability
240
Supporter LGE MJH62074701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73127101 Contact Us For Availability
301
Supporter Assembly LGE AJJ73098601 Contact Us For Availability
302
Supporter Assembly LGE AJJ73098602 Contact Us For Availability
400
Cover Assembly LGE ACQ77069601 Contact Us For Availability
520
PCB Assembly,Main LGE EBR69908801 Contact Us For Availability
580
SMPS,AC/DC LGE EAY61230501 Contact Us For Availability
590
Filter,AC Line LGE EAM60352510 Contact Us For Availability
601
Supporter LGE MJH62079101 Contact Us For Availability
603
Supporter LGE MJH62193601 Contact Us For Availability
720
Frame LGE MDQ62556601 Contact Us For Availability
A1
Manual,Owners LGE MFL62881362 Contact Us For Availability
AR102
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR1209
Resistor,Array LGE EBC32260404 Contact Us For Availability
C17
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C246
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C249
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C257
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C262
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C332
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C371
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C507
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C508
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C519
CAPACITOR,FIXED ELEC LGE 0CE227WJ6DC Contact Us For Availability
C525
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C528
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C531
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C533
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C534
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C539
Capacitor,AL,Chip LGE 0CE476WK6DC Contact Us For Availability
C547
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C548
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C552
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C701
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C705
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C712
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C714
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C716
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C731
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C800
Capacitor,AL,Chip LGE 0CE477SF6DC Contact Us For Availability
C902
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C906
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C928
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C1005
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C1246
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
D500
Diode,Schottky LGE EAH40478101 Contact Us For Availability
D501
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D503
LED LGE 0DL233309AC Contact Us For Availability
D800
Diode,TVS LGE EAH42720601 Contact Us For Availability
D801
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D1000
Diode,TVS LGE EAH39491701 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN60920001 Contact Us For Availability
IC102
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC103
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC104
IC,NAND Flash Memory LGE EAN60708701 Contact Us For Availability
IC105
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC107
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC108
IC,Microcontrollers LGE EAN59750501 Contact Us For Availability
IC109
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC501
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC502
IC,DC,DC Converter LGE EAN35520901 Contact Us For Availability
IC503
IC,DC,DC Converter LGE EAN31346002 Contact Us For Availability
IC504
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC505
IC,LDO Voltage Regulator LGE EAN60906401 Contact Us For Availability
IC506
IC,LDO Voltage Regulator LGE EAN61328601 Contact Us For Availability
IC601
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC700
IC,Audio Amplifier LGE EAN60354701 Contact Us For Availability
IC800
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC803
IC,Multiplexer LGE EAN61133301 Contact Us For Availability
IC804
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC902
IC LGE 0IPH741400E Contact Us For Availability
IC903
IC,OP Amplifier LGE 0IPRPAD024A Contact Us For Availability
IC1202
IC,DDR3 SDRAM LGE EAN60899902 Contact Us For Availability
JK1001
Connector,BNC LGE 6630A90018E Contact Us For Availability
JK1003
Jack,RCA LGE 380-344A Contact Us For Availability
L500
Filter,Bead LGE EAM58113401 Contact Us For Availability
L503
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L505
Filter,Bead LGE EAM30764101 Contact Us For Availability
L506
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L801
FILTER(CIRC),EMC LGE 6200J00012A Contact Us For Availability
L905
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L909
Filter,Bead LGE EAM54407902 Contact Us For Availability
L1201
Filter,Bead LGE EAM32500903 Contact Us For Availability
LV1
Harness,Single LGE EAD60974005 Contact Us For Availability
P101
Connector,Wafer LGE 6602T12004L Contact Us For Availability
P500
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P700
Connector,Terminal LGE 385-173B Contact Us For Availability
P801
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
P900
Connector,DSUB LGE EAG43472001 Contact Us For Availability
P902
Connector,Wafer LGE EAG58732902 Contact Us For Availability
P904
Connector,Wafer LGE 6602T25008B Contact Us For Availability
P907
Connector,Wafer LGE EAG61091701 Contact Us For Availability
Q500
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
Q601
TRANSISTOR,FETS LGE 0TFIR80016B Contact Us For Availability
Q801
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q802
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q1001
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R21
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R75
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R82
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R204
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R224
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R235
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R240
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R244
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R255
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R266
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R510
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R513
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R514
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R516
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R520
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R605
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R714
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R718
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R802
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R804
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R832
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R865
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R870
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R919
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R939
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R941
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R945
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R959
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R968
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R986
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R995
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R1008
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R1012
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R1018
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R1022
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R1023
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R1203
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R1224
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1238
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
S1
Harness,Single LGE EAD43532604 Contact Us For Availability
S2
Harness,Single LGE EAD37438304 Contact Us For Availability
VR807
VARISTOR LGE 6102W5V016A Contact Us For Availability
X101
Crystal LGE EAW39040101 Contact Us For Availability
ZD800
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
